EN 3018:2019

Aerospace series - Heat resisting alloy NI-PH2801 (NiCr16Fe7Ti3Nb1Al1) - Consumable electrode remelted - Cold drawn wire for the manufacture of thread inserts - D ≤ 3 mm

This European Standard specifies the requirements relating to:
Heat resisting alloy NI-PH2801 (NiCr16Fe7Ti3Nb1Al1)
Consumable electrode remelted
Cold drawn wire for the manufacture
of the thread inserts
D  3 mm
for aerospace applications.

Luft- und Raumfahrt - Hochwarmfeste Legierung NI-PH2801 (NiCr16Fe7Ti3Nb1Al1) - Mit selbstverzehrender Elektrode umgeschmolzen - Drähte, kaltgezogen, für die Herstellung von Gewindeeinsätzen - D ≤ 3 mm

Diese Europäische Norm legt die Anforderungen an:
Hochwarmfeste Legierung NI-PH2801 (NiCr16Fe7Ti3Nb1Al1)
mit selbstverzehrender Elektrode umgeschmolzen
Drähte, kaltgezogen, für die Herstellung
von Gewindeeinsätzen
D ≤ 3 mm
für Anwendungen in der Luft- und Raumfahrt fest.

Série aérospatiale - Alliage résistant à chaud NI-PH2801 (NiCr16Fe7Ti3Nb1Al1) - Refondu à l'électrode consommable - Fil étiré à froid pour la fabrication de filets rapportés - D ≤ 3 mm

La présente Norme européenne spécifie les exigences relatives à :
Alliage résistant à chaud NI-PH2801 (NiCr16Fe7Ti3Nb1Al1)
Refondu à l'électrode consommable
Fil étiré à froid pour la fabrication de filets rapportés
D ≤ 3 mm
pour applications aérospatiales.

Aeronavtika - Toplotno odporna zlitina NI-PH2801 (NiCr16Fe7Ti3Nb1Al1) - Pretaljena s taljivo elektrodo - Hladno vlečena žica za proizvodnjo navojnih vložkov - D ≤ 3 mm

Ta dokument določa zahteve, ki se navezujejo na: toplotno odporna zlitina NI-PH2801 (NiCr16Fe7Ti3Nb1Al1), pretaljena s taljivo elektrodo, hladno vlečena žica za proizvodnjo navojnih vložkov, D ≤ 3 mm, za uporabo v aeronavtiki.

General Information

• Status: Published
• Publication Date: 03-Dec-2019
• Withdrawal Date: 29-Jun-2020
• ICS: 49.025.15 - Non-ferrous alloys in general
• Technical Committee: ASD-STAN - Aerospace
• Drafting Committee: ASD-STAN/D 4 - Metallic
• Current Stage: 6060 - Definitive text made available (DAV) - Publishing
• Start Date: 04-Dec-2019
• Completion Date: 04-Dec-2019
• Ref Project: SIST EN 3018:2020 - Aerospace series - Heat resisting alloy NI-PH2801 (NiCr16Fe7Ti3Nb1Al1) - Consumable electrode remelted - Cold drawn wire for the manufacture of thead inserts - D ≤ 3 mm

Overview - EN 3018:2019 (Aerospace series)

EN 3018:2019 is a CEN (European) material standard that defines requirements for the heat‑resisting alloy NI‑PH2801 (NiCr16Fe7Ti3Nb1Al1) supplied as consumable‑electrode remelted, cold‑drawn wire for the manufacture of thread inserts with diameter D ≤ 3 mm for aerospace use. It forms part of the aerospace metallic materials series and prescribes composition, production, delivery condition, mechanical performance and inspection criteria for high‑temperature, nickel‑base wire used in critical fastening applications.

Key topics and requirements

• Material designation: NI‑PH2801 (NiCr16Fe7Ti3Nb1Al1), a nickel‑base, heat‑resisting alloy.
• Chemical composition: The standard specifies element limits. Representative ranges (see EN 3018:2019 table) include:
  • Cr 14.0–17.0%, Fe 5.0–9.0%, Nb (+Ta) 0.70–1.20%, Ti 2.25–2.75%, Al 0.40–1.00%, Cu ≤0.50%; Ni as balance.
  • Carbon, silicon, manganese and trace impurities are controlled (e.g., C ≤0.08%, Si ≤0.50%, Mn ≤1.00%, P ≤0.015%, S ≤0.010%, Co ≤1.00%).
• Manufacture: Consumable electrode remelted melting method; cold drawn wire form; limit diameter D ≤ 3 mm.
• Delivery condition: Code U (cold drawn). A specified use condition heat treatment is +700 °C ±5 °C for ≥4 h followed by air cooling (AC).
• Mechanical performance: Minimum tensile strength (Rm) thresholds are defined - for example ≥900 MPa in the delivery condition and ≥1 240 MPa after the +700 °C use condition (see standard for complete test protocols).
• Inspection and tests: Dimensional checks, visual external defect inspection (refer EN 3235‑5), wrapping test (5 turns on mandrel = wire diameter; no cracks), and sampling/testpiece rules per EN 3235‑5. Product qualification follows EN 2043.

Applications and users

• Primary use: Wire feedstock for manufacturing thread inserts and related fastener components where elevated temperature resistance is critical (aerospace engines, hot structures, exhaust systems, and high‑temperature fastened joints).
• Who uses this standard: Aerospace materials engineers, procurement/specification writers, fastener and insert manufacturers, metallurgists, quality and inspection teams, and testing laboratories involved with aerospace component qualification.

Related standards

• EN 3235‑5 - Technical specification for wire (wrought products) of heat‑resisting alloys
• EN 2043 - General requirements for semi‑finished product qualification
• EN 4258 / EN 4500‑003 - Organization and drafting rules for aerospace metallic material standards

EN 3018:2019 provides a precise, auditable specification for high‑temperature nickel‑base wire used in aerospace thread inserts - essential for consistent material performance, procurement and component qualification.

Standards Content (Sample)

SLOVENSKI STANDARD
01-februar-2020
Aeronavtika - Toplotno odporna zlitina NI-PH2801 (NiCr16Fe7Ti3Nb1Al1) -
Pretaljena s taljivo elektrodo - Hladno vlečena žica za proizvodnjo navojnih
vložkov - D ≤ 3 mm
Aerospace series - Heat resisting alloy NI-PH2801 (NiCr16Fe7Ti3Nb1Al1) - Consumable
electrode remelted - Cold drawn wire for the manufacture of thead inserts - D ≤ 3 mm
Luft- und Raumfahrt - Hochwarmfeste Nickellegierung NI-PH2801
(NiCr16Fe7Ti3Nb1Al1) - Drähte, kaltgezogen, für die Herstellung Mit selbstverzehrender
Elektrode Umgeschmolzen von gewindeeinsätzen - D ≤ 3 mm
Série aérospatiale - Alliage résistant à chaud NI-PH2801 (NiCr16Fe7Ti3Nb1Al1) -
Refondu à l'électrode consommable - Fils étirés à froid pour la fabrication de filets
rapportés - D ≤ 3 mm
Ta slovenski standard je istoveten z: EN 3018:2019
ICS:
49.025.15 Neželezove zlitine na Non-ferrous alloys in general
splošno
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 3018
EUROPEAN STANDARD
NORME EUROPÉENNE
December 2019
EUROPÄISCHE NORM
ICS 49.025.15
English Version
Aerospace series - Heat resisting alloy NI-PH2801
(NiCr16Fe7Ti3Nb1Al1) - Consumable electrode remelted -
Cold drawn wire for the manufacture of thread inserts - D
≤ 3 mm
Série aérospatiale - Alliage résistant à chaud NI- Luft- und Raumfahrt - Hochwarmfeste Legierung NI-
PH2801 (NiCr16Fe7Ti3Nb1Al1) - Refondu à l'électrode PH2801 (NiCr16Fe7Ti3Nb1Al1) - Mit
consommable - Fil étiré à froid pour la fabrication de selbstverzehrender Elektrode umgeschmolzen -
Drähte, kaltgezogen, für die Herstellung von
filets rapportés - D ≤ 3 mm
Gewindeeinsätzen - D ≤ 3 mm
This European Standard was approved by CEN on 14 January 2019.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 3018:2019 E
worldwide for CEN national Members.

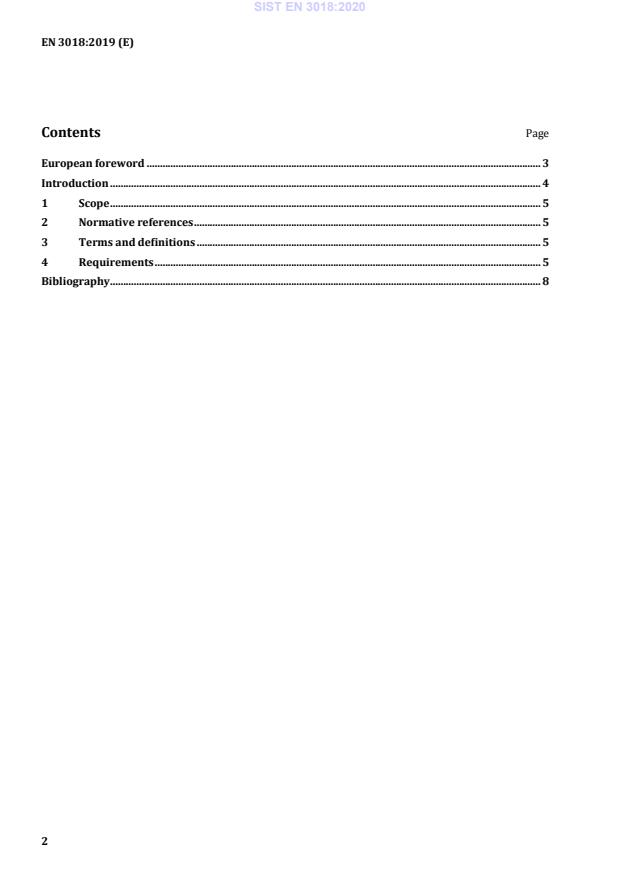

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Requirements . 5
Bibliography . 8

European foreword
This document (EN 3018:2019) has been prepared by the Aerospace and Defence Industries Association
of Europe — Standardization (ASD-STAN).
After enquiries and votes carried out in accordance with the rules of this Association, this Standard has
received the approval of the National Associations and the Official Services of the member countries of
ASD, prior to its presentation to CEN.
This document shall be given the status of a national standard, either by publication of an identical text
or by en
...
