EN 13160-7:2016+A1:2024

Leak detection systems - Part 7: Requirements and test/assessment methods for interstitial spaces, leak detection linings and leak detection jackets

This standard gives requirements and the corresponding test/assessment methods applicable to leak detection lining kits and leak detection jacket kits. Leak detection lining kits and leak detection jackets kits intended to be used as post-installed to create an interstitial space or leakage containment in single skin underground or above ground, non-pressurized, tanks designed for water polluting liquids. The kit has to be used only in conjunction with leak detection kits covered by prEN 13160-2 to prEN 13160-4.

Leckanzeigesysteme - Teil 7: Anforderungen und Prüf-/Bewertungsverfahren für Überwachungsräume, Leckschutzauskleidungen und Leckschutzummantelungen

Diese Norm legt Anforderungen an Leckschutzauskleidungen und Leckschutzummantelungen und die ent-sprechenden Prüf-/Bewertungsverfahren fest. Leckschutzauskleidungen und Leckschutzummantelungen sind für den Einsatz nach Installation zur Schaffung eines Überwachungsraums oder eines Leckageraumes in einwandigen, unterirdischen oder oberirdischen, nicht druckbeaufschlagten Tanks vorgesehen, die für wassergefährdende Flüssigkeiten ausgelegt sind. Das System ist ausschließlich in Verbindung mit den von prEN 13160 2 bis prEN 13160 4 abgedeckten Leckanzeigern zu verwenden.

Systèmes de détection de fuites - Partie 7: Exigences et méthodes d'essai/d'évaluation pour les espaces interstitiels, les détecteurs de fuite des revêtements et les détecteurs de fuite d'enveloppes

La présente Norme européenne spécifie les exigences et les méthodes d'essai/d'évaluation correspondantes applicables aux kits de revêtements intérieurs et aux kits de revêtements extérieurs protecteurs de fuites. Les kits de revêtements intérieurs et les kits de revêtements extérieurs protecteurs de fuites, destinés à être utilisés après installation pour créer un espace interstitiel ou un espace de confinement des fuites dans des réservoirs à simple paroi, aériens ou souterrains, sans pression, conçus pour des liquides polluant l'eau. Le kit est destiné à être utilisé conjointement aux kits de détection de fuites couverts par les EN 13160-2 à l'EN 13160-4.

Sistemi za kontrolo tesnosti - 7. del: Zahteve in metode za preskušanje in ocenjevanje vmesnih prostorov, zunanjih oblog in plaščev za zaznavanje netesnosti (vključno z dopolnilom A1)

General Information

• Status: Published
• Publication Date: 12-Nov-2024
• ICS: 23.020.01 - Fluid storage devices in general
• ICS: 23.040.99 - Other pipeline components
• ICS: 29.260.20 - Electrical apparatus for explosive atmospheres
• Technical Committee: CEN/TC 393 - Equipment for storage tanks and for service stations
• Drafting Committee: CEN/TC 393/WG 2 - Leak detecting devices for tanks and pipes
• Current Stage: 6060 - Definitive text made available (DAV) - Publishing
• Start Date: 13-Nov-2024
• Completion Date: 13-Nov-2024
• Ref Project: SIST EN 13160-7:2016+A1:2025 - Leak detection systems - Part 7: Requirements and test/assessment methods for interstitial spaces, leak detection linings and leak detection jackets

Relations

• Merged From: EN 13160-7:2016 - Leak detection systems - Part 7: Requirements and test/assessment methods for interstitial spaces, leak detection linings and leak detection jackets
• Effective Date: 18-Sep-2024

Standards Content (Sample)

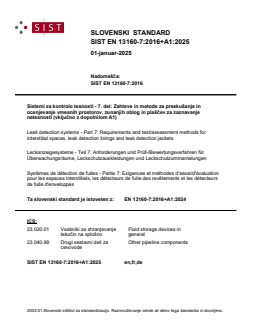

SLOVENSKI STANDARD
01-januar-2025
Nadomešča:
SIST EN 13160-7:2016
Sistemi za kontrolo tesnosti - 7. del: Zahteve in metode za preskušanje in
ocenjevanje vmesnih prostorov, zunanjih oblog in plaščev za zaznavanje
netesnosti (vključno z dopolnilom A1)
Leak detection systems - Part 7: Requirements and test/assessment methods for
interstitial spaces, leak detection linings and leak detection jackets
Leckanzeigesysteme - Teil 7: Anforderungen und Prüf-/Bewertungsverfahren für
Überwachungsräume, Leckschutzauskleidungen und Leckschutzummantelungen
Systèmes de détection de fuites - Partie 7: Exigences et méthodes d'essai/d'évaluation
pour les espaces interstitiels, les détecteurs de fuite des revêtements et les détecteurs
de fuite d'enveloppes
Ta slovenski standard je istoveten z: EN 13160-7:2016+A1:2024
ICS:
23.020.01 Vsebniki za shranjevanje Fluid storage devices in
tekočin na splošno general
23.040.99 Drugi sestavni deli za Other pipeline components
cevovode
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 13160-7:2016+A1
EUROPEAN STANDARD
NORME EUROPÉENNE
November 2024
EUROPÄISCHE NORM
ICS 23.020.01; 23.040.99; 29.260.20 Supersedes EN 13160-7:2016
English Version
Leak detection systems - Part 7: Requirements and
test/assessment methods for interstitial spaces, leak
detection linings and leak detection jackets
Systèmes de détection de fuites - Partie 7: Exigences et Leckanzeigesysteme - Teil 7: Anforderungen und Prüf-
méthodes d'essai/d'évaluation pour les espaces /Bewertungsverfahren für Überwachungsräume,
interstitiels, les détecteurs de fuite des revêtements et Leckschutzauskleidungen und
les détecteurs de fuite d'enveloppes Leckschutzummantelungen
This European Standard was approved by CEN on 8 April 2016 and includes Amendment 1 approved by CEN on 11 September
2024.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13160-7:2016+A1:2024 E
worldwide for CEN national Members.

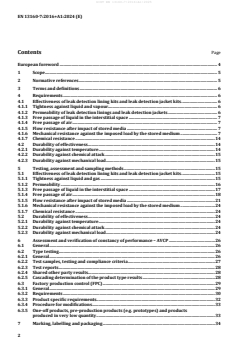

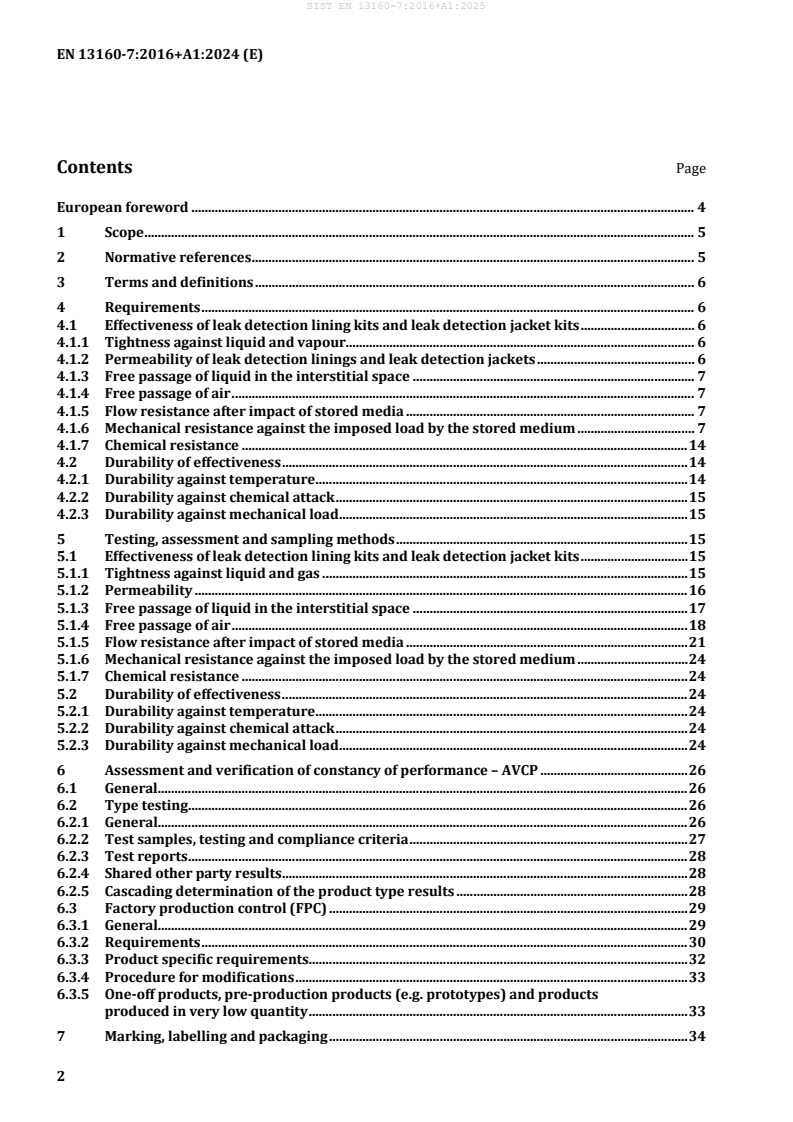

Contents Page
European foreword . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 6
4 Requirements . 6
4.1 Effectiveness of leak detection lining kits and leak detection jacket kits . 6
4.1.1 Tightness against liquid and vapour. 6
4.1.2 Permeability of leak detection linings and leak detection jackets . 6
4.1.3 Free passage of liquid in the interstitial space . 7
4.1.4 Free passage of air . 7
4.1.5 Flow resistance after impact of stored media . 7
4.1.6 Mechanical resistance against the imposed load by the stored medium . 7
4.1.7 Chemical resistance . 14
4.2 Durability of effectiveness . 14
4.2.1 Durability against temperature . 14
4.2.2 Durability against chemical attack . 15
4.2.3 Durability against mechanical load . 15
5 Testing, assessment and sampling methods . 15
5.1 Effectiveness of leak detection lining kits and leak detection jacket kits . 15
5.1.1 Tightness against liquid and gas . 15
5.1.2 Permeability . 16
5.1.3 Free passage of liquid in the interstitial space . 17
5.1.4 Free passage of air . 18
5.1.5 Flow resistance after impact of stored media . 21
5.1.6 Mechanical resistance against the imposed load by the stored medium . 24
5.1.7 Chemical resistance . 24
5.2 Durability of effectiveness . 24
5.2.1 Durability against temperature . 24
5.2.2 Durability against chemical attack . 24
5.2.3 Durability against mechanical load . 24
6 Assessment and verification of constancy of performance – AVCP . 26
6.1 General. 26
6.2 Type testing . 26
6.2.1 General. 26
6.2.2 Test samples, testing and compliance criteria . 27
6.2.3 Test reports . 28
6.2.4 Shared other party results . 28
6.2.5 Cascading determination of the product type results . 28
6.3 Factory production control (FPC) . 29
6.3.1 General. 29
6.3.2 Requirements . 30
6.3.3 Product specific requirements. 32
6.3.4 Procedure for modifications . 33
6.3.5 One-off products, pre-production products (e.g. prototypes) and products
produced in very low quantity . 33
7 Marking, labelling and packaging . 34
8 Environmental aspects . 34
Annex A (normative) Determination of the interstitial space volume for class I-systems . 35
A.1 Test equipment. 35
A.2 Preparation . 35
A.3 Procedure . 36
A.4 Evaluation. 38
Annex B (informative) Environmental aspects . 39

European foreword
This document (EN 13160-7:2016+A1:2024) has been prepared by Technical Committee CEN/TC 393
“Equipment for storage tanks and for filling stations”, the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by May 2025, and conflicting national standards shall be
withdrawn at the latest by August 2026.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document includes Amendment 1 approved by CEN on 11 September 2024.
This document supersedes !EN 13160-7:2016".
The start and finish of text introduced or altered by amendment is indicated in the text by tags !".
!deleted text"
According to edition 2003 the following fundamental changes are given:
— requirements and tests for permeation added;
— material properties revised;
— requirements from EN 13160-1:2003 included, which are no longer contained in
EN 13160-1:2016.
This European Standard Leak detection systems consists of 7 parts:
— Part 1: General principles
— Part 2: Requirements and test/assessment methods for pressure and vacuum systems
— Part 3: Requirements and test/assessment methods for liquid systems for tanks
— Part 4: Requirements and test/assessment methods for sensor based leak detection systems
— Part 5: Requirements and test/assessment methods for in-tank gauge systems and pressurized
pipework systems
— Part 6: Sensors in monitoring wells
— Part 7: Requirements and test/assessment methods for interstitial spaces, leak detection linings and
leak detection jackets
Any feedback and questions on this document should be directed to the users’ national standards
body. A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary,
Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye
and the United Kingdom.
1 Scope
This European Standard gives requirements and the corresponding test/assessment methods
applicable to leak detection lining kits and leak detection jacket kits. Leak detection lining kits and leak
detection jackets kits intended to be used to create an interstitial space or leakage containment in
single skin underground or above ground, non-pressurized, tanks designed for water polluting liquids.
The kit has to be used only in conjunction with leak detection kits covered by EN 13160-2 t
...
