EN 35:2014

Pedestal and wall-hung bidets with over-rim supply - Connecting dimensions

This European Standard specifies the connecting dimensions of pedestal and wall-hung bidets with over-rim supply (further on: bidets) in accordance with EN 14528 regardless of materials used for their manufacture.
NOTE 1   Other connecting dimensions are permitted, e. g. special designs of bidets, if the manufacturer supplies or recommends the appropriate fitting.
NOTE 2   The shape of the appliance in the figures is for illustration only; it in no way prejudices the final shape of the appliance, which is left to the initiative of the manufacturer.

Bodenstehende und wandhängende Sitzwaschbecken mit Zulauf von oben - Anschlussmaße

Diese Europäische Norm legt Anschlussmaße für bodenstehende und wandhängende Sitzwaschbecken mit Zulauf von oben (im Weiteren: Sitzwaschbecken) nach EN 14528, unabhängig vom für ihre Herstellung verwendeten Werkstoff, fest.
ANMERKUNG 1 Andere Anschlussmaße sind zulässig, z. B. für spezielle Ausführungen von Sitzwaschbecken, wenn der Hersteller eine geeignete Ablaufgarnitur mitliefert oder empfiehlt.
ANMERKUNG 2 Die in den Bildern dargestellte Form der Gegenstände wurde nur für das bessere Verständnis

Bidets sur pied et bidets suspendus à alimentation par surverse - Cotes de raccordement

La présente norme fixe les cotes de raccordement des bidets sur pied et des bidets suspendus à alimentation
par surverse (désignés ci-après : bidets) conformément à l'EN 14528, indépendamment du matériau dont ils
sont constitués.
NOTE 1 D'autres cotes de raccordement sont autorisées, par exemple pour les bidets de conception particulière, si le
fabricant fournit ou recommande les raccords appropriés.
NOTE 2 La forme schématique des appareils représentés dans les figures est donnée uniquement pour faciliter la
compréhension ; elle ne préjuge en rien de la forme définitive de l'appareil, qui est laissée à l'initiative des fabricants.

Bide školjka in zidna bide školjka z zgornjim dotokom - Priključne mere

Standard EN 35 določa priključne mere bide školjk in zidnih bide školjk z zgornjim dotokom (v nadaljevanju: bideji) v skladu s standardom EN 14528 ne glede na material, iz katerega so izdelani.

General Information

• Status: Published
• Publication Date: 06-May-2014
• Withdrawal Date: 29-Nov-2014
• ICS: 91.140.70 - Sanitary installations
• Technical Committee: CEN/TC 163 - Sanitary appliances
• Drafting Committee: CEN/TC 163/WG 3 - Closet bowls, flushing cisterns, urinals, bidets and kitchen sinks
• Current Stage: 9093 - Decision to confirm - Review Enquiry
• Completion Date: 20-May-2020
• Ref Project: SIST EN 35:2014 - Pedestal and wall-hung bidets with over-rim supply - Connecting dimensions

Relations

• Replaces: EN 35:2000 - Pedestal bidets with over-rim supply - Connecting dimensions
• Effective Date: 08-Jun-2022
• Replaces: EN 36:1998 - Wall-hung bidets with overrim supply - Connecting dimensions
• Effective Date: 04-Jun-2011

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Bodenstehende und wandhängende Sitzwaschbecken mit Zulauf von oben - AnschlußmaßeBidets sur pied et bidets suspendus à alimentation par surverse - Cotes de raccordementPedestal and wall-hung bidets with over-rim supply - Connecting dimensions91.140.70Sanitarne napraveSanitary installationsICS:Ta slovenski standard je istoveten z:EN 35:2014SIST EN 35:2014en,fr,de01-julij-2014SIST EN 35:2014SLOVENSKI
STANDARDSIST EN 36:2000SIST EN 35:20021DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 35
May 2014 ICS 91.140.70 Supersedes EN 35:2000, EN 36:1998English Version
Pedestal and wall-hung bidets with over-rim supply - Connecting dimensions
Bidets sur pied et bidets suspendus à alimentation par surverse - Cotes de raccordement
Bodenstehende und wandhängende Sitzwaschbecken mit Zulauf von oben - Anschlussmaße This European Standard was approved by CEN on 10 April 2014.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2014 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 35:2014 ESIST EN 35:2014

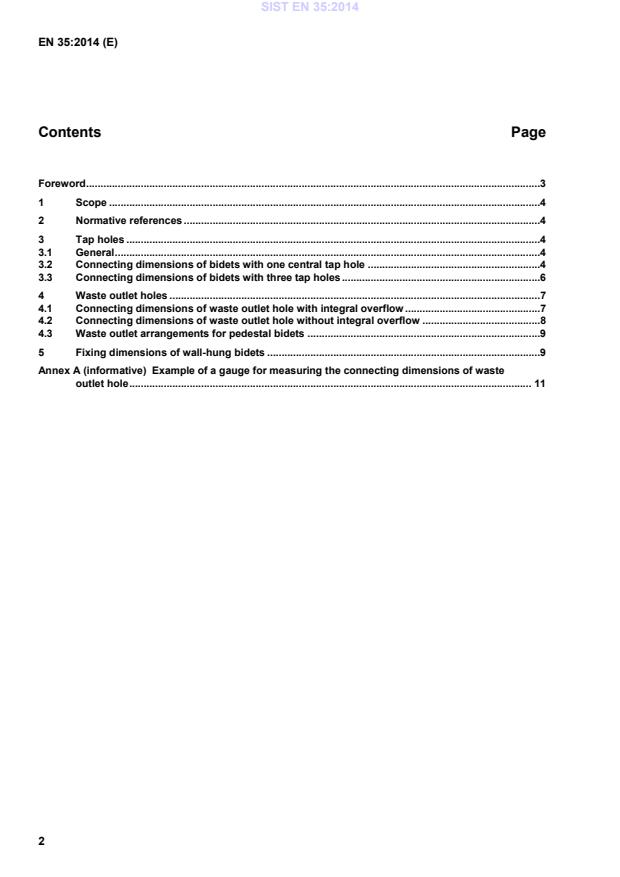

Foreword .3 1 Scope .4 2 Normative references .4 3 Tap holes .4 3.1 General .4 3.2 Connecting dimensions of bidets with one central tap hole .4 3.3 Connecting dimensions of bidets with three tap holes .6 4 Waste outlet holes .7 4.1 Connecting dimensions of waste outlet hole with integral overflow .7 4.2 Connecting dimensions of waste outlet hole without integral overflow .8 4.3 Waste outlet arrangements for pedestal bidets .9 5 Fixing dimensions of wall-hung bidets .9 Annex A (informative)
Example of a gauge for measuring the connecting dimensions of waste outlet hole . 11
...
