EN 13451-5:2014

Swimming pool equipment - Part 5: Additional specific safety requirements and test methods for lane lines and dividing line

This European Standard specifies safety requirements for lane lines and dividing line in addition to the general safety requirements of EN 13451-1:2011 and should be read in conjunction within it.
The requirements of this specific standard take priority over those in EN 13451-1:2011.
This part of EN 13451 is applicable to manufactured lane lines for use in competition and training and dividing line for use in classified swimming pools as specified in EN 15288-1 and EN 15288-2.

Schwimmbadgeräte - Teil 5: Zusätzliche besondere sicherheitstechnische Anforderungen und Prüfverfahren für Schwimmbahnleinen und Trennseilanlagen

Diese Europäische Norm legt sicherheitstechnische Anforderungen an Schwimmbahnleinen und Trennseilanlagen zusätzlich zu den allgemeinen sicherheitstechnischen Anforderungen nach EN 13451 1:2011 fest und sollte in Zusammenhang mit dieser gelesen werden.
Die Anforderungen dieser besonderen Norm haben Vorrang gegenüber EN 13451 1:2011.
Dieser Teil von EN 13451 gilt für werkmäßig hergestellte Schwimmbahnleinen zum Gebrauch bei Wett¬kämpfen und beim Training sowie für Trennseile zum Gebrauch in klassifizierten Schwimmbädern nach EN 15288 1 und EN 15288 2.

Équipement de piscine - Partie 5: Exigences de sécurité et méthodes d'essai complémentaires spécifiques aux lignes de nage et lignes d'eau de séparation des espaces

La présente Norme européenne spécifie des exigences de sécurité pour les lignes de nage et les lignes d’eau de séparation des espaces, et vient compléter les exigences générales de sécurité de l'EN 13451 1:2011. Il convient de lire la présente norme conjointement avec l'EN 13451 1:2011.
Les exigences de la présente norme spécifique prévalent sur celles de l'EN 13451 1:2011.
La présente partie de l’EN 13451 s'applique aux lignes de nage préfabriquées, utilisées pour la compétition et l'entraînement, et aux lignes d’eau de séparation des espaces utilisées dans des piscines classées telles que spécifiées dans les EN 15288-1 et EN 15288-2.

Oprema za plavalne bazene - 5. del: Dodatne posebne varnostne zahteve in preskusne metode za plavalne in ločene proge

Standard EN 13451-5 določa varnostne zahteve za plavalne in ločene proge poleg splošnih varnostnih zahtev standarda EN 13451-1:2011 in naj bi se ga bralo skupaj z njim. Zahteve tega specifičnega standarda imajo prednost pred zahtevami v standardu EN 13451-1:2011. Ta del standarda EN 13451 velja za izdelane plavalne proge za uporabo na tekmovanjih in treningih ter za ločene proge za uporabo v klasificiranih plavalnih bazenih, kot določata standarda EN 15288-1 in EN 15288-2.

General Information

• Status: Published
• Publication Date: 05-Aug-2014
• ICS: 97.220.10 - Sports facilities
• Technical Committee: CEN/TC 136 - Sports, playground and other recreational equipment
• Drafting Committee: CEN/TC 136/WG 8 - Swimming pool equipment
• Current Stage: 9093 - Decision to confirm - Review Enquiry
• Start Date: 01-Jan-2022
• Completion Date: 14-Apr-2025
• Ref Project: SIST EN 13451-5:2014 - Swimming pool equipment - Part 5: Additional specific safety requirements and test methods for lane lines and dividing line

Relations

• Replaces: EN 13451-5:2001 - Swimming pool equipment - Part 5: Additional specific safety requirements and test methods for lane lines
• Effective Date: 08-Jun-2022

Overview

EN 13451-5:2014 is the CEN standard that sets additional specific safety requirements and test methods for lane lines and dividing line used in swimming pools. It complements and takes priority over the general requirements in EN 13451-1:2011 and applies to manufactured lane lines for competition and training and dividing line assemblies for classified pools (see EN 15288-1 and EN 15288-2).

This part covers design, structural integrity, tensioning and safety links, buoyancy and anti‑entrapment provisions, plus test methods and marking requirements.

Key Topics

• Design and continuity: Lane lines must extend the full length of a lane; floats, when used, must form an unbroken series without gaps.
• Structural integrity: Lane lines, fixings and tensioning devices shall withstand a tensile force of 15 kN.
• Tensioning device: A device must maintain straight position after mounting; self‑loosening designs are not acceptable.
• Safety link: A safety link is required on each lane line and shall be designed to break at (7,5 ± 1,2) kN.
• Entrapment and crushing: Variable openings must meet EN 13451-1 requirements; floats need continuity devices (e.g., springs) and parallel front float surfaces should be avoided.
• Buoyancy: Lane lines must provide positive buoyancy so that about one half to two thirds of float height projects above the water surface.

Dividing line specific requirements:

• Forms: plastic rope; coated steel wire rope; coated steel wire rope with floats/markers; semi-rigid hose.
• Dimensions & strength: Dividing ropes must be ≥20 mm thick (excluding floats), breaking force ≥20 000 N, elongation ≤2.5‰.
• Floats and markers: Floats or ball markers must have diameter ≥80 mm; wire ropes require coating thickness ≥1 mm.
• Rope holders & tensioning: Rope holders must resist 20 000 N parallel load without permanent deformation; turnbuckle openings ≤8 mm.

Applications

This standard is practical for:

• Manufacturers designing lane lines, dividing lines, tensioning devices and fittings to meet European safety expectations.
• Pool operators and facility managers who must select, install and maintain lane lines and dividing lines for competition, training and classified pools.
• Test laboratories and certifiers verifying tensile, elongation and buoyancy characteristics using referenced test methods.

Key benefits include improved swimmer safety through reduced entrapment/crush hazards, consistent buoyancy and verified mechanical strength for competition and operational use.

Related Standards

• EN 13451-1:2011 - General safety requirements and test methods (read in conjunction; EN 13451-5 takes priority where different).
• EN 12385-1 - Steel wire rope test methods referenced for wire dividing ropes.
• EN ISO 2307 - Test methods for fibre ropes.
• EN 15288-1 / EN 15288-2 - Safety requirements for pool design and operation (scope linkage).
• FINA Facilities Rules (referenced for competitive dimensional guidance).

Practical note: Manufacturers may reference EN 13451-5:2014 when marking products to demonstrate compliance; operators should verify that installed lane lines and dividing lines meet the tensile, buoyancy and anti‑entrapment criteria specified.

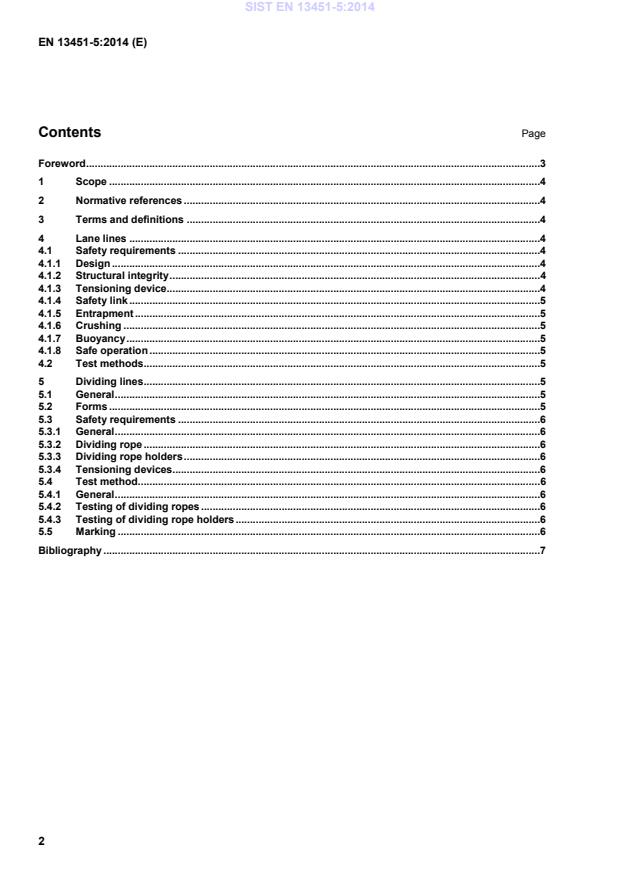

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Schwimmbadgeräte - Teil 5: Zusätzliche besondere sicherheitstechnische Anforderungen und Prüfverfahren für Schwimmbahnleinen und TrennseilanlagenEquipement de piscine - Partie 5: Exigences de sécurité et méthodes d'essai complémentaires spécifiques aux lignes de nage et lignes d'eau de séparation des espacesSwimming pool equipment - Part 5: Additional specific safety requirements and test methods for lane lines and dividing line97.220.10Športni objektiSports facilitiesICS:Ta slovenski standard je istoveten z:EN 13451-5:2014SIST EN 13451-5:2014en,fr,de01-oktober-2014SIST EN 13451-5:2014SLOVENSKI
STANDARDSIST EN 13451-5:20021DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13451-5
August 2014 ICS 97.220.10 Supersedes EN 13451-5:2001English Version
Swimming pool equipment - Part 5: Additional specific safety requirements and test methods for lane lines and dividing line
Équipement de piscine - Partie 5: Exigences de sécurité et méthodes d'essai complémentaires spécifiques aux lignes de nage et lignes d'eau de séparation des espaces
Schwimmbadgeräte - Teil 5: Zusätzliche besondere sicherheitstechnische Anforderungen und Prüfverfahren für Schwimmbahnleinen und Trennseilanlagen This European Standard was approved by CEN on 28 June 2014.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2014 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 13451-5:2014 ESIST EN 13451-5:2014
...
