EN 13476-2:2018/prA1

Plastics piping systems for non-pressure underground drainage and sewerage - Structured-wall piping systems of unplasticized poly(vinyl chloride) (PVC-U), polypropylene (PP) and polyethylene (PE) - Part 2: Specifications for pipes and fittings with smooth internal and external surface and the system, Type A

This part of EN 13476, together with EN 13476 1, specifies the definitions and requirements for pipes, fittings and the system based on unplasticized poly(vinyl chloride) (PVC-U), polypropylene (PP) and polyethylene (PE) structured-wall piping systems that are intended to be used for non-pressure underground drainage and sewerage systems.
This part is applicable to pipes and fittings with smooth internal and external surfaces, designated as Type A.
It specifies test methods and test parameters as well as requirements.
This part is applicable to:
a)   structured-wall pipes and fittings, which are intended to be used buried underground outside the building structure; reflected in the marking of products by "U";
b)   structured-wall pipes and fittings, which are intended to be used buried underground both outside (application area code "U") and within the building structure (application area code "D"); reflected in the marking of products by "UD".
This part is applicable to structured-wall pipes and fittings with or without an integral socket with elastomeric ring seal joints as well as welded and fused joints.
This part covers a range of pipe and fitting sizes, materials, pipe constructions, stiffness classes, application classes, and tolerance classes and gives recommendations concerning colours.
NOTE   It is the responsibility of the purchaser or specifier to make the appropriate selections from these aspects, taking into account their particular requirements and any relevant national regulations and installation practices or codes.

Kunststoff-Rohrleitungssysteme für erdverlegte drucklose Abwasserkanäle und -leitungen - Rohrleitungssysteme mit profilierter Wandung aus weichmacherfreiem Polyvinylchlorid (PVC-U), Polypropylen (PP) und Polyethylen (PE) - Teil 2: Anforderungen an Rohre und Formstücke mit glatter Innen- und Außenfläche und an das Rohrleitungssystem, Typ A

Dieser Teil von prEN 13476 legt gemeinsam mit prEN 13476-1 die Definitionen und Anforderungen für Rohre, Formstücke und das Rohrleitungssystem aus weichmacherfreiem Polyvinylchlorid (PVC-U), Polypropylen (PP) und Polyethylen (PE) mit profilierter Wandung fest, die für erdverlegte, drucklos betriebene Abwasserkanäle und -leitungen verwendet werden.
Dieser Teil gilt für Rohre und Formstücke mit glatten Innen- und Außenflächen, bezeichnet als Typ A.
Es werden sowohl Prüfverfahren und Prüfparameter als auch Anforderungen festgelegt.
Dieser Teil gilt für:
a)   Rohre und Formstücke mit profilierter Wandung, die ausschließlich für erdverlegte Anwendungen außer¬halb einer Gebäudestruktur vorgesehen sind; gekennzeichnet mit Anwendungskennzeichen "U";
b)   Rohre und Formstücke mit profilierter Wandung, die sowohl für erdverlegte Anwendungen außerhalb der Gebäudestruktur (Anwendungskennzeichen "U") als auch innerhalb einer Gebäudestruktur (Anwendungskennzeichen "D") vorgesehen sind; gekennzeichnet mit Anwendungskennzeichen "UD".
Dieser Teil gilt für Rohre und Formstücke mit profilierter Wandung sowohl mit glatten Enden als auch mit geformter Muffe, die mittels elastomerer Dichtringverbindungen bzw. durch Heizelement-Stumpf-, Extrusions- oder Heizwendelschweißen miteinander verbunden sind.
Diese Norm enthält Festlegungen für Maße von Rohren und Formstücken, für Werkstoffe, Rohrkonstruktionen, für Steifigkeitsklassen, Anwendungs- und Toleranzklassen und gibt Empfehlungen für die Einfärbung.
ANMERKUNG   Der Anwender bzw. Auftraggeber ist unter Berücksichtigung der eigenen Anforderungen sowie der geltenden nationalen Festlegungen und Verlegepraktiken oder -vorschriften für die entsprechende Auswahl dieser Kriterien verantwortlich.

Systèmes de canalisations en plastique pour les branchements et les collecteurs d'assainissements sans pression enterrés - Systèmes de canalisations à parois structurées en poly(chlorure de vinyle) non plastifié (PVC-U), polypropylène (PP) et polyéthylène (PE) - Partie 2 : Spécifications pour les tubes et raccords avec une surface interne et externe lisses et le système, de Type A

La présente partie de l’EN 13476, conjointement avec l’EN 13476 1, spécifie les définitions et les exigences pour les tubes, les raccords et le système pour des systèmes de canalisations à parois structurées fabriqués à partir de poly(chlorure de vinyle) non plastifié (PVC U), polypropylène (PP) et polyéthylène (PE), destinés à être utilisés pour des systèmes de branchements et de collecteurs d'assainissement enterrés sans pression.
La présente partie s'applique aux tubes et raccords avec une surface interne et externe lisses, désignés de Type A.
Elle spécifie les méthodes d'essai et les paramètres d'essai ainsi que les exigences.
La présente partie s'applique aux :
a)   tubes et raccords à parois structurées, destinés à être utilisés enterrés à l'extérieur de la structure du bâtiment ; ce qui est reflété au niveau du marquage des produits par « U » ;
b)   tubes et raccords à parois structurées, destinés à être utilisés enterrés, aussi bien à l'extérieur (code de la zone d’application « U ») qu’à l'intérieur de la structure des bâtiments (code de la zone d’application « D ») ; ce qui est reflété au niveau du marquage des produits par « UD ».
La présente partie s'applique aux tubes et raccords à parois structurées avec ou sans emboîture intégrée qui comprennent des assemblages à bague d'étanchéité en élastomère ainsi que des assemblages soudés et les assemblages obtenus par fusion.
La présente partie couvre une gamme de dimensions de tubes et de raccords, de matières, de constructions de tube, de classes de rigidité, de classes d'application et de classes de tolérance et donne des recommandations concernant les couleurs.
NOTE   Il est de la responsabilité de l'acheteur ou du concepteur du réseau de faire les sélections appropriées à partir de ces aspects, en tenant compte des exigences particulières et des règles nationales et des pratiques ou codes de pose pertinents.

Cevni sistemi iz polimernih materialov za odvodnjavanje in kanalizacijo, ki delujejo po težnostnem principu in so položeni v zemljo - Cevni sistemi s strukturirano steno iz nemehčanega polivinilklorida (PVC-U), polipropilena (PP) in polietilena (PE) - 2. del: Specifikacije za cevi in fitinge z gladko notranjo in zunanjo površino in sistem, tip A

General Information

• Status: Not Published
• ICS: 23.040.01 - Pipeline components and pipelines in general
• ICS: 93.030 - External sewage systems
• Technical Committee: CEN/TC 155 - Plastics piping systems and ducting systems
• Drafting Committee: CEN/TC 155/WG 13 - Systems with structured-wall pipes for non-pressure drainage and sewerage - PE, PP, PVC-U
• Current Stage: 4097 - End of interruption of work - split/merged
• Start Date: 03-Mar-2020
• Completion Date: 14-Apr-2025
• Ref Project: SIST EN 13476-2:2018/oprA1:2019 - Plastics piping systems for non-pressure underground drainage and sewerage - Structured-wall piping systems of unplasticized poly(vinyl chloride) (PVC-U), polypropylene (PP) and polyethylene (PE) - Part 2: Specifications for pipes and fittings with smooth internal and external surface and the system, Type A

Relations

• Merged Into: EN 13476-2:2018+A1:2020 - Plastics piping systems for non-pressure underground drainage and sewerage - Structured-wall piping systems of unplasticized poly(vinyl chloride) (PVC-U), polypropylene (PP) and polyethylene (PE) - Part 2: Specifications for pipes and fittings with smooth internal and external surface and the system, Type A
• Effective Date: 10-Mar-2020
• Amends: EN 13476-2:2018 - Plastics piping systems for non-pressure underground drainage and sewerage - Structured-wall piping systems of unplasticized poly(vinyl chloride) (PVC-U), polypropylene (PP) and polyethylene (PE) - Part 2: Specifications for pipes and fittings with smooth internal and external surface and the system, Type A
• Effective Date: 11-Dec-2018

Overview

EN 13476-2:2018/prA1 is a European standard developed by CEN for plastics piping systems used in non-pressure underground drainage and sewerage applications. Specifically, it covers structured-wall piping systems made from unplasticized poly(vinyl chloride) (PVC-U), polypropylene (PP), and polyethylene (PE). This part 2 of the EN 13476 series defines the specifications for pipes and fittings characterized by smooth internal and external surfaces, classified as Type A.

The standard applies to structured-wall pipes and fittings intended for underground installation outside buildings ("U" marking) and for systems buried both outside and inside buildings ("UD" marking). It includes requirements for pipes and fittings with or without integral sockets featuring elastomeric ring seal joints, as well as welded and fused joints. EN 13476-2:2018/prA1 outlines test methods, parameters, size ranges, materials, stiffness classes, application classes, tolerance classes, and provides recommendations regarding product color coding.

This standard assists specifiers, designers, manufacturers, and installers in selecting appropriate piping systems compliant with European regulations and technical guidelines for durable, reliable underground drainage infrastructure.

Key Topics

• Material Types: Unplasticized PVC (PVC-U), polypropylene (PP), polyethylene (PE) structured-wall piping.
• Surface Characteristics: Smooth internal and external surfaces for optimized flow and corrosion resistance.
• Piping and Fittings: Standards for pipes and injection-moulded or fabricated fittings, including socket and joint types.
• Application Zones: Markings "U" (underground outside building) and "UD" (underground inside and outside the building) signify suitable use areas.
• Testing Requirements: Defined sampling frequencies from material batches and detailed test methods ensure consistent product quality.
• Use of Reprocessed Material: Permits the use of clean reprocessed materials in pipe and fitting production without limitations.
• Mechanical and Dimensional Properties: Stiffness, tolerance, and application classes tailored to specific installation conditions.
• Marking and Identification: Guidelines for clear product identification through codes and color recommendations.

Applications

EN 13476-2:2018/prA1 piping systems are designed for critical underground drainage and sewerage networks operating under gravity flow rather than pressure. Typical practical applications include:

• Municipal underground sewer and drainage infrastructure.
• Residential and commercial building drainage systems buried in soil.
• Stormwater management and wastewater disposal piping.
• Replacement and rehabilitation of existing underground pipelines with high corrosion and abrasion resistance.
• Installation in regions with stringent regulatory requirements on piping materials and installation methods.

These pipes and fittings help infrastructure stakeholders achieve long service life, environmental safety, and system integrity in underground waste water conveyance.

Related Standards

• EN 13476-1 - General requirements, system design, and definitions for structured-wall piping systems.
• EN 13476-3 - Specifications for pipes and fittings with profiled internal and external surfaces (Type B).
• EN ISO 9001 - Quality management systems relevant to manufacturing processes.
• National and regional building codes and installation standards complementing these piping system specifications.
• Other CEN/TC 155 standards covering plastic piping systems and drainage solutions.

By adhering to EN 13476-2:2018/prA1, manufacturers and specifiers ensure compliance with harmonized European criteria, promoting interoperability, safety, and high performance in underground non-pressure drainage solutions.

Standards Content (Sample)

SLOVENSKI STANDARD
01-julij-2019
Cevni sistemi iz polimernih materialov za odvodnjavanje in kanalizacijo, ki
delujejo po težnostnem principu in so položeni v zemljo - Cevni sistemi s
strukturirano steno iz nemehčanega polivinilklorida (PVC-U), polipropilena (PP) in
polietilena (PE) - 2. del: Specifikacije za cevi in fitinge z gladko notranjo in zunanjo
površino in sistem, tip A
Plastics piping systems for non-pressure underground drainage and sewerage -
Structured-wall piping systems of unplasticized poly(vinyl chloride) (PVC-U),
polypropylene (PP) and polyethylene (PE) - Part 2: Specifications for pipes and fittings
with smooth internal and external surface and the system, Type A
Kunststoff-Rohrleitungssysteme für erdverlegte drucklose Abwasserkanäle und -
leitungen - Rohrleitungssysteme mit profilierter Wandung aus weichmacherfreiem
Polyvinylchlorid (PVC-U), Polypropylen (PP) und Polyethylen (PE) - Teil 2:
Anforderungen an Rohre und Formstücke mit glatter Innen- und Außenfläche und an das
Rohrleitungssystem, Typ A
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

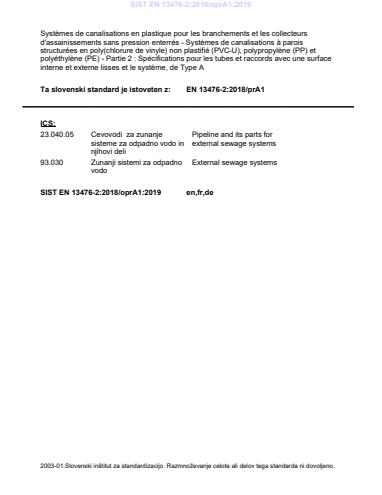

Systèmes de canalisations en plastique pour les branchements et les collecteurs
