EN 13863-6:2024

Concrete pavements - Part 6: Test method for the determination of the tensile strength of concrete on cylindrical discs

This document specifies a method for the determination of the tensile strength on cylindrical discs of concrete using cylindrical discs as test specimens, which can be separately manufactured or cut from cores of the finished concrete pavement.

Fahrbahnbefestigungen aus Beton - Teil 6: Prüfverfahren zur Bestimmung der Zugfestigkeit von Beton an Zylinderscheiben

Dieses Dokument legt ein Verfahren zur Bestimmung der Zugfestigkeit von Beton an Zylinderscheiben fest, wobei als Probekörper Zylinderscheiben verwendet werden, die entweder separat hergestellt oder aus Bohrkernen der fertigen Fahrbahnbefestigung aus Beton geschnitten werden können.

Chaussées en béton - Partie 6 : Méthodes d'essai pour la détermination de la résistance à la traction de béton sur disques cylindriques

Le présent document spécifie une méthode de détermination de la résistance à la traction de béton sur disques cylindriques, les disques cylindriques servant d’éprouvettes pouvant être
-   fabriqués séparément ou
-   obtenus à partir de coupes de carottes prélevées dans la chaussée en béton finie.

Betonska vozišča - 6. del: Preskusna metoda za določanje natezne trdnosti betona na cilindričnih ploščah

Ta dokument določa metodo za določanje natezne trdnosti betona na cilindričnih ploščah, ki se uporabljajo kot vzorci in so lahko:
–   izdelane ločeno ali
–   izrezane iz jeder končnega betonskega vozišča.

General Information

• Status: Published
• Publication Date: 19-Mar-2024
• ICS: 93.080.20 - Road construction materials
• Technical Committee: CEN/TC 227 - Road materials
• Drafting Committee: CEN/TC 227/WG 3 - Materials for concrete roads including joint fillers and sealants
• Current Stage: 6060 - Definitive text made available (DAV) - Publishing
• Start Date: 20-Mar-2024
• Due Date: 27-Jan-2023
• Completion Date: 20-Mar-2024
• Ref Project: SIST EN 13863-6:2024 - Concrete pavements - Part 6: Test method for the determination of the tensile strength of concrete on cylindrical discs

Overview

The EN 13863-6:2024 is a European standard developed by CEN that specifies a precise test method for determining the tensile strength of concrete on cylindrical discs used in concrete pavements. This standard defines procedures for preparing test specimens-either manufactured separately or extracted from cores of finished pavements-and outlines the equipment, testing procedure, and calculation of tensile strength. The test method is critical for assessing the durability and structural performance of concrete pavements, ensuring safety and quality in road construction materials.

Published in March 2024, this standard contributes to the EN 13863 series on concrete pavement testing and focuses specifically on uniaxial radial loading to measure tensile strength until concrete failure. It applies broadly within European countries and is set to be adopted as a national standard in member countries by September 2024.

Key Topics

• Test Method Scope: Defines tensile strength determination on cylindrical concrete discs with diameters around 100 mm and height-to-diameter ratios near 0.5.
• Test Specimen Preparation:
  • Specimens can be cast cylinders sliced into discs or cores drilled from existing pavements.
  • Preparation includes sawing, grinding, and storage under controlled temperatures and humidity.
• Apparatus and Equipment:
  • Cylindrical steel moulds for specimen casting.
  • Precision load testing machines (minimum 100 kN capacity).
  • Special test devices with concave hardened steel bearing strips and felt intermediate strips to apply radial force.
• Testing Procedure:
  • Controlled uniaxial radial compressive force applied at a constant rate until specimen failure.
  • Careful alignment and centering of specimens during testing.
• Calculation and Interpretation:
  • Tensile strength calculated using maximum load with established formula.
  • Results reported to 0.01 MPa precision.
• Precision and Reliability:
  • Repeatability and reproducibility data with coefficients of variation between 6.2% and 8.9% depending on specimen type.
• Reporting Requirements:
  • Detailed information on specimen dimensions, preparation, failure load, fracture pattern, and testing conditions must be documented to ensure quality and traceability.

Applications

EN 13863-6:2024 is essential for professionals in the fields of:

• Road construction and maintenance who need to evaluate concrete pavement tensile strength as a measure of performance and longevity.
• Materials testing laboratories providing certification and quality control for concrete pavements.
• Civil engineers and designers employing tensile strength data to validate structural pavement designs.
• Infrastructure project managers ensuring compliance with European standards for concrete materials.
• Research organizations studying concrete behavior under stress conditions typical for pavement applications.

By standardizing tensile strength testing on cylindrical discs, this method enables consistent evaluation and comparison of concrete pavement materials, supporting safer, longer-lasting road surfaces.

Related Standards

EN 13863-6:2024 is part of a comprehensive suite of standards focused on concrete pavement testing:

• EN 13863-1: Test method for determining pavement thickness by survey.
• EN 13863-2: Determination of bond strength between pavement layers.
• EN 13863-3: Measuring pavement thickness from cores.
• EN 13863-4: Wear resistance testing against studded tires.
• EN 13863-5: Determination of dowel bond stress in concrete pavements.

Additionally, normative references relevant to this test method include:

• EN 12390-1: Specifications for concrete specimen shape and dimensions.
• EN 12390-2: Procedures for making and curing concrete specimens.
• EN 12390-4: Testing machines requirements for compressive strength.
• EN 12390-7: Measurement of hardened concrete density.

These standards collectively provide a framework for comprehensive testing and quality assurance of concrete pavements across Europe.

---

Keywords: EN 13863-6:2024, concrete pavements, tensile strength test, cylindrical discs, concrete testing, CEN standards, road construction materials, concrete core testing, pavement durability, standardized test method, concrete fracture analysis, load testing equipment.

Standards Content (Sample)

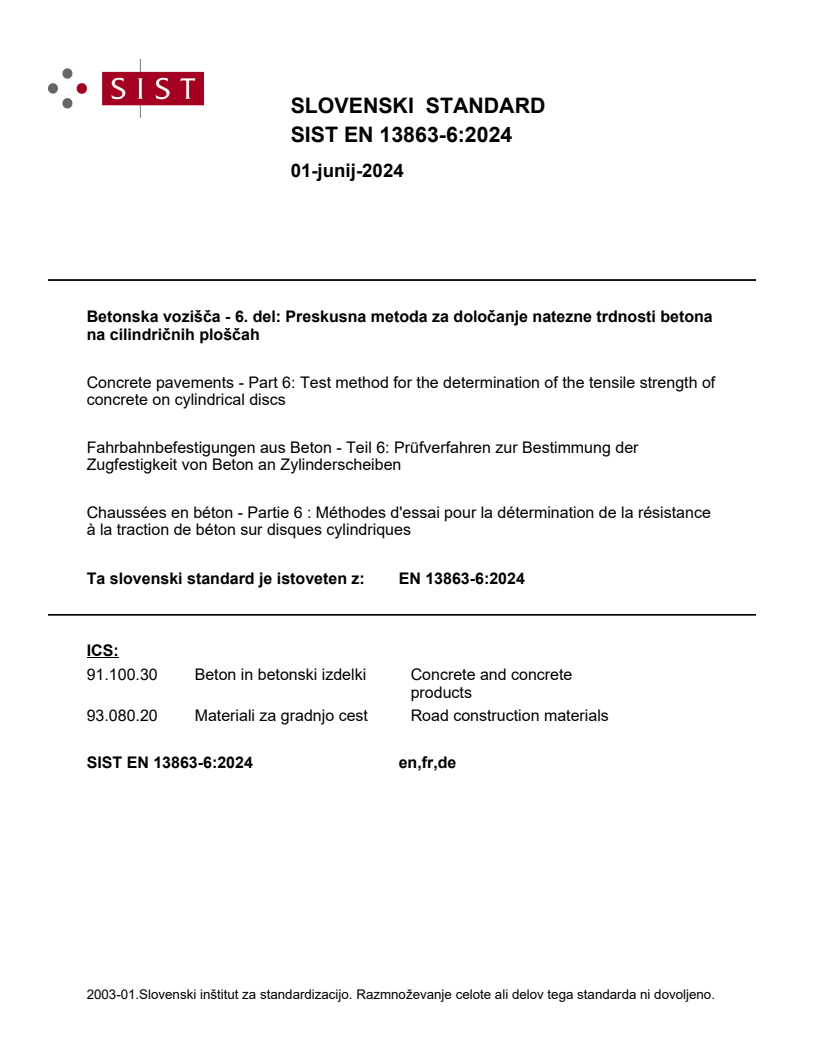

SLOVENSKI STANDARD
01-junij-2024
Betonska vozišča - 6. del: Preskusna metoda za določanje natezne trdnosti betona
na cilindričnih ploščah
Concrete pavements - Part 6: Test method for the determination of the tensile strength of
concrete on cylindrical discs
Fahrbahnbefestigungen aus Beton - Teil 6: Prüfverfahren zur Bestimmung der
Zugfestigkeit von Beton an Zylinderscheiben
Chaussées en béton - Partie 6 : Méthodes d'essai pour la détermination de la résistance
à la traction de béton sur disques cylindriques
Ta slovenski standard je istoveten z: EN 13863-6:2024
ICS:
91.100.30 Beton in betonski izdelki Concrete and concrete
products
93.080.20 Materiali za gradnjo cest Road construction materials
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

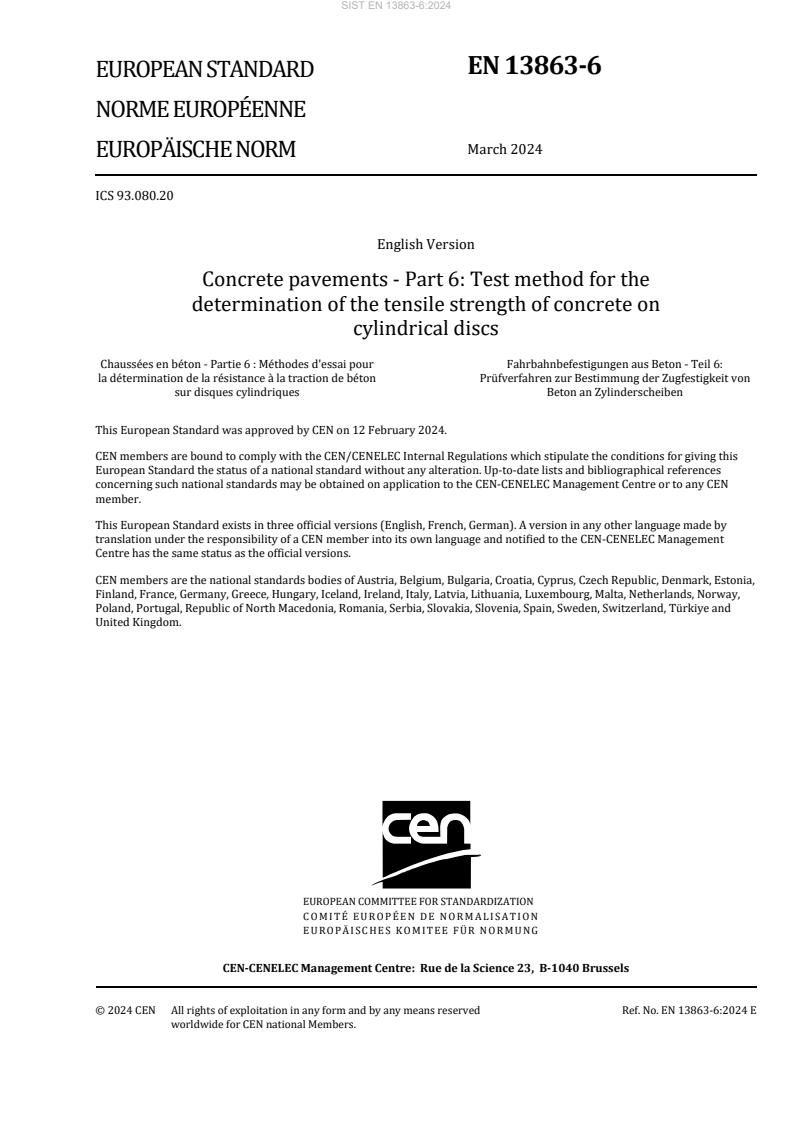

EN 13863-6
EUROPEAN STANDARD
NORME EUROPÉENNE
March 2024
EUROPÄISCHE NORM
ICS 93.080.20
English Version
Concrete pavements - Part 6: Test method for the
determination of the tensile strength of concrete on
cylindrical discs
Chaussées en béton - Partie 6 : Méthodes d'essai pour Fahrbahnbefestigungen aus Beton - Teil 6:
la détermination de la résistance à la traction de béton Prüfverfahren zur Bestimmung der Zugfestigkeit von
sur disques cylindriques Beton an Zylinderscheiben
This European Standard was approved by CEN on 12 February 2024.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13863-6:2024 E
worldwide for CEN national Members.

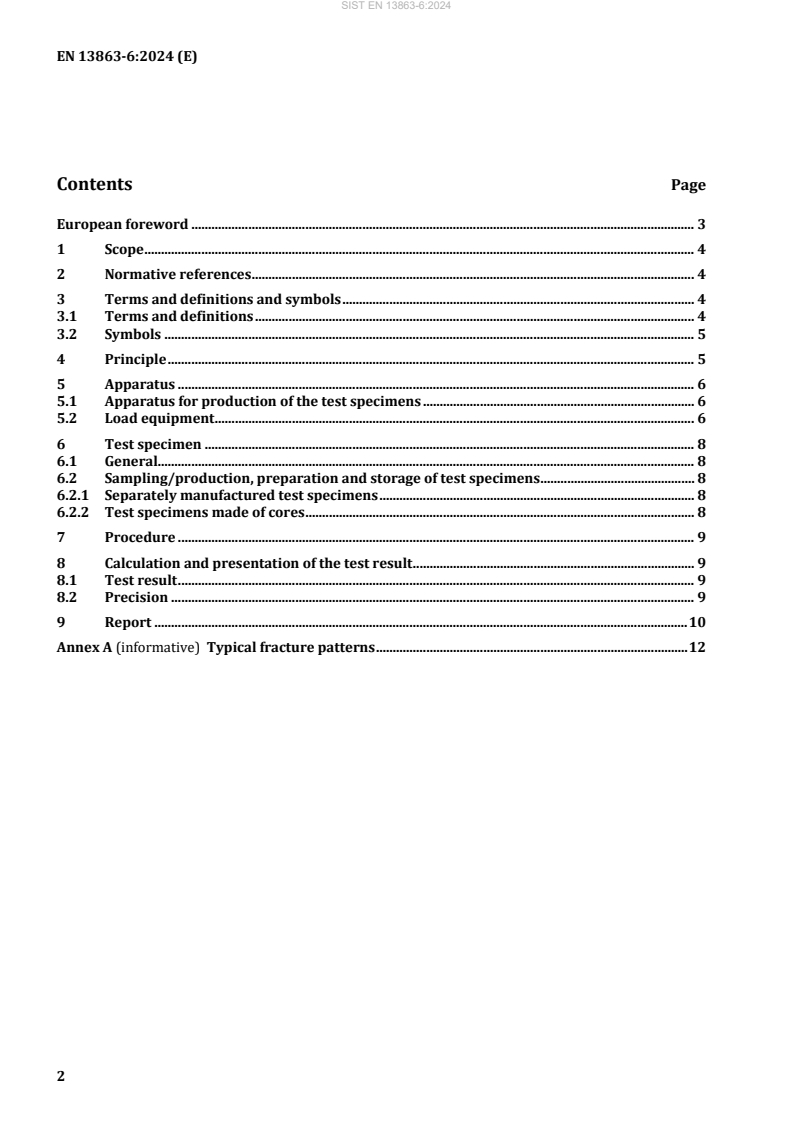

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions and symbols . 4
3.1 Terms and definitions . 4
3.2 Symbols . 5
4 Principle . 5
5 Apparatus . 6
5.1 Apparatus for production of the test specimens . 6
5.2 Load equipment . 6
6 Test specimen . 8
6.1 General. 8
6.2 Sampling/production, preparation and storage of test specimens . 8
6.2.1 Separately manufactured test specimens . 8
6.2.2 Test specimens made of cores . 8
7 Procedure . 9
8 Calculation and presentation of the test result . 9
8.1 Test result . 9
8.2 Precision . 9
9 Report . 10
Annex A (informative) Typical fracture patterns . 12

European foreword
This document (EN 13863-6:2024) has been prepared by Technical Committee CEN/TC 227 “Road
materials”, the secretariat of which is held by BSI.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by September 2024, and conflicting national standards shall
be withdrawn at the latest by September 2024.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
EN 13863, Concrete pavements, is currently composed with the following parts:
— Part 1: Test method for the determination of the thickness of a concrete pavement by survey method
— Part 2: Test method for the determination of the bond between two layers
— Part 3: Test methods for the determination of the thickness of a concrete pavement from cores
— Part 4: Test methods for the determination of wear resistance of concrete pavements to studded
tyres
— Part 5: Determination of the bond stress of dowels to be used in concrete pavements
— Part 6: Test method for the determination of the tensile strength of concrete on cylindrical discs
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the United
Kingdom.
1 Scope
This document specifies a method for the determination of the tensile strength on cylindrical discs of
concrete using cylindrical discs as test specimens, which can be separately manufactured or cut from
cores of the finished concrete pavement.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 12390-1, Testing hardened concrete — Part 1: Shape, dimensions and other requirements for specimens
and moulds
EN 12390-2, Testing hardened concrete — Part 2: Making and curing specimens for strength tests
EN 12390-4, Testing hardened concrete — Part 4: Compressive strength — Specification for testing
machines
EN 12390-7, Testing hardened concrete — Part 7: Density of hardened concrete
3 Terms and definitions and symbols
For the purposes of this document, the following terms, definitions and symbols apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at https://www.electropedia.org/
— ISO Online browsing platform: available at https://www.iso.org/obp
3.1 Terms and definitions
3.1.1
tensile strength on cylindrical discs
maximum stress determined by a controlled uniaxial, radial load on a test specimen until failure
3.1.2
test specimen
cylindrical disc prepared from a separately manufactured cylinder or core
3.2 Symbols
The signification of the sy
...
