Residential solid fuel burning appliances - Emission test methods

This European Technical Specification is applicable to residential heating and cooking appliances
burning solid fuels and details methods for the measurements of NOx, and OGC/total hydrocarbons
emissions and particulate and dust produced by these appliances and is to be used in conjunction
with the test methods given in the European Standards covering these appliances.
This European Technical Specification covers the NOx, and OGC/total hydrocarbons emission test
methods, however it does not cover input data and detailed calculation procedures.
For the particulate and dust emissions test methods, the national documents of those countries that
have a test method are reference methods which are summarised in Informative Annex A, whilst
those countries that do not have a specific test method, could choose one of these methods listed in
the annex.

Häusliche Feuerstätten für feste Brennstoffe - Emissionsprüfverfahren

Die vorliegende Europäische Technische Spezifikation ist anwendbar auf Festbrennstoff beschickte Heiz- und
Kochgeräte und beschreibt detailliert die Messmethoden für NOx und OGC/Gesamtkohlenwasserstoffemission
sowie durch diese Geräte hervorgerufene Partikel und Staub und ist in Verbindung mit den
entsprechenden, von den Europäischen Normen vorgegebenen Prüfverfahren anzuwenden.
Diese Europäische Technische Spezifikation umfasst die Prüfverfahren betreffend NOx und
OGC/Gesamtkohlenwasserstoffemission. Sie umfasst dennoch keine Eingabedaten und keine detaillierten
Berechnungsverfahren.
Für die Prüfverfahren von Partikel- und Staubemissionen sind die nationalen Dokumente derjenigen Länder,
die eine Prüfmethode besitzen, Referenzmethoden. Diese sind im Anhang A zusammengefasst, während
diejenigen Länder, die keine besondere Prüfmethode haben, zwischen den im Anhang aufgeführten
Methoden wählen können.

Appareils résidentiels à combustibles solides - Méthodes d'essai des émissions

La présente Spécification Technique européenne est applicable aux appareils résidentiels de chauffage et de cuisson utilisant des combustibles solides et décrit de manière détaillée les méthodes de mesurage des émissions de NOx et de composés organiques gazeux/hydrocarbures totaux ainsi que des particules et des poussières produites par ces appareils. Elle doit être utilisée conjointement aux méthodes d'essai indiquées dans les Normes européennes couvrant ces appareils.
La présente Spécification Technique européenne couvre les méthodes d'essai relatives aux émissions de NOx et de composés organiques gazeux/hydrocarbures totaux ; néanmoins, elle ne couvre pas les données à traiter et les méthodes de calcul détaillées.
En ce qui concerne les méthodes d'essai relatives aux émissions de particules et de poussières, les documents nationaux des pays disposant d'une méthode d'essai constituent les méthodes de référence qui sont résumées dans l'Annexe A informative, alors que les pays ne disposant pas d'une méthode d'essai spécifique peuvent choisir l'une des méthodes énumérées dans l'annexe.

Stanovanjski aparati na trdna goriva - Emisijska preskusna metoda

General Information

Status
Published
Publication Date
28-Jul-2009
Current Stage
9093 - Decision to confirm - Review Enquiry
Start Date
09-Nov-2012
Completion Date
09-Nov-2012

Buy Standard

Technical specification
kTS prCEN/TS 15883:2009
English language
26 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day
Technical specification
TS CEN/TS 15883:2009
English language
25 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)


SLOVENSKI STANDARD
kSIST-TS prCEN/TS 15883:2009
01-januar-2009
Stanovanjski aparati na trdna goriva - Emisijska preskusna metoda
Residential solid fuel burning appliances - Emission test methods
Häusliche Feuerstätten für feste Brennstoffe - Emissionsprüfverfahren
Appareils résidentiels à combustibles solides - Méthodes d'essai des émissions
Ta slovenski standard je istoveten z: prCEN/TS 15883
ICS:
97.100.30 Grelniki na trdo gorivo Solid fuel heaters
kSIST-TS prCEN/TS 15883:2009 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

kSIST-TS prCEN/TS 15883:2009
kSIST-TS prCEN/TS 15883:2009
TECHNICAL SPECIFICATION
FINAL DRAFT
prCEN/TS 15883
SPÉCIFICATION TECHNIQUE
TECHNISCHE SPEZIFIKATION
November 2008
ICS 97.100.30
English Version
Residential solid fuel burning appliances - Emission test
methods
Appareils résidentiels à combustibles solides - Méthodes Häusliche Feuerstätten für feste Brennstoffe -
d'essai des émissions Emissionsprüfverfahren
This draft Technical Specification is submitted to CEN members for Technical Committee Approval. It has been drawn up by the Technical
Committee CEN/TC 295.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
Warning : This document is not a Technical Specification. It is distributed for review and comments. It is subject to change without notice
and shall not be referred to as a Technical Specification.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2008 CEN All rights of exploitation in any form and by any means reserved Ref. No. prCEN/TS 15883:2008: E
worldwide for CEN national Members.

kSIST-TS prCEN/TS 15883:2009
prCEN/TS 15883:2008 (E)

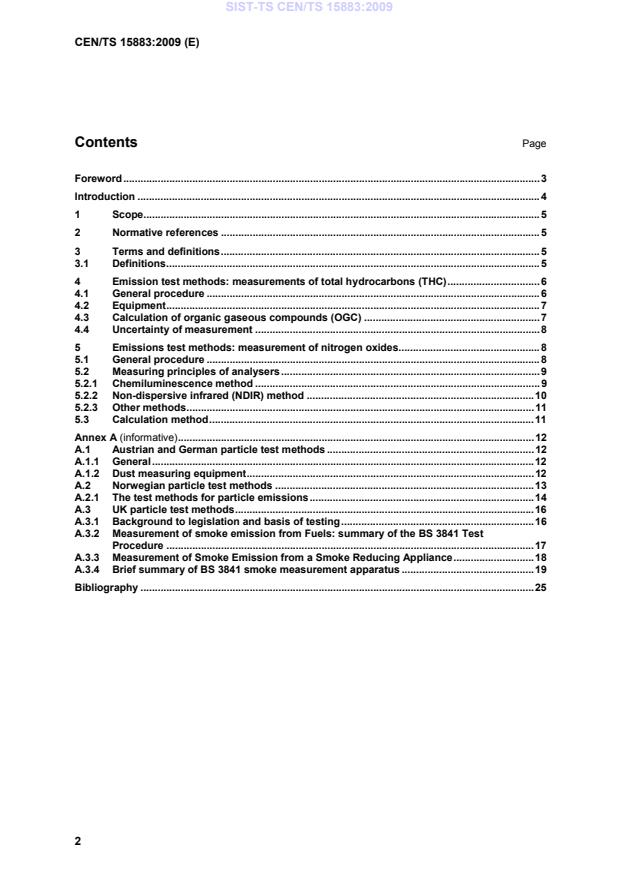

Contents Page
Foreword. 3
Introduction . 4
1 Scope. 5
2 Normative references. 5
3 Terms and definitions. 5
3.1 Definitions. 5
4 Emission test methods: measurements of total hydrocarbons (THC). 6
4.1 General procedure. 6
4.2 Equipment. 7
4.3 Calculation of organic gaseous compounds (OGC) . 7
4.4 Uncertainty of measurement . 8
5 Emissions test methods: measurement of nitrogen oxides. 8
5.1 General procedure. 8
5.2 Measuring principles of analysers . 9
5.2.1 Chemiluminescence method. 9
5.2.2 Non-dispersive infrared (NDIR) method . 10
5.2.3 Other methods. 11
5.3 Calculation method. 11
A.1 Austrian and German particle test methods . 12
A.1.1 General. 12
A.1.2 Dust measuring equipment. 12
A.2 Norwegian particle test methods . 13
A.2.1 The test methods for particle emissions. 14
A.3 UK particle test methods. 17
A.3.1 Background to legislation and basis of testing. 17
A.3.2 Measurement of smoke emission from Fuels: summary of the BS 3841 Test
Procedure . 18
A.3.3 Measurement of Smoke Emission from a Smoke Reducing Appliance. 19
A.3.4 Brief summary of BS 3841 smoke measurement apparatus . 20
Bibliography . 26

kSIST-TS prCEN/TS 15883:2009
prCEN/TS 15883:2008 (E)
Foreword
This document (prCEN/TS 15883:2008) has been prepared by Technical Committee CEN/TC 295
“Residential solid fuel burning appliances”, the secretariat of which is held by BSI.
This document is currently submitted to the Technical Committee Approval.

kSIST-TS prCEN/TS 15883:2009
prCEN/TS 15883:2008 (E)
Introduction
All the standards of CEN/TC 295 deal with the field of residential heating and cooking appliances
burning solid fuels covering the standardization of appliance construction, safety and commissioning
requirements and performance requirements (e.g. heat outputs, efficiency and emissions) together
with supporting test methods.
This European Technical Specification (TS) deals with methods for the measurements of NOx, and
OGC/total hydrocarbons emissions and particulate and dust produced by the above mentioned
heating and cooking appliances.
For the nitrogen oxides this European Technical Specification describes the ‘Chemiluminescence
method’ and the ‘Non-dispersive infrared (NDIR) method’. Besides these two techniques, there are
also the ‘Non-dispersive ultraviolet (NDUV) method’ and the ‘Non-extractive (in situ) method’ which
are described in detail in ISO 10849:1996.
For the total hydrocarbon contents the method is described but the TS does not give any information
regarding separate constituents due to the measurements being expressed as equivalents of a
reference substance. In this method the measurement is continuous.
Finally, for the measurements of particulate and dust, this European Technical Specification reports,
in the Annex, three official methods that coincide respectively with the combined Austrian and
German method, the Norwegian method and the UK method currently in force in these countries.
kSIST-TS prCEN/TS 15883:2009
prCEN/TS 15883:2008 (E)
1 Scope
This European Technical Specification is applicable to residential heating and cooking appliances
burning solid fuels and details methods for the measurements of NO , and OGC/total hydrocarbons
x
emissions and particulate and dust produced by these appliances and is to be used in conjunction
with the test methods given in the European Standards covering these appliances.
This European Technical Specification covers the NO , and OGC/total hydrocarbons emission test
x
methods, however it does not cover input data and detailed calculation procedures.
For the particulate and dust emissions test methods, the national documents of those countries that
have a test method are reference methods which are summarised in Informative Annex A, whilst
those countries that do not have a specific test method, could choose one of these methods listed in
the annex.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
EN 12815:2001, Residential cookers fired by solid fuel — Requirements and test methods
EN 13229:2001, Inset appliances including open fires fired by solid fuels — Requirements and test
methods
ISO 10849:1996, Stationary source emissions — Determination of the mass concentration of nitrogen
oxides — Performance characteristics of automated measuring systems
3 Terms and definitions
3.1 Definitions
For the purposes of this Technical Specification, the following definitions apply.
3.1.1
absorption
incorporation of a substance into the body of a liquid or solid
3.1.2
calibration
set of operations that establish the relationship between values of quantities indicated by a measuring
instrument or measuring system, or values represented by a material measure or a reference
material, and the corresponding values realized by standards
3.1.3
dew point
temperature at, or below which, the condensation from the gas phase will occur
3.1.4
dust
particles of various shape, structure and density scattered in the gaseous phase of the flue gas
kSIST-TS prCEN/TS 15883:2009
prCEN/TS 15883:2008 (E)
3.1.5
gas sample
portion of gaseous material on which observations can be made in order to provide data on the
gaseous material from which it has been removed
NOTE A sample is taken as being representative of the gaseous material if the same observations are
supplied on any other samples taken from this gaseous material to furnish the same data within preset intervals.
3.1.6
line
gas-tight system of tubing equipped with accessories such a valves, manometers, etc. enabling gas to
be transported from one point to another
3.1.7
measured value
estimated value of the air quality characteristics derived from an output signal; this usually involves
calculations related to the calibration process and conversion to required quantities
3.1.8
nominal heat output
declared heat output of an appliance achieved under defined test conditions when burning the
specified test fuel in accordance with the European standard relevant to that appliance
3.1.9
reference material
material or substance one or more of whose property values is sufficiently homogeneous and well
established to be used for the calibration of an apparatus, the assessment of measurement method,
or for assigning values to materials
3.1.10
resolution
smallest difference between indications, for an identifiable component, of a recording or display
device that can be meaningfully distinguished
3.1.11
sample line
line provided to remove a representative sample of a gas to be analysed and to transport it from the
sample point to the analyzer
4 Emission test methods: measurements of total hydrocarbons (THC)
NOTE These methods are intended to determine the total hydrocarbon content in the flue gases from
appliances burning solid fuels. The method uses an instrument equipped with a flame ionisation detector (FID).
The measurement is continuous. The result obtained is expressed as equivalents of a reference substance,
usually methane or propane. The measurement concerns only the total hydrocarbon content and does not give
any information of separate constituents. The sampling point should be as described for the measurement
section detailed in the test methods appropriate to the appliance as given in the European Standard covering the
requirement and testing of these residential heating and cooking appliances burning solid fuels.
4.1 General procedure
The measurement is extractive and continuous, i.e. a sample of test gas flow is continuously extracted
and is analyzed in a free-standing instrument. The sampling point shall be as described in the test
methods detailed in the European Standard appropriate to the appliance being tested. If there is a
damper or any other device which favours the lack of homogeneity in the flow, the measuring point
shall be moved to a position where the flow is homogenous. The measuring system shall be heated to
195 °C.
kSIST-TS prCEN/TS 15883:2009
prCEN/TS 15883:2008 (E)
4.2 Equipment
The measuring system consists of the following components.
 Instrument with flame ionisation detector, FID. Measuring range, usually between 0 -10 and 0 -
100 000 ppm. The instrument shall be equipped with a heated filter.
 Gas probe with a cleaning filter for particulates. The probe shall consist of a suitable material,
such as corrosion resistant steel. The filter shall be heated so that condensation is avoided. This
requires a temperature in the filter of 195 °C.
 Sample line. The sample line shall be heated to the same temperature as the filter. The inner line
shall be of PTFE and be exchangeable. The sample line shall be as short as possible.
4.3 Calculation of organic gaseous compounds (OGC)
4.3.1 This method describes how to calculate the content of organic gaseous compounds
1)
expressed in mg/Nm (dry) (at normal condition ) and based upon an oxygen content of 13 % in the
exit flue gases. The calculation of total hydrocarbons (THC) content is based on a c
...


SLOVENSKI STANDARD
01-december-2009
Stanovanjski aparati na trdna goriva - Emisijska preskusna metoda
Residential solid fuel burning appliances - Emission test methods
Häusliche Feuerstätten für feste Brennstoffe - Emissionsprüfverfahren
Appareils résidentiels à combustibles solides - Méthodes d'essai des émissions
Ta slovenski standard je istoveten z: CEN/TS 15883:2009
ICS:
97.100.30 Grelniki na trdo gorivo Solid fuel heaters
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

TECHNICAL SPECIFICATION
CEN/TS 15883
SPÉCIFICATION TECHNIQUE
TECHNISCHE SPEZIFIKATION
July 2009
ICS 97.100.30
English Version
Residential solid fuel burning appliances - Emission test
methods
Appareils résidentiels à combustibles solides - Méthodes Häusliche Feuerstätten für feste Brennstoffe -
d'essai des émissions Emissionsprüfverfahren
This Technical Specification (CEN/TS) was approved by CEN on 28 March 2009 for provisional application.
The period of validity of this CEN/TS is limited initially to three years. After two years the members of CEN will be requested to submit their
comments, particularly on the question whether the CEN/TS can be converted into a European Standard.
CEN members are required to announce the existence of this CEN/TS in the same way as for an EN and to make the CEN/TS available
promptly at national level in an appropriate form. It is permissible to keep conflicting national standards in force (in parallel to the CEN/TS)
until the final decision about the possible conversion of the CEN/TS into an EN is reached.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2009 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN/TS 15883:2009: E
worldwide for CEN national Members.

Contents Page
Foreword . 3
Introduction . 4
1 Scope. 5
2 Normative references . 5
3 Terms and definitions . 5
3.1 Definitions . 5
4 Emission test methods: measurements of total hydrocarbons (THC) . 6
4.1 General procedure . 6
4.2 Equipment . 7
4.3 Calculation of organic gaseous compounds (OGC) . 7
4.4 Uncertainty of measurement . 8
5 Emissions test methods: measurement of nitrogen oxides. 8
5.1 General procedure . 8
5.2 Measuring principles of analysers . 9
5.2.1 Chemiluminescence method . 9
5.2.2 Non-dispersive infrared (NDIR) method . 10
5.2.3 Other methods . 11
5.3 Calculation method . 11
Annex A (informative) . 12
A.1 Austrian and German particle test methods . 12
A.1.1 General . 12
A.1.2 Dust measuring equipment . 12
A.2 Norwegian particle test methods . 13
A.2.1 The test methods for particle emissions . 14
A.3 UK particle test methods . 16
A.3.1 Background to legislation and basis of testing . 16
A.3.2 Measurement of smoke emission from Fuels: summary of the BS 3841 Test
Procedure . 17
A.3.3 Measurement of Smoke Emission from a Smoke Reducing Appliance . 18
A.3.4 Brief summary of BS 3841 smoke measurement apparatus . 19
Bibliography . 25

Foreword
This document (CEN/TS 15883:2009) has been prepared by Technical Committee CEN/TC 295
“Residential solid fuel burning appliances”, the secretariat of which is held by BSI.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such
patent rights.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to announce this Technical Specification: Austria, Belgium, Bulgaria,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,
Slovakia, Slovenia, Spain, Sweden, Switzerland and the United Kingdom.

Introduction
All the standards of CEN/TC 295 deal with the field of residential heating and cooking appliances
burning solid fuels covering the standardization of appliance construction, safety and commissioning
requirements and performance requirements (e.g. heat outputs, efficiency and emissions) together
with supporting test methods.
This European Technical Specification (TS) deals with methods for the measurements of NOx, and
OGC/total hydrocarbons emissions and particulate and dust produced by the above mentioned
heating and cooking appliances.
For the nitrogen oxides this European Technical Specification describes the ‘Chemiluminescence
method’ and the ‘Non-dispersive infrared (NDIR) method’. Besides these two techniques, there are
also the ‘Non-dispersive ultraviolet (NDUV) method’ and the ‘Non-extractive (in situ) method’ which
are described in detail in ISO 10849:1996.
For the total hydrocarbon contents the method is described but the TS does not give any information
regarding separate constituents due to the measurements being expressed as equivalents of a
reference substance. In this method the measurement is continuous.
Finally, for the measurements of particulate and dust, this European Technical Specification reports,
in the Annex, three official methods that coincide respectively with the combined Austrian and
German method, the Norwegian method and the UK method currently in force in these countries.
1 Scope
This European Technical Specification is applicable to residential heating and cooking appliances
burning solid fuels and details methods for the measurements of NO , and OGC/total hydrocarbons
x
emissions and particulate and dust produced by these appliances and is to be used in conjunction
with the test methods given in the European Standards covering these appliances.
This European Technical Specification covers the NO , and OGC/total hydrocarbons emission test
x
methods, however it does not cover input data and detailed calculation procedures.
For the particulate and dust emissions test methods, the national documents of those countries that
have a test method are reference methods which are summarised in Informative Annex A, whilst
those countries that do not have a specific test method, could choose one of these methods listed in
the annex.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
EN 12815:2001, Residential cookers fired by solid fuel — Requirements and test methods
EN 13229:2001, Inset appliances including open fires fired by solid fuels — Requirements and test
methods
EN 13240:2001, Roomheaters fired by solid fuel - Requirements and test methods
ISO 10849:1996, Stationary source emissions — Determination of the mass concentration of nitrogen
oxides — Performance characteristics of automated measuring systems
3 Terms and definitions
3.1 Definitions
For the purposes of this Technical Specification, the following definitions apply.
3.1.1
absorption
incorporation of a substance into the body of a liquid or solid
3.1.2
calibration
set of operations that establish the relationship between values of quantities indicated by a measuring
instrument or measuring system, or values represented by a material measure or a reference
material, and the corresponding values realized by standards
3.1.3
dew point
temperature at, or below which, the condensation from the gas phase will occur
3.1.4
dust
particles of various shape, structure and density scattered in the gaseous phase of the flue gas
3.1.5
gas sample
portion of gaseous material on which observations can be made in order to provide data on the
gaseous material from which it has been removed
NOTE A sample is taken as being representative of the gaseous material if the same observations are
supplied on any other samples taken from this gaseous material to furnish the same data within preset intervals.
3.1.6
line
gas-tight system of tubing equipped with accessories such a valves, manometers, etc. enabling gas to
be transported from one point to another
3.1.7
measured value
estimated value of the air quality characteristics derived from an output signal; this usually involves
calculations related to the calibration process and conversion to required quantities
3.1.8
nominal heat output
declared heat output of an appliance achieved under defined test conditions when burning the
specified test fuel in accordance with the European standard relevant to that appliance
3.1.9
reference material
material or substance one or more of whose property values is sufficiently homogeneous and well
established to be used for the calibration of an apparatus, the assessment of measurement method,
or for assigning values to materials
3.1.10
resolution
smallest difference between indications, for an identifiable component, of a recording or display
device that can be meaningfully distinguished
3.1.11
sample line
line provided to remove a representative sample of a gas to be analysed and to transport it from the
sample point to the analyzer
4 Emission test methods: measurements of total hydrocarbons (THC)
NOTE These methods are intended to determine the total hydrocarbon content in the flue gases from
appliances burning solid fuels. The method uses an instrument equipped with a flame ionisation detector (FID).
The measurement is continuous. The result obtained is expressed as equivalents of a reference substance,
usually methane or propane. The measurement concerns only the total hydrocarbon content and does not give
any information of separate constituents. The sampling point should be as described for the measurement
section detailed in the test methods appropriate to the appliance as given in the European Standard covering the
requirement and testing of these residential heating and cooking appliances burning solid fuels.
4.1 General procedure
The measurement is extractive and continuous, i.e. a sample of test gas flow is continuously extracted
and is analyzed in a free-standing instrument. The sampling point shall be as described in the test
methods detailed in the European Standard appropriate to the appliance being tested. If there is a
damper or any other device which favours the lack of homogeneity in the flow, the measuring point
shall be moved to a position where the flow is homogenous. The measuring system shall be heated to
195 °C.
4.2 Equipment
The measuring system consists of the following components.
a) Instrument with flame ionisation detector, FID. Measuring range, usually between 0 -10 and 0 -
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
