EN 15734-1:2010+A1:2021

Railway applications - Braking systems of high speed trains - Part 1: Requirements and definitions

This European Standard describes the functionality, constraints, performance and operation of a brake system for use in high speed trains as described in the TSI High Speed Rolling Stock, operating on routes of the European railways and their infrastructure systems.
The brake system requirements specified in this European Standard apply to trains that may operate at a maximum speed of up to 350 km/h on lines specifically built for high speed and define graduated values for deceleration related to four speed ranges (see Clause 6).
This European Standard covers:
-   all new vehicle designs of high speed trains;
-   all major overhauls of the above-mentioned vehicles if they involve redesigning or extensive alteration to the brake system of the vehicle concerned.
This European Standard does not cover locomotive hauled trains, which are specified by EN 14198.
NOTE   This document applies the functional subdivision into subsystems as specified in the TSI High speed. The braking system is part of the function: "Accelerate, maintain speed, brake and stop".

Bahnanwendungen - Bremssysteme für Hochgeschwindigkeitszüge - Teil 1: Anforderungen und Definitionen

Diese Europäische Norm beschreibt die Anforderungen an die Funktionalität, die Einschränkungen, die Leistungsfähigkeit und den Betrieb von Bremssystemen für die Anwendung in Hochgeschwindigkeitszügen nach TSI Fahrzeuge HGV, die zum Betrieb auf den Strecken der europäischen Bahnen und deren Infrastruktursystemen bestimmt sind.
Die in der vorliegenden Norm festgelegten Anforderungen für das Bremssystem sind für Züge anzuwenden, die bei einer Höchstgeschwindigkeit von bis zu 350 km/h auf speziell für den Hochgeschwindigkeitsverkehr gebauten Strecken verkehren können und legt für Bremsverzögerungen in vier Geschwindigkeitsbereiche abgestufte Werte fest (siehe Abschnitt 6).
Diese Norm gilt für:
—   alle neuen Fahrzeugbauarten für Hochgeschwindigkeitszüge;
—   alle größeren Grundüberholungen der oben genannten Fahrzeuge, wenn sie Neukonstruktionen oder umfassende Änderungen der Bremsanlage des betreffenden Fahrzeuges mit einschließen.
Diese Norm behandelt nicht lokomotivbespannte Züge, welche in EN 14198 behandelt werden.
ANMERKUNG   Dieses Dokument folgt einer funktionalen Einteilung aus der TSI HGV und behandelt das Bremssystem als Teil der Funktion „Beschleunigen, Geschwindigkeit halten, bremsen und anhalten“.

Applications ferroviaires - Systèmes de freinage pour trains à grande vitesse - Partie 1 : Exigences et définitions

La présente Norme européenne décrit les fonctions, les contraintes, les performances et le fonctionnement
d’un système de freinage destiné à être utilisé sur les trains à grande vitesse décrits dans la STI Grande
vitesse - Matériel roulant, circulant sur des lignes des réseaux ferrés européens et leur infrastructure.
Les exigences du système de freinage spécifiées dans la présente Norme européenne s'appliquent aux trains
pouvant circuler à une vitesse maximale pouvant aller jusqu’à 350 km/h sur des lignes spécialement conçues
pour les trains à grande vitesse et définissent des valeurs de décélération associées à quatre plages de
vitesses (voir Article 6).
La présente Norme européenne couvre :
¾ toutes les nouvelles conceptions de trains à grande vitesse ;
¾ toutes les grandes révisions des véhicules susmentionnés si celles-ci entraînent une reconception ou une
transformation majeure du système de freinage du véhicule concerné.
La présente Norme européenne ne couvre pas les trains remorqués par une locomotive, qui font l’objet de
l’EN 14198.
NOTE Le présent document applique la sous-division fonctionnelle en sous-systèmes comme le spécifie la STI
Grande vitesse - Matériel roulant. Le système de freinage fait partie de la fonction : « Accélérer, maintenir la vitesse,
freiner et s’arrêter ».

Železniške naprave - Zavorni sistemi na vlakih z velikimi hitrostmi - 1. del: Zahteve in definicije

Ta evropski standard opisuje funkcionalnost, omejitve, izvajanje in delovanje zavornega sistema za uporabo pri vlakih z velikimi hitrostmi, kot je opisano v tehničnih specifikacijah za interoperabilnost hitrih vlakov, ki vozijo po evropskih železnicah in njihove infrastrukturne sisteme.
Zahteve za zavorni sistem, določene v tem evropskem standardu, veljajo za vlake, ki lahko vozijo z največjo hitrostjo do 350 km/h po progah, ki so posebej zgrajene za velike hitrosti, in določajo stopnje pojemka pri štirih razponih hitrosti (glej točko 6).
Ta evropski standard zajema:
–   vse nove modele vlakov z velikimi hitrostmi;
–   vse večje obnove zgoraj navedenih vozil, če obnova vključuje preoblikovanje ali obsežno spremembo zavornega sistema zadevnega vozila.
Ta evropski standard se ne uporablja za vlake, ki jih vleče lokomotiva in so navedeni v standardu EN 14198.
OPOMBA:   V tem dokumentu se uporablja funkcionalna razdelitev na podsisteme, kot je določeno v tehničnih specifikacijah za interoperabilnost hitrih vlakov. Zavorni sistem je del funkcije: »pospeševanje, ohranjanje hitrosti, zaviranje in zaustavitev«.

General Information

• Status: Published
• Publication Date: 14-Dec-2021
• Withdrawal Date: 29-Jun-2022
• ICS: 45.060.01 - Railway rolling stock in general
• Technical Committee: CEN/TC 256 - Railway applications
• Drafting Committee: CEN/TC 256/SC 3/WG 47 - Braking
• Current Stage: 6060 - Definitive text made available (DAV) - Publishing
• Start Date: 15-Dec-2021
• Completion Date: 15-Dec-2021
• Directive: 2016/797/EU - Directive (EU) 2016/797 of the European Parliament and of the Council of 11 May 2016 on the interoperability of the rail system within the European Union (Text with EEA relevance)
• Mandate: M/483 - Mandate for programming and standardisation addressed to the European standardisation bodies under directive 2008/57/EC in the field of the interoperability of the rail system within the European Union
• Mandate: M/591 - Standardisation request to the European Committee for Standardisation and the European Committee for Electrotechnical Standardisation as regards railway products in support of Directive (EU) 2016/797
• Ref Project: SIST EN 15734-1:2011+A1:2022 - Railway applications - Braking systems of high speed trains - Part 1: Requirements and definitions

Relations

• Merged From: EN 15734-1:2010/AC:2013 - Railway applications - Braking systems of high speed trains - Part 1: Requirements and definitions
• Effective Date: 19-Jan-2023
• Merged From: EN 15734-1:2010/prA1 - Railway applications - Braking systems of high speed trains - Part 1: Requirements and definitions
• Effective Date: 18-Jan-2023
• Merged From: EN 15734-1:2010 - Railway applications - Braking systems of high speed trains - Part 1: Requirements and definitions
• Effective Date: 13-Oct-2021

Standards Content (Sample)

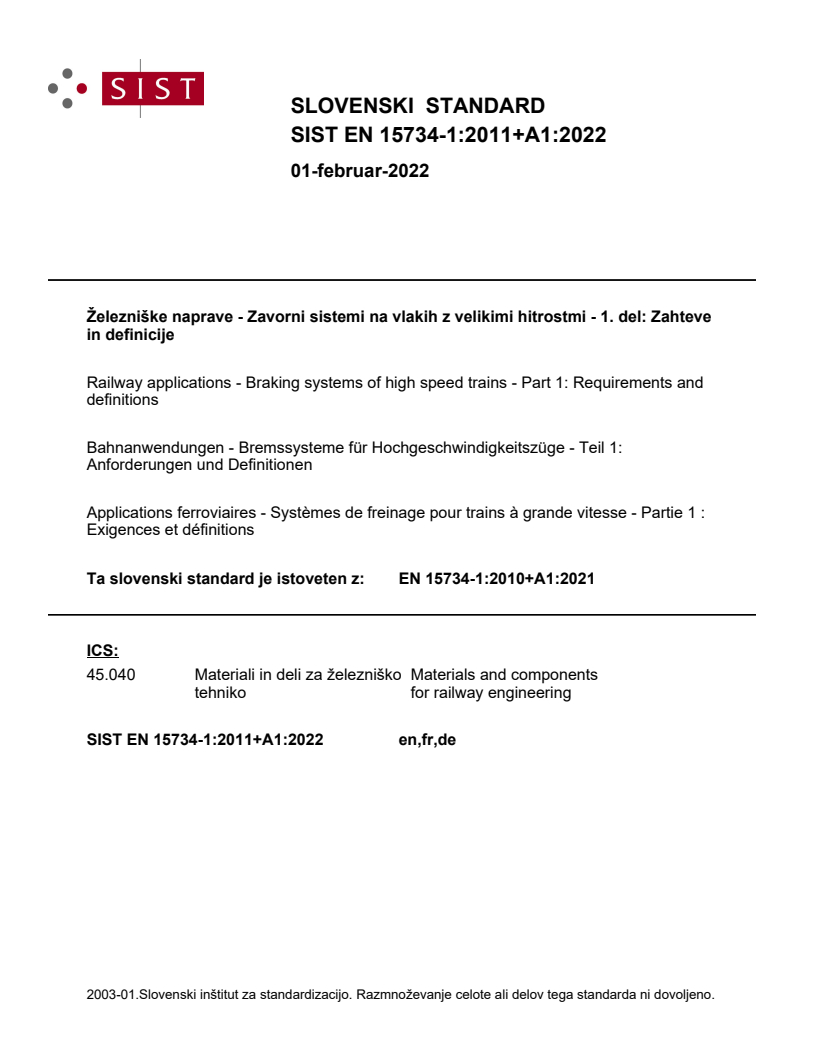

SLOVENSKI STANDARD
01-februar-2022
Železniške naprave - Zavorni sistemi na vlakih z velikimi hitrostmi - 1. del: Zahteve
in definicije
Railway applications - Braking systems of high speed trains - Part 1: Requirements and
definitions
Bahnanwendungen - Bremssysteme für Hochgeschwindigkeitszüge - Teil 1:
Anforderungen und Definitionen
Applications ferroviaires - Systèmes de freinage pour trains à grande vitesse - Partie 1 :
Exigences et définitions
Ta slovenski standard je istoveten z: EN 15734-1:2010+A1:2021
ICS:
45.040 Materiali in deli za železniško Materials and components
tehniko for railway engineering
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

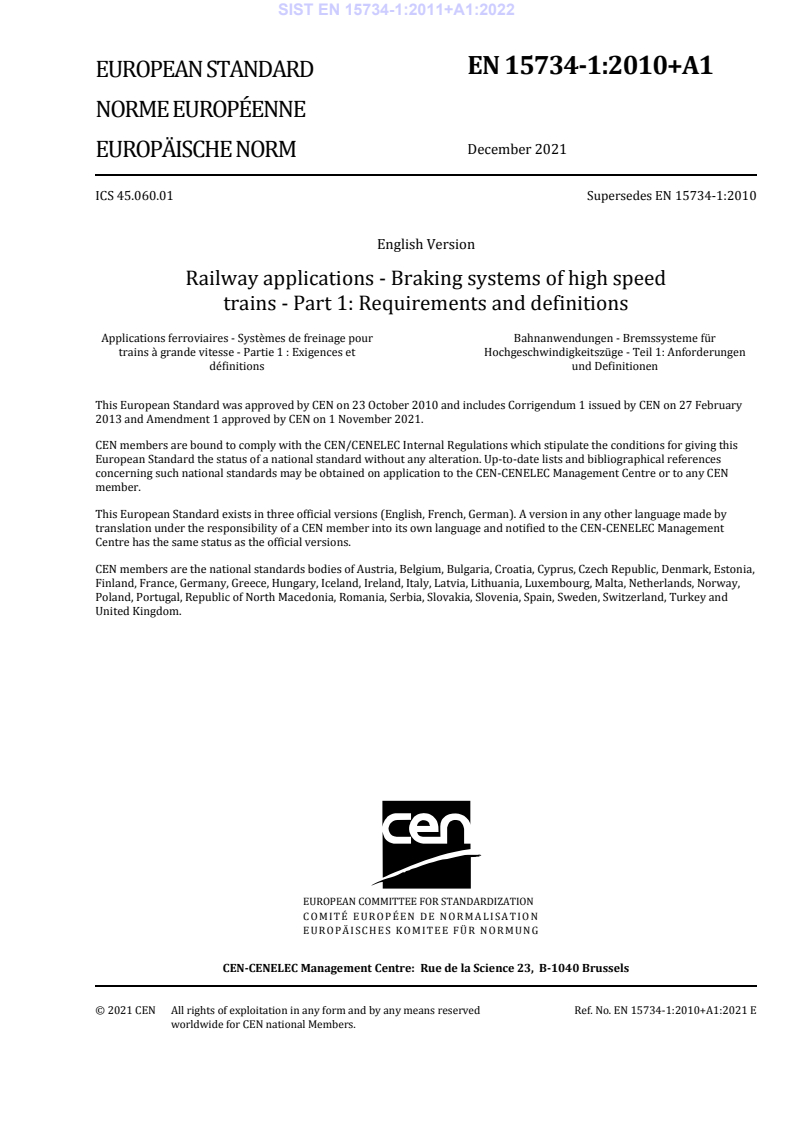

EN 15734-1:2010+A1
EUROPEAN STANDARD
NORME EUROPÉENNE
December 2021
EUROPÄISCHE NORM
ICS 45.060.01 Supersedes EN 15734-1:2010
English Version
Railway applications - Braking systems of high speed
trains - Part 1: Requirements and definitions
Applications ferroviaires - Systèmes de freinage pour Bahnanwendungen - Bremssysteme für
trains à grande vitesse - Partie 1 : Exigences et Hochgeschwindigkeitszüge - Teil 1: Anforderungen
définitions und Definitionen
This European Standard was approved by CEN on 23 October 2010 and includes Corrigendum 1 issued by CEN on 27 February
2013 and Amendment 1 approved by CEN on 1 November 2021.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 15734-1:2010+A1:2021 E
worldwide for CEN national Members.

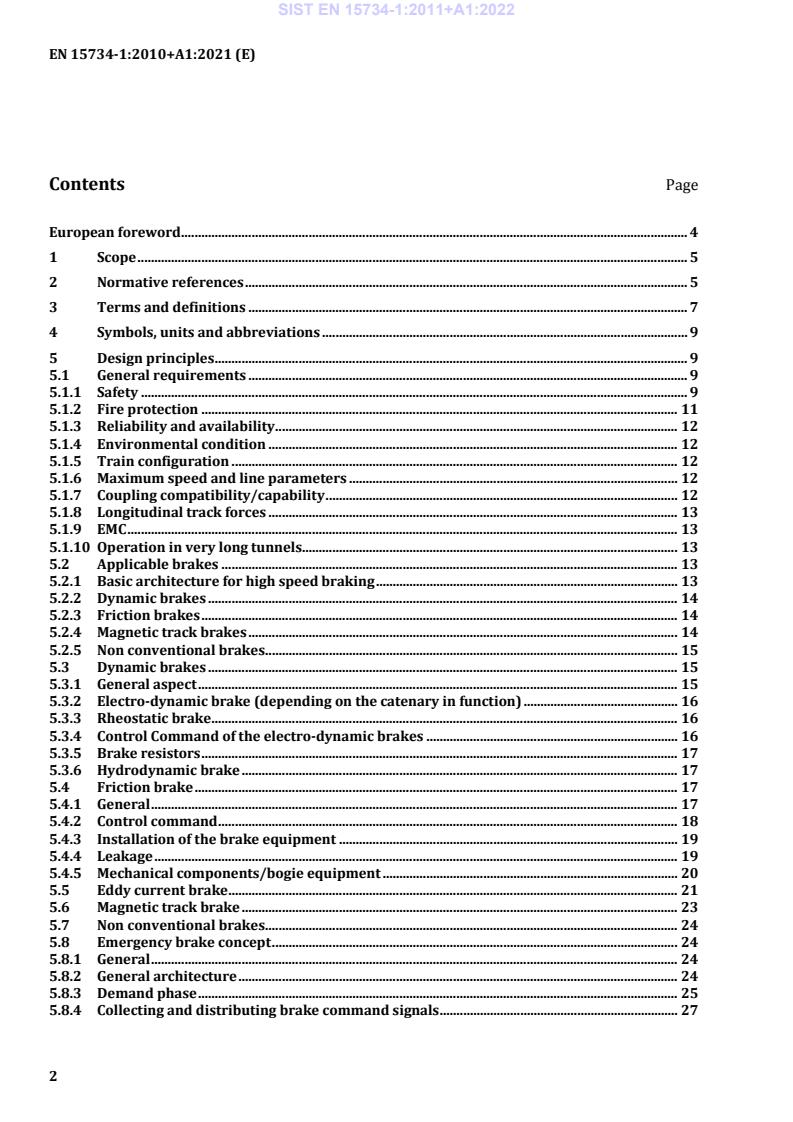

Contents Page
European foreword . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 7
4 Symbols, units and abbreviations . 9
5 Design principles . 9
5.1 General requirements . 9
5.1.1 Safety . 9
5.1.2 Fire protection . 11
5.1.3 Reliability and availability . 12
5.1.4 Environmental condition . 12
5.1.5 Train configuration . 12
5.1.6 Maximum speed and line parameters . 12
5.1.7 Coupling compatibility/capability . 12
5.1.8 Longitudinal track forces . 13
5.1.9 EMC . 13
5.1.10 Operation in very long tunnels . 13
5.2 Applicable brakes . 13
5.2.1 Basic architecture for high speed braking . 13
5.2.2 Dynamic brakes . 14
5.2.3 Friction brakes . 14
5.2.4 Magnetic track brakes . 14
5.2.5 Non conventional brakes . 15
5.3 Dynamic brakes . 15
5.3.1 General aspect . 15
5.3.2 Electro-dynamic brake (depending on the catenary in function) . 16
5.3.3 Rheostatic brake . 16
5.3.4 Control Command of the electro-dynamic brakes . 16
5.3.5 Brake resistors . 17
5.3.6 Hydrodynamic brake . 17
5.4 Friction brake . 17
5.4.1 General . 17
5.4.2 Control command . 18
5.4.3 Installation of the brake equipment . 19
5.4.4 Leakage . 19
5.4.5 Mechanical components/bogie equipment . 20
5.5 Eddy current brake . 21
5.6 Magnetic track brake . 23
5.7 Non conventional brakes . 24
5.8 Emergency brake concept . 24
5.8.1 General . 24
5.8.2 General architecture . 24
5.8.3 Demand phase . 25
5.8.4 Collecting and distributing brake command signals . 27
5.9 Service braking . 28
5.9.1 Brake management – Brake blending . 28
5.9.2 Brake command . 29
5.9.3 Signal processing . 31
5.9.4 ATC Automatic train control system (optional) . 32
5.9.5 Combined braking with two brake handles . 32
5.9.6 Jerk / Ramps . 32
5.9.7 Coupling/Decoupling . 32
5.10 Wheel slide protection and locked wheel detection . 33
5.10.1 General . 33
5.10.2 Wheel slide protection . 33
5.10.3 Locked wheel monitoring system . 34
5.11 Parking brake . 34
5.12 Location of the control devices . 36
5.12.1 Driver's cab . 36
5.12.2 Operating devices others than in the cab. 37
5.13 Brake indicators . 38
5.14 Fault monitoring and diagnostics . 39
5.15 Driver's brake test . 41
5.15.1 General . 41
5.15.2 Regular basic brake test . 41
5.15.3 Full brake test . 42
5.15.4 Realization of brake tests . 43
5.16 Power supply . 43
5.16.1 Air pressure supply . 43
5.16.2 Electrical energy supply . 44
5.17 Enhancement of wheel-rail adhesion . 44
5.18 Maintenance . 45
6 Brake performance . 45
6.1 General .
...
