EN ISO 11393-6:2019

Protective clothing for users of hand-held chainsaws - Part 6: Performance requirements and test methods for upper body protectors (ISO 11393-6:2018, Corrected version 2019-11)

This document specifies the performance requirements, test methods, design requirements, identification and marking information for upper body protectors that offer protection against cutting by hand-held chainsaws.
It also specifies procedures for sampling and pre-treatment of upper body protectors, the measurement of the protective coverage, the apparatus and test methods for assessing resistance to cutting, and the practical performance test for evaluating ergonomic properties.
Guidance on chainsaw use and the selection of appropriate upper body protectors is given in Annex A.

Schutzkleidung für die Benutzer von handgeführten Kettensägen - Teil 6: Prüfverfahren und Leistungsanforderungen für Oberkörperschutzmittel (ISO 11393-6:2018, korrigierte Fassung 2019-11)

Dieses Dokument legt die Leistungsanforderungen, Prüfverfahren, Gestaltungsanforderungen sowie Identifikations- und Kennzeichnungsangaben für Oberkörperschutzmittel, die Schutz gegen Schnittver-letzungen durch eine handgeführte Kettensäge bieten, fest.
Zudem legt es Verfahren für die Probenahme und die Vorbehandlung von Oberkörperschutzmitteln, die Messung der Schutzbedeckung, die Prüfeinrichtung und Prüfverfahren zur Bewertung des Schnitt-widerstands und die praktische Leistungsprüfung zur Bewertung der ergonomischen Eigenschaften fest.
Empfehlungen zur Verwendung von Kettensägen und zur Wahl der geeigneten Oberkörperschutzmittel sind in Anhang A angegeben.

Vêtements de protection pour utilisateurs de scies à chaîne tenues à la main - Partie 6: Exigences de performance et méthodes d'essai pour protecteurs du haut du corps (ISO 11393-6:2018, Version corrigée 2019-11)

Le présent document spécifie les exigences de performance, les méthodes d'essai, les exigences de conception, l'identification et les informations de marquage relatives aux protecteurs du haut du corps qui offrent une protection contre les coupures dues aux scies à chaîne tenues à la main.
Il spécifie aussi les méthodes d'échantillonnage et de traitement préalable des protecteurs du haut du corps, le mesurage applicable à la zone de protection, l'appareillage et les méthodes d'essai utilisés pour évaluer leur résistance à la coupure, ainsi que l'essai de performance pratique destiné à l'évaluation des propriétés d'ergonomie.
L'Annexe A donne des lignes directrices pour l'utilisation de la scie à chaîne et la sélection des protecteurs du haut du corps appropriés.

Varovalna obleka za uporabnike ročnih verižnih žag - 6. del: Zahtevane lastnosti in preskusne metode za ščitnike zgornjega dela telesa (ISO 11393-6:2018, popravljena verzija 2019-11)

Ta del standarda ISO 11393 določa zahteve za zaščito, ki jo zagotavljajo ščitniki zgornjega dela telesa pred urezom z ročno verižno žago. Določa tudi postopke za vzorčenje in predobdelavo ščitnikov zgornjega dela telesa, mere zaščitnega prekrivala, aparate in preskusne metode za vrednotenje odpornosti proti urezu ter praktični preskus zmogljivosti za ocenjevanje ergonomskih lastnosti.

General Information

• Status: Published
• Publication Date: 23-Jul-2019
• Withdrawal Date: 30-Jan-2020
• ICS: 13.340.10 - Protective clothing
• Technical Committee: CEN/TC 162 - Protective clothing including hand and arm protection and lifejackets
• Drafting Committee: CEN/TC 162/WG 5 - Resistance to mechanical impact of protective clothing
• Current Stage: 6060 - Definitive text made available (DAV) - Publishing
• Start Date: 24-Jul-2019
• Due Date: 07-Feb-2019
• Completion Date: 24-Jul-2019
• Directive: 2016/425 - Regulation (EU) 2016/425 of the European Parliament and of the Council of 9 March 2016 on personal protective equipment and repealing Council Directive 89/686/EEC
• Directive: 89/686/EEC - Council Directive 89/686/EEC of 21 December 1989 on the approximation of the laws of the Member States relating to personal protective equipment
• Mandate: M/031 - Standardization mandate to CEN/CENELEC concerning standards for Personal Protective Equipment
• Ref Project: SIST EN ISO 11393-6:2019 - Protective clothing for users of hand-held chainsaws - Part 6: Performance requirements and test methods for upper body protectors (ISO 11393-6:2018, Corrected version 2019-11)

Relations

• Replaces: EN 381-10:2002 - Protective clothing for users of hand-held chainsaws - Part 10: Test method for upper body protectors
• Effective Date: 08-Jun-2022
• Replaces: EN 381-11:2002 - Protective clothing for users of hand-held chainsaws - Part 11: Requirements for upper body protectors
• Effective Date: 31-Jul-2019

Overview

EN ISO 11393-6:2019 - "Protective clothing for users of hand‑held chainsaws - Part 6: Performance requirements and test methods for upper body protectors" (ISO 11393-6:2018, corrected 2019) is a CEN-adopted international standard that defines performance criteria, test methods, design, identification and marking for upper‑body chainsaw protective garments. It specifies sampling and pre‑treatment, how to measure protective coverage, the apparatus and procedures to assess resistance to chainsaw cutting, and a practical performance (ergonomics) test. Annex A provides guidance on chainsaw use and selection of appropriate upper body protectors.

Key topics and requirements

• Scope and applicability: Performance requirements for jackets, vests and other upper body protectors intended to reduce injury from hand‑held chainsaws.
• Performance requirements: Innocuousness, sizing, ergonomic constraints, minimum protective area (front and rear designs, optional collar), and limits on user impediment.
• Design requirements: Defined protective coverage patterns (front design A/B, rear design A/B), fastenings, joins, attachment of protective padding, and closure strength requirements.
• Cutting resistance testing: Procedures and apparatus to evaluate resistance to chainsaw cutting, including marked test positions (shoulder, sleeve, seams) and classification according to chainsaw chain speed.
• Pre‑treatment & sampling: Cleaning, temperature/spin pre‑treatments, sampling rules and specification of test specimen sizes to ensure repeatable results.
• Dimensional and material change: Tests for dimensional change after care/cleaning and assessment of other changes impacting protection.
• Ergonomic/Practical performance: Practical test methods to evaluate fit, freedom of movement and real‑world usability.
• Identification & information: Required marking and manufacturer instructions for correct selection and use.

Keywords naturally covered: EN ISO 11393-6:2019, upper body protectors, chainsaw protective clothing, chainsaw cutting resistance, PPE test methods, performance requirements.

Applications and who uses it

• Manufacturers of chainsaw protective jackets, vests and garments - to design and certify products that meet European and international performance expectations.
• Test laboratories and conformity assessment bodies - to carry out standardized cutting resistance, coverage and ergonomic tests.
• Procurement professionals and safety managers in forestry, arboriculture, utility maintenance and landscaping - to select compliant upper body protective equipment (PPE).
• Regulators and notified bodies - to reference for conformity with Regulation (EU) 2016/425 and national PPE requirements.
• Standards writers and specifiers - to harmonize product specifications and procurement standards.

Related standards

• Supersedes: EN 381‑10 and EN 381‑11 (2002 series).
• Linked regulation: Relationship to Regulation (EU) 2016/425 for PPE conformity (see Annex ZA).

This standard is essential when specifying, testing or certifying upper‑body chainsaw protective clothing to ensure measurable protection, consistent test methods and clear user information.

Standards Content (Sample)

SLOVENSKI STANDARD
01-oktober-2019
Nadomešča:
SIST EN 381-10:2003
SIST EN 381-11:2003
Varovalna obleka za uporabnike ročnih verižnih žag - 6. del: Zahtevane lastnosti in
preskusne metode za ščitnike zgornjega dela telesa (ISO 11393-6:2018)
Protective clothing for users of hand-held chainsaws - Part 6: Performance requirements
and test methods for upper body protectors (ISO 11393-6:2018)
Schutzkleidung für die Benutzer handgeführter Kettensägen - Teil 6: Prüfverfahren und
Leistungsanforderungen für Oberkörperschutzmittel (ISO 11393-6:2018)
Vêtements de protection pour utilisateurs de scies à chaîne tenues à la main - Partie 6:
Exigences de performance et méthodes d'essai pour protecteurs du haut du corps (ISO
11393-6:2018)
Ta slovenski standard je istoveten z: EN ISO 11393-6:2019
ICS:
13.340.10 Varovalna obleka Protective clothing
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN ISO 11393-6
EUROPEAN STANDARD
NORME EUROPÉENNE
July 2019
EUROPÄISCHE NORM
ICS 13.340.10 Supersedes EN 381-10:2002, EN 381-11:2002
English Version
Protective clothing for users of hand-held chainsaws - Part
6: Performance requirements and test methods for upper
body protectors (ISO 11393-6:2018)
Vêtements de protection pour utilisateurs de scies à Schutzkleidung für die Benutzer handgeführter
chaîne tenues à la main - Partie 6: Exigences de Kettensägen - Teil 6: Prüfverfahren und
performance et méthodes d'essai pour protecteurs du Leistungsanforderungen für Oberkörperschutzmittel
haut du corps (ISO 11393-6:2018) (ISO 11393-6:2018)
This European Standard was approved by CEN on 18 July 2019.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 11393-6:2019 E
worldwide for CEN national Members.

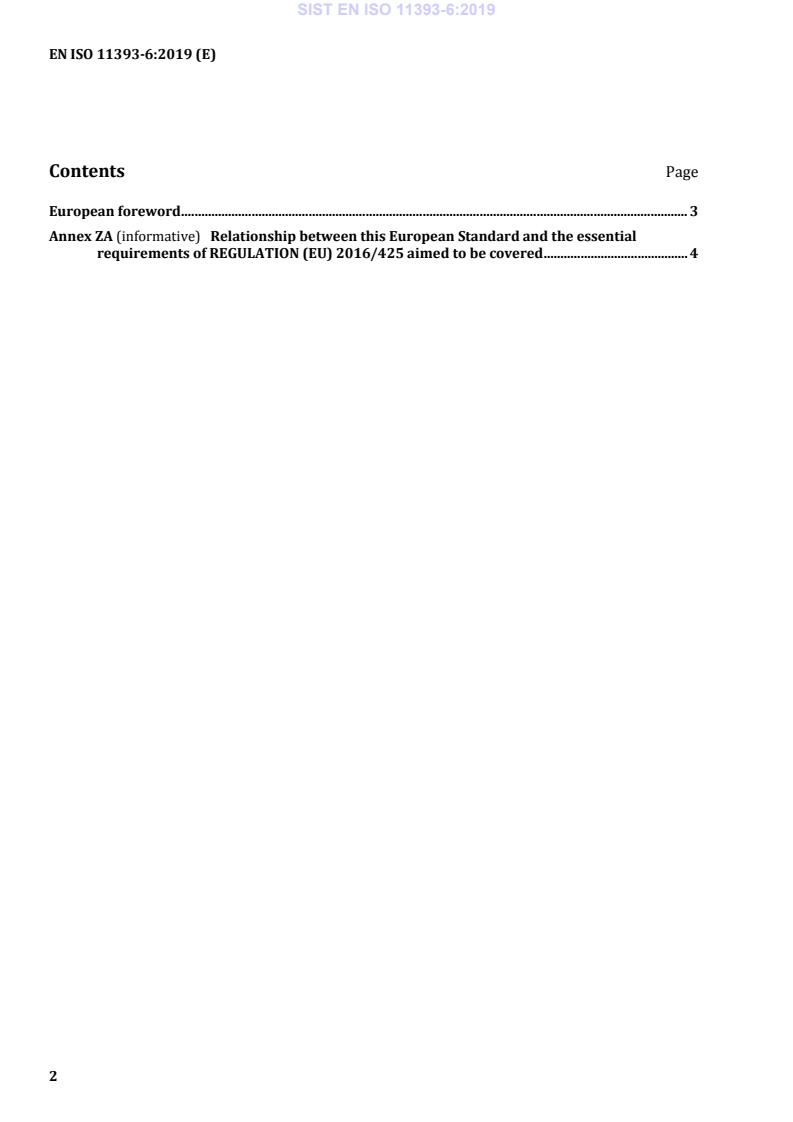

Contents Page
European foreword . 3
Annex ZA (informative)  Relationship between this European Standard and the essential
requirements of REGULATION (EU) 2016/425 aimed to be covered . 4
European foreword
This document (EN ISO 11393-6:2019) has been prepared by Technical Committee ISO/TC 94
"Personal safety - Personal protective equipment" in collaboration with Technical Committee CEN/TC
162 “Protective clothing including hand and arm protection and lifejackets” the secretariat of which is
held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by January 2020, and conflicting national standards shall
be withdrawn at the latest by January 2020.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 381-11:2002 and EN 381-10:2002.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive(s).
For the relationship with EU Directive(s) see informative Annex ZA, which is an integral part of this
document.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the
United Kingdom.
Endorsement notice
The text of ISO 11393-6:2018 has been approved by CEN as EN ISO 11393-6:2019 without any
modification.
Annex ZA
(informative)
Relationship between this European Standard and the essential
requirements of REGULATION (EU) 2016/425 aimed to be covered
This European Standard has been prepared under a Commission’s standardization request to provide
one voluntary means of conforming to essential requirements of Regulation (EU) 2016/425 on the
approximation of the laws of the Member States relating to personal protective equipment.
Once this standard is cited in the Official Journal of the European Union under that Regulation,
compliance with the normative clauses of this standard given in Table ZA.1 confers, within the limits
of the scope of this standard, a presumption of conformity with the corresponding essential
requirements of that Regulation and associated EFTA regulations.

Table ZA.1 — Correspondence between this European Standard and and Regulation (EU)
2016/425
Essential Requirements of Clause(s)/sub-clause(s) of this Remarks/Notes
REGULATION (EU) 2016/425 EN
1.1.1. Ergonomics 4.4
1.1.2.1. Optimum level of 4.4
protection
1.1.2.2. Classes of protection
appropriate to different levels of
risk
1.2.1. Absence of inherent risks 4.4; 4.5; 4.6; 4.8
and other nuisance factors
1.2.1.1. Suitable constituent 4.2
materials
1.2.1.2. Satisfactory surface
condition of all PPE parts in
4.4
contact with the user
1.2.1.3. Maximum permissible 4.4
user impediment
1.3.1. Adaptation of PPE to user 4.4; 11.1
morphology
1.3.2. Lightness and strength 4.8
1.4. Manufacturer’s instructions 13; 15
and information
2.4. PPE subject to ageing 13 c); 15 q)
2.12. PPE bearing one or more
identification markings or
indicators directly or indirectly
relating to health and safety
3.3. Protection against 4.7
mechanical injuries
WARNING 1 — Presumption of conformity stays valid only as long as a reference to this European
Standard is maintained in the list published in the Official Journal of the European Union. Users of this
standard should consult frequently the latest list published in the Official Journal of the European
Union.
WARNING 2 — Other Union legislation may be applicable to the product(s) falling within the scope of
this standard.
INTERNATIONAL ISO
STANDARD 11393-6
Second edition
2018-09
Protective clothing for users of hand-
held chainsaws —
Part 6:
Performance requirements and test
methods for upper body protectors
Vêtements de protection pour utilisateurs de scies à chaîne tenues à
la main —
Partie 6: Exigences de performance et méthodes d'essai pour
protecteurs du haut du corps
Reference number
ISO 11393-6:2018(E)
©
ISO 2018
ISO 11393-6:2018(E)
© ISO 2018
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii © ISO 2018 – All rights reserved

ISO 11393-6:2018(E)
Contents Page
Foreword .v
Introduction .vii
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Performance requirements . 3
4.1 General . 3
4.2 Innocuousness . 3
4.3 Sizing . 3
4.4 Ergonomic requirements . 3
4.5 Specified minimum protective area for upper body protectors . 3
4.5.1 General. 3
4.5.2 Designs of jackets . 3
4.5.3 Front design A . 3
4.5.4 Front design B . 4
4.5.5 Rear design A and B . 5
4.5.6 Collar (optional) . 6
4.5.7 Fastenings and joins . . 6
4.6 Dimensional change and other changes . 6
4.6.1 Dimensional change . 6
4.6.2 Other changes as a consequence of cleaning . 7
4.7 Resistance to chainsaw cutting . 7
4.8 Requirements for the attachment of protective padding and the strength of closures . 7
5 Classification according to chain speed . 7
6 Test methods . 7
6.1 General . 7
6.2 Pre-treatment . 7
6.2.1 Cleaning . 7
6.2.2 Pre-treatment for testing the effect of temperature and spinning on the
structure of the protective insert . 8
6.3 Number of test specimens . 8
6.4 Sizes of test specimens . 8
6.5 Examination of protective material. 8
7 Testing for dimensional change . 8
8 Checking of protective coverage . 9
9 Testing of resistance to cutting . 9
9.1 Purpose of testing . 9
9.2 Test specimens . 9
9.3 Marking of positions for cutting . 9
9.3.1 Test position line on shoulder . 9
9.3.2 Test position on the sleeve .10
9.3.3 Test positions if there are seams in the protective material .10
9.4 Test mounts.11
9.4.1 Shoulder test mount .11
9.4.2 Sleeve test mount .12
9.5 Apparatus .12
9.6 Mounting of test specimens .12
9.6.1 Shoulder test .12
9.6.2 Sleeve test .13
9.7 Test procedure .14
9.7.1 Positions of cuts .14
ISO 11393-6:2018(E)
9.7.2 Number of cuts .15
9.7.3 Chain speed .15
10 Testing of the protective material attachment .15
10.1 General .15
10.2 Test specimens .15
10.3 Apparatus .15
10.4 Test procedure .15
11 Ergonomic testing .16
11.1 Ergonomic assessment .16
11.2 Test for surface conditions .16
11.3 Procedures .16
12 Test report .17
13 Marking .17
14 Pictogram .18
15 Information to be supplied by the manufacturer .18
Annex A (informative) Chainsaw use and the selection of appropriate upper body protectors .20
Bibliography .22
iv © ISO 2018 – All rights reserved

ISO 11393-6:2018(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO’s adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: www .iso .org/iso/foreword .html.
This document was prepared by the European Committee for Standardization (CEN) Technical
Committee CEN/TC 162, Protective clothing including hand and arm protection and lifejackets, in
collaboration with ISO Technical Committee TC 94, Personal safety — Personal protective equipment,
Subcommittee SC 13, Protective clothing, in accordance with the agreement on technical cooperation
between ISO and CEN (Vienna Agreement).
This second edition cancels and replaces the first edition (ISO 11393-6:2007), which has been
technically revised. The main changes compared to the previous edition are as follows:
— in the Introduction, the term “hand-held chainsaws primarily constructed for cutting wood” has
been added;
— the normative references have been updated;
— the term and definition 3.1 has been added;
— Clause 4 has been revised, design B jackets have been added in 4.5 and an evaluation of the protective
insert after pre-treatment with 60 °C and spin-drying has been added in 4.6;
— in Clause 6, the pre-treatment procedure has been revised;
— in Clause 8, the definition has been specified;
— in 9.7, the cut test at the sleeve has been changed;
— in Clause 10, descriptions have been specified and the test procedure has been revised;
— in Clause 11, the test procedure has been revised and a test procedure has been added in 11.3;
— Clauses 12, 13 and 14 have been specified;
— Clause 15 has been revised;
— in Annex A, the definition has been revised.
ISO 11393-6:2018(E)
A list of all parts in the ISO 11393 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/members .html.
vi © ISO 2018 – All rights reserved

ISO 11393-6:2018(E)
Introduction
This document forms part of a series concerned with personal protective equipment (PPE) designed
to protect against the risks arising from the use of hand-held chainsaws primarily constructed for
cutting wood.
Accidents occur due to a number of complex reasons, but a common factor is incorrect use of the
chainsaw. The importance of correct training and proper use of a chainsaw in preventing accidents
cannot be underestimated.
All parts of the upper body have been shown to be at risk when using a chainsaw. In this document,
specifications for the protective coverage and performance of the upper body protectors are given.
No PPE can ensure a 100 % protection against cutting from a hand-held chainsaw. Nevertheless,
experience has shown that it is possible to design PPE that offers a certain degree of protection.
Different functional principles may be applied in order to give protection. These include:
a) chain slipping: on contact the chain does not cut the material;
b) clogging: fibres are drawn by the chain into the drive sprocket and block chain movement;
c) chain braking: fibres have a high resistance to cutting and absorb rotational energy, thereby
reducing the chain speed.
Often more than one principle is applied in chainsaw protective clothing. Upper body protectors in
accordance with this document are meant to be used while working off the ground, and where risk
assessment shows that there is a significant risk of being cut by the moving chain on the upper part of
the body, such as when working from a sky lift and carrying out tree surgery.
INTERNATIONAL STANDARD ISO 11393-6:2018(E)
Protective clothing for users of hand-held chainsaws —
Part 6:
Performance requirements and test methods for upper
body protectors
1 Scope
This document specifies the performance requirements, test methods, design requirements,
identification and marking information for upper body protectors that offer protection against cutting
by hand-held chainsaws.
It also specifies procedures for sampling and pre-treatment of upper body protectors, the measurement
of the protective coverage, the apparatus and test methods for assessing resistance to cutting, and the
practical performance test for evaluating ergonomic properties.
Guidance on chainsaw use and the selection of appropriate upper body protectors is given in Annex A.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 5077, Textiles — Determination of dimensional change in washing and drying
ISO 7000, Graphical symbols for use on equipment — Registered symbols
ISO 11393-1:2018, Protective clothing for users of hand-held chainsaws — Part 1: Test rig driven by a
flywheel for testing resistance to cutting by a chainsaw
ISO 11393-3:2018, Protective clothing for users of hand-held chainsaws — Part 3: Test methods for
footwear
ISO 13688:2013, Protective clothing — General requirements
ISO 13935-2, Textiles — Seam tensile properties of fabrics and made-up textile articles — Part 2:
Determination of maximum force to seam rupture using the grab method
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https: //www .iso .org/obp
— IEC Electropedia: available at http: //www .electropedia .org/
3.1
cut-through
any visible change on the underside of the innermost layer of the test sample caused by the saw chain
ISO 11393-6:2018(E)
3.2
damage
condition where some yarns of the protective fabric lose their position in the structure
due to a broken ladder during the pre-treatment cycle
Note 1 to entry: The broken ladder is often caused by a broken cross binder.
3.3
front
part of a garment covering the forward half of the upper body circumference
3.4
joins
place or line where two or more parts of the protective insert are connected or fastened together, e.g.
by seams or zippers
3.5
protective coverage
area of the garment that is covered by protective material (3.6)
3.6
protective material
material that is designed to protect the wearer against the cutting effect of a hand-held chainsaw
Note 1 to entry: The protective material may include the cloth of the garment.
3.7
rear
part of a garment covering the backside half of the upper body circumference
Note 1 to entry: Depending upon design and construction, and due to many layers of protective material (3.6), it
can be difficult to establish the division between the front (3.3) and the rear of an upper body protector (3.11). It
is nevertheless of great importance to establish this before pre-treatment and testing.
3.8
specified protective area
minimum required protective coverage (3.5)
3.9
top of shoulder
uppermost line of the shoulder of the upper body protector (3.11)
Note 1 to entry: The top of the shoulder is shown in Figure 1.
3.10
unit of protective material
cut-out piece or panel of protective material (3.6) consisting of all the fabric or other layers that constitute
the protective material that goes into the construction of a garment without any joins within it
Note 1 to entry: Units can be joined together to provide the complete protective coverage (3.5) required, before
insertion and attachment to garments, but such units retain their individuality for testing purposes.
3.11
upper body protector
any type of protective garment that protects, at least, the specified area to the level of resistance against
cutting by a chainsaw as specified for the upper part of the body
EXAMPLE Jacket.
2 © ISO 2018 – All rights reserved

ISO 11393-6:2018(E)
4 Performance requirements
4.1 General
General requirements not specifically covered in this document shall be in accordance with ISO 13688.
Tested samples shall conform to all the requirements of this document.
4.2 Innocuousness
Upper body protectors shall not adversely affect the health or hygiene of the user. The materials shall
not release or degrade to release substances generally known to be toxic, carcinogenic, mutagenic,
toxic to reproduction or otherwise harmful in the foreseeable conditions of normal use. The specific
innocuousness requirements of ISO 13688:2013, 4.2, shall be met.
4.3 Sizing
Upper body protectors shall be marked with their size in accordance with ISO 13688.
4.4 Ergonomic requirements
When tested according to 11.2, the upper body protector shall be free of rough surfaces, sharp edges,
sharp points, etc., which could cause excessive irritation or injuries.
The protective garments shall be designed to minimize discomfort and restriction while wearing them.
When tested according to 11.3, the average score of all series and all movements shall be 2 or less. The
design shall be without appendages, which can become entangled in machinery or the undergrowth.
4.5 Specified minimum protective area for upper body protectors
4.5.1 General
The protective coverage shall be measured in accordance with Clause 8 and shall fulfil the requirements
to the dimension of the protective area of 4.5.3, 4.5.4, 4.5.5 and 4.5.7. The requirements of 4.5.6 are
optional.
4.5.2 Designs of jackets
Two different designs of jackets may be manufactured. Design A jackets protect at the shoulder and the
arms. Design B jackets additionally protect the front of the torso.
4.5.3 Front design A
The specified protective area shall cover the front of the garment from the top of the shoulder
downwards for a distance equivalent to at least 25 % of the chest girth of the largest intended user
of the tested sample as given in the marking. The protective area shall include the upper 80 % of the
surface of the front of the sleeve down to within 70 mm of the lower edge of the cuff of the sleeve. See
Figure 1.
ISO 11393-6:2018(E)
Key
1 top of shoulder
2 cuff
l height of protective coverage at the front of the garment (minimum 25 % of the chest girth of the largest
intended user of the tested sample)
l width of sleeve
l width of protective coverage on the front of the sleeve (minimum 80 % of l )
3 2
l unprotected length including cuff less than 70 mm
l height of protective coverage in collar, minimum of 30 mm
l gap in the protective coverage in the collar, maximum of 80 mm
shaded area is protective material
Figure 1 — Specified protective area of design A, front of garment
4.5.4 Front design B
The specified protective area shall cover the front of the garment from the top of the shoulder
downwards to a distance of within 50 mm or less to the bottom of the hem. It shall cover the front half
of the circumference of the jacket minus 50 mm on the left and right sides. The protective area shall
include the upper 80 % of the surface of the front of the sleeve down to within 70 mm of the lower edge
of the cuff of the sleeve. See Figure 2.
4 © ISO 2018 – All rights reserved

ISO 11393-6:2018(E)
Key
1 top of shoulder
2 cuff
l height of protective coverage at the front of the garment
l width of sleeve
l width of protective coverage on the front of the sleeve (minimum 80 % of l )
3 2
l unprotected length including cuff less than 70 mm
l height of protective coverage in collar, minimum of 30 mm
l gap in the protective coverage in the collar, maximum of 80 mm
l unprotected waist, length less than 50 mm
l unprotected width less than 50 mm
shaded area is protective material
Figure 2 — Specified protective area of design B, front of garment
4.5.5 Rear design A and B
The protective area shall cover the top of the shoulders plus the superior 40 % of the surface of the rear
of the sleeve down to within 70 mm of the lower edge of the cuff of the sleeve. See Figure 3.
A gap is permitted in the protective material in the centre of the rear. The dimensions of the gap, l and
l , are shown in Figure 3. l shall be less than 9 % of the chest girth of the smallest intended user of this
6 5
tested sample, as given in the marking, and l shall be less than 35 % of the chest girth of the smallest
intended user of this tested sample.
ISO 11393-6:2018(E)
Key
1 top of shoulder
2 cuff
l minimum height of protective coverage at the rear of the garment (top of the shoulders plus the superior 40 %
of the surface of the rear of the sleeve)
l width of sleeve
l width of protective coverage on the rear of the sleeve (minimum 40 % of l )
3 2
l unprotected length including cuff less than 70 mm
l gap in protective coverage at the level of the top of the shoulders beneath the collar
l gap in protective coverage at a distance of l below the top of the shoulders
6 1
l gap in the protective coverage in the collar, maximum of 80 mm
shaded area is protective material
Figure 3 — Specified protective area, rear of garment
4.5.6 Collar (optional)
If a protective collar is fitted, the protective area shall cover a minimum length of 100 mm on each side
of the neck. A gap in the protective material at the centre front of a maximum of 80 mm is permitted
and a gap in the protective material at the centre rear of a maximum of 80 mm is also permitted. The
height of the protective material shall be a minimum of 30 mm. See Figures 1, 2 and 3.
4.5.7 Fastenings and joins
The garment may have a closure down the centre front to facilitate donning and doffing. When the
garment is fastened, the gap between the edges of the protective material shall be no more than 30 mm.
The gap in the protective material at the join between the main body of the garment and the collar shall
be less than 8 mm.
4.6 Dimensional change and other changes
4.6.1 Dimensional change
After cleaning according to the manufacturer’s instructions, the dimensional change when measured
according to Clause 7 shall be less than 6 %.
6 © ISO 2018 – All rights reserved

ISO 11393-6:2018(E)
4.6.2 Other changes as a consequence of cleaning
After cleaning according to the manufacturer’s instructions, and after cleaning one sample according
to 6.2.2 at 60 °C and spin-drying, and examining according to 6.5, there shall be no damage in the
protective material due to cleaning, except for the damage caused by the cut test.
4.7 Resistance to chainsaw cutting
When tested according to Clause 9, no cut-through is allowed in any test specimen.
4.8 Requirements for the attachment of protective padding and the strength of closures
The protective material shall be permanently attached to the garment. Attachment shall be continuous
along all the edges of the protective material, except around the cuff. When tested according to
Clause 10, the attachment shall resist at least a force of 150 N for each test specimen.
5 Classification according to chain speed
Testing in accordance with this document shall be carried out at one of the following four speeds with
classes assigned as follows:
a) class 0 (16,0 ± 0,2) m/s;
b) class 1 (20,0 ± 0,2) m/s;
c) class 2 (24,0 ± 0,2) m/s;
d) class 3 (28,0 ± 0,2) m/s.
6 Test methods
6.1 General
Measuring instruments, unless otherwise specified, shall be accurate to ±2 % of the pass/fail level of
the characteristic being measured.
For each of the required sequences of measurements performed in accordance with this document, a
corresponding estimate of the uncertainty of the final result shall be determined. This uncertainty,
U , shall be given in the test report in the form U = ±X. It shall be used in determining whether a
m m
pass performance has been achieved. If the final result minus U is below the pass level when the
m
requirement that a certain value shall be exceeded, the sample shall be deemed to have failed.
6.2 Pre-treatment
6.2.1 Cleaning
Before testing, the test specimens shall be pre-treated by cleaning. The cleaning shall be in accordance
with the manufacturer’s instructions, on the basis of standardized processes. If the total number
of cleaning cycles is not specified in the manufacturer’s instructions, five cleaning cycles shall be
performed. This shall be reflected in the information supplied by the manufacturer. If the manufacturer
includes instructions for washing and dry-cleaning, the number of samples indicated in 6.3 for dry
cleaning shall be dry-cleaned and the number of samples indicated in 6.3 for washing shall be washed. If
only dry-cleaning is allowed, the number of samples indicated in 6.3 for that case shall be dry-cleaned.
If only washing is allowed, the number of samples indicated in 6.3 for that case shall be washed.
After each cleaning, the upper body protectors shall be reshaped by hand, but not by ironing.
ISO 11393-6:2018(E)
Line drying after washing shall be carried out in an environment maintained at a temperature of
(30 ± 15) °C and at a relative humidity of (30 to 70) % RH.
If tumble-drying is permitted by the manufacturer’s care instructions, the garment shall be tumble-
dried after each washing cycle.
If the manufacturer doesn’t give an indication to wash the garment before first use, the test laboratory
shall test one sample unwashed. This sample shall be in addition to the samples specified in 6.3.
NOTE Manufacturers typically indicate one or more of the methods given in ISO 6330, ISO 3175-2, ISO 3175-3,
ISO 3175-4, ISO 15797 or an equivalent standardized processes for cleaning.
6.2.2 Pre-treatment for testing the effect of temperature and spinning on the structure of the
protective insert
Where washing is allowed by the manufacturer’s care instructions, before testing according to 6.5 and
Clause 9, one of the specimens shall be washed five times according to the manufacturer’s instructions,
except that the washing temperature shall be 60 °C and the specimens spin-dried at (500 ± 20) r/min.
This sample shall be selected from the samples specified in 6.3.
6.3 Number of test specimens
A set of upper body protectors shall be taken that is sufficient to complete all the tests. Note that if
two types of pre-treatments are specified, the testing and the numbers of upper body protectors are
effectively doubled and two sets are required. Upper body protectors that have been used to assess
dimensional stability, protective coverage and ergonomic requirements may be used for cut testing if it
has not been necessary to cut them up for these measurements.
The number of garments required for cut testing depends on the number of units of protective material
present within them and whether there are any joins or seams between different protective material
units, such as between the body and the sleeve. Only one test cut shall be carried out on each unit of
protective material. Therefore, at least three garments are required for cut testing if the design includes
a fastening down the centre front of the garment, but no seams between the protective material on the
body and in the sleeve. For a design incorporating only one unit of protective material, six garments are
required for cut testing. Additional samples in different sizes can be required to perform the ergonomic
assessment.
6.4 Siz
...

SLOVENSKI STANDARD
01-oktober-2019
Nadomešča:
SIST EN 381-10:2003
SIST EN 381-11:2003
Varovalna obleka za uporabnike ročnih verižnih žag - 6. del: Zahtevane lastnosti in
preskusne metode za ščitnike zgornjega dela telesa (ISO 11393-6:2018,
popravljena verzija 2019-11)
Protective clothing for users of hand-held chainsaws - Part 6: Performance requirements
and test methods for upper body protectors (ISO 11393-6:2018, Corrected version 2019-
11)
Schutzkleidung für die Benutzer von handgeführten Kettensägen - Teil 6: Prüfverfahren
und Leistungsanforderungen für Oberkörperschutzmittel (ISO 11393-6:2018, korrigierte
Fassung 2019-11)
Vêtements de protection pour utilisateurs de scies à chaîne tenues à la main - Partie 6:
Exigences de performance et méthodes d'essai pour protecteurs du haut du corps (ISO
11393-6:2018, Version corrigée 2019-11)
Ta slovenski standard je istoveten z: EN ISO 11393-6:2019
ICS:
13.340.10 Varovalna obleka Protective clothing
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN ISO 11393-6
EUROPEAN STANDARD
NORME EUROPÉENNE
July 2019
EUROPÄISCHE NORM
ICS 13.340.10 Supersedes EN 381-10:2002, EN 381-11:2002
English Version
Protective clothing for users of hand-held chainsaws - Part
6: Performance requirements and test methods for upper
body protectors (ISO 11393-6:2018, Corrected version
2019-11)
Vêtements de protection pour utilisateurs de scies à Schutzkleidung für die Benutzer handgeführter
chaîne tenues à la main - Partie 6: Exigences de Kettensägen - Teil 6: Prüfverfahren und
performance et méthodes d'essai pour protecteurs du Leistungsanforderungen für Oberkörperschutzmittel
haut du corps (ISO 11393-6:2018, Version corrigée (ISO 11393-6:2018, korrigierte Fassung 2019-11)
2019-11)
This European Standard was approved by CEN on 18 July 2019.

This European Standard was corrected and reissued by the CEN-CENELEC Management Centre on 13 November 2019.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATIO N

EUROPÄISCHES KOMITEE FÜR NORMUN G

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 11393-6:2019 E
worldwide for CEN national Members.

Contents Page
European foreword . 3
Annex ZA (informative)  Relationship between this European Standard and the essential
requirements of REGULATION (EU) 2016/425 aimed to be covered . 4
European foreword
This document (EN ISO 11393-6:2019) has been prepared by Technical Committee ISO/TC 94
"Personal safety - Personal protective equipment" in collaboration with Technical Committee CEN/TC
162 “Protective clothing including hand and arm protection and lifejackets” the secretariat of which is
held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by January 2020, and conflicting national standards shall
be withdrawn at the latest by January 2020.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 381-11:2002 and EN 381-10:2002.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive(s).
For the relationship with EU Directive(s) see informative Annex ZA, which is an integral part of this
document.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the
United Kingdom.
Endorsement notice
The text of ISO 11393-6:2018, Corrected version 2019-11 has been approved by CEN as EN ISO 11393-
6:2019 without any modification.

Annex ZA
(informative)
Relationship between this European Standard and the essential
requirements of REGULATION (EU) 2016/425 aimed to be covered
This European Standard has been prepared under a Commission’s standardization request to provide
one voluntary means of conforming to essential requirements of Regulation (EU) 2016/425 on the
approximation of the laws of the Member States relating to personal protective equipment.
Once this standard is cited in the Official Journal of the European Union under that Regulation,
compliance with the normative clauses of this standard given in Table ZA.1 confers, within the limits
of the scope of this standard, a presumption of conformity with the corresponding essential
requirements of that Regulation and associated EFTA regulations.

Table ZA.1 — Correspondence between this European Standard and and Regulation (EU)
2016/425
Essential Requirements of Clause(s)/sub-clause(s) of this Remarks/Notes
REGULATION (EU) 2016/425 EN
1.1.1. Ergonomics 4.4
1.1.2.1. Optimum level of 4.4
protection
1.1.2.2. Classes of protection
appropriate to different levels of
risk
1.2.1. Absence of inherent risks 4.4; 4.5; 4.6; 4.8
and other nuisance factors
1.2.1.1. Suitable constituent 4.2
materials
1.2.1.2. Satisfactory surface
condition of all PPE parts in
4.4
contact with the user
1.2.1.3. Maximum permissible 4.4
user impediment
1.3.1. Adaptation of PPE to user 4.4; 11.1
morphology
1.3.2. Lightness and strength 4.8
1.4. Manufacturer’s instructions 13; 15
and information
2.4. PPE subject to ageing 13 c); 15 q)
2.12. PPE bearing one or more
identification markings or
indicators directly or indirectly
relating to health and safety
3.3. Protection against 4.7
mechanical injuries
WARNING 1 — Presumption of conformity stays valid only as long as a reference to this European
Standard is maintained in the list published in the Official Journal of the European Union. Users of this
standard should consult frequently the latest list published in the Official Journal of the European
Union.
WARNING 2 — Other Union legislation may be applicable to the product(s) falling within the scope of
this standard.
INTERNATIONAL ISO
STANDARD 11393-6
Second edition
2018-09
Corrected version
2019-10
Protective clothing for users of hand-
held chainsaws —
Part 6:
Performance requirements and test
methods for upper body protectors
Vêtements de protection pour utilisateurs de scies à chaîne tenues à
la main —
Partie 6: Exigences de performance et méthodes d'essai pour
protecteurs du haut du corps
Reference number
ISO 11393-6:2018(E)
©
ISO 2018
ISO 11393-6:2018(E)
© ISO 2018
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii © ISO 2018 – All rights reserved

ISO 11393-6:2018(E)
Contents Page
Foreword .v
Introduction .vii
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Performance requirements . 3
4.1 General . 3
4.2 Innocuousness . 3
4.3 Sizing . 3
4.4 Ergonomic requirements . 3
4.5 Specified minimum protective area for upper body protectors . 3
4.5.1 General. 3
4.5.2 Designs of jackets . 3
4.5.3 Front design A . 3
4.5.4 Front design B . 4
4.5.5 Rear design A and B . 5
4.5.6 Collar (optional) . 6
4.5.7 Fastenings and joins . . 6
4.6 Dimensional change and other changes . 6
4.6.1 Dimensional change . 6
4.6.2 Other changes as a consequence of cleaning . 7
4.7 Resistance to chainsaw cutting . 7
4.8 Requirements for the attachment of protective padding and the strength of closures . 7
5 Classification according to chain speed . 7
6 Test methods . 7
6.1 General . 7
6.2 Pre-treatment . 7
6.2.1 Cleaning . 7
6.2.2 Pre-treatment for testing the effect of temperature and spinning on the
structure of the protective insert . 8
6.3 Number of test specimens . 8
6.4 Sizes of test specimens . 8
6.5 Examination of protective material. 8
7 Testing for dimensional change . 8
8 Checking of protective coverage . 9
9 Testing of resistance to cutting . 9
9.1 Purpose of testing . 9
9.2 Test specimens . 9
9.3 Marking of positions for cutting . 9
9.3.1 Test position line on shoulder . 9
9.3.2 Test position on the sleeve .10
9.3.3 Test positions if there are seams in the protective material .10
9.4 Test mounts.12
9.4.1 Shoulder test mount .12
9.4.2 Sleeve test mount .12
9.5 Apparatus .12
9.6 Mounting of test specimens .13
9.6.1 Shoulder test .13
9.6.2 Sleeve test .14
9.7 Test procedure .14
9.7.1 Positions of cuts .14
ISO 11393-6:2018(E)
9.7.2 Number of cuts .15
9.7.3 Chain speed .15
10 Testing of the protective material attachment .15
10.1 General .15
10.2 Test specimens .15
10.3 Apparatus .15
10.4 Test procedure .15
11 Ergonomic testing .16
11.1 Ergonomic assessment .16
11.2 Test for surface conditions .16
11.3 Procedures .16
12 Test report .17
13 Marking .18
14 Pictogram .18
15 Information to be supplied by the manufacturer .19
Annex A (informative) Chainsaw use and the selection of appropriate upper body protectors .20
Bibliography .22
iv © ISO 2018 – All rights reserved

ISO 11393-6:2018(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO’s adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: www .iso .org/ iso/ foreword .html.
This document was prepared by the European Committee for Standardization (CEN) Technical
Committee CEN/TC 162, Protective clothing including hand and arm protection and lifejackets, in
collaboration with ISO Technical Committee TC 94, Personal safety — Personal protective equipment,
Subcommittee SC 13, Protective clothing, in accordance with the agreement on technical cooperation
between ISO and CEN (Vienna Agreement).
This second edition cancels and replaces the first edition (ISO 11393-6:2007), which has been
technically revised. The main changes compared to the previous edition are as follows:
— in the Introduction, the term “hand-held chainsaws primarily constructed for cutting wood” has
been added;
— the normative references have been updated;
— the term and definition 3.1 has been added;
— Clause 4 has been revised, design B jackets have been added in 4.5 and an evaluation of the protective
insert after pre-treatment with 60 °C and spin-drying has been added in 4.6;
— in Clause 6, the pre-treatment procedure has been revised;
— in Clause 8, the definition has been specified;
— in 9.7, the cut test at the sleeve has been changed;
— in Clause 10, descriptions have been specified and the test procedure has been revised;
— in Clause 11, the test procedure has been revised and a test procedure has been added in 11.3;
— Clauses 12, 13 and 14 have been specified;
— Clause 15 has been revised;
— in Annex A, the definition has been revised.
ISO 11393-6:2018(E)
A list of all parts in the ISO 11393 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/ members .html.
This corrected version of ISO 11393-6:2018 incorporates the following corrections:
— The arrows on Figures 5 and 6 have been corrected and the colour of shading improved on Figures 1
to 6 and Figure 9 for more readability.
vi © ISO 2018 – All rights reserved

ISO 11393-6:2018(E)
Introduction
This document forms part of a series concerned with personal protective equipment (PPE) designed
to protect against the risks arising from the use of hand-held chainsaws primarily constructed for
cutting wood.
Accidents occur due to a number of complex reasons, but a common factor is incorrect use of the
chainsaw. The importance of correct training and proper use of a chainsaw in preventing accidents
cannot be underestimated.
All parts of the upper body have been shown to be at risk when using a chainsaw. In this document,
specifications for the protective coverage and performance of the upper body protectors are given.
No PPE can ensure a 100 % protection against cutting from a hand-held chainsaw. Nevertheless,
experience has shown that it is possible to design PPE that offers a certain degree of protection.
Different functional principles may be applied in order to give protection. These include:
a) chain slipping: on contact the chain does not cut the material;
b) clogging: fibres are drawn by the chain into the drive sprocket and block chain movement;
c) chain braking: fibres have a high resistance to cutting and absorb rotational energy, thereby
reducing the chain speed.
Often more than one principle is applied in chainsaw protective clothing. Upper body protectors in
accordance with this document are meant to be used while working off the ground, and where risk
assessment shows that there is a significant risk of being cut by the moving chain on the upper part of
the body, such as when working from a sky lift and carrying out tree surgery.
INTERNATIONAL STANDARD ISO 11393-6:2018(E)
Protective clothing for users of hand-held chainsaws —
Part 6:
Performance requirements and test methods for upper
body protectors
1 Scope
This document specifies the performance requirements, test methods, design requirements,
identification and marking information for upper body protectors that offer protection against cutting
by hand-held chainsaws.
It also specifies procedures for sampling and pre-treatment of upper body protectors, the measurement
of the protective coverage, the apparatus and test methods for assessing resistance to cutting, and the
practical performance test for evaluating ergonomic properties.
Guidance on chainsaw use and the selection of appropriate upper body protectors is given in Annex A.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 5077, Textiles — Determination of dimensional change in washing and drying
ISO 7000, Graphical symbols for use on equipment — Registered symbols
ISO 11393-1:2018, Protective clothing for users of hand-held chainsaws — Part 1: Test rig driven by a
flywheel for testing resistance to cutting by a chainsaw
ISO 11393-3:2018, Protective clothing for users of hand-held chainsaws — Part 3: Test methods for
footwear
ISO 13688:2013, Protective clothing — General requirements
ISO 13935-2, Textiles — Seam tensile properties of fabrics and made-up textile articles — Part 2:
Determination of maximum force to seam rupture using the grab method
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
3.1
cut-through
any visible change on the underside of the innermost layer of the test sample caused by the saw chain
ISO 11393-6:2018(E)
3.2
damage
condition where some yarns of the protective fabric lose their position in the structure
due to a broken ladder during the pre-treatment cycle
Note 1 to entry: The broken ladder is often caused by a broken cross binder.
3.3
front
part of a garment covering the forward half of the upper body circumference
3.4
joins
place or line where two or more parts of the protective insert are connected or fastened together, e.g.
by seams or zippers
3.5
protective coverage
area of the garment that is covered by protective material (3.6)
3.6
protective material
material that is designed to protect the wearer against the cutting effect of a hand-held chainsaw
Note 1 to entry: The protective material may include the cloth of the garment.
3.7
rear
part of a garment covering the backside half of the upper body circumference
Note 1 to entry: Depending upon design and construction, and due to many layers of protective material (3.6), it
can be difficult to establish the division between the front (3.3) and the rear of an upper body protector (3.11). It
is nevertheless of great importance to establish this before pre-treatment and testing.
3.8
specified protective area
minimum required protective coverage (3.5)
3.9
top of shoulder
uppermost line of the shoulder of the upper body protector (3.11)
Note 1 to entry: The top of the shoulder is shown in Figure 1.
3.10
unit of protective material
cut-out piece or panel of protective material (3.6) consisting of all the fabric or other layers that constitute
the protective material that goes into the construction of a garment without any joins within it
Note 1 to entry: Units can be joined together to provide the complete protective coverage (3.5) required, before
insertion and attachment to garments, but such units retain their individuality for testing purposes.
3.11
upper body protector
any type of protective garment that protects, at least, the specified area to the level of resistance against
cutting by a chainsaw as specified for the upper part of the body
EXAMPLE Jacket.
2 © ISO 2018 – All rights reserved

ISO 11393-6:2018(E)
4 Performance requirements
4.1 General
General requirements not specifically covered in this document shall be in accordance with ISO 13688.
Tested samples shall conform to all the requirements of this document.
4.2 Innocuousness
Upper body protectors shall not adversely affect the health or hygiene of the user. The materials shall
not release or degrade to release substances generally known to be toxic, carcinogenic, mutagenic,
toxic to reproduction or otherwise harmful in the foreseeable conditions of normal use. The specific
innocuousness requirements of ISO 13688:2013, 4.2, shall be met.
4.3 Sizing
Upper body protectors shall be marked with their size in accordance with ISO 13688.
4.4 Ergonomic requirements
When tested according to 11.2, the upper body protector shall be free of rough surfaces, sharp edges,
sharp points, etc., which could cause excessive irritation or injuries.
The protective garments shall be designed to minimize discomfort and restriction while wearing them.
When tested according to 11.3, the average score of all series and all movements shall be 2 or less. The
design shall be without appendages, which can become entangled in machinery or the undergrowth.
4.5 Specified minimum protective area for upper body protectors
4.5.1 General
The protective coverage shall be measured in accordance with Clause 8 and shall fulfil the requirements
to the dimension of the protective area of 4.5.3, 4.5.4, 4.5.5 and 4.5.7. The requirements of 4.5.6 are
optional.
4.5.2 Designs of jackets
Two different designs of jackets may be manufactured. Design A jackets protect at the shoulder and the
arms. Design B jackets additionally protect the front of the torso.
4.5.3 Front design A
The specified protective area shall cover the front of the garment from the top of the shoulder
downwards for a distance equivalent to at least 25 % of the chest girth of the largest intended user
of the tested sample as given in the marking. The protective area shall include the upper 80 % of the
surface of the front of the sleeve down to within 70 mm of the lower edge of the cuff of the sleeve. See
Figure 1.
ISO 11393-6:2018(E)
Key
1 top of shoulder
2 cuff
l height of protective coverage at the front of the garment (minimum 25 % of the chest girth of the largest
intended user of the tested sample)
l width of sleeve
l width of protective coverage on the front of the sleeve (minimum 80 % of l )
3 2
l unprotected length including cuff less than 70 mm
l height of protective coverage in collar, minimum of 30 mm
l gap in the protective coverage in the collar, maximum of 80 mm
shaded area is protective material
Figure 1 — Specified protective area of design A, front of garment
4.5.4 Front design B
The specified protective area shall cover the front of the garment from the top of the shoulder
downwards to a distance of within 50 mm or less to the bottom of the hem. It shall cover the front half
of the circumference of the jacket minus 50 mm on the left and right sides. The protective area shall
include the upper 80 % of the surface of the front of the sleeve down to within 70 mm of the lower edge
of the cuff of the sleeve. See Figure 2.
4 © ISO 2018 – All rights reserved

ISO 11393-6:2018(E)
Key
1 top of shoulder
2 cuff
l height of protective coverage at the front of the garment
l width of sleeve
l width of protective coverage on the front of the sleeve (minimum 80 % of l )
3 2
l unprotected length including cuff less than 70 mm
l height of protective coverage in collar, minimum of 30 mm
l gap in the protective coverage in the collar, maximum of 80 mm
l unprotected waist, length less than 50 mm
l unprotected width less than 50 mm
shaded area is protective material
Figure 2 — Specified protective area of design B, front of garment
4.5.5 Rear design A and B
The protective area shall cover the top of the shoulders plus the superior 40 % of the surface of the rear
of the sleeve down to within 70 mm of the lower edge of the cuff of the sleeve. See Figure 3.
A gap is permitted in the protective material in the centre of the rear. The dimensions of the gap, l and
l , are shown in Figure 3. l shall be less than 9 % of the chest girth of the smallest intended user of this
6 5
tested sample, as given in the marking, and l shall be less than 35 % of the chest girth of the smallest
intended user of this tested sample.
ISO 11393-6:2018(E)
Key
1 top of shoulder
2 cuff
l minimum height of protective coverage at the rear of the garment (top of the shoulders plus the superior 40 %
of the surface of the rear of the sleeve)
l width of sleeve
l width of protective coverage on the rear of the sleeve (minimum 40 % of l )
3 2
l unprotected length including cuff less than 70 mm
l gap in protective coverage at the level of the top of the shoulders beneath the collar
l gap in protective coverage at a distance of l below the top of the shoulders
6 1
l gap in the protective coverage in the collar, maximum of 80 mm
shaded area is protective material
Figure 3 — Specified protective area, rear of garment
4.5.6 Collar (optional)
If a protective collar is fitted, the protective area shall cover a minimum length of 100 mm on each side
of the neck. A gap in the protective material at the centre front of a maximum of 80 mm is permitted
and a gap in the protective material at the centre rear of a maximum of 80 mm is also permitted. The
height of the protective material shall be a minimum of 30 mm. See Figures 1, 2 and 3.
4.5.7 Fastenings and joins
The garment may have a closure down the centre front to facilitate donning and doffing. When the
garment is fastened, the gap between the edges of the protective material shall be no more than 30 mm.
The gap in the protective material at the join between the main body of the garment and the collar shall
be less than 8 mm.
4.6 Dimensional change and other changes
4.6.1 Dimensional change
After cleaning according to the manufacturer’s instructions, the dimensional change when measured
according to Clause 7 shall be less than 6 %.
6 © ISO 2018 – All rights reserved

ISO 11393-6:2018(E)
4.6.2 Other changes as a consequence of cleaning
After cleaning according to the manufacturer’s instructions, and after cleaning one sample according
to 6.2.2 at 60 °C and spin-drying, and examining according to 6.5, there shall be no damage in the
protective material due to cleaning, except for the damage caused by the cut test.
4.7 Resistance to chainsaw cutting
When tested according to Clause 9, no cut-through is allowed in any test specimen.
4.8 Requirements for the attachment of protective padding and the strength of closures
The protective material shall be permanently attached to the garment. Attachment shall be continuous
along all the edges of the protective material, except around the cuff. When tested according to
Clause 10, the attachment shall resist at least a force of 150 N for each test specimen.
5 Classification according to chain speed
Testing in accordance with this document shall be carried out at one of the following four speeds with
classes assigned as follows:
a) class 0 (16,0 ± 0,2) m/s;
b) class 1 (20,0 ± 0,2) m/s;
c) class 2 (24,0 ± 0,2) m/s;
d) class 3 (28,0 ± 0,2) m/s.
6 Test methods
6.1 General
Measuring instruments, unless otherwise specified, shall be accurate to ±2 % of the pass/fail level of
the characteristic being measured.
For each of the required sequences of measurements performed in accordance with this document, a
corresponding estimate of the uncertainty of the final result shall be determined. This uncertainty,
U , shall be given in the test report in the form U = ±X. It shall be used in determining whether a
m m
pass performance has been achieved. If the final result minus U is below the pass level when the
m
requirement that a certain value shall be exceeded, the sample shall be deemed to have failed.
6.2 Pre-treatment
6.2.1 Cleaning
Before testing, the test specimens shall be pre-treated by cleaning. The cleaning shall be in accordance
with the manufacturer’s instructions, on the basis of standardized processes. If the total number
of cleaning cycles is not specified in the manufacturer’s instructions, five cleaning cycles shall be
performed. This shall be reflected in the information supplied by the manufacturer. If the manufacturer
includes instructions for washing and dry-cleaning, the number of samples indicated in 6.3 for dry
cleaning shall be dry-cleaned and the number of samples indicated in 6.3 for washing shall be washed. If
only dry-cleaning is allowed, the number of samples indicated in 6.3 for that case shall be dry-cleaned.
If only washing is allowed, the number of samples indicated in 6.3 for that case shall be washed.
After each cleaning, the upper body protectors shall be reshaped by hand, but not by ironing.
ISO 11393-6:2018(E)
Line drying after washing shall be carried out in an environment maintained at a temperature of
(30 ± 15) °C and at a relative humidity of (30 to 70) % RH.
If tumble-drying is permitted by the manufacturer’s care instructions, the garment shall be tumble-
dried after each washing cycle.
If the manufacturer doesn’t give an indication to wash the garment before first use, the test laboratory
shall test one sample unwashed. This sample shall be in addition to the samples specified in 6.3.
NOTE Manufacturers typically indicate one or more of the methods given in ISO 6330, ISO 3175-2, ISO 3175-3,
ISO 3175-4, ISO 15797 or an equivalent standardized processes for cleaning.
6.2.2 Pre-treatment for testing the effect of temperature and spinning on the structure of the
protective insert
Where washing is allowed by the manufacturer’s care instructions, before testing according to 6.5 and
Clause 9, one of the specimens shall be washed five times according to the manufacturer’s instructions,
except that the washing temperature shall be 60 °C and the specimens spin-dried at (500 ± 20) r/min.
This sample shall be selected from the samples specified in 6.3.
6.3 Number of test specimens
A set of upper body protectors shall be taken that is sufficient to complete all the tests. Note that if
two types of pre-treatments are specified, the testing and the numbers of upper body protectors are
effectively doubled and two sets are required. Upper body protectors that have been used to assess
dimensional stability, protective coverage and ergonomic requirements may be used for cut testing if it
has not been necessary to cut them up for these measurements.
The number of garments required for cut testing depends on the number of units of protective material
present within them and whether the
...
