EN 80:2001

Wall-hung urinals - Connecting dimensions

This standard specifies the connecting dimensions of wall-hung urinals of the socket inlet and spigot outlet types, regardless of the materials used for their manufacture.
NOTE  Only the dimensions are compulsory. The shape of the appliance in the figures is for illustration only; it in no way prejudices the final shape of the appliance which is left to the initiative of the manufacturer.

Wandhängende Urinale - Anschlussmaße

Diese Norm legt Anschlußmaße für wandhängende Urinale mit angeformten Zulauf- und Ablaufstutzen, unabhängig vom verwendeten Werkstoff, fest.
Anmerkung: Nur die angegebenen Maße sind verbindlich. Die in den Bildern dargestellte Form der Gegenstände wurde für das bessere Verständnis gewählt; sie schreibt nicht die endgültige Form der Gegenstände vor, die der Wahl des Herstellers überlassen bleibt.

Urinoirs muraux - Cotes de raccordement

La présente norme a pour objet de fixer les caractéristiques de raccordement des urinoirs suspendus de type à nez d'alimentation et queue de sortie, indépendamment du matériau dont ils sont faits. Note: Seules les dimensions des parties cotées doivent être respectées. La forme schématique des appareils représentés dans les figures est donnée uniquement pour faciliter la compréhension; elle ne préjuge en rien de la forme définitive de l'appareil qui est laissée à l'initiative des fabricants.

Zidni pisoar - Priključne mere

General Information

• Status: Published
• Publication Date: 17-Jul-2001
• Withdrawal Date: 30-Jan-2002
• ICS: 91.140.70 - Sanitary installations
• Technical Committee: CEN/TC 163 - Sanitary appliances
• Drafting Committee: CEN/TC 163/WG 3 - Closet bowls, flushing cisterns, urinals, bidets and kitchen sinks
• Current Stage: 9060 - Closure of 2 Year Review Enquiry - Review Enquiry
• Start Date: 02-Sep-2023
• Completion Date: 02-Sep-2023
• Directive: 305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
• Directive: 89/106/EEC - Construction products
• Ref Project: SIST EN 80:2001 - Wall-hung urinals - Connecting dimensions

Relations

• Replaces: EN 80:1978 - Wall hung urinals without built-in trap - Connecting dimensions
• Effective Date: 22-Dec-2008
• Replaces: EN 80:1978/A1:1978 - Wall hung urinals without built-in trap - Connecting dimensions
• Effective Date: 22-Dec-2008

Overview

EN 80:2001 is a European standard developed by CEN that specifies the connecting dimensions for wall-hung urinals. It applies to urinals with socket inlet and spigot outlet types, independent of the materials used in their manufacturing. The standard ensures uniformity and compatibility across sanitary installations, facilitating easier installation, maintenance, and replacement of wall-hung urinals in commercial and public washrooms.

This standard replaces the earlier EN 80:1978, reflecting updated market trends and providing additional connection options, such as new inlet and outlet configurations. Only the connecting dimensions are compulsory, while the urinal shapes illustrated are for guidance and do not restrict manufacturers' design innovations.

Key Topics

• Scope and Applicability
  Defines the essential connecting dimensions for wall-hung urinals, including inlet and outlet measurements. Applies universally to urinals regardless of composition.

• Connecting Dimensions
  Core dimensions are standardized, such as:

  • Distance from inlet center line to back wall: 50 ± 5 mm
  • Depth of internal cylindrical part (inlet): ≥ 20 mm
  • Distance from waste outlet center to back wall: 65 ± 5 mm
  • Inlet internal diameter: 35 ± 2 mm
  • Outlet external diameter: 50 ± 2 mm
  • Length of outlet cylindrical part without grooves: ≥ 30 mm
  • Diameter around the inlet surface: ≥ 50 mm
  • Distance between back wall and vertical outlet plane: 15 ± 10 mm

• Inlet and Outlet Variations
  Includes provisions for top inlets, back inlets, vertical outlets, and horizontal outlets, accommodating different plumbing layouts.

• Illustrative Figures
  The standard includes diagrams to clarify connection points without imposing design constraints on the overall urinal shape.

Applications

• Sanitary Installations
  Ensures wall-hung urinals from different manufacturers fit standardized plumbing connections, simplifying installation and reducing errors in public facilities, offices, sports venues, and hospitality industry restrooms.

• Maintenance and Upgrades
  Facilitates straightforward replacement or upgrading of urinals without major plumbing alterations due to standardized dimensions.

• Product Design & Manufacturing
  Gives manufacturers clear guidelines on connection dimensions to ensure compatibility with existing plumbing standards across Europe.

• Building Regulations Compliance
  Supports architects, engineers, and installers in meeting regulatory requirements for sanitary fixtures in commercial and public buildings.

Related Standards

• EN 12056 Series - Gravity Drainage Systems Inside Buildings
  Relevant for understanding overall wastewater discharge requirements connected to urinal installations.

• EN 13535 - Public Toilet Room Design
  Addresses broader design considerations where wall-hung urinals are installed.

• ISO 305 - Sanitary Tapware and Fixtures
  Provides complementary requirements for faucets and flush controls used in conjunction with urinals.

• National Standards Adaptations
  As CEN members must adopt EN 80:2001 as their national standard, local regulations may reference or adapt its provisions to harmonize plumbing installations.

---

Keywords: EN 80:2001, wall-hung urinals, connecting dimensions, socket inlet, spigot outlet, sanitary appliances, plumbing standards, European standards, urinal installation, plumbing compatibility, CEN standard.

Standards Content (Sample)

SLOVENSKI STANDARD
01-december-2001
1DGRPHãþD
SIST EN 80:1998
SIST EN 80:1998/A1:1998
=LGQLSLVRDU3ULNOMXþQHPHUH
Wall-hung urinals - Connecting dimensions
Wandhängende Urinale - Anschlussmaße
Urinoirs muraux - Cotes de raccordement
Ta slovenski standard je istoveten z: EN 80:2001
ICS:
91.140.70 Sanitarne naprave Sanitary installations
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 80
NORME EUROPÉENNE
EUROPÄISCHE NORM
July 2001
ICS 91.140.70 Supersedes EN 80:1978
English version
Wall-hung urinals - Connecting dimensions
Urinoirs muraux - Cotes de raccordement Wandhängende Urinale - Anschlußmaße
This European Standard was approved by CEN on 4 June 2001.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,
Iceland, Ireland, Italy, Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2001 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 80:2001 E
worldwide for CEN national Members.

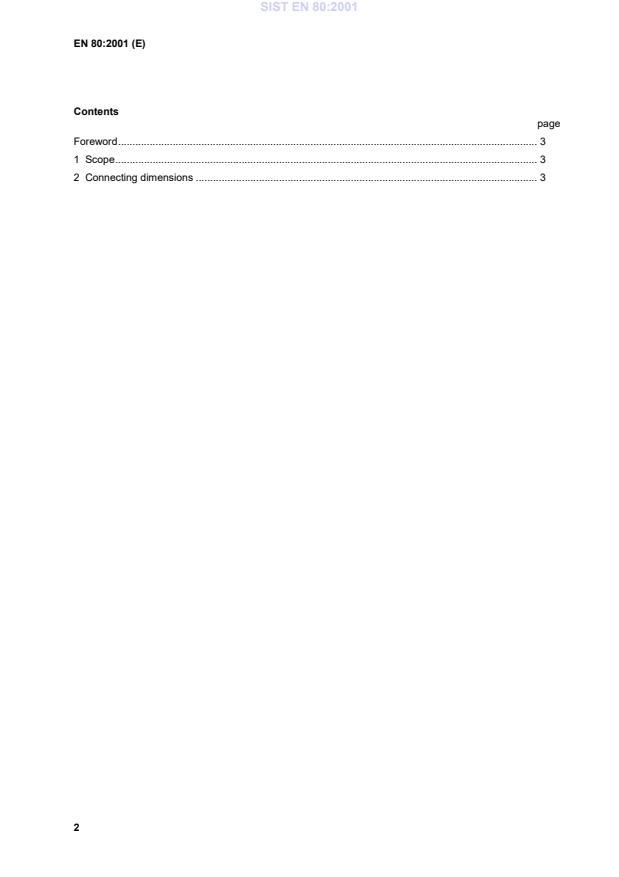

Contents
page
Foreword. 3
1 Scope. 3
2 Connecting dimensions .
...
