EN 3475-606:2024

Aerospace series - Cables, electrical, aircraft use - Test methods - Part 606: Wicking test on textile braid insulation

This document specifies the test methods to evaluate the wicking of wire and cable insulated with textile braid.
It is intended to be used together with EN 3475-100.

Luft- und Raumfahrt - Elektrische Leitungen für Luftfahrtverwendung - Prüfverfahren - Teil 606: Prüfung der Dochtwirkung auf die Textilgeflechtisolierung

Dieses Dokument legt die Prüfverfahren zur Bewertung der Dochtwirkung der Textilgeflechtisolierung von Drähten und Kabeln fest.
Es ist vorgesehen, dass es in Verbindung mit EN 3475 100 angewendet wird.

Série aérospatiale - Câbles électriques à usage aéronautique - Méthodes d’essais - Partie 606 : Effet de mèche sur isolant en tresse textile

Le présent document spécifie les méthodes d'essais pour évaluer l’effet de mèche des fils et câbles isolés avec une tresse textile.
Il est destiné à être utilisé conjointement avec l’EN 3475-100.

Aeronavtika - Električni kabli za uporabo v zračnih plovilih - Preskusne metode - 606. del: Preskus s stenjem na izolaciji iz tekstilne pletenine

Ta dokument določa preskusne metode za ocenjevanje stenjev žic in kablov, izoliranih s tekstilno pletenino. Dokument je treba uporabljati v povezavi s standardom EN 3475-100.

General Information

• Status: Published
• Publication Date: 17-Dec-2024
• ICS: 49.060 - Aerospace electric equipment and systems
• Technical Committee: ASD-STAN - Aerospace
• Drafting Committee: ASD-STAN/D 2/S 2 - Cables & Stripping Tools
• Current Stage: 6060 - Definitive text made available (DAV) - Publishing
• Start Date: 18-Dec-2024
• Completion Date: 18-Dec-2024
• Ref Project: SIST EN 3475-606:2025 - Aerospace series - Cables, electrical, aircraft use - Test methods - Part 606: Wicking Test on Textile Braid Insulation

Overview

EN 3475-606:2024 is a European standard that specifies the test method for evaluating the wicking characteristics of wires and cables insulated with textile braid for aerospace applications. Developed by CEN and ASD-STAN, this standard forms part 606 of the aerospace series related to electrical cables used in aircraft. It addresses the critical need to assess the extent to which moisture can travel along the textile braid insulation, ensuring cable reliability and safety in demanding aviation environments.

This test method is intended to be used in conjunction with EN 3475-100, which covers general test procedures for aerospace electrical cables. By providing a precise measurement technique for wicking in textile braid insulation, EN 3475-606:2024 supports manufacturers, engineers, and quality assurance teams in maintaining aerospace cable integrity.

---

Key Topics

• Wicking Test Description
  The standard defines a laboratory method to measure how far a rhodamine B dye solution travels by capillary action within the textile braid insulation of electrical cables.

• Specimen Preparation
  Samples of wire or cable are cut to a standardized length (minimum 155 mm), and their ends are sealed using heat-shrink sleeves and, if needed, epoxy resin to prevent fluid ingress from non-tested ends.

• Test Solution Composition
  The dye solution is prepared using precise quantities of rhodamine B dye, ethyl alcohol, aerosol OT surfactant, and distilled water to ensure consistency and reproducibility.

• Testing Procedure
  The sealed specimen is immersed in the dye solution for 24 hours in a controlled environment. Subsequently, the wicking distance-the extent to which the dye travels through the textile braid-is measured in millimeters.

• Measurement and Requirements
  Only dye penetration along the textile braid insulation itself is considered; penetration between insulation layers or conductor is excluded. The allowable maximum wicking distance is defined by the product-specific standards to ensure cable performance criteria are met.

---

Applications

• Aerospace Electrical Cables
  The wicking test is essential for aerospace wire and cable manufacturers to verify insulation quality and resistance to moisture ingress that can compromise electrical performance and safety.

• Quality Assurance and Product Development
  Engineering teams utilize EN 3475-606:2024 to validate new insulation materials and production methods, ensuring compliance with aviation industry requirements.

• Maintenance and Inspection
  Aircraft maintenance organizations can adopt this method for periodic cable testing, to detect early signs of insulation degradation caused by environmental factors.

• Certification and Compliance
  Compliance with this test is often a prerequisite for aerospace certifications, as it helps demonstrate adherence to rigorous international electrical cable performance standards.

---

Related Standards

• EN 3475-100 - Aerospace series: General test methods for electrical cables in aircraft.
• SAE AS4373:2020, Method 607 - Test methods for insulated electric wire including a wicking test comparable to EN 3475-606.
• ISO and IEC Electropedia - Provides terminology databases used for standardization of electrical cables and insulation.

---

Keywords: EN 3475-606:2024, aerospace cables, electrical wire test methods, wicking test, textile braid insulation, aircraft cable standards, cable insulation wicking, rhodamine dye test, aerospace electrical safety, cable quality assurance, CEN standards, ASD-STAN aerospace standards.

Standards Content (Sample)

SLOVENSKI STANDARD
01-marec-2025
Aeronavtika - Električni kabli za uporabo v zračnih plovilih - Preskusne metode -
606. del: Preskus s stenjem na izolaciji iz tekstilne pletenine
Aerospace series - Cables, electrical, aircraft use - Test methods - Part 606: Wicking
Test on Textile Braid Insulation
Luft- und Raumfahrt - Elektrische Leitungen für Luftfahrtverwendung - Prüfverfahren -
Teil 606: Prüfung der Dochtwirkung auf die Textilgeflechtisolierung
Série aérospatiale - Câbles électriques à usage aéronautique - Méthodes d’essais -
Partie 606: Effet de mèche sur isolant textile
Ta slovenski standard je istoveten z: EN 3475-606:2024
ICS:
29.060.20 Kabli Cables
49.060 Letalska in vesoljska Aerospace electric
električna oprema in sistemi equipment and systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 3475-606
EUROPEAN STANDARD
NORME EUROPÉENNE
December 2024
EUROPÄISCHE NORM
ICS 49.060
English Version
Aerospace series - Cables, electrical, aircraft use - Test
methods - Part 606: Wicking test on textile braid
insulation
Série aérospatiale - Câbles électriques à usage Luft- und Raumfahrt - Elektrische Leitungen für
aéronautique - Méthodes d'essais - Partie 606 : Effet de Luftfahrtverwendung - Prüfverfahren - Teil 606:
mèche sur isolant en tresse textile Prüfung der Dochtwirkung auf die
Textilgeflechtisolierung
This European Standard was approved by CEN on 30 September 2024.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 3475-606:2024 E
worldwide for CEN national Members.

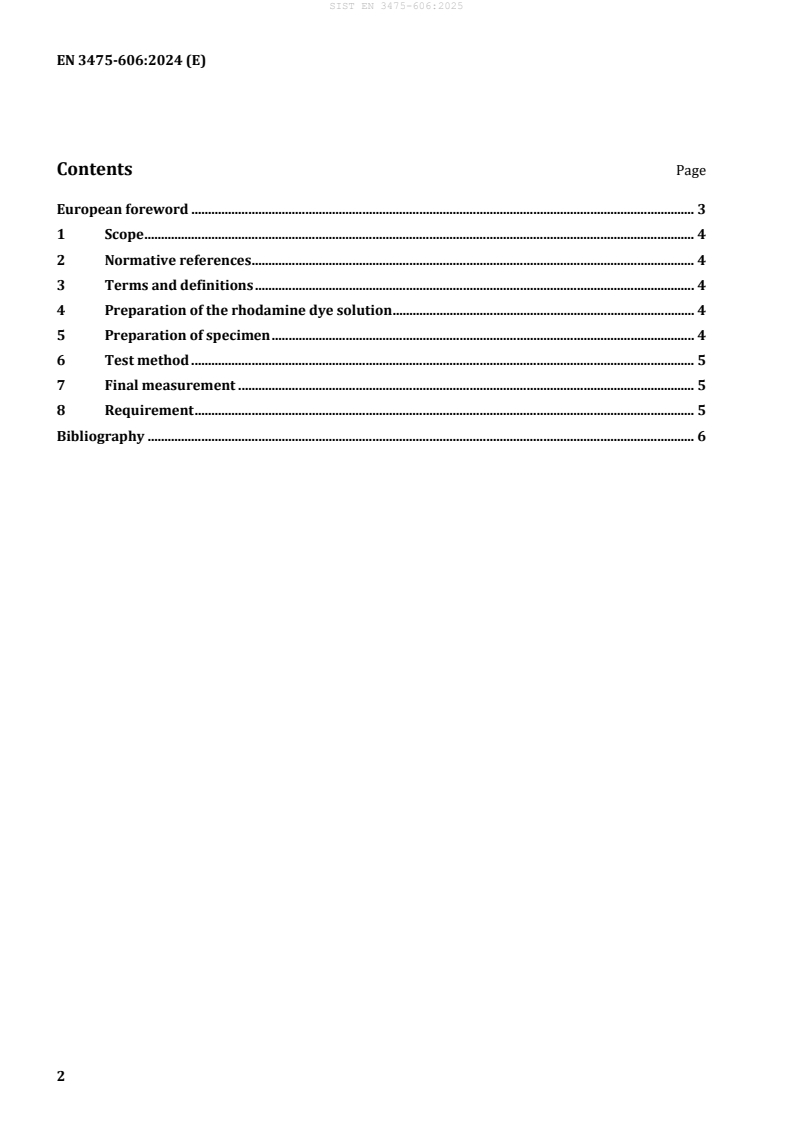

Contents Page
