EN ISO 22721:2023
(Main)Conveyor belts - Specification for rubber- or plastics-covered conveyor belts of textile construction for underground mining (ISO 22721:2023)
Conveyor belts - Specification for rubber- or plastics-covered conveyor belts of textile construction for underground mining (ISO 22721:2023)
This document specifies requirements for rubber- or plastics-covered conveyor belting of textile construction for use in underground mines and disposed on flat or troughed idlers. It is not applicable to light conveyor belts as described in ISO 21183-1.
This document does not include requirements for plastics covers. These are agreed upon by the manufacturer and purchaser, taking into account the type of plastics to be used.
Related items that are not requirements of this document, but which it is recommended be agreed upon by the manufacturer and purchaser, are included in Annex A.
Details recommended to be supplied by the purchaser of belting with an enquiry are given in Annex B.
The ability of a belt to run straight cannot be assessed until the belt is installed. Requirements for this are, therefore, outside the scope of this document; nevertheless, recommendations for lateral drift are given in Annex C.
Attention is drawn to local regulations for safety which might be in place where the belts are to be used.
Fördergurte - Anforderungen an Textilfördergurte mit Gummi- oder Kunststoff-Deckplatten für Anwendungen unter Tage (ISO 22721:2023)
Dieses Dokument legt Anforderungen an Textilfördergurte mit Gummi- oder Kunststoff-Deckplatten für Anwendungen unter Tage auf geraden oder gemuldeten Rollen fest. Es ist nicht anwendbar für leichte Fördergurte nach ISO 21183 1.
Dieses Dokument enthält keine Anforderungen an Kunststoffabdeckungen. Diese werden zwischen dem Hersteller und dem Käufer unter Berücksichtigung der Art des zu verwendenden Kunststoffs vereinbart.
Verwandte Punkte, die keine Anforderungen dieses Dokuments darstellen, die aber zwischen Hersteller und Käufer vereinbart werden sollten, sind in Anhang A enthalten.
In Anhang B sind Einzelheiten enthalten, die der Käufer der Gurte zusammen mit einer Anfrage angeben sollte.
Die Fähigkeit eines Gurtes richtungsstabil zu laufen, kann nicht beurteilt werden, solange der Gurt nicht eingebaut ist. Diesbezügliche Anforderungen sind deshalb nicht Teil des Anwendungsbereiches dieses Dokuments, sind jedoch in Anhang C als Empfehlungen für die seitliche Drift aufgeführt.
Es wird auf lokale Sicherheitsvorschriften hingewiesen, die dort vorhanden sind, wo die Gurte verwendet werden.
Courroies transporteuses - Spécification pour courroies transporteuses à structure textile recouvertes de caoutchouc ou de plastique, pour utilisation dans les mines souterraines (ISO 22721:2023)
Le présent document spécifie les exigences relatives aux courroies transporteuses à structure textile recouvertes de caoutchouc ou de plastique pour utilisation dans les mines souterraines et disposées sur rouleaux plats ou en auge. Il ne s'applique pas aux courroies transporteuses légères décrites dans l'ISO 21183-1.
Le présent document n'inclut pas les exigences relatives aux revêtements plastiques. Ceux-ci font l'objet d'un accord entre le fabricant et l'acheteur, en tenant compte du type de plastique à utiliser.
Les points associés qui ne sont pas des exigences du présent document, mais dont il est recommandé qu'ils soient convenus par le fabricant et l'acheteur, sont inclus dans l'Annexe A.
Les renseignements qu'il est recommandé à l'acheteur d'une courroie de fournir avec une commande sont donnés à l'Annexe B.
La capacité d'une courroie à avoir une course rectiligne ne peut être évaluée qu'une fois la courroie installée. Les exigences en la matière sont, par conséquent, hors du domaine d'application du présent document; néanmoins, des recommandations concernant la dérive latérale sont donnés à l'Annexe C.
L'attention est attirée sur les réglementations locales en matière de sécurité qui peuvent exister là où les courroies doivent être utilisées.
Naprave za kontinuirni transport - Trakovi tračnih transportejev - Zahteve za tračne transportne trakove z gumeno ali plastično oblogo ter tekstilnim vložkom za podzemno rudarstvo (ISO 22721:2023)
Ta dokument določa zahteve za tračne transportne trakove z gumeno ali plastično oblogo ter tekstilnim vložkom za uporabo v podzemnem rudarstvu na ravnih ali koritastih tleh. Ne uporablja se za lahke trakove tračnih transporterjev iz standarda ISO 21183-1. Dokument ne vključuje zahtev za plastične obloge. O tem se dogovorita proizvajalec in kupec ob upoštevanju vrste plastike, ki bo uporabljena. Povezani elementi, ki niso zajeti v zahtevah tega dokumenta, vendar je priporočljivo, da se o njih dogovorita proizvajalec in kupec, so zajeti v dodatku A. Podrobnosti, za katere je priporočljivo, da jih kupec trakov priloži poizvedbi, so podane v dodatku B. Zmožnost traku, da deluje v ravni liniji, je mogoče oceniti šele po njegovi namestitvi. Zahteve v zvezi s tem zato ne spadajo na področje uporabe tega dokumenta; ne glede na to so v dodatku C podana priporočila za prečni odmik.
Opozoriti je treba na lokalne predpise glede varnosti, ki lahko veljajo na mestu uporabe trakov.
General Information
Relations
Standards Content (Sample)

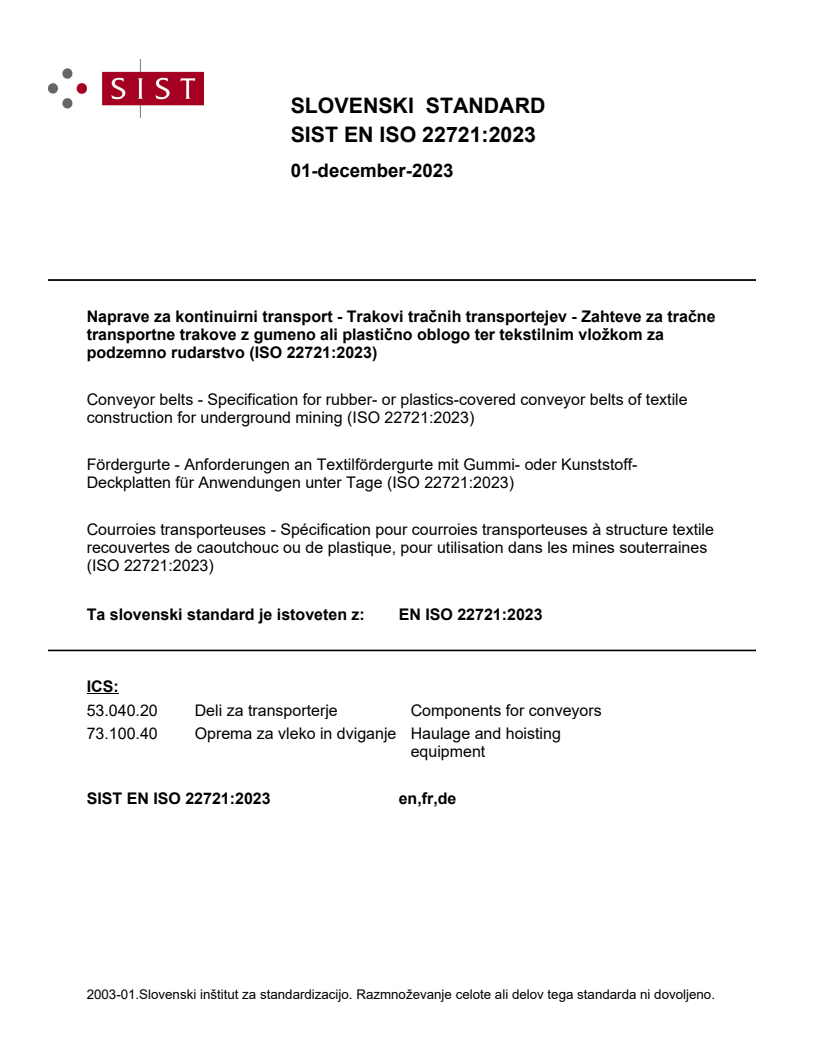

SLOVENSKI STANDARD
01-december-2023
Naprave za kontinuirni transport - Trakovi tračnih transportejev - Zahteve za tračne
transportne trakove z gumeno ali plastično oblogo ter tekstilnim vložkom za
podzemno rudarstvo (ISO 22721:2023)
Conveyor belts - Specification for rubber- or plastics-covered conveyor belts of textile
construction for underground mining (ISO 22721:2023)
Fördergurte - Anforderungen an Textilfördergurte mit Gummi- oder Kunststoff-
Deckplatten für Anwendungen unter Tage (ISO 22721:2023)
Courroies transporteuses - Spécification pour courroies transporteuses à structure textile
recouvertes de caoutchouc ou de plastique, pour utilisation dans les mines souterraines
(ISO 22721:2023)
Ta slovenski standard je istoveten z: EN ISO 22721:2023
ICS:
53.040.20 Deli za transporterje Components for conveyors
73.100.40 Oprema za vleko in dviganje Haulage and hoisting
equipment
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EN ISO 22721
EUROPEAN STANDARD
NORME EUROPÉENNE
August 2023
EUROPÄISCHE NORM
ICS 53.040.20 Supersedes EN ISO 22721:2007
English Version
Conveyor belts - Specification for rubber- or plastics-
covered conveyor belts of textile construction for
underground mining (ISO 22721:2023)
Courroies transporteuses - Spécification pour Fördergurte - Anforderungen an Textilfördergurte mit
courroies transporteuses à structure textile Gummi- oder Kunststoff-Deckplatten für
recouvertes de caoutchouc ou de plastique, pour Anwendungen unter Tage (ISO 22721:2023)
utilisation dans les mines souterraines (ISO
22721:2023)
This European Standard was approved by CEN on 27 July 2023.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 22721:2023 E
worldwide for CEN national Members.
Contents Page
European foreword . 3
European foreword
This document (EN ISO 22721:2023) has been prepared by Technical Committee ISO/TC 41 "Pulleys
and belts (including veebelts)" in collaboration with Technical Committee CEN/TC 188 “Conveyor belts”
the secretariat of which is held by SNV.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by February 2024, and conflicting national standards
shall be withdrawn at the latest by February 2024.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN ISO 22721:2007.
Any feedback and questions on this document should be directed to the users’ national standards
body/national committee. A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the
United Kingdom.
Endorsement notice
The text of ISO 22721:2023 has been approved by CEN as EN ISO 22721:2023 without any modification.
INTERNATIONAL ISO
STANDARD 22721
Second edition
2023-07
Conveyor belts — Specification for
rubber- or plastics-covered conveyor
belts of textile construction for
underground mining
Courroies transporteuses — Spécification pour courroies
transporteuses à structure textile recouvertes de caoutchouc ou de
plastique, pour utilisation dans les mines souterraines
Reference number
ISO 22721:2023(E)
ISO 22721:2023(E)
© ISO 2023
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
ISO 22721:2023(E)
Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 2
4 Construction . 2
5 Length . 3
6 Width . 3
7 Rubber cover . 4
8 Tolerances on total belt thickness and cover thickness . 4
8.1 Tolerance on total belt thickness . 4
8.2 Tolerance on cover thickness . . 4
9 Transverse fabric joints in multi-ply belting . 5
9.1 General . 5
9.2 Outer plies . . 5
9.3 Inner plies . 5
9.4 Adjacent plies and non-adjacent plies . 5
9.5 Joints in same ply . 5
9.6 Mono-ply, duo-ply and solid woven belting . 5
10 Longitudinal fabric joints .5
10.1 Multi-ply belting . 5
10.1.1 Spacing of joints . 5
10.1.2 Number of joints . 5
10.2 Fabric joints in duo-ply belting . 6
10.3 Longitudinal joints in solid woven and mono-ply belting . 6
11 Elongation . 6
12 Full thickness tensile strength .6
13 Adhesion . 6
14 Troughability . . 7
15 Sampling . 7
16 Designation . 7
17 Marking . . 8
Annex A (informative) Items to be agreed between manufacturer and purchaser .10
Annex B (informative) Helpful information to be supplied by the purchaser .11
Annex C (informative) Lateral drift (straight running) .13
Bibliography .14
iii
ISO 22721:2023(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO document should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
I
...
