prEN 1748-2-2
(Main)Glass in building - Special basic products - Glass ceramics - Part 2-2: Product standard
Glass in building - Special basic products - Glass ceramics - Part 2-2: Product standard
This European standard covers the evaluation of conformity and the factory production control of basic glass ceramics for use in buildings.
NOTE For glass products with electrical wiring or connections for, e.g. alarm or heating purposes, other directives, e.g. Low Voltage Directive, may apply.
Glas im Bauwesen - Spezielle Basiserzeugnisse - Glaskeramik - Teil 2-2: Produktnorm
Diese Europäische Norm behandelt die Konformitätsbewertung und die werkseigene Produktionskontrolle von Basiserzeugnissen aus Glaskeramik zur Verwendung im Bauwesen.
ANMERKUNG Für Glaserzeugnisse mit elektrischer Verkabelung oder Anschlüssen für z. B. Alarm oder Heizungs-anwendungen können andere Richtlinien, z. B. die Niederspannungsrichtlinie, gelten.
Verre dans la construction - Produits de base spéciaux - Vitrocéramiques - Partie 2-2 : Norme de produit
La présente Norme européenne couvre l'évaluation de la conformité et le contrôle de la production en usine de la vitrocéramique de base destinée à être utilisée dans les bâtiments.
NOTE Pour les produits verriers équipés d'un câblage ou de branchements électriques, pour les besoins d'alarme ou de chauffage par exemple, d'autres directives comme par exemple la Directive sur les Courants Faibles peuvent s'appliquer.
Steklo v gradbeništvu - Posebni osnovni proizvodi - Steklena keramika - 2-2. del: Standard za proizvod
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
01-oktober-2017
Steklo v stavbah - Posebni osnovni proizvodi - Steklena keramika - 2-2. del:
Standard za proizvod
Glass in building - Special basic products - Glass ceramics - Part 2-2: Product standard
Glas im Bauwesen - Spezielle Basiserzeugnisse - Glaskeramik - Teil 2-2: Produktnorm
Verre dans la construction - Produits de base spéciaux - Vitrocéramiques - Partie 2-2 :
Norme de produit
Ta slovenski standard je istoveten z: prEN 1748-2-2
ICS:
81.040.20 Steklo v gradbeništvu Glass in building
81.060.01 Keramika na splošno Ceramics in general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
DRAFT
EUROPEAN STANDARD
NORME EUROPÉENNE
EUROPÄISCHE NORM
August 2017
ICS 81.040.20; 81.060.01 Will supersede EN 1748-2-2:2004
English Version
Glass in building - Special basic products - Glass ceramics -
Part 2-2: Product standard
Verre dans la construction - Produits de base spéciaux Glas im Bauwesen - Spezielle Basiserzeugnisse -
- Vitrocéramiques - Partie 2-2 : Norme de produit Glaskeramik - Teil 2-2: Produktnorm
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee
CEN/TC 129.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2017 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 1748-2-2:2017 E
worldwide for CEN national Members.

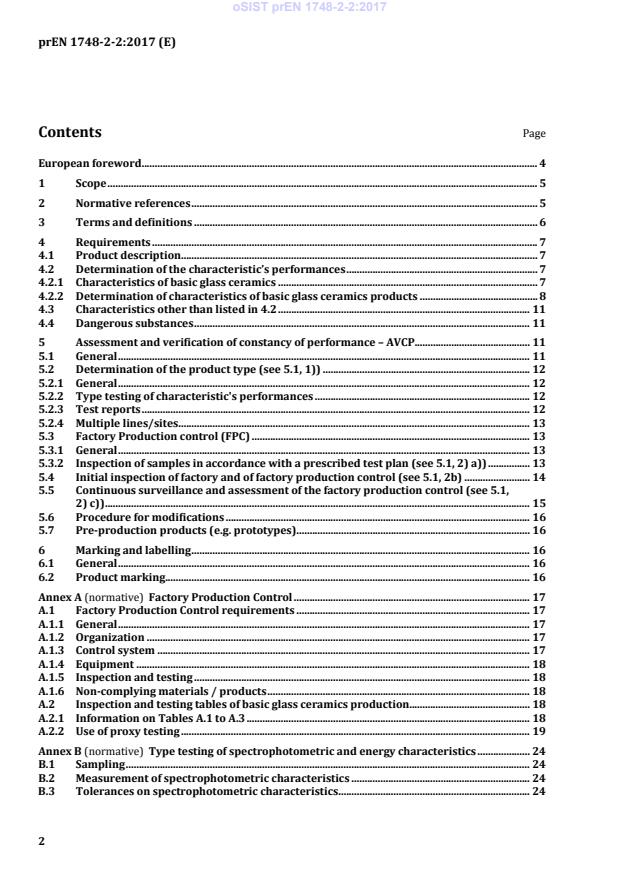

Contents Page
European foreword . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 6
4 Requirements . 7
4.1 Product description . 7
4.2 Determination of the characteristic’s performances . 7
4.2.1 Characteristics of basic glass ceramics . 7
4.2.2 Determination of characteristics of basic glass ceramics products . 8
4.3 Characteristics other than listed in 4.2 . 11
4.4 Dangerous substances . 11
5 Assessment and verification of constancy of performance – AVCP. 11
5.1 General . 11
5.2 Determination of the product type (see 5.1, 1)) . 12
5.2.1 General . 12
5.2.2 Type testing of characteristic's performances . 12
5.2.3 Test reports . 12
5.2.4 Multiple lines/sites . 13
5.3 Factory Production control (FPC) . 13
5.3.1 General . 13
5.3.2 Inspection of samples in accordance with a prescribed test plan (see 5.1, 2) a)) . 13
5.4 Initial inspection of factory and of factory production control (see 5.1, 2b) . 14
5.5 Continuous surveillance and assessment of the factory production control (see 5.1,
2) c)) . 15
5.6 Procedure for modifications . 16
5.7 Pre-production products (e.g. prototypes) . 16
6 Marking and labelling . 16
6.1 General . 16
6.2 Product marking. 16
Annex A (normative) Factory Production Control . 17
A.1 Factory Production Control requirements . 17
A.1.1 General . 17
A.1.2 Organization . 17
A.1.3 Control system . 17
A.1.4 Equipment . 18
A.1.5 Inspection and testing . 18
A.1.6 Non-complying materials / products . 18
A.2 Inspection and testing tables of basic glass ceramics production. 18
A.2.1 Information on Tables A.1 to A.3 . 18
A.2.2 Use of proxy testing . 19
Annex B (normative) Type testing of spectrophotometric and energy characteristics . 24
B.1 Sampling . 24
B.2 Measurement of spectrophotometric characteristics . 24
B.3 Tolerances on spectrophotometric characteristics . 24
Annex C (informative) Provisions for voluntary involvement of third party(ies) . 26
C.1 General . 26
C.2 Voluntary tasks for third parties . 26
C.3 Marking and labelling . 26
Annex ZA (informative) Relationship of this European Standard with Regulation (EU)
No.305/2011 . 27
ZA.1 Scope and relevant characteristics . 27
ZA.2 System of Assessment and Verification of Constancy of Performance (AVCP) . 28
ZA.3 Assignment of AVCP tasks . 29
Bibliography . 33
European foreword
This document (prEN 1748-2-2:2017) has been prepared by Technical Committee CEN/TC 129 “Glass
in building”, the secretariat of which is held by NBN.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 1748-2-2:2004.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports basic work requirements of EU Regulation 305/2011.
For relationship with EU Regulation/Directive(s), see informative Annex ZA which is an integral part of
this document.
The main changes compared to the previous edition are the following:
a) The standard has been revised to fulfil the requirements of the Regulation (EU) No 305/2011
(Construction Product Regulation), modified by Regulations (EU) No 157/2014, (EU) No 568/2014
and (EU) No 574/2014.
b) The solar factor, g, is listed within the spectrophotometric characteristics to be declared in the
Declaration of Performances (DoP).
c) The durability/conformity assessment is listed within the characteristics to be declared in the DoP.
d) The mechanical resistance shall be given in the DoP by the characteristic bending strength of the
glass.
EN 1748 is currently composed with the following parts:
— EN 1748-1-1, Glass in building — Special basic products —Borosilicate glasses — Part 1-1: Definition
and general physical and mechanical properties;
— EN 1748-1-2, Glass in building — Special basic products — Borosilicate glasses — Part 1-2:
Evaluation of conformity/Product standard;
— EN 1748-2-1, Glass in Building — Special basic products — Glass ceramics — Part 2-1: Definitions
and general physical and mechanical properties;
— EN 1748-2-2, Glass in building — Special basic products — Glass ceramics — Part 2-2: Product
standard.
This document contains other aspects of importance for trade.
1 Scope
This European standard covers the evaluation of conformity and the factory production control of basic
glass ceramics for use in buildings.
NOTE For glass products with electrical wiring or connections for, e.g. alarm or heating purposes, other
directives, e.g. Low Voltage Directive, may apply.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
EN 356:1999, Glass in building — Security glazing — Testing and classification of resistance against
manual attack
EN 410:2011, Glass in building — Determination of luminous and solar characteristics of glazing
EN 673:2011, Glass in building —Determination of thermal transmittance (U value) — Calculation
method
EN 1063:1999, Glass in building — Security glazing — Testing and classification of resistance against
bullet attack
prEN 1748-2-1:2017, Glass in Building — Special basic products - Glass ceramics — Part 2-1: Definitions
and general physical and mechanical properties
EN 12600:2002, Glass in building — Pendulum test — Impact test method and classification for flat glass
EN 12758:2011, Glass in building — Glazing and airborne sound insulation — Product descriptions and
...
