Flexible sheets for waterproofing - Determination of the resistance to wind load of roof build-up system with bonded waterproofing systems

This document specifies the test method to determine the resistance to wind load of the roof build-up system with the waterproofing system bonded to the substrate.

Abdichtungsbahnen - Bestimmung der Widerstandsfähigkeit gegen Windlast bei verklebten Dachabdichtungsbahnen

Dieses Dokument legt das Prüfverfahren zur Bestimmung der Widerstandsfähigkeit des Dachaufbausystems mit auf dem Untergrund verklebtem Abdichtungssystem gegen Windlast fest.

Feuilles souples d’étanchéité - Détermination de la résistance à l’arrachement au vent d’un système de toiture avec système d’étanchéité adhérent

Le présent document spécifie une méthode d’essai visant à déterminer la résistance à l’arrachement au vent d’un système de toiture dont le système d’étanchéité est adhérent au support.

Hidroizolacijski trakovi - Določanje odpornosti proti vetrni obremenitvi strešnega sistema z vezanimi vodoodpornimi sistemi

Ta evropski standard določa preskusno metodo za določanje odpornosti proti vetrni obremenitvi strešnega sistema z vodoodpornim sistemom, vezanim na podlago.

General Information

Status
Published
Publication Date
11-Oct-2022
Current Stage
6060 - Definitive text made available (DAV) - Publishing
Start Date
12-Oct-2022
Due Date
31-Mar-2023
Completion Date
12-Oct-2022

Buy Standard

Standard
EN 17686:2023
English language
16 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)


SLOVENSKI STANDARD
01-februar-2023
Hidroizolacijski trakovi - Določanje odpornosti proti vetrni obremenitvi strešnega
sistema z vezanimi vodoodpornimi sistemi
Flexible sheets for waterproofing - Determination of the resistance to wind load of roof
build-up system with bonded waterproofing systems
Abdichtungsbahnen - Bestimmung der Widerstandsfähigkeit gegen Windlast bei
verklebten Dachabdichtungsbahnen
Feuilles souples d’étanchéité - Détermination de la résistance à l’arrachement au vent
d’un système de toiture avec système d’étanchéité adhérent
Ta slovenski standard je istoveten z: EN 17686:2022
ICS:
91.060.20 Strehe Roofs
91.100.50 Veziva. Tesnilni materiali Binders. Sealing materials
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 17686
EUROPEAN STANDARD
NORME EUROPÉENNE
October 2022
EUROPÄISCHE NORM
ICS 91.100.50
English Version
Flexible sheets for waterproofing - Determination of the
resistance to wind load of roof build-up system with
bonded waterproofing systems
Feuilles souples d'étanchéité - Détermination de la Abdichtungsbahnen - Bestimmung der
résistance à l'arrachement au vent d'un système de Widerstandsfähigkeit gegen Windlast bei verklebten
toiture avec système d'étanchéité adhérent Dachabdichtungsbahnen
This European Standard was approved by CEN on 12 September 2022.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 17686:2022 E
worldwide for CEN national Members.

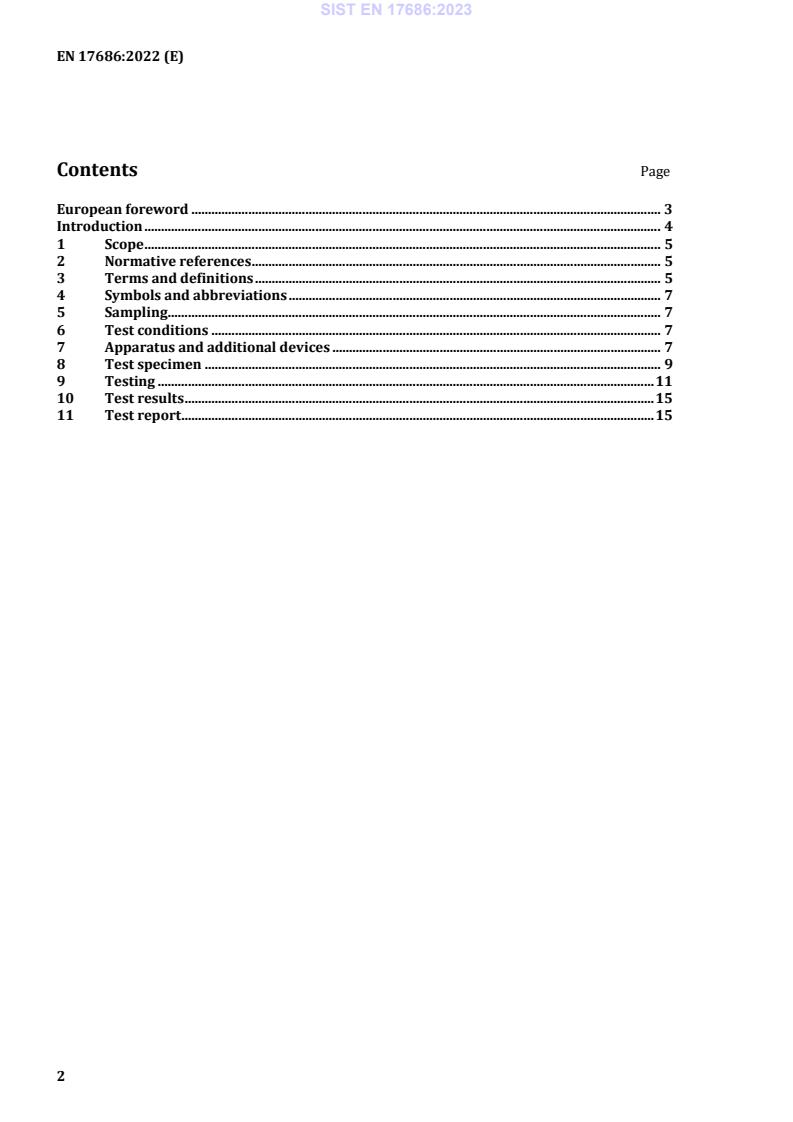

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Symbols and abbreviations . 7
5 Sampling . 7
6 Test conditions . 7
7 Apparatus and additional devices . 7
8 Test specimen . 9
9 Testing . 11
10 Test results . 15
11 Test report . 15

European foreword
This document (EN 17686:2022) has been prepared by Technical Committee CEN/TC 254 “Flexible
sheets for waterproofing”, the secretariat of which is held by NEN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by April 2023, and conflicting national standards shall be
withdrawn at the latest by April 2023.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the United
Kingdom.
Introduction
The test is performed on a test configuration, e.g. a load-bearing structure, an air and vapour control layer
(AVCL), a layer of insulation material and the partial or fully bonded roof waterproofing sheets.
The result of this document is the resistance to wind load of the flexible roof waterproofing system
expressed as the characteristic load per square metre. Safety and correction factors can be defined by
national regulation and/or within European or national application documents.
1 Scope
This document specifies the test method to determine the resistance to wind load of the roof build-up
system with the waterproofing system bonded to the substrate.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 13707, Flexible sheets for waterproofing - Reinforced bitumen sheets for roof waterproofing - Definitions
and characteristics
EN 13956, Flexible sheets for waterproofing - Plastic and rubber sheets for roof waterproofing - Definitions
and characteristics
EN 13416, Flexible sheets for waterproofing - Bitumen, plastic and rubber sheets for roof waterproofing -
Rules for sampling
ISO/IEC Guide 98-3, Uncertainty of measurement — Part 3: Guide to the expression of uncertainty in
measurement (GUM:1995)
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 13707, EN 13956 and the
following apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp
— IEC Electropedia: available at https://www.electropedia.org
3.1
air open system
roof build-up system with air flow from the outside of the test specimen onto the underside of the
waterproofing system
3.2
air tight system
roof build-up system without air flow from the outside of the test specimen onto the underside of the
waterproofing system
3.3
air and vapour control layer
AVCL
layer used to limit or prevent the transportation of air and water vapour into the layers of the roof build-
up system above the structural deck
3.4
bonded flexible sheets
flexible sheets adhered to a substrate by cold or hot bonding
3.5
cold bonding
adhering a waterproofing system to a substrate without the use of additional heat with or without adding
adhesive
3.6
fastening system
element(s) intended to secure the insulation boards to the structural deck
3.7
hot bonding
adhering a waterproofing system to a substrate by heating the surface of the sheet or by adding heated
adhesive
3.8
jointing technique
technique of material-specific seam and butt jointing of flexible sheets
3.9
roof build-up system
total build-up of all the different layers which forms the roof from the top of the structural deck
Note 1 to entry: The system could for instance include layers such as AVCL(s), layer(s) of insulation material and
layer(s) of the partial or fully bonded roof waterproofing sheet(s).
3.10
structural deck
construction part which has to transfer both permanent and variable loads to the other construction parts
of the roof or building
3.11
substrate
layer placed directly below the waterproofing system
Note 1 to entry: The substrate is the next surface below the waterproofing system within the roof build-up system.
This could be e.g. the insulation board, plywood, concrete deck.
3.12
test specimen
representative part of the roof build-up system
3.13
waterproofing system
assembly of one or more layers of flexible sheets in its applied and jointed form to be used on a roof,
which has certain performance characteristics, to be assessed as a whole
Note 1 to entry: This definition is in line with EN 13707 and EN 13956, but slightly adjusted to fit the purpose of
this document.
4 Symbols and abbreviations
For the purposes of this document, the following symbols apply.
Unit
g number of gusts, specified for each “proportional” peak load in a cycle -
i proportional part of P100 %;n %
n number of cycles until failure -
n number of the cycle at which the test specimen fails -
f
P applied suction pressure during the gust N/m
a
P peak pressure in the pressure chamber during a gust N/m
i
P peak pressure in the pressure chamber during a cycle (n) N/m
100 %;n
P peak pressure of the cycle preceding the cycle of failure N/m
100 %;nf-1
t time s
ΔW maximum peak load per cycle (n) N/m
100 %;n
ΔW applied load N/m
a
Wchar characteristic load for resistance to wind uplift of the bonding of the roof N/m
build-up system with bonded waterproofing system
ΔW peak load N/m
i
5 Sampling
If required the flexible sheets for roof waterproofing shall be sampled according to EN 13416 and all
additional components to construct the test specimen shall be sampled according to the sampling
requirements of the relevant European harmonized technical specifications or to the instructions of the
applicant.
6 Test conditions
The test specimen and the apparatus shall be conditioned in an environment of (23 ± 5) °C for at least
16 h prior to the test.
The test specimen shall be tested under the same conditions.
7 Apparatus and additional devices
7.1 Pressure chamber
7.1.1 General
The pressure chamber shall meet the following requirements:
— The internal length and width of the pressure chamber shall be according to 7.1.2.
— The pressure chamber shall be provided with one or more windows in such a way that the test
specimen can be observed during testing.
— It shall be possible to create an airtight seal between the test specimen and the pressure chamber.
— The pressure chamber is recommended to be capable of resisting a suction pressure of at least
10 000 N/m .
— The height of the pressure chamber shall be such that the applied pressure is equally distributed and
not affected by deformations of the test specimen.
— The pressure chamber and additional devices shall be calibrated according to 7.2.
The pressure chamber shall include:
— fan including control and recording system according to 7.1.3;
— pressure and time measurement and registration device according to 7.1.4;
— thermometer according to 7.1.5;
— chronometer according to 7.1.6.
7.1.2 Dimensions of the test area
The minimum effective test area of the test specimen shall be 4 m . In case one dimension is less than 2 m
the effective area of the test specimen shall at least be 8 m . The minimum dimension is 1,5 m.
NOTE The effective test area is equal to the internal dimensions of the pressure chamber.
7.1.3 Fan and controlling equipment
The combination of the fan and the controlling equipment shall be capable of producing the dynamic load
cycles, as defined in 9.4.
7.1.4 Pressure and time measurement and registration device
The pressure and time measurement device shall have a measurement accuracy according to
ISO/IEC Guide 98-3 of less than ± 2 %. A minimum accuracy of 20 N/m is allowed.
The pressure and time registration device shall be capable of registering and storing the pressure level
every 0,1 s during the whole test period.
7.1.5 Thermometer
The thermometer shall be capable of measuring between at least 0 °C up to 30 °C with a measurement
tolerance less than or equal to ± 1 °C in combination with the registration apparatus used. The
thermometer shall be placed within the test chamber.
7.1.6 Chronometer
The chronometer shall be capable of measuring within a range of at least 60 s and have a measurement
tolerance less than or equal to ± 0,1 s in combination with the registration apparatus used.
7.2 Calibration
7.2.1 Calibration of pressure chambe
...
