Overview

EN 17873:2023 (CEN) specifies instructions for mounting and fixing factory-made underlays for discontinuous roof coverings and external walls when they are subject to reaction-to-fire testing. It complements product standards for underlays by defining unambiguous test conditions for small-scale ignitability tests (EN ISO 11925-2) and the single burning item (SBI) test (EN 13823). The standard covers exposure side, substrate choices, joint and edge arrangements, product orientation and fixation of test specimens. Note: these procedures are not intended for flat roof waterproofing applications.

Key Topics and Requirements

• Scope: Applies to flexible sheets for waterproofing used as underlays beneath discontinuous roof coverings (tiles, slates, metal sheets) and behind external wall coverings.
• Test methods: Defines mounting/fixing rules for:
  • Ignitability (EN ISO 11925-2) - surface flame attack on the manufacturer-specified outside-facing side; specimens tested in both machine direction (MD) and cross-machine direction (CMD).
  • Single Burning Item (EN 13823 / SBI) - flame applied to outside-facing side; mandatory use of a mineral wool substrate for supported installations in SBI tests; special provisions when air gaps or other substrates are involved.
• Substrate rules: Use EN 13238 reference substrates where applicable; specific (non-reference) substrates (e.g., PIR, EPS) are used where representative of end use.
• Installation configurations: Defines free-hanging, ventilated and non-ventilated air gap, and supported installations and how these affect classification testing (e.g., free-hanging required for some class E tests).
• Joints and edges: Specifies joint/overlap arrangements and how integrated seams or external sealing kits are treated during testing. Test results for assemblies are limited to manufacturer literature and must remain separate from CE marking.
• Fixing: Test specimens must be fixed so they do not slip and so the fixing does not influence SBI outcomes.
• Classification linkage: Tests are used to support classification under EN 13501-1.

Applications and Users

• Manufacturers of flexible sheets/underlays preparing reaction-to-fire data and CE marking declarations.
• Independent test laboratories performing EN ISO 11925-2 and SBI testing.
• Specifiers, fire engineers and compliance officers evaluating underlay fire performance for pitched roofs and external walls.
• Product certifiers and national standards bodies assessing installation-dependent limitations and extended application rules.

Related Standards

• EN ISO 11925-2:2020 (Ignitability)
• EN 13823:2020+A1:2022 (SBI)
• EN 13501-1:2018 (Fire classification)
• EN 13859-1:2010 / EN 13859-2:2010 (Underlay product standards)
• EN 13238:2010 (Reference substrates)

Keywords: EN 17873:2023, flexible sheets for waterproofing, underlays, reaction to fire testing, mounting and fixing, SBI test, EN ISO 11925-2, fire classification, discontinuous roof coverings, substrate.

Standards Content (Sample)

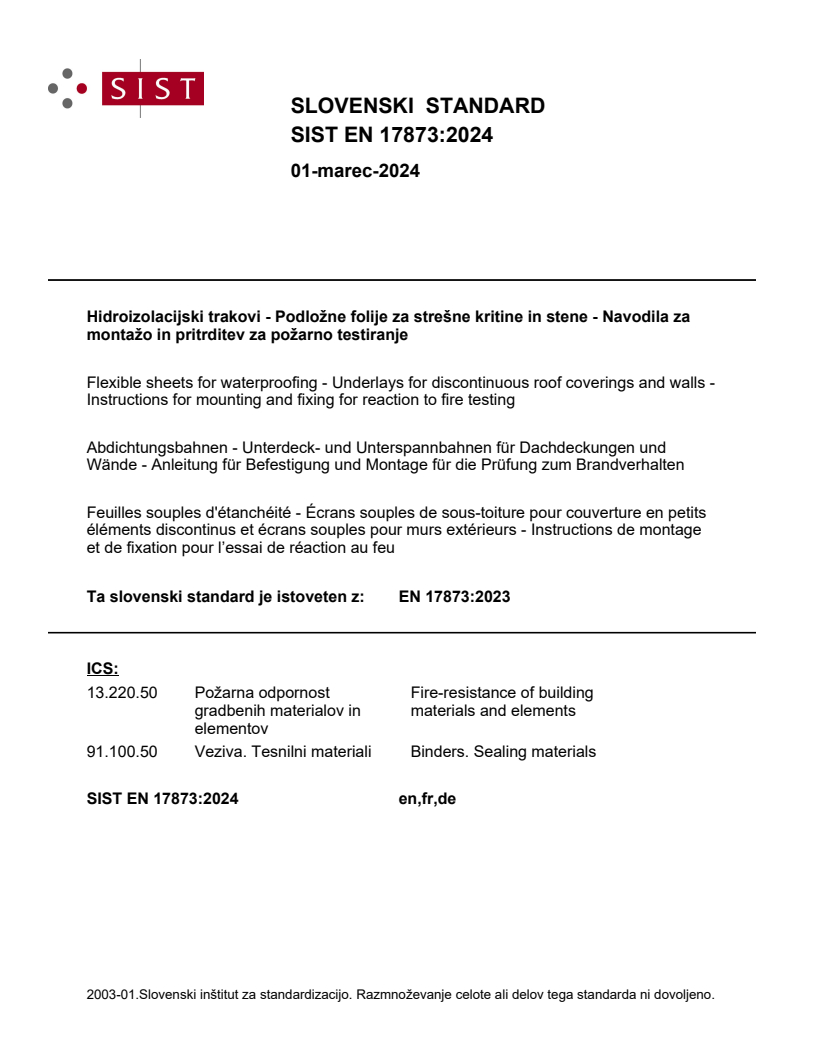

SLOVENSKI STANDARD
01-marec-2024
Hidroizolacijski trakovi - Podložne folije za strešne kritine in stene - Navodila za
montažo in pritrditev za požarno testiranje
Flexible sheets for waterproofing - Underlays for discontinuous roof coverings and walls -
Instructions for mounting and fixing for reaction to fire testing
Abdichtungsbahnen - Unterdeck- und Unterspannbahnen für Dachdeckungen und
Wände - Anleitung für Befestigung und Montage für die Prüfung zum Brandverhalten
Feuilles souples d'étanchéité - Écrans souples de sous-toiture pour couverture en petits
éléments discontinus et écrans souples pour murs extérieurs - Instructions de montage
et de fixation pour l’essai de réaction au feu
Ta slovenski standard je istoveten z: EN 17873:2023
ICS:
13.220.50 Požarna odpornost Fire-resistance of building
gradbenih materialov in materials and elements
elementov
91.100.50 Veziva. Tesnilni materiali Binders. Sealing materials
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 17873
EUROPEAN STANDARD
NORME EUROPÉENNE
December 2023
EUROPÄISCHE NORM
ICS 13.220.50; 91.100.50
English Version
Flexible sheets for waterproofing - Underlays for
discontinuous roof coverings and walls - Instructions for
mounting and fixing for reaction to fire testing
Feuilles souples d'étanchéité - Écrans souples de sous- Abdichtungsbahnen - Unterdeck- und
toiture pour couverture en petits éléments discontinus Unterspannbahnen für Dachdeckungen und Wände -
et écrans souples pour murs extérieurs - Instructions Anleitung für Befestigung und Montage für die Prüfung
de montage et de fixation pour l'essai de réaction au zum Brandverhalten
feu
This European Standard was approved by CEN on 20 November 2023.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 17873:2023 E
worldwide for CEN national Members.

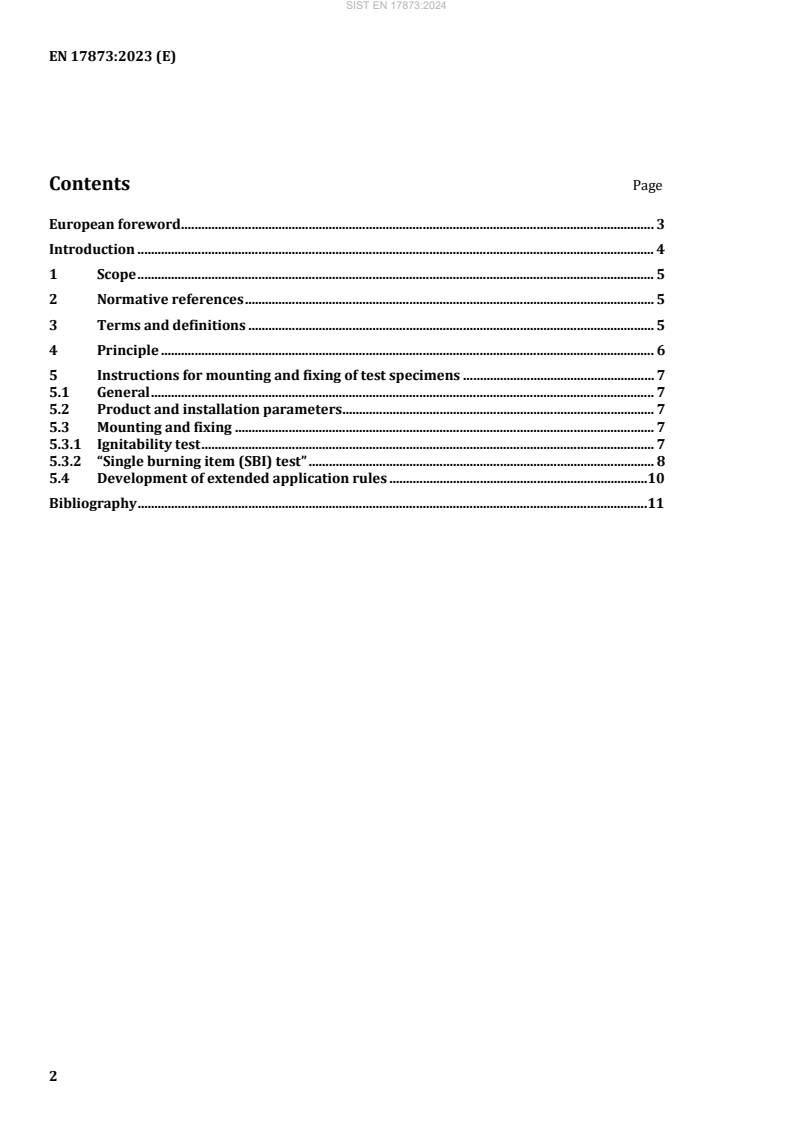

Contents Page
