EN 1367-1:2007

Tests for thermal and weathering properties of aggregates - Part 1: Determination of resistance to freezing and thawing

This European Standard specifies a test method which provides information on how an aggregate behaves when it is subjected to the cyclic action of freezing and thawing.
NOTE   The stresses on aggregates due to frost depend, amongst other factors, on the degree of water saturation as well as the rate of cooling.
The results provide a means for assessing an aggregate's resistance to this form of weathering.
The test is applicable to aggregates having a particle size between 4 mm and 63 mm.

Prüfverfahren für thermische Eigenschaften und Verwitterungsbeständigkeit von Gesteinskörnungen - Teil 1: Bestimmung des Widerstands gegen Frost-Tau-Wechsel

Diese Europäische Norm legt ein Prüfverfahren fest, das aussagt, wie sich eine Gesteinskörnung verhält, wenn sie zyklischen Frost-Tau-Wechseln ausgesetzt wird.
ANMERKUNG   Die Beanspruchung der Gesteinskörnung infolge von Frost hängt neben weiteren Faktoren sowohl vom Grad der Wassersättigung als auch von der Abkühlgeschwindigkeit ab.
Die Prüfergebnisse ermöglichen es, die Widerstandsfähigkeit einer Gesteinskörnung gegen diese Art der
Witterungsbeanspruchung abzuschätzen.
Diese Prüfung kann auf Gesteinskörnungen mit einer Korngröße zwischen 4 mm und 63 mm angewendet werden.

Essais de détermination des propriétés thermiques et de l'altérabilité des granulats - Partie 1: Détermination de la résistance au gel-dégel

La présente norme européenne spécifie une méthode d'essai permettant de fournir des données sur le comportement du granulat lorsqu'il est soumis à des cycles de gel-dégel.
NOTE   Les contraintes subies par les granulats en cas de gel dépendent, entre autres facteurs, du degré de saturation en eau et de la vitesse de refroidissement.
Les résultats permettent une évaluation de la résistance du granulat à cette forme d'altération.
L'essai est applicable aux granulats d'une granularité comprise entre 4 mm et 63 mm.

Preskusi lastnosti agregatov zaradi termičnih in vremenskih vplivov - 1. del: Določevanje odpornosti proti zmrzovanju in odtaljevanju

General Information

• Status: Published
• Publication Date: 20-Mar-2007
• Withdrawal Date: 29-Sep-2007
• ICS: 91.100.30 - Concrete and concrete products
• Technical Committee: CEN/TC 154 - Aggregates
• Drafting Committee: CEN/TC 154/SC 6 - Test methods
• Current Stage: 9092 - Decision on results of review/2YR ENQ - revise - Review Enquiry
• Start Date: 31-Jul-2018
• Completion Date: 14-Apr-2025
• Directive: 305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
• Directive: 89/106/EEC - Construction products
• Ref Project: SIST EN 1367-1:2007 - Tests for thermal and weathering properties of aggregates - Part 1: Determination of resistance to freezing and thawing

Relations

• Replaces: EN 1367-1:1999 - Tests for thermal and weathering properties of aggregates - Part 1: Determination of resistance to freezing and thawing
• Effective Date: 22-Dec-2008

Overview

EN 1367-1:2007 is a European Standard developed by CEN that specifies a standardized test method to evaluate the resistance of aggregates to cyclic freezing and thawing. This process is crucial because aggregates used in construction are often subjected to weathering effects that can degrade their performance and durability. The standard provides a precise methodology to simulate freeze-thaw cycles and assess the physical changes in aggregates, particularly mass loss and strength degradation.

The test is designed for aggregates with particle sizes between 4 mm and 63 mm. It helps quantify the durability of aggregates exposed to frost conditions and provides practical insights for selecting materials suitable for use in climates experiencing freeze-thaw weather.

Key Topics

• Test Principle
  Aggregates are soaked at atmospheric pressure to achieve full water saturation, then subjected to 10 freeze-thaw cycles involving freezing at -17.5 °C under water and thawing at approximately 20 °C.

• Sample Preparation
  Samples must be washed, dried to a constant mass, and prepared in specific size fractions, preferably 8 mm to 16 mm. Sampling and size reduction follow EN 932 standards.

• Freeze-Thaw Cycle Conditions
  The freeze-thaw procedure involves controlled cooling and thawing phases within strict temperature and timing parameters to simulate natural weathering stresses accurately.

• Measurement and Evaluation
  The loss of mass after freeze-thaw cycling is determined by comparing the initial dry mass with the final dry mass of the aggregate retained on a sieve. This percentage loss serves as an indicator of frost resistance.

• Strength Loss Determination (Optional)
  Annex B describes methodologies for assessing strength loss post freeze-thaw cycles by conducting fragmentation tests per EN 1097-2 to provide a comprehensive understanding of aggregate durability.

• Reporting Requirements
  Test reports must include detailed sample information, test results expressed as percentage mass loss, observations of aggregate condition, and testing laboratory credentials.

Applications

EN 1367-1:2007 is fundamental for industries and professionals concerned with the durability and quality of aggregates utilized in:

• Civil Engineering and Construction
  Ensuring that aggregates used in concrete, asphalt, and road bases can withstand freeze-thaw cycles to prevent premature deterioration.

• Pavement Design and Maintenance
  Designing pavements that resist cracking, scaling, and weakening due to seasonal temperature changes.

• Material Quality Control
  Supporting manufacturers and suppliers in verifying the frost resistance of their raw materials for compliance with international durability standards.

• Climate-Resilient Infrastructure Development
  Facilitating the selection of aggregates with proven weathering resistance for projects in regions prone to frost damage.

Related Standards

EN 1367-1:2007 is part of a comprehensive series addressing thermal and weathering properties of aggregates:

• EN 1367-2: Magnesium sulfate test for salt-induced weathering resistance
• EN 1367-3: Boiling test for “Sonnenbrand basalt”
• EN 1367-4: Determination of drying shrinkage
• EN 1367-5: Determination of resistance to thermal shock
• prEN 1367-6: Resistance to freezing and thawing in the presence of salt

Additional relevant standards for aggregate testing include:

• EN 932: Tests for general properties of aggregates (sampling, size reduction)
• EN 933: Tests for geometrical properties of aggregates (particle size distribution)
• EN 1097: Tests for mechanical and physical properties (e.g., resistance to fragmentation)
• EN 1744: Tests for chemical properties of aggregates

These interconnected standards ensure comprehensive evaluation for aggregate suitability across various applications, helping stakeholders assess material longevity under environmental stresses effectively.

---

Keywords: EN 1367-1, freeze-thaw resistance test, aggregate durability, weathering properties, frost damage, cyclic freezing and thawing, construction aggregates, material testing, European Standard, thermal properties of aggregates, mass loss, strength loss, aggregate quality control.

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Tests for thermal and weathering properties of aggregates - Part 1: Determination of resistance to freezing and thawingEssais de détermination des propriétés thermiques et de l'altérabilité des granulats - Partie 1: Détermination de la résistance au gel-dégelPrüfverfahren für thermische Eigenschaften und Verwitterungsbeständigkeit von Gesteinskörnungen - Teil 1: Bestimmung des Widerstands gegen Frost-Tau-WechselTa slovenski standard je istoveten z:EN 1367-1:2007SIST EN 1367-1:2007en,fr,de91.100.15Mineralni materiali in izdelkiMineral materials and productsICS:SIST EN 1367-1:20001DGRPHãþDSLOVENSKI
STANDARDSIST EN 1367-1:200701-september-2007

EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 1367-1March 2007ICS 91.100.30Supersedes EN 1367-1:1999
English VersionTests for thermal and weathering properties of aggregates - Part1: Determination of resistance to freezing and thawingEssais de détermination des propriétés thermiques et del'altérabilité des granulats - Partie 1: Détermination de larésistance au gel-dégelPrüfverfahren für thermische Eigenschaften undVerwitterungsbeständigkeit von Gesteinskörnungen - Teil 1:Bestimmung des Widerstands gegen Frost-Tau-WechselThis European Standard was approved by CEN on 12 February 2007.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the CEN Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as theofficial versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2007 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 1367-1:2007: E

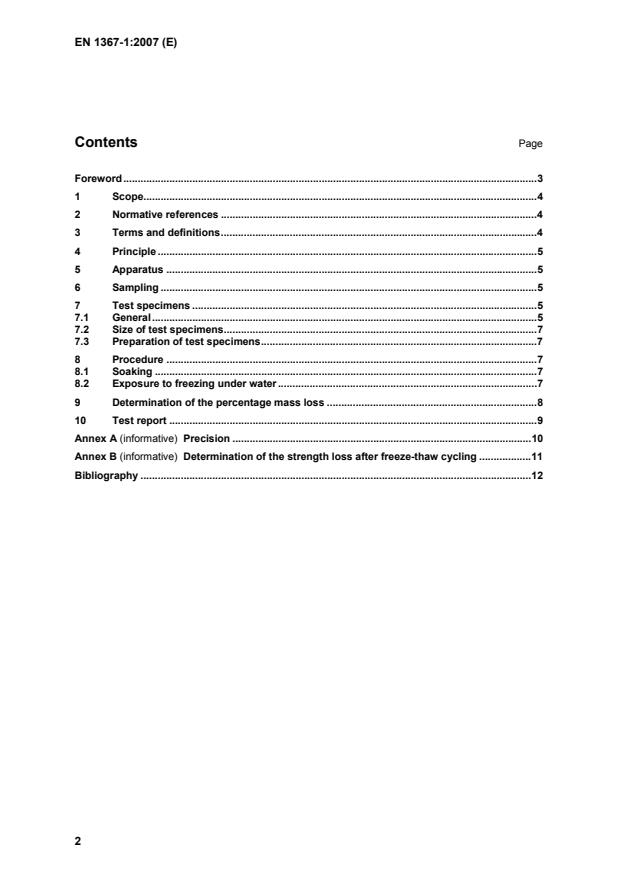

Precision.10 Annex B (informative)
Determination of the strength loss after freeze-thaw cycling.11 Bibliography.12
...
