Industrial microwave heating installations - Test methods for the determination of power output

IEC 61307:2011 specifies test methods for the determination of the available microwave output power and the efficiency of frequency conversion from the electrical input in industrial microwave heating installations. This standard also specifies test methods for assessing the microwave power deposition in the microwave workload - the microwave workload power, in microwave-only installations. This standard is applicable to industrial microwave heating equipment and installations in the frequency range from 300 MHz to 300 GHz. This third edition cancels and replaces the second edition published in 2006. It constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition: a) it covers how to measure not only the microwave power output of all typical equipment designs, but also the system efficiency, including the standby and hibernation modes; b) the handling of the former A and B types of equipment is replaced by measurements of the available microwave power output and microwave workload power, respectively.

Industrielle Mikrowellen-Erwärmungsanlagen - Messverfahren für die Bestimmung der Ausgangsleistung

Installations industrielles de chauffage à hyperfréquence - Méthodes d'essai pour la détermination de la puissance de sortie

La CEI 61307:2011 spécifie les méthodes d'essai permettant de déterminer la puissance hyperfréquence de sortie disponible et le rendement de la conversion de fréquence à partir de l'entrée électrique dans les installations industrielles de chauffage à hyperfréquence. La présente norme spécifie également des méthodes d'essai permettant d'évaluer l'apport de puissance hyperfréquence dans la charge de travail micro-onde, la puissance hyperfréquence de la charge de travail dans les installations uniquement à hyperfréquence. La présente norme est applicable aux équipements et aux installations industrielles de chauffage à hyperfréquence dans la gamme de fréquences allant de 300 MHz à 300 GHz. Cette troisième édition annule et remplace la deuxième édition parue en 2006. Elle constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente: a) elle couvre la manière de mesurer non seulement la puissance hyperfréquence de sortie de toutes les conceptions types d'équipement, mais aussi le rendement des systèmes, en incluant les modes de veille et d'hibernation; b) le traitement des types antérieurs d'équipement A et B est respectivement remplacé par des mesures de la puissance hyperfréquence de sortie disponible et de la puissance hyperfréquence de la charge de travail.

Industrijske inštalacije za mikrovalovno segrevanje - Preskusne metode za ugotavljanje izhodne moči

Ta mednarodni standard določa preskusne metode za ugotavljanje razpoložljive mikrovalovne izhodne moči in učinkovitosti frekvenčnega pretvarjanja iz električne vhodne moči pri industrijskih inštalacijah za mikrovalovno segrevanje. Ta standard določa tudi preskusne metode za ocenjevanje kopičenja mikrovalovne moči pri mikrovalovni delovni obremenitvi – moči mikrovalovne delovne obremenitve v izključno mikrovalovnih napeljavah. Ta standard velja za industrijsko opremo za mikrovalovno segrevanje in inštalacije v frekvenčnem razponu od 300 MHz do 300 GHz. Ta standard se nanaša na industrijsko opremo za mikrovalovno segrevanje, ki deluje pri normalni obremenitvi. Ta standard ne velja za aparate za gospodinjsko ali podobno uporabo (zajete v IEC 60335-2-25), gospodarsko uporabo (zajete v IEC 60335-2-90) ali laboratorijsko uporabo (zajete v 61010-2-010).

General Information

Status
Published
Publication Date
21-Jul-2011
Current Stage
6060 - Document made available
Due Date
22-Jul-2011
Completion Date
22-Jul-2011

RELATIONS

Buy Standard

Standard
EN 61307:2011
English language
17 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST EN 61307:2011
01-oktober-2011
,QGXVWULMVNHLQãWDODFLMH]DPLNURYDORYQRVHJUHYDQMH3UHVNXVQHPHWRGH]D
XJRWDYOMDQMHL]KRGQHPRþL

Industrial microwave heating installations - Test methods for the determination of power

output

Industrielle Mikrowellen-Erwärmungsanlagen - Messverfahren für die Bestimmung der

Ausgangsleistung

Installations industrielles de chauffage à hyperfréquence - Méthodes d'essais pour la

détermination de la puissance de sortie
Ta slovenski standard je istoveten z: EN 61307:2011
ICS:
25.180.10 (OHNWULþQHSHþL Electric furnaces
SIST EN 61307:2011 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 61307:2011
---------------------- Page: 2 ----------------------
SIST EN 61307:2011
EUROPEAN STANDARD
EN 61307
NORME EUROPÉENNE
July 2011
EUROPÄISCHE NORM
ICS 25.180.10 Supersedes EN 61307:2006
English version
Industrial microwave heating installations -
Test methods for the determination of power output
(IEC 61307:2011)
Installations industrielles de chauffage à Industrielle Mikrowellen-
hyperfréquence - Erwärmungsanlagen -
Méthodes d'essai pour la détermination de Messverfahren für die Bestimmung der
la puissance de sortie Ausgangsleistung
(CEI 61307:2011) (IEC 61307:2011)

This European Standard was approved by CENELEC on 2011-06-22. CENELEC members are bound to comply

with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard

the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on

application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other

language made by translation under the responsibility of a CENELEC member into its own language and notified

to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,

the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,

Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,

Spain, Sweden, Switzerland and the United Kingdom.
CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2011 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.

Ref. No. EN 61307:2011 E
---------------------- Page: 3 ----------------------
SIST EN 61307:2011
EN 61307:2011 - 2 -

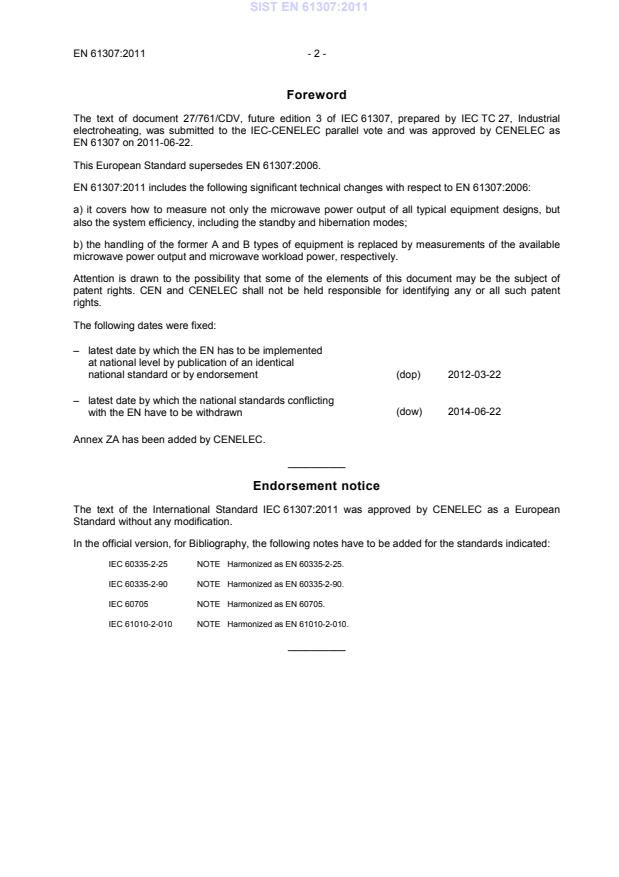

Foreword

The text of document 27/761/CDV, future edition 3 of IEC 61307, prepared by IEC TC 27, Industrial

electroheating, was submitted to the IEC-CENELEC parallel vote and was approved by CENELEC as

EN 61307 on 2011-06-22.
This European Standard supersedes EN 61307:2006.

EN 61307:2011 includes the following significant technical changes with respect to EN 61307:2006:

a) it covers how to measure not only the microwave power output of all typical equipment designs, but

also the system efficiency, including the standby and hibernation modes;

b) the handling of the former A and B types of equipment is replaced by measurements of the available

microwave power output and microwave workload power, respectively.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CEN and CENELEC shall not be held responsible for identifying any or all such patent

rights.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
(dop) 2012-03-22
national standard or by endorsement
– latest date by which the national standards conflicting
(dow) 2014-06-22
with the EN have to be withdrawn
Annex ZA has been added by CENELEC.
__________
Endorsement notice

The text of the International Standard IEC 61307:2011 was approved by CENELEC as a European

Standard without any modification.

In the official version, for Bibliography, the following notes have to be added for the standards indicated:

IEC 60335-2-25 NOTE Harmonized as EN 60335-2-25.
IEC 60335-2-90 NOTE Harmonized as EN 60335-2-90.
IEC 60705 NOTE Harmonized as EN 60705.
IEC 61010-2-010 NOTE Harmonized as EN 61010-2-010.
__________
---------------------- Page: 4 ----------------------
SIST EN 61307:2011
- 3 - EN 61307:2011
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following referenced documents are indispensable for the application of this document. For dated

references, only the edition cited applies. For undated references, the latest edition of the referenced

document (including any amendments) applies.

NOTE When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD

applies.
Publication Year Title EN/HD Year
IEC 60050-221 1990 International Electrotechnical Vocabulary - - -
+ A1 1993 Chapter 221: Magnetic materials and
+ A2 1999 components
+ A3 2007
IEC 60050-726 1982 International Electrotechnical Vocabulary - - -
Chapter 726: Transmission lines and
waveguides
IEC 60050-841 2004 International Electrotechnical Vocabulary - - -
Part 841: Industrial electroheat
IEC 60519-6 - Safety in electroheat installations - EN 60519-6 -
Part 6: Specifications for safety in industrial
microwave heating equipment
---------------------- Page: 5 ----------------------
SIST EN 61307:2011
---------------------- Page: 6 ----------------------
SIST EN 61307:2011
IEC 61307
Edition 3.0 2011-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Industrial microwave heating installations – Test methods for the determination
of power output
Installations industrielles de chauffage à hyperfréquence – Méthodes d'essai
pour la determination de la puissance de sortie
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX N
ICS 25.180.10 ISBN 978-2-88912-499-2
® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 7 ----------------------
SIST EN 61307:2011
– 2 – 61307  IEC:2011
CONTENTS

1 FOREWORD .................................................................................................................... 3

1 Scope ............................................................................................................................... 5

2 Normative references ....................................................................................................... 5

3 Terms and definitions ....................................................................................................... 5

4 Methods of microwave power measurements .................................................................... 8

4.1 General ................................................................................................................... 8

4.2 Available microwave power output ........................................................................... 8

4.3 Microwave workload power ...................................................................................... 8

4.4 Effective microwave power and efficiency ................................................................ 9

5 Calorimetric power measurements .................................................................................... 9

5.1 General ................................................................................................................... 9

5.2 Direct water power measurements ........................................................................... 9

5.3 Dummy load power measurements ........................................................................ 10

6 Determination of microwave workload power .................................................................. 10

7 Determination of effective microwave power ................................................................... 11

7.1 General ................................................................................................................. 11

7.2 The open container water test ............................................................................... 11

7.3 Tests using other liquids ........................................................................................ 12

Electrical efficiency ........................................................................................................ 12

8.1 Available microwave power output ......................................................................... 12

8.2 Electric input ......................................................................................................... 13

9 Standby power consumption ........................................................................................... 13

Bibliography .......................................................................................................................... 14

---------------------- Page: 8 ----------------------
SIST EN 61307:2011
61307  IEC:2011 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
INDUSTRIAL MICROWAVE HEATING INSTALLATIONS –
TEST METHODS FOR THE DETERMINATION
OF POWER OUTPUT
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 61307 has been prepared by IEC technical committee 27:

Industrial electroheating.

This third edition cancels and replaces the second edition published in 2006. It constitutes a

technical revision .

This edition includes the following significant technical changes with respect to the previous

edition:-

a) it covers how to measure not only the microwave power output of all typical equipment

designs, but also the system efficiency, including the standby and hibernation modes;

b) the handling of the former A and B types of equipment is replaced by measurements of the

available microwave power output and microwave workload power, respectively.
---------------------- Page: 9 ----------------------
SIST EN 61307:2011
– 4 – 61307  IEC:2011
The text of this standard is based on the following documents:
CDV Report on voting
27/761/CDV 27/782/RVC

Full information on the voting for the approval of this standard can be found in the report on

voting indicated in the above table.

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

The committee has decided that the contents of this publication will remain unchanged until

the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data

related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 10 ----------------------
SIST EN 61307:2011
61307  IEC:2011 – 5 –
INDUSTRIAL MICROWAVE HEATING INSTALLATIONS –
TEST METHODS FOR THE DETERMINATION
OF POWER OUTPUT
1 Scope

This International Standard specifies test methods for the determination of the available

microwave output power and the efficiency of frequency conversion from the electrical input in

industrial microwave heating installations.

This standard also specifies test methods for assessing the microwave power deposition in

the microwave workload – the microwave workload power, in microwave-only installations.

This standard is applicable to industrial microwave heating equipment and installations in the

frequency range from 300 MHz to 300 GHz.

This standard relates to industrial microwave heating equipment operating under normal load.

This standard does not apply to appliances for household and similar use (covered by

IEC 60335-2-25), commercial use (covered by IEC 60335-2-90) or laboratory use (covered by

IEC 61010-2-010).
2 Normative references

The following referenced documents are indispensable for the application of this document.

For dated references, only the edition cited applies. For undated references, the latest edition

of the referenced document (including any amendments) applies.

IEC 60050-221:1990, International Electrotechnical Vocabulary – Chapter 221: Magnetic

materials and components
Amendment 1(1993)
Amendment 2 (1999)
Amendment 3 (2007)

IEC 60050-841:2004, International Electrotechnical Vocabulary – Part 841: Industrial

electroheat

IEC 60050-726:1982, International Electrotechnical Vocabulary – Chapter 726: Transmission

lines and waveguides

IEC 60519-6, Safety in electroheat installations – Part 6: Specifications for safety in industrial

microwave heating equipment
3 Terms and definitions
For the purposes of this document, the terms and definitions of IEC 60519-6 and
IEC 60050-841 as well as the following apply.
3.1
calorimetric power meter
calorimeter power meter

power meter which uses temperature rise in a medium as a means of measuring absorbed

power
---------------------- Page: 11 ----------------------
SIST EN 61307:2011
– 6 – 61307  IEC:2011

NOTE The medium, typically water, is either the power-absorbing agent or has heat transferred to it from a

power-absorbing element.
[IEC 60050-726:1982, 726-21-10]
3.2
circulator

passive device having three or more ports in which the power entering any port is transmitted

to the next port according to a given order of sequence

NOTE The typical forms are junction circulators [IEC 60050-221:1990, 221-05-14] of the T junction

[IEC 60050-726:1982, 726-17-12] or Y junction [IEC 60050-726:1982, 726-17-13].
[IEC 60050-221:1990, 221-05-11, modified]
3.3
cross coupling (between generators)

appearance of undesired microwave energy in a microwave generator or the transmission line

output port of a microwave generator assembly caused by one or several other microwave

generators or microwave generator assemblies
3.4
electrical efficiency of microwave heating equipment

quotient between the available microwave power output and the electric input to the mains

frequency power supply or microwave generator assembly, at power settings for normal

operation
3.5
insertion loss

loss resulting from the insertion of a network into a transmission system, the ratio of the

power delivered to that part of the system following the network, before insertion of the

network, to the power delivered to that same part after insertion of the network
NOTE The insertion loss is generally expressed in decibels.
[IEC 60050-726:1982, 726-06-07]
3.6
isolation (of a three-port circulator)

reverse attenuation between the main output port and main input port, with all ports being

impedance matched

NOTE 1 The isolation should not be confused with the reverse loss occurring between adjacent ports.

NOTE 2 This is a special case of cross coupling of a circulator [IEC 60050-726:1982, 726-16-06].

3.7
means of access

all structural features of the microwave heating equipment which can be opened or removed

without the use of a tool to provide access to the interior of the microwave applicator or

microwave cavity
3.8
microwave applicator
structure which applies the microwave energy to the load
[IEC 60050-841:2004, 841-29-11]
3.9
microwave cavity

space enclosed by inner metal walls and a door or an access opening and in which the

microwave load is placed
---------------------- Page: 12 ----------------------
SIST EN 61307:2011
61307  IEC:2011 – 7 –
[IEC 60050-841:2004, 841-29-19, modified]
3.10
microwave enclosure
structure which is intended to confine the microwave energy to a defined region
NOTE Examples are a cavity, door seals and waveguides.
[IEC 60050-841:2004, 841-29-20]
3.11
microwave generator

source used to produce electromagnetic energy in the frequency range from 300 MHz to

300 GHz
[IEC 60050-841:2004, 841-29-16]

NOTE In the context of this standard, the microwave generator is only the component where the frequency

conversion takes place. See 3.2.
3.12
microwave generator assembly

part of the microwave heating equipment comprising an apparatus producing microwave

energy and its associated transmission line output port

NOTE 1 The assembly includes the microwave generator, the power supply of the microwave generator and its ancillary

and control circuits. If a circulator is used, it is also included.

NOTE 2 Microwave heating equipment containing a microwave generator assembly was classified as Type A in

earlier editions of this standard; equipment where a transmission line output port is not available was classified as

Type B.
3.13
microwave heating equipment

assembly of electric and mechanical devices intended for the transfer of microwave energy to

the microwave load and comprising in general power supplies, microwave generators or

microwave generator assemblies with cooling arrangements and circulators if used,

microwave applicators or cavi
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
