prEN 50288-10-1

Multi-element metallic cables used in analogue and digital communication and control - Part 10-1: Sectional specification for cables characterized up to 500 MHz - Horizontal and building backbone cables

Document urgently required to support the deployment of the 10G Base T structure cabling systems in Europe * D129/072: Under Benchmark 3 - Target date for vote extended until 2008-04-12 * D134/093: Project split in  prEN 50288-10 (see PR=22455) and  prEN 50288-13 (see PR=22456) with target date for vote: 2010-01-31

Mehradrige metallische Daten- und Kontrollkabel für analoge und digitale Übertragung - Teil 10-1: Rahmenspezifikation für Kabel bis 500 MHz - Horizontal- und Steigbereich

Câbles métalliques à éléments multiples utilisés pour les transmissions et les commandes analogiques et numériques - Partie 10-1: Spécification intermédiaire pour les câbles caractérisés jusqu'à 500 MHz - Câbles horizontaux et câbles verticaux de bâtiments

Večelementni kovinski kabli za analogne in digitalne komunikacije in krmiljenje - 10-1. del: Področna specifikacija za kable z zmogljivostmi do 500 MHz – Hrbtenični kabli za vodoravno montažo in montažo v zgradbah

General Information

• Status: Not Published
• ICS: 33.120.10 - Coaxial cables. Waveguides
• Technical Committee: CLC/SC 46XC - Multicore, Multipair and Quad Data communication cables
• Parallel Committee: IEC/SC 46C - IEC_SC_46C
• Current Stage: 1099 - Decision to proceed: launch PQ / UQ or prepare draft for circulation - Evaluation of concrete proposal
• Start Date: 12-Sep-2007
• Due Date: 01-Jun-2006
• Completion Date: 01-Jun-2006
• Directive: 2006/95/EC - Directive 2006/95/EC of the European Parliament and of the Council of 12 December 2006 on the harmonisation of the laws of Member States relating to electrical equipment designed for use within certain voltage limits (codified version)
• Ref Project: oSIST prEN 50288-10-1:2007 - Multi-element metallic cables used in analogue and digital communication and control - Part 10-1: Sectional specification for cables characterized up to 500 MHz - Horizontal and building backbone cables

Overview

prEN 50288-10-1 is a CLC/CENELEC draft sectional specification for multi‑element metallic cables characterized up to 500 MHz, intended for horizontal and building backbone wiring for information technology and generic cabling systems. It was developed to support the European deployment of high‑speed structures such as 10GBase‑T. This part is to be read in conjunction with EN 50288‑1 and references EN 50289 and EN 50290 test-method and material series.

Key topics and technical requirements

The standard defines construction, test methods and performance limits for multi‑pair and multi‑quad metallic data cables:

• Cable construction
  • Solid copper conductors (plain or metal‑coated), nominal diameter ≥ 0.52 mm and ≤ 0.80 mm.
  • Insulation materials referenced to EN 50290‑2‑23; sheath per EN 50290 series.
  • Element types: pairs or quads; colour coding per IEC 60189‑2 / IEC 60708‑1.
  • Screening: element and core screening rules; braid coverage minima - typically 60% (braid alone) or 30% when used with foil (mechanical coverage).
• Electrical and transmission limits (examples)
  • Conductor loop resistance ≤ 19 Ω/100 m; insulation resistance ≥ 500 MΩ·km.
  • Characteristic impedance: 100 ± 5 Ω at 100 MHz.
  • Propagation delay ≤ 40 ns/100 m at 100 MHz; velocity of propagation limit given as a frequency‑dependent formula.
  • Attenuation and crosstalk limits specified up to 500 MHz (numerical tables and formulae for attenuation, NEXT, PSNEXT, ELFEXT, PSELFEXT, return loss).
  • Example attenuation bound: α ≤ 1.8√f + 0.01f + 0.2/√f (1–500 MHz).
• Mechanical and environmental tests
  • Conductor elongation ≥ 10%, crush and impact resistance, simulated installation bends and tensile loads (e.g., 25 N per pair).
  • Temperature cycling and cold bend tests; fire performance per EN 50288‑1.
• Ancillary limits
  • Capacitance unbalance ≤ 1 200 pF/km; proposed element voltage/current/temperature ratings in informative Annex A.

Applications and users

Who uses prEN 50288‑10‑1:

• Cable manufacturers designing products for enterprise horizontal and backbone installations.
• System designers and specifiers creating cabling infrastructures for 10GBase‑T and other high‑speed networks.
• Test laboratories and compliance engineers performing transmission, mechanical and environmental verification.
• Building owners, integrators and installers who require verified cable performance up to 500 MHz.

Practical value: ensures interoperable, high‑performance metallic cabling meeting frequency, crosstalk and mechanical durability requirements for modern LAN and backbone installations.

Related standards

• EN 50288‑1 (core provisions)
• EN 50289 series (test methods)
• EN 50290 series (materials)
• IEC 60189‑2, IEC 60708‑1 (colour coding)

Keywords: prEN 50288‑10‑1, multi‑element metallic cables, 500 MHz, horizontal cables, building backbone, 10GBase‑T, CENELEC, EN 50288.

Standards Content (Sample)

SLOVENSKI STANDARD
01-oktober-2007
9HþHOHPHQWQLNRYLQVNLNDEOL]DDQDORJQHLQGLJLWDOQHNRPXQLNDFLMHLQNUPLOMHQMH
GHO3RGURþQDVSHFLILNDFLMD]DNDEOH]]PRJOMLYRVWPLGR0+]±+UEWHQLþQL
NDEOL]DYRGRUDYQRPRQWDåRLQPRQWDåRY]JUDGEDK
Multi-element metallic cables used in analogue and digital communication and control -
Part 10-1: Sectional specification for cables characterized up to 500 MHz - Horizontal
and building backbone cables
Mehradrige metallische Daten- und Kontrollkabel für analoge und digitale Übertragung -
Teil 10-1: Rahmenspezifikation für Kabel bis 500 MHz - Horizontal- und Steigbereich
Câbles métalliques à éléments multiples utilisés pour les transmissions et les
commandes analogiques et numériques - Partie 10-1: Spécification intermédiaire pour
les câbles caractérisés jusqu'à 500 MHz - Câbles horizontaux et câbles verticaux de
bâtiments
Ta slovenski standard je istoveten z: prEN 50288-10-1:2007
ICS:
33.120.20 äLFHLQVLPHWULþQLNDEOL Wires and symmetrical
cables
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

DRAFT
EUROPEAN STANDARD
NORME EUROPÉENNE
March 2007
EUROPÄISCHE NORM
ICS
English version
Multi-element metallic cables used in analogue
and digital communication and control -
Part 10-1: Sectional specification for cables characterized
up to 500 MHz - Horizontal and building backbone cables

Câbles métalliques à éléments multiples Mehradrige metallische Daten- und
utilisés pour les transmissions et les Kontrollkabel für analoge
commandes analogiques et numériques - und digitale Übertragung -
Partie 10-1: Spécification intermédiaire Teil 10-1: Rahmenspezifikation
pour les câbles caractérisés jusqu'à 500 für Kabel bis 500 MHz -
MHz - Câbles horizontaux et câbles Horizontal- und Steigbereich
verticaux de bâtiments
This draft European Standard is submitted to CENELEC members for CENELEC enquiry.
Deadline for CENELEC: 2007-09-07.

It has been drawn up by CLC/SC 46XC.

If this draft becomes a European Standard, CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national
standard without any alteration.

This draft European Standard was established by CENELEC in three official versions (English, French, German).
A version in any other language made by translation under the responsibility of a CENELEC member into its own
language and notified to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Cyprus, the
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to
change without notice and shall not be referred to as a European Standard.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2007 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Project: 20641 Ref. No. prEN 50288-10-1:2007 E

Draft for Enquiry

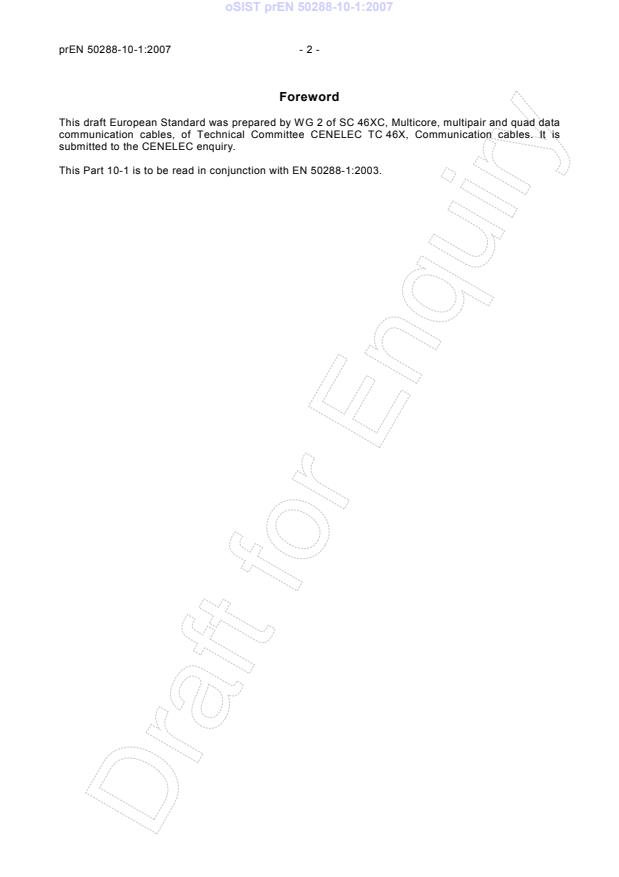

Foreword
This draft European Standard was prepared by WG 2 of SC 46XC, Multicore, multipair and quad data
communication cables, of Technical Committee CENELEC TC 46X, Communication cables. It is
submitted to the CENELEC enquiry.
This Part 10-1 is to be read in conjunction with EN 50288-1:2003.

Draft for Enquiry
- 3 - prEN 50288-10-1:2007
Contents
1 Scope. 4
2 Normative references . 4
3 Definitions, symbols and abbreviations . 4
4 Cable construction . 4
4.1 Conductor . 4
4.2 Insulation .4
4.3 Cabling elements. 4
4.4 Identification of cabling elements . 4
4.5 Screening of cabling elements . 4
4.6 Cable make-up. 5
4.7 Filling compound . 5
4.8 Interstitial fillers. 5
4.9 Screening of the cable core . 5
4.10 Moisture barriers . 5
4.11 Wrapping layers . 5
4.12 Sheath .5
5 Test methods and requirements for completed cables. 5
5.1 Electrical tests. 5
5.2 Mechanical tests. 8
5.3 Environmental tests . 9
5.4 Fire performance test methods . 9
Annex A (informative) Proposed table for data cable current, voltage and power ratings . 10
Table 1 - Low-frequency and d.c. electrical measurements. 5
Table 2 - High-frequency electrical and transmission measurements . 6
Table A.1 - ffs. 10
Draft for Enquiry
1 Scope
This sectional specification relates to EN 50288-1, Multi-element metallic cables used in analogue
and digital communication and control.
It covers cables, characterised up to 500 MHz, to be used in horizontal floor and building backbone
wiring for Information technology, Generic-cabling systems.
The electrical, mechanical, transmission and environmental performance characteristics of the
cables, related to their reference test methods, are detailed.
This sectional specification is to be read in conjunction with EN 50288-1, which contains the
essential provisions for its application.
2 Normative references
The following referenced documents are indispensable for the application of this document. For
dated references, only the edition cited applies. For undated references, the latest edition of the
referenced document (including any amendments) applies.
EN 50289 Series Communication cables - Specifications for test methods
EN 50290 Series Communication cables
3 Definitions, symbols and abbreviations
For the purposes of this standard the definitions given in Clause 3 of EN 50288-1 apply.
Ex – Exogenous (derived or originating externally)
4 Cable construction
4.1 Conductor
The conductor shall be solid copper and meet the requirements of 4.1 of EN 50288-1. The conductor
shall be plain or metal coated.
The nominal conductor diameter shall be ≥ 0,52 mm and ≤ 0,80 mm.
4.2 Insulation
The insulation shall be of a suitable material according to the appropriate part or EN 50290-2-23.
4.3 Cabling elements
The cable element shall be a pair or quad.
4.4 Identification of cabling elements
Unless otherwise specified, the col
...
