EN 60512-20-3:2010

Connectors for electronic equipment - Tests and measurements - Part 20-3: Fire hazard tests - Test 20c: Flammability, glow-wire

IEC 60512-20-3:2010 when required by the detail specification, is used for testing connectors within the scope of technical committee 48. It may also be used for similar devices when specified in a detail specification. The object of this standard is to detail a standard test method to determine the flammability of a connector when exposed to a glow-wire test under specified conditions. The glow-wire test simulates thermal stresses which may be produced by such sources of heat or ignition as, for example, glowing elements or overloaded components, for short periods, in order to assess by a simulation technique the fire hazard or burning of a single electronic component.

Steckverbinder für elektronische Einrichtungen - Mess- und Prüfverfahren - Teil 20-3: Prüfungen auf Feuersicherheit - Prüfung 20c: Brennbarkeit, Glühdraht

Connecteurs pour équipements électroniques - Essais et mesures - Partie 20-3: Essais relatifs aux risques du feu - Essais 20c: Inflammabilité, fil incandescent

La CEI 60512-20-3:2010 est utilisée pour les essais des connecteurs du domaine d'activité du comité d'études 48, lorsque la spécification particulière l'exige. Elle peut également être utilisée pour des dispositifs similaires lorsqu'une spécification particulière le stipule. L'objet de cette norme est de définir une méthode d'essai normalisée pour déterminer l'inflammabilité d'un connecteur exposé à un essai au fil incandescent dans des conditions déterminées. L'essai au fil incandescent simule les contraintes thermiques qui pourraient être produites par des sources de chaleur ou d'allumage, par exemple par des éléments incandescents ou des composants en surcharge, pendant de courtes durées, de manière à évaluer par une simulation technique les risques au feu ou la combustion d'un composant électronique individuel.

Konektorji za elektronsko opremo - Preskusi in meritve - 20-3. del: Preskusi požarne nevarnosti - Preskus 20c: Vnetljivost, žarilna žica (IEC 60512-20-3:2010)

Ta del IEC 60512, kadar ga zahteva podrobna specifikacija, se uporablja za preskušanje konektorjev v okviru tehničnega odbora 48. Lahko se uporablja tudi za podobne naprave, kadar ga določa podrobna specifikacija. Cilj tega standarda je podrobno opredeliti standardno preskusno metodo za določevanje vnetljivosti konektorja, kadar je izpostavljen preskusu z žarilno žico pod določenimi pogoji. Preskus z žarilno žico simulira termične napetosti na kratek rok, ki jih lahko povzročijo takšni viri vročine ali vžiga, kot so na primer žarilni elementi ali preobremenjene komponente, z namenom vrednotenja tehnike simulacije nevarnosti požara ali gorenja posamezne elektronske komponente.

General Information

• Status: Published
• Publication Date: 08-Jul-2010
• Withdrawal Date: 30-Jun-2013
• ICS: 31.220.01 - Electromechanical components in general
• Technical Committee: CLC/SR 48B - Connectors
• Drafting Committee: IEC/SC 48B - IEC_SC_48B
• Parallel Committee: IEC/SC 48B - IEC_SC_48B
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 09-Jul-2010
• Completion Date: 09-Jul-2010
• Ref Project: SIST EN 60512-20-3:2010 - Connectors for electronic equipment - Tests and measurements - Part 20-3: Fire hazard tests - Test 20c: Flammability, glow-wire (IEC 60512-20-3:2010)

Standards Content (Sample)

SLOVENSKI STANDARD
01-september-2010
Konektorji za elektronsko opremo - Preskusi in meritve - 20-3. del: Preskusi
požarne nevarnosti - Preskus 20c: Vnetljivost, žarilna žica (IEC 60512-20-3:2010)
Connectors for electronic equipment - Tests and measurements - Part 20-3: Fire hazard
tests - Test 20c: Flammability, glow-wire (IEC 60512-20-3:2010)
Steckverbinder für elektronische Einrichtungen - Mess- und Prüfverfahren - Teil 20-3:
Prüfungen auf Feuersicherheit - Prüfung 20c: Brennbarkeit, Glühdraht (IEC 60512-20-
3:2010)
Connecteurs pour équipements électroniques - Essais et mesures - Partie 20-3: Essais
relatifs aux risques du feu - Essais 20c: Inflammabilité, fil incandescent (CEI 60512-20-
3:2010)
Ta slovenski standard je istoveten z: EN 60512-20-3:2010
ICS:
13.220.40 Sposobnost vžiga in Ignitability and burning
obnašanje materialov in behaviour of materials and
proizvodov pri gorenju products
31.220.10 9WLþLLQYWLþQLFHNRQHNWRUML Plug-and-socket devices.
Connectors
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 60512-20-3
NORME EUROPÉENNE
July 2010
EUROPÄISCHE NORM
ICS 31.220.01
English version
Connectors for electronic equipment -
Tests and measurements -
Part 20-3: Fire hazard tests -
Test 20c: Flammability, glow-wire
(IEC 60512-20-3:2010)
Connecteurs pour équipements Steckverbinder für elektronische
électroniques - Einrichtungen -
Essais et mesures - Mess- und Prüfverfahren -
Partie 20-3: Essais relatifs aux risques Teil 20-3: Prüfungen auf Feuersicherheit -
du feu - Prüfung 20c: Brennbarkeit, Glühdraht
Essais 20c: Inflammabilité, fil (IEC 60512-20-3:2010)
incandescent
(CEI 60512-20-3:2010)
This European Standard was approved by CENELEC on 2010-07-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2010 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60512-20-3:2010 E

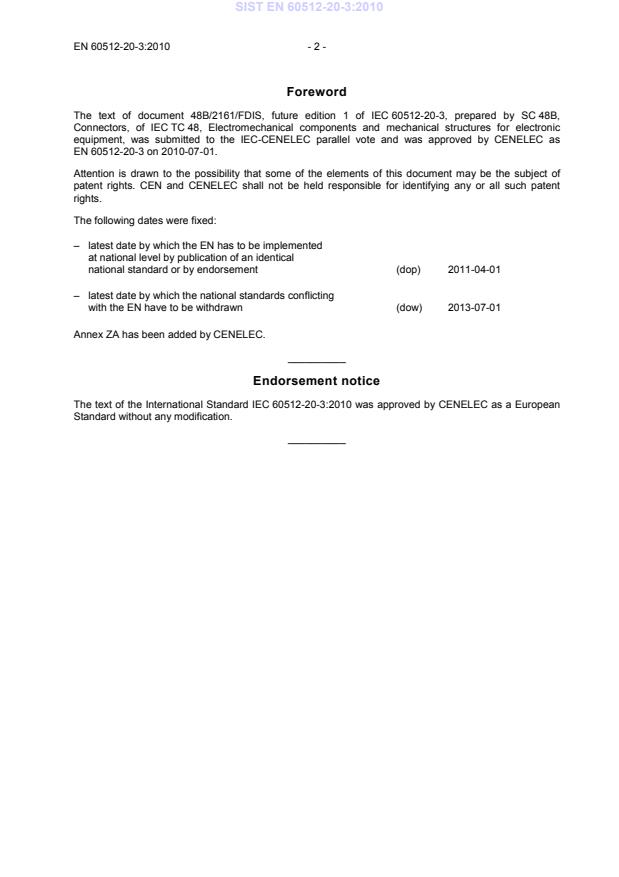

Foreword
The text of document 48B/2161/FDIS, future edition 1 of IEC 60512-20-3, prepared by SC 48B,
Connectors, of IEC TC 48, Electromechanical components and mechanical structures for electronic
equipment, was submitted to the IEC-CENELEC parallel vote and was approved by CENELEC as
EN 60512-20-3 on 2010-07-01.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN and CENELEC shall not be held responsible for identifying any or all such patent
rights.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2011-04-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2013-07-01
Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 60512-20-3:2010 was approved by CENELEC as a European
Standard without any modification.
__________
- 3 - EN 60512-20-3:2010
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

IEC 60695-2-10 - Fire hazard testing - EN 60695-2-10 -
Part 2-10: Glowing/hot-wire based test
methods - Glow-wire apparatus and common
test procedure
IEC 60695-2-11 - Fire hazard testing - EN 60695-2-11 -
Part 2-11: Glowing/hot-wire based test
methods - Glow-wire flammability test method
for end-products
IEC 60512-20-3 ®
