EN 60603-7-4:2005

Connectors for electronic equipment - Part 7-4: Detail specification for 8-way, unshielded, free and fixed connectors, for data transmissions with frequencies up to 250 MHz

Covers 8-way unshielded free and fixed connectors and specifies mechanical and environmental requirements and electrical transmission requirements for frequencies up to 250 MHz. These connectors are typically used as category 6 connectors in class E cabling systems specified in ISO/IEC 11801:2002. These connectors are intermateable, interoperable, and backward compatible with other EN 60603-7 series connectors.

Steckverbinder für elektronische Einrichtungen - Teil 7-4: Bauartspezifikation für ungeschirmte freie und feste Steckverbinder, 8polig, für Datenübertragungen bis 250 MHz

Connecteurs pour équipements électroniques - Partie 7-4: Spécification particulière pour les fiches et les embases non blindées à 8 voies pour la transmission de données à des fréquences jusqu'à 250 MHz

Couvre les fiches et les embases non blindées à 8 voies, et spécifie les exigences mécaniques et environnementales, ainsi que les exigences de transmission électrique pour des fréquences jusqu'à 250 MHz. Ces connecteurs sont normalement utilisés comme connecteurs de catégorie 6 dans les systèmes de câblage de la classe E spécifiés dans l'ISO/CEI 11801:2002. Ces connecteurs sont accouplables, interopérables et offrent une compatibilité amont avec les autres connecteurs de la série EN 60603-7.

Konektorji za elektronsko opremo – 7-4. del: Podrobna specifikacija za 8-redne, nezaslonjene, proste in pritrjene konektorje za prenos podatkov s frekvencami do 250 MHz (IEC 60603-7-4:2005)

General Information

• Status: Withdrawn
• Publication Date: 30-Mar-2005
• Withdrawal Date: 29-Feb-2008
• ICS: 31.220.10 - Plug-and-socket devices. Connectors
• Technical Committee: CLC/SR 48B - Connectors
• Drafting Committee: IEC/SC 48B - IEC_SC_48B
• Parallel Committee: IEC/SC 48B - IEC_SC_48B
• Current Stage: 9960 - Withdrawal effective - Withdrawal
• Start Date: 01-Jul-2013
• Completion Date: 01-Jul-2013
• Ref Project: SIST EN 60603-7-4:2005 - Connectors for electronic equipment -- Part 7-4: Detail specification for 8-way, unshielded, free and fixed connectors, for data transmissions with frequencies up to 250 MHz

Relations

• Replaced By: EN 60603-7-4:2010 - Connectors for electronic equipment - Part 7-4: Detail specification for 8-way, unshielded, free and fixed connectors, for data transmissions with frequencies up to 250 MHz
• Effective Date: 28-Jan-2023

Standards Content (Sample)

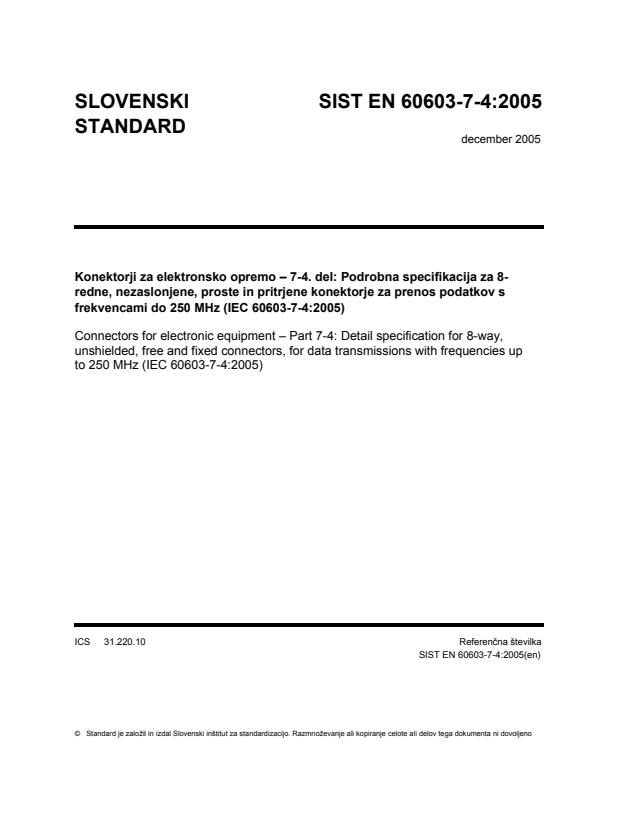

SLOVENSKI SIST EN 60603-7-4:2005

STANDARD
december 2005
Konektorji za elektronsko opremo – 7-4. del: Podrobna specifikacija za 8-
redne, nezaslonjene, proste in pritrjene konektorje za prenos podatkov s
frekvencami do 250 MHz (IEC 60603-7-4:2005)
Connectors for electronic equipment – Part 7-4: Detail specification for 8-way,
unshielded, free and fixed connectors, for data transmissions with frequencies up
to 250 MHz (IEC 60603-7-4:2005)
ICS 31.220.10 Referenčna številka
SIST EN 60603-7-4:2005(en)
©  Standard je založil in izdal Slovenski inštitut za standardizacijo. Razmnoževanje ali kopiranje celote ali delov tega dokumenta ni dovoljeno

---------------------- Page: 1 ----------------------

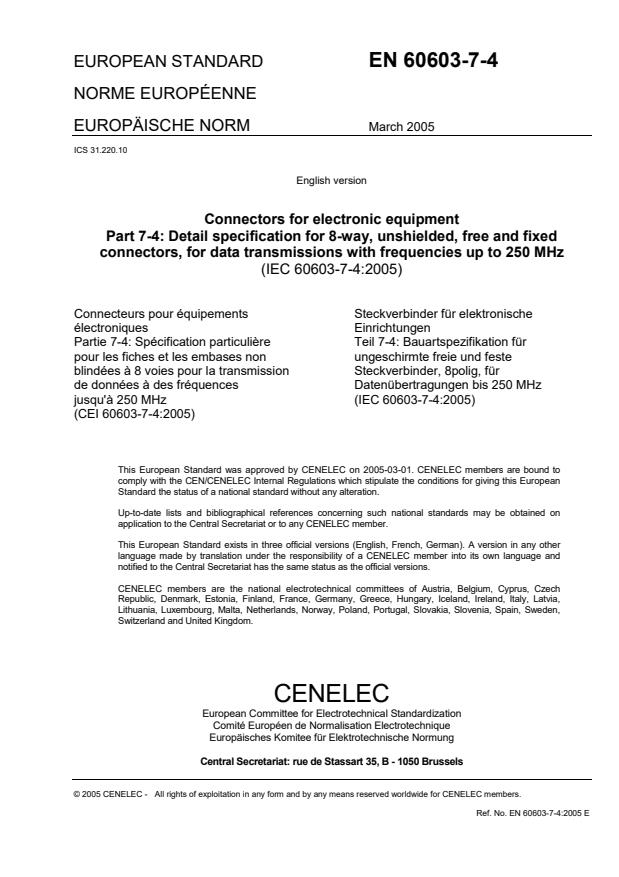

EUROPEAN STANDARD EN 60603-7-4
NORME EUROPÉENNE
EUROPÄISCHE NORM March 2005

ICS 31.220.10


English version


Connectors for electronic equipment
Part 7-4: Detail specification for 8-way, unshielded, free and fixed
connectors, for data transmissions with frequencies up to 250 MHz
(IEC 60603-7-4:2005)


Connecteurs pour équipements Steckverbinder für elektronische
électroniques Einrichtungen
Partie 7-4: Spécification particulière Teil 7-4: Bauartspezifikation für
pour les fiches et les embases non ungeschirmte freie und feste
blindées à 8 voies pour la transmission Steckverbinder, 8polig, für
de données à des fréquences Datenübertragungen bis 250 MHz
jusqu'à 250 MHz (IEC 60603-7-4:2005)
(CEI 60603-7-4:2005)



This European Standard was approved by CENELEC on 2005-03-01. CENELEC members are bound to
comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and
notified to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden,
Switzerland and United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels


© 2005 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.

Ref. No. EN 60603-7-4:2005 E

---------------------- Page: 2 ----------------------

EN 60603-7-4:2005 - 2 -
Foreword
The text of document 48B/1504/FDIS, future edition 1 of IEC 60603-7-4, prepared by SC 48B,
Connectors, of IEC TC 48, Electromechanical components and mechanical structures for electronic
equipment, was submitted to the IEC-CENELEC parallel vote and was approved by CENELEC as
EN 60603-7-4 on 2005-03-01.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2005-12-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2008-03-01
Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 60603-7-4:2005 was approved by CENELEC as a
European Standard without any modification.
__________

---------------------- Page: 3 ----------------------

- 3 - EN 60603-7-4:2005
Annex ZA
(normative)

Normative references to international publications
with their corresponding European publications
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
NOTE Where an international publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
Publication Year Title EN/HD Year
1) 2)
- - Communication cables - Specifications EN 50289-1-14 2004
for test methods
Part 1-14: Electrical test methods -
Coupling attenuation or screening
attenuation of connecting hardware

1)
IEC 60050-581 - International Electrotechnical Vocabulary - -
(IEV)
Chapter 581: Electromechanical
components for electronic equipment

1) 2)
IEC 60068-1 - Environmental testing EN 60068-1 1994
Part 1: General and guidance

1) 2)
IEC 60068-2-14 - Part 2: Tests - Test N: Change of EN 60068-2-14 1999
te
...
