EN 62925:2017 (identical to IEC 62925:2016) specifies a thermal cycling test for concentrator photovoltaic (CPV) modules to differentiate increased thermal fatigue durability. Developed as a supplement to IEC 62108, this standard targets failure modes linked to repeated temperature cycling in field-deployed CPV systems - most notably thermal fatigue of high-concentration PV (HCPV) die-attach - but is applicable to other thermal-fatigue-related failure mechanisms in module and receiver assemblies.

Key topics and requirements

• Scope & purpose: Defines an accelerated test sequence designed to quickly uncover CPV module failures caused by thermal cycling and to provide a comparative route for modules with improved durability.
• Sampling: For non-field-adjustable-focus CPV modules, submissions should include modules containing at least 20 separate PV cells (more encouraged). Test failure is based on failure of 5% of submitted cells.
• Test sequence: Structured into distinct phases - cell evaluation, thermal cycling (accelerated and more severe than IEC 62108 qualification levels), and subsequent outdoor exposure to validate post-test behavior.
• Test procedure elements: Guidance on disassembly/reassembly of receivers to reduce thermal mass, temperature cycling parameters (ramp rates and number of cycles), and requirements for reassembly before outdoor exposure.
• Marking & reporting: Requirements for clear, indelible markings (manufacturer, type/model, serial number, polarity, maximum system voltage) and standardized reporting of results, rating, and any modifications.
• Objective metrics: The standard provides pass/fail criteria tied to cell failures and calls for documented test reports and ratings to enable comparison between products.

Practical applications and users

EN 62925:2017 is used to:

• Help manufacturers validate design changes aimed at improving thermal fatigue resistance (especially die-attach designs).
• Allow test laboratories to perform comparative durability testing to support product claims.
• Support procurement teams and project developers in selecting CPV modules with demonstrable resistance to thermal cycling.
• Guide R&D teams and reliability engineers in failure analysis and design optimization for long-term field performance.
• Complement qualification programs and inform asset owners about module durability in harsh thermal environments.

Related standards

• IEC 62925:2016 - International edition (identical content)
• IEC 62108:2016 / EN 62108:2016 - Design qualification and type approval for CPV modules; EN 62925 is intended as a supplemental, more rigorous thermal-fatigue differentiation test.

Keywords: EN 62925:2017, IEC 62925, CPV modules, concentrator photovoltaic, thermal cycling test, thermal fatigue, die-attach, HCPV, durability, IEC 62108.

Standards Content (Sample)

SLOVENSKI STANDARD
01-julij-2017
.RQFHQWUDWRUVNLIRWRQDSHWRVWQLPRGXOL&39&LNOLþQLWHPSHUDWXUQLSUHVNXV
UD]YUVWLWYHJOHGHQDSRYHþDQRRGSRUQRVWSURWLWHPSHUDWXUQLXWUXMHQRVWL
Concentrator photovoltaic (CPV) modules - Thermal cycling test to differentiate
increased thermal fatigue durability
CPV-Module - Temperaturwechselprüfung für CPV-Module zur Bewertung erhöhter
Temperaturwechselbeständigkeit
Modules photovoltaïques à concentration (CPV) - Essai de cycles thermiques pour la
détermination de la durabilité renforcée à la fatigue thermique
Ta slovenski standard je istoveten z: EN 62925:2017
ICS:
27.160 6RQþQDHQHUJLMD Solar energy engineering
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN 62925
NORME EUROPÉENNE
EUROPÄISCHE NORM
May 2017
ICS 27.160
English Version
Concentrator photovoltaic (CPV) modules - Thermal cycling test
to differentiate increased thermal fatigue durability
(IEC 62925:2016)
Modules photovoltaïques à concentration (CPV) - Essai de CPV-Module - Temperaturwechselprüfung für CPV-Module
cycles thermiques pour la détermination de la durabilité zur Bewertung erhöhter Temperaturwechselbeständigkeit
renforcée à la fatigue thermique (IEC 62925:2016)
(IEC 62925:2016)
This European Standard was approved by CENELEC on 2017-01-18. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,
Switzerland, Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2017 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 62925:2017 E

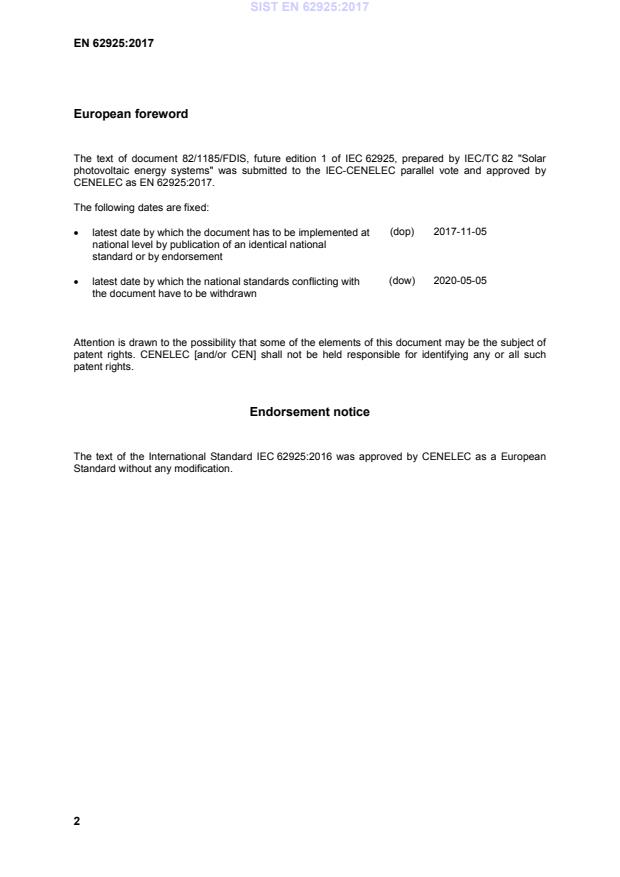

European foreword
