prHD 60364-7-730 (CLC draft) is a harmonization document that provides particular requirements for on‑shore units of electrical shore connections for inland navigation vessels. It supplements the general parts of HD 60364 and applies to on‑shore installations that supply commercial and administrative inland navigation vessels berthed in ports and berths. This draft replaces HD 60364‑7‑730:2015 and references specific product and installation standards (EN 15869‑1, EN 15869‑2, EN 16840).

Key topics and technical requirements

• Scope & exclusions
  • Covers on‑shore installations for inland navigation vessels (commercial/administrative).
  • Excludes on‑board installations and shore‑connection cables (see EN 15869‑3); pleasure craft requirements are covered by HD 60364‑7‑709.
• Supply characteristics
  • Nominal supply: 400 V, three‑phase AC, 50 Hz.
  • Allowed system earthing on board: TN‑S, TT, IT (per EU directive reference in the draft).
• Galvanic isolation
  • If an on‑shore isolating transformer is used, it shall comply with EN 61558‑2‑4.
  • The protective conductor (PE) from the transformer must not be connected to the earth terminal in the socket‑outlet supplying the vessel.
• Protection for safety
  • Certain passive protective measures (e.g., obstacles, placing out of reach, non‑conducting location, earth‑free local equipotential bonding) are not acceptable for these locations.
• Degree of protection
  • Equipment selection shall achieve IP54 or better for the assembled electrical system.
• Cables and wiring
  • Suitable wiring: underground, overhead (with restrictions), armoured, mineral‑insulated, or insulated copper conductors in robust cable management.
  • Underground cables should be buried to avoid mechanical damage (note: 0.6 m commonly regarded as a minimum).
  • Overhead cables are not permitted over waterways; minimum clearances specified for areas with vehicle movement.
• Switching & protective devices
  • Socket‑outlets up to 63 A: RCD ≤ 30 mA, disconnects all live conductors (phases + neutral).
  • Socket‑outlets >63 A to 125 A: RCD ≤ 300 mA, disconnects all live conductors.
  • Socket‑outlets above 125 A: require shore‑connection monitoring (e.g., per EN 16840).
  • Individual overcurrent protection is required for each socket‑outlet.
  • Each distribution board shall have at least one means of isolation that disconnects all live conductors.
• Socket‑outlet requirements
  • Compliance with EN 60309‑1/2/4 (and EN 61984 for single‑core ≥250 A) as applicable.
  • One socket‑outlet shall supply only one on‑board electrical grid and must be placed in an appropriate enclosure (EN 15869‑2 / EN 16840).

Applications and users

This standard is intended for:

• Port authorities and marina operators specifying shore power infrastructure
• Electrical designers and consultants for inland waterways
• Installation contractors and maintenance teams
• Equipment manufacturers of shore‑connection sockets, transformers and monitoring systems
• Inspectors and compliance officers validating installations to CENELEC/CENELEC‑aligned rules

Keywords: electrical shore connection, onshore units, inland navigation vessels, low‑voltage electrical installations, shore connection monitoring, RCD, isolating transformer, IP54.

Related standards

• EN 15869‑1, EN 15869‑2, EN 15869‑3 (electrical shore connection for inland navigation vessels)
• EN 16840 (higher current shore connections)
• EN 60309‑1 / EN 60309‑2 / EN 60309‑4 (industrial plugs and socket‑outlets)
• EN 61558‑2‑4 (isolating transformers)
• EN 61984 (connectors safety)

Standards Content (Sample)

SLOVENSKI STANDARD
01-julij-2021
Nizkonapetostne električne inštalacije - 7-730. del: Zahteve za posebne inštalacije
ali lokacije - Kopenske naprave za napajanje plovil za celinske vode
Low-voltage electrical installations - Part 7-730: Requirements for special installations or
locations - Onshore units of electrical shore connections for inland navigation vessels
Errichten von Niederspannungsanlagen - Teil 7-730: Anforderungen für Betriebsstätten,
Räume und Anlagen besonderer Art - Elektrischer Landanschluss für Fahrzeuge der
Binnenschifffahrt
Installations électriques à basse tension - Partie 7-730: Exigences pour les installations
et emplacements spéciaux - Unités à terre des connexions au réseau électrique terrestre
pour les bateaux de navigation intérieure
Ta slovenski standard je istoveten z: prHD 60364-7-730
ICS:
47.020.60 Električna oprema ladij in Electrical equipment of ships
konstrukcij na morju and of marine structures
91.140.50 Sistemi za oskrbo z elektriko Electricity supply systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

HARMONIZATION DOCUMENT DRAFT
DOCUMENT D'HARMONISATION
HARMONISIERUNGSDOKUMENT
April 2021
ICS 47.020.60 Will supersede HD 60364-7-730:2015 and all of its
amendments and corrigenda (if any)
English Version
Low-voltage electrical installations - Part 7-730: Requirements
for special installations or locations - Onshore units of electrical
shore connections for inland navigation vessels
Installations électriques à basse tension - Partie 7-730: Errichten von Niederspannungsanlagen - Teil 7-730:
Exigences pour les installations et emplacements spéciaux Anforderungen für Betriebsstätten, Räume und Anlagen
- Unités à terre des connexions au réseau électrique besonderer Art - Elektrischer Landanschluss für Fahrzeuge
terrestre pour les bateaux de navigation intérieure der Binnenschifffahrt
This draft Harmonization Document is submitted to CENELEC members for enquiry.
Deadline for CENELEC: 2021-07-23.

It has been drawn up by CLC/TC 64.

If this draft becomes a Harmonization Document, CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for implementation of this Harmonization Document on a national level.

This draft Harmonization Document was established by CENELEC in three official versions (English, French, German).

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to
provide supporting documentation.

Warning : This document is not a Harmonization Document. It is distributed for review and comments. It is subject to change without notice
and shall not be referred to as a Harmonized Document.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Project: 70848 Ref. No. prHD 60364-7-730 E

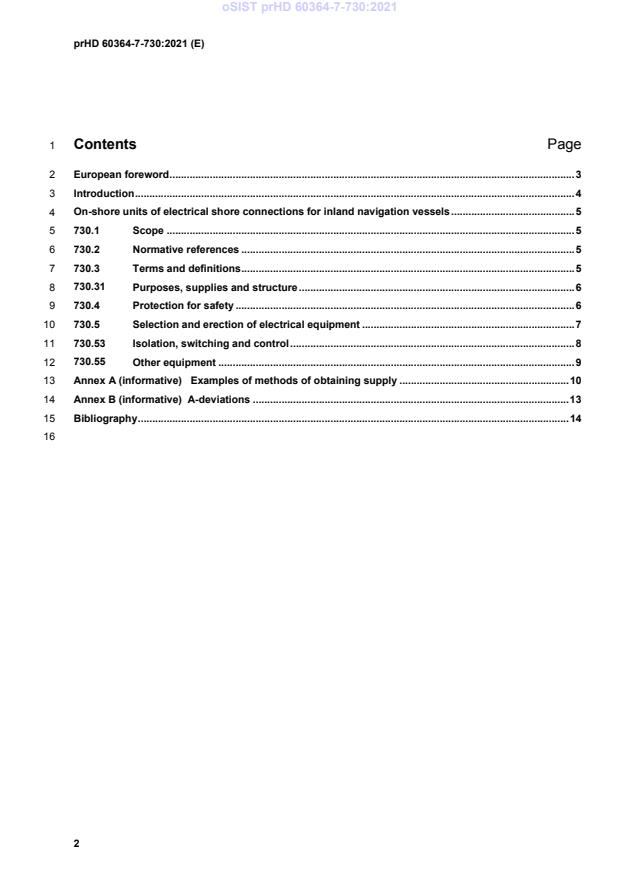

1 Contents Page
