EN IEC 60947-5-1:2025
(Main)Low-voltage switchgear and controlgear - Part 5-1: Control circuit devices and switching elements - Electromechanical control circuit devices
Low-voltage switchgear and controlgear - Part 5-1: Control circuit devices and switching elements - Electromechanical control circuit devices
IEC 60947-5-1:2024 applies to control circuit devices and switching elements intended for controlling, signalling, interlocking, etc., of switchgear and controlgear. It applies to control circuit devices having a rated voltage not exceeding 1 000 V AC (at a frequency not exceeding 1 000 Hz) or 600 V DC. This fifth edition cancels and replaces the fourth edition published in 2016. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition: a) update of the scope structure and exclusions; b) requirements for control circuits; c) update of the normal service conditions (e.g. shock and vibration); d) update of information and marking requirements including environmental information requirements referencing IEC TS 63058:2021; e) update of the constructional requirements and the corresponding tests considering safety aspects (e.g. artificial optical radiation, security aspects, limited energy source, stored charge energy circuit); f) update of the EMC requirements according to the generic documents; g) new requirements for reed contact magnetic switches in Annex D; h) requirements for class II circuit devices achieved by double or reinforced insulation in Annex F; i) update of pull-out tests in Annex G; j) information requirements for audible signalling device in Annex J; k) insertion of new Annex O.
Niederspannungsschaltgeräte - Teil 5-1: Steuergeräte und Schaltelemente - Elektromechanische Steuergeräte
Appareillage à basse tension - Partie 5-1: Appareils et éléments de commutation pour circuits de commande - Appareils électromécaniques pour circuits de commande
L'IEC 60947-5-1:2024 s'applique aux appareils pour circuits de commande et aux éléments de commutation destinés à la commande, à la signalisation, au verrouillage, etc., de l'appareillage. Elle s'applique aux appareils pour circuits de commande dont la tension assignée ne dépasse pas 1 000 V en courant alternatif (à une fréquence qui ne dépasse pas 1 000 Hz) ou 600 V en courant continu. Cette cinquième édition annule et remplace la quatrième édition parue en 2016. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente: a) mise à jour de la structure du domaine d'application et des exclusions; b) exigences pour les circuits de commande; c) mise à jour des conditions normales d'emploi (chocs et vibrations, par exemple); d) mise à jour des exigences relatives aux informations et eu marquage, y compris les exigences concernant les informations relatives à l'environnement qui font référence à l'IEC TS 63058:2021; e) mise à jour des exigences de construction et des essais correspondants compte tenu des considérations de sûreté (par exemple rayonnement otique artificiel, aspects relatifs à la sécurité, source d'énergie limitée, circuit d'énergie de charge emmagasinée); f) mise à jour des exigences de CEM conformément aux documents génériques; g) nouvelles exigences pour les interrupteurs magnétiques à lames souples à l'Annexe D; h) exigences relatives aux appareils de classe II pour circuits respectées par une double isolation ou une isolation renforcée à l'Annexe F; i) mise à jour des essais de traction à l'Annexe G; j) exigences relatives aux informations concernant les dispositifs de signalisation sonore à l'Annexe J; k) insertion d'une nouvelle Annexe O. La version française de cette norme n'a pas été soumise au vote.
Nizkonapetostne stikalne in krmilne naprave - 5-1. del: Krmilne naprave in stikalni elementi - Elektromehanske krmilne naprave (IEC 60947-5-1:2024)
General Information
Relations
Standards Content (Sample)

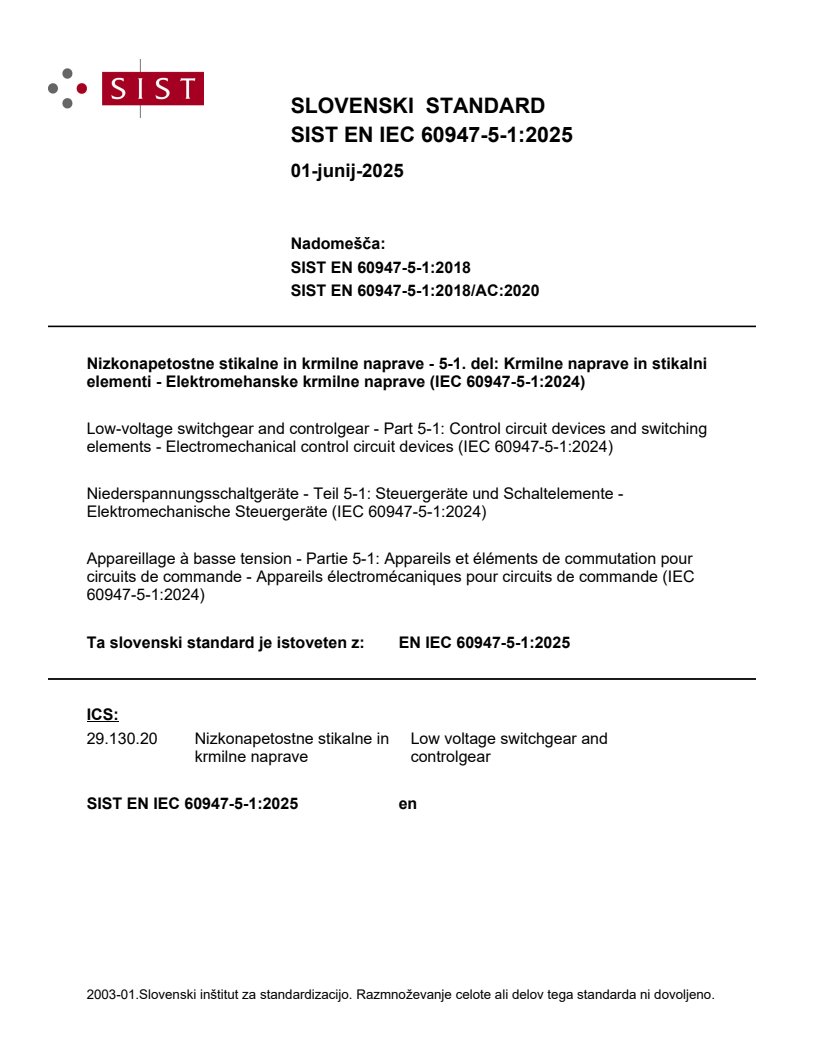

SLOVENSKI STANDARD
01-junij-2025
Nadomešča:
SIST EN 60947-5-1:2018
SIST EN 60947-5-1:2018/AC:2020
Nizkonapetostne stikalne in krmilne naprave - 5-1. del: Krmilne naprave in stikalni
elementi - Elektromehanske krmilne naprave (IEC 60947-5-1:2024)
Low-voltage switchgear and controlgear - Part 5-1: Control circuit devices and switching
elements - Electromechanical control circuit devices (IEC 60947-5-1:2024)
Niederspannungsschaltgeräte - Teil 5-1: Steuergeräte und Schaltelemente -
Elektromechanische Steuergeräte (IEC 60947-5-1:2024)
Appareillage à basse tension - Partie 5-1: Appareils et éléments de commutation pour
circuits de commande - Appareils électromécaniques pour circuits de commande (IEC
60947-5-1:2024)
Ta slovenski standard je istoveten z: EN IEC 60947-5-1:2025
ICS:
29.130.20 Nizkonapetostne stikalne in Low voltage switchgear and
krmilne naprave controlgear
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

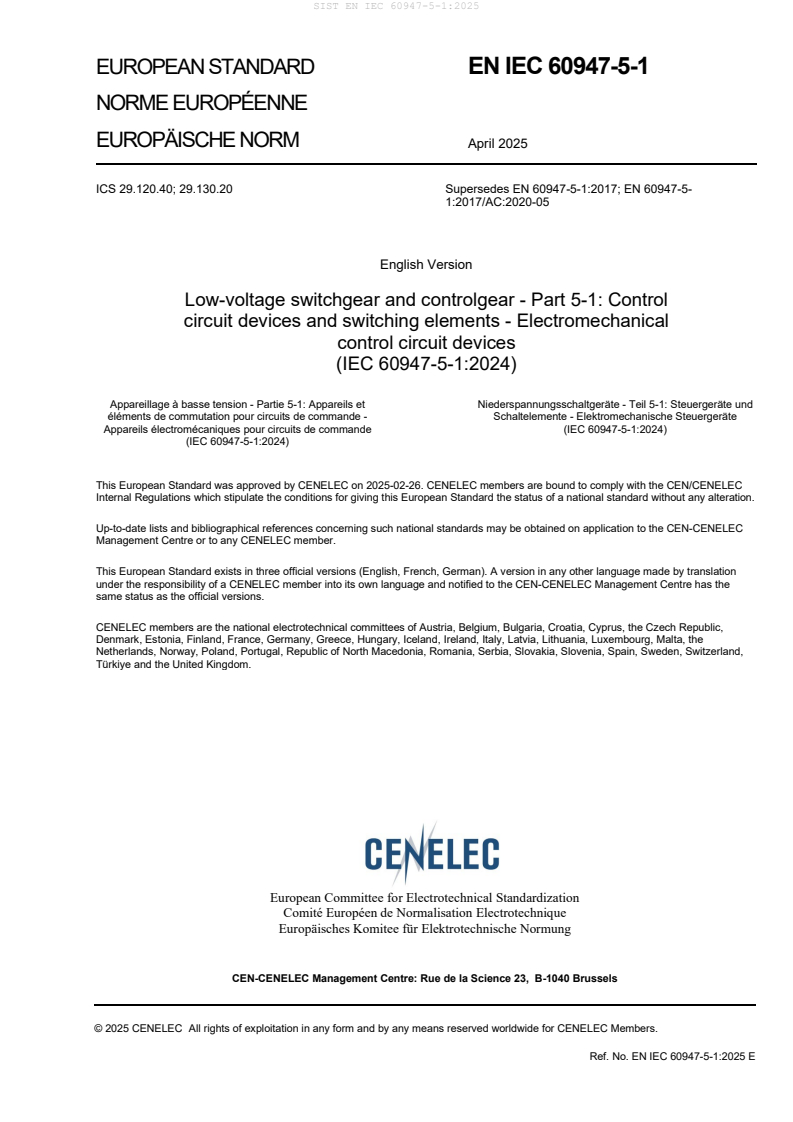

EUROPEAN STANDARD EN IEC 60947-5-1
NORME EUROPÉENNE
EUROPÄISCHE NORM April 2025
ICS 29.120.40; 29.130.20 Supersedes EN 60947-5-1:2017; EN 60947-5-
1:2017/AC:2020-05
English Version
Low-voltage switchgear and controlgear - Part 5-1: Control
circuit devices and switching elements - Electromechanical
control circuit devices
(IEC 60947-5-1:2024)
Appareillage à basse tension - Partie 5-1: Appareils et Niederspannungsschaltgeräte - Teil 5-1: Steuergeräte und
éléments de commutation pour circuits de commande - Schaltelemente - Elektromechanische Steuergeräte
Appareils électromécaniques pour circuits de commande (IEC 60947-5-1:2024)
(IEC 60947-5-1:2024)
This European Standard was approved by CENELEC on 2025-02-26. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 60947-5-1:2025 E
European foreword
The text of document 121A/585/FDIS, future edition 5 of IEC 60947-5-1, prepared by SC 121A "Low-
voltage switchgear and controlgear" of IEC/TC 121 "Switchgear and controlgear and their assemblies
for low voltage" was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2026-04-30
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2028-04-30
document have to be withdrawn
This document supersedes EN 60947-5-1:2017 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
This document has been prepared under a standardization request addressed to CENELEC by the
European Commission. The Standing Committee of the EFTA States subsequently approves these
requests for its Member States.
For the relationship with EU Legislation, see informative Annex ZZ, which is an integral part of this
document.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 60947-5-1:2024 was approved by CENELEC as a
European Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standard indicated:
IEC 60068-2-75:2014 NOTE Approved as EN 60068-2-75:2014 (not modified)
IEC 60073:2002 NOTE Approved as EN 60073:2002 (not modified)
IEC 60079 (series) NOTE Approved as EN IEC 60079-7 (series)
IEC 60255 (series) NOTE Approved as EN 60255 (series)
IEC 60947-5-3:2013 NOTE Approved as EN 60947-5-3:2013 (not modified)
IEC 60947-5-4:2002 NOTE Approved as EN 60947-5-4:2003 (not modified)
IEC 61000 (series) NOTE Approved as EN IEC 61000 (series)
IEC 61810 (series) NOTE Approved as EN 61810 (series)
IEC 61672-1:2013 NOTE Approved as EN 61672-1:2013 (not modified)
IEC 62246-1:2015 NOTE Approved as EN 62246-1:2015 (not modified)
IEC 62246-1-1:2018 NOTE Approved as EN IEC 62246-1-1:2018 (not modified)
IEC 62246-4:2023 NOTE Approved as EN IEC 62246-4:2023 (not modified)
IEC 62443 (series) NOTE Approved as EN IEC 62443 (series)
IEC/TR 63201:2019 NOTE Approved as CLC IEC/TR 63201:2020 (not modified)
ISO 7731:2003 NOTE Approved as EN ISO 7731:2008 (not modified)
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod),
the relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Publication Year Title EN/HD Year
IEC 60068-2-6 2007 Environmental testing - Part 2-6: Tests - Test EN 60068-2-6 2008
Fc: Vibration (sinusoidal)
IEC 60068-2-14 2023 Environmental testing - Part 2-14: Tests - EN IEC 60068-2-14 2023
Test N: Change of temperature
IEC 60068-2-27 2008 Environmental testing - Part 2-27: Tests - EN 60068-2-27 2009
Test Ea and guidance: Shock
IEC 60068-2-30 2005 Environmental testing - Part 2-30: Tests - EN 60068-2-30 2005
Test Db: Damp heat, cyclic (12 h + 12 h
cycle)
IEC 60068-2-78 2012 Environmental testing – Part 2-78: Tests – EN 60068-2-78 2013
Test Cab: Damp heat, steady state
IEC 60695-2-10 2021 Fire hazard testing - Part 2-10: Glowing/hot- EN IEC 60695-2-10 2021
wire based test methods - Glow-wire
apparatus and common test procedure
+ AC 2024
IEC 60695-2-11 2021 Fire hazard testing - Part 2-11: Glowing/hot- EN IEC 60695-2-11 2021
wire based test methods - Glow-wire
flammability test method for end-products
(GWEPT)
IEC 60695-2-12 2021 Fire hazard testing – Part 2-12: Glowing/hot- EN IEC 60695-2-12 2021
wire based test methods – Glow-wire
flammability index (GWFI) test method for
materials
IEC 60730-1 2022 Automatic electrical controls - Part 1: General EN 60730-1 2016
requirements
+ A1 2019
+ A2 2022
Publication Year Title EN/HD Year
IEC 60947-1 2020 Low-voltage switchgear and controlgear - EN IEC 60947-1 2021
Part 1: General rules
+ AC 2023
+ AC 2024
IEC 60947-4-1 2018 Low-voltage switchgear and controlgear - EN IEC 60947-4-1 2019
Part 4-1: Contactors and motor-starters -
Electromechanical contactors and motor-
starters
+ AC 2020
+ AC 2021
IEC 60947-5-2 2019 Low-voltage switchgear and controlgear - EN IEC 60947-5-2 2020
Part 5-2: Control circuit devices and switching
elements - Proximity switches
IEC 60947-5-5 1997 Low-voltage switchgear and controlgear -- EN 60947-5-5 1997
Part 5-5: Control circuit devices and switching
elements - Electrical emergency stop device
with mechanical latching function
+ A1 2005 + A1 2005
- - + A11 2013
+ A2 2016 + A2 2017
IEC 60999-1 1999 Connecting devices - Electrical copper EN 60999-1 2000
conductors - Safety requirements for screw-
type and screwless-type clamping units --
Part 1: General requirements and particular
requirements for clamping units for
conductors from 0,2 mm² up to 35 mm²
(included)
IEC 61000-4-2 2008 Electromagnetic compatibility (EMC) -- Part EN 61000-4-2 2009
4-2: Testing and measurement techniques -
Electrostatic discharge immunity test
IEC 61000-4-3 2020 Electromagnetic compatibility (EMC) -- Part EN IEC 61000-4-3 2020
4-3: Testing and measurement techniques -
Radiated, radio-frequency, electromagnetic
field immunity test
IEC 61000-4-4 2012 Electromagnetic compatibility (EMC) -- Part EN 61000-4-4 2012
4-4: Testing and measurement techniques -
Electrical fast transient/burst immunity test
IEC 61000-4-5 2014 Electromagnetic compatibility (EMC) - Part 4- EN 61000-4-5 2014
5: Testing and measurement techniques -
Surge immunity test
+ A1 2017 + A1 2017
IEC 61000-4-6 2023 Electromagnetic compatibility (EMC) -- Part EN IEC 61000-4-6 2023
4-6: Testing and measurement techniques -
Immunity to conducted disturbances, induced
by radio-frequency fields
IEC 61000-4-8 2009 Electromagnetic compatibility (EMC) -- Part EN 61000-4-8 2010
4-8: Testing and measurement techniques -
Power frequency magnetic field immunity test
Publication Year Title EN/HD Year
IEC 61000-4-11 2020 Electromagnetic compatibility (EMC) -- Part EN IEC 61000-4-11 2020
4-11: Testing and measurement techniques -
Voltage dips, short interruptions and voltage
variations immunity tests
+ AC 2020
+ AC 2022
IEC 61131-9 2022 Programmable controllers - Part 9: Single- EN IEC 61131-9 2022
drop digital communication interface for small
sensors and actuators (SDCI)
IEC 61140 2016 Protection against electric shock - Common EN 61140 2016
aspects for installation and equipment
IEC 62262 2002 Degrees of protection provided by enclosures EN 62262 2002
for electrical equipment against external
mechanical impacts (IK code)
+ A1 2021
IEC 62471 2006 Photobiological safety of lamps and lamp EN 62471 2008
systems
CISPR 11 (mod) 2015 Industrial, scientific and medical equipment - EN 55011 2016
Radio-frequency disturbance characteristics -
Limits and methods of measurement
+ A1 2016 + A1 2017
- - + A11 2020
+ A2 2019 + A2 2021
CISPR 32 2015 Electromagnetic compatibility of multimedia EN 55032 2015
equipment - Emission requirements
+ AC 2016
+ A1 2019 + A1 2020
- - + A11 2020
ISO 2859-1 1999 Sampling procedures for inspection by - -
attributes – Part 1: Sampling schemes
indexed by acceptance quality limit AQL) for
lot-by-lot inspection
ISO 14159 2002 Safety of machinery – Hygiene requirements EN ISO 14159 2008
for the design of machinery
Annex ZZ
(informative)
Relationship between this European standard and the safety
objectives of Directive 2014/35/EU [2014 OJ L96] aimed to be
covered
This European standard has been prepared under a Commission’s standardisation request relating to
harmonised standards in the field of the Low Voltage Directive, M/511, to provide one voluntary means
of conforming to safety objectives of Directive 2014/35/EU of the European Parliament and of the
Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the
making available on the market of electrical equipment designed for use within certain voltage limits
[2014 OJ L96].
Once this standard is cited in the Official Journal of the European Union under that Directive,
compliance with the normative clauses of this standard given in Table ZZ.1 confers, within the limits of
the scope of this standard, a presumption of conformity with the corresponding safety objectives of
that Directive, and associated EFTA regulations.
Table ZZ.1 — Correspondence between this European standard and Annex I of Directive
2014/35/EU [2014 OJ L96]
Clause(s) / sub-clause(s)
Safety objectives of
Remarks / Notes
Directive 2014/35/EU
of this EN
(1)(a) 6.1 d) to w), 6.2, 6.3,
8.1, Annex D, Annex F, Annex H,
Annex J, Annex K, Annex L, Annex M,
Annex N
(1)(b) 6.1 d) to w), 6.3, 6.5, Clause 7, 8.1, 8.2,
9.1, 9.2, 9.3, Annex C, Annex D,
Annex F, Annex J
(1)(c) 6.1 d) to w), 6.2, 6.3, 6.5
See also references given in (2)(a) to
(2)(d) and (3)(a) to (3)(c) in this Table.
(2)(a) 6.1 d) to v), 6.3, 6.5, 8.1, 8.2, 9.2, 9.3,
Annex D, Annex F
(2)(b) 8.1, 8.2, 9.2, 9.3, Annex G, Annex H,
Annex J
(2)(c) 6.1 w), 6.3, 6.5, 8.1, 8.2, 9.1, 9.2, 9.3,
Annex C, Annex D, Annex J, Annex N
(2)(d) 6.1 i), j), 6.3, 6.5, Clause 7, 8.1, 8.2, 8.4,
9.2, 9.3, Annex D, Annex F, Annex J
(3)(a) 6.1 g), m), 6.3, 6.5, Clause 7, 8.1, 8.2,
8.4, 9.1, 9.2, 9.3, Annex C, Annex D,
Annex F, Annex G, Annex J
(3)(b) 6.1 m), n), 6.3, 6.5, Clause 7, 8.1, 8.2,
8.3, 9.3, 9.4, Annex D, Annex F,
Annex N, Annex K
Clause(s) / sub-clause(s)
Safety objectives of
Remarks / Notes
Directive 2014/35/EU
of this EN
(3)(c) 6.1 e), o), p), 6.3, 6.5, 8.1, 8.2, 9.2, 9.3,
Annex D, Annex H, Annex J, Annex K,
Annex N
WARNING 1 — Presumption of conformity stays valid only as long as a reference to this European
standard is maintained in the list publ
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
