EN 62827-1:2016

Wireless Power Transfer - Management - Part 1: Common Components

IEC 62827-1:2016 specifies common components of management for multiple sources and devices in a wireless power transfer system, and justifies various functions for wireless power transfer. This part of IEC 62827 defines the reference models for possible configurations of a wireless power transfer system. The models are specified in additional parts in more detail. This standard is applied to a wireless power transfer system for audio, video and multimedia equipment.

Drahtlose Energieübertragung - Management - Teil 1: Gemeinsame Komponenten

Transfert de puissance sans fil - Gestion - Partie 1: Composants communs

L'IEC 62827-1:2016 spécifie les composants communs de la gestion de sources et de dispositifs multiples dans un système de transfert de puissance sans fil et justifie les différentes fonctions du transfert de puissance sans fil. La présente partie de l'IEC 62827 définit les modèles de référence des configurations possibles d'un système de transfert de puissance sans fil. Les modèles sont spécifiés plus en détail dans des parties supplémentaires. La présente norme s'applique à un système de transfert de puissance sans fil pour des équipements audio, vidéo et des services de données.

Brezžični prenos moči - Upravljanje - 1. del: Skupne komponente (TA 15)

Ta del standarda IEC 62827 določa skupne komponente upravljanja več virov in naprav v sistemu za brezžični prenos moči ter utemeljuje različne funkcije za brezžični prenos moči.
Ta del standarda IEC 62827 določa referenčne modele za možne konfiguracije brezžičnega prenosa moči. Modeli so podrobneje opredeljeni v dodatnih delih standarda.
OPOMBA: Ta standard se uporablja za sistem za brezžični prenos moči za avdio, video in večpredstavnostno opremo.

General Information

• Status: Published
• Publication Date: 17-Nov-2016
• Withdrawal Date: 17-Nov-2019
• ICS: 29.240.99 - Other equipment related to power transmission and distribution networks
• ICS: 35.240.99 - IT applications in other fields
• Technical Committee: CLC/TC 100X - Audio, video and multimedia systems and equipment and related sub-systems
• Drafting Committee: IEC/TC 100 - IEC_TC_100
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 18-Nov-2016
• Completion Date: 18-Nov-2016
• Ref Project: SIST EN 62827-1:2017 - Wireless Power Transfer - Management - Part 1: Common Components (TA 15)

Overview

EN 62827-1:2016 (IEC 62827-1:2016) - Wireless Power Transfer - Management - Part 1: Common Components defines the common components and reference models for managing wireless power transfer (WPT) systems. Published by CLC/CENELEC and prepared by IEC TC 100 (Technical Area 15), this part establishes terminology, architectural building blocks and conceptual models for WPT management aimed at audio, video and multimedia equipment. It forms the foundation for later parts that specify multi-device and multi-source control.

Key topics and requirements

This standard focuses on high-level management components rather than implementation details. Key technical topics include:

• Definitions and abbreviations for terms such as Wireless Power Transfer (WPT), Wireless Power Management System (WPMS), WPMS-S (source), WPMS-D (device), and WPMS-R (repeater).
• Reference models describing possible WPT configurations:
  • 1:1 (one source → one device)
  • 1:N (one source → many devices)
  • M:N (many sources ↔ many devices)
  • Models incorporating WPMS-R repeaters acting as relay transmitters or receivers.
• Zones and communication concepts: Wireless Data Communication Zone (WDCZ) and Wireless Power Transfer Zone (WPTZ), and the relationship between data exchange and power transfer.
• Components and functionalities of WPMS-S and WPMS-D, and justification of management functions required to coordinate power delivery across multiple sources/devices.
• Scope limitations: Part 1 defines common components and reference models; detailed management protocols for multiple devices and multiple sources are specified in Parts 2 and 3.

Note: EN 62827-1 provides conceptual and normative definitions; it does not prescribe specific electrical or signalling parameters in this part.

Applications and practical value

EN 62827-1 is intended to guide system architects and product teams designing interoperable wireless power ecosystems where:

• Multiple consumer devices (smartphones, tablets, speakers, TVs, remote controls) receive power wirelessly.
• Home or public environments require coordinated WPT across several transmitters and receivers.
• Designers need a common vocabulary and reference architecture to implement management and control layers for WPT networks (WPTN).

Practical benefits include enabling seamless multi-device charging, reducing cable clutter in consumer electronics, and informing compatibility and interoperability strategies for WPT-enabled products.

Who should use this standard

• Product designers and system architects for audio/video/multimedia equipment
• Manufacturers of wireless power transmitters, receivers and repeaters
• Test laboratories and conformity assessment bodies
• Standards writers and integrators implementing WPT networks

Related standards

• IEC 62827 series: Part 2 (Multiple devices control management) and Part 3 (Multiple sources control management) - for detailed management protocols built on this Part 1 foundation.

Keywords: wireless power transfer, WPMS, WPT, WPTN, wireless power management system, WPMS-S, WPMS-D, wireless data communication zone.

Standards Content (Sample)

SLOVENSKI STANDARD
01-maj-2017
%UH]åLþQLSUHQRVPRþL8SUDYOMDQMHGHO6NXSQHNRPSRQHQWH7$
Wireless Power Transfer - Management - Part 1: Common Components (TA 15)
Ta slovenski standard je istoveten z: EN 62827-1:2016
ICS:
29.240.99 'UXJDRSUHPDY]YH]L] Other equipment related to
RPUHåML]DSUHQRVLQ power transmission and
GLVWULEXFLMRHOHNWULþQHHQHUJLMH distribution networks
35.240.99 8SRUDEQLãNHUHãLWYH,7QD IT applications in other fields
GUXJLKSRGURþMLK
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN 62827-1
NORME EUROPÉENNE
EUROPÄISCHE NORM
November 2016
ICS 29.240.99; 35.240.99
English Version
Wireless Power Transfer - Management - Part 1: Common
Components
(IEC 62827-1:2016)
Transfert de puissance sans fil - Gestion - Partie 1: Drahtlose Energieübertragung - Management - Teil 1:
Composants communs Gemeinsame Komponenten
(IEC 62827-1:2016) (IEC 62827-1:2016)
This European Standard was approved by CENELEC on 2016-06-01. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2016 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 62827-1:2016 E

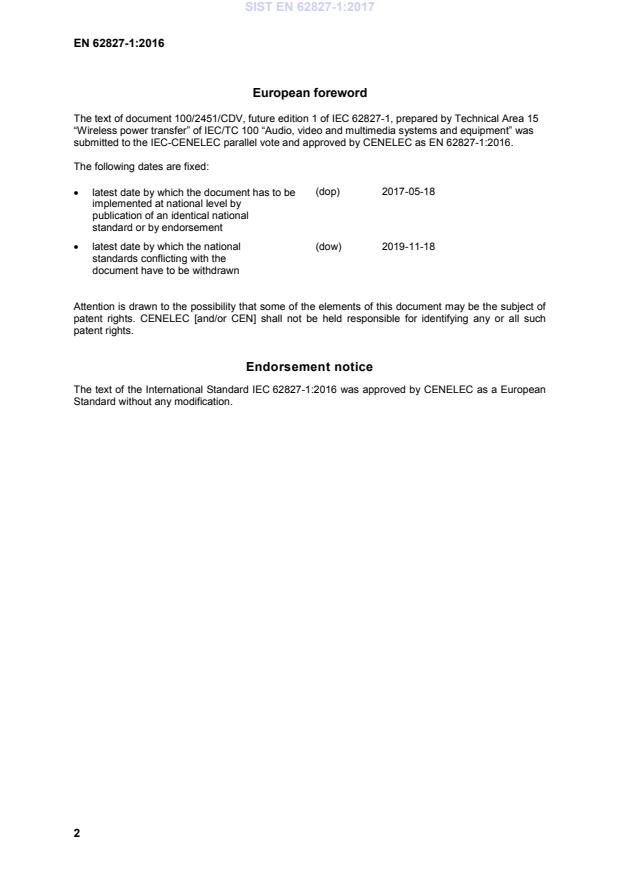

European foreword
