Heat-shrinkable moulded shapes - Part 3: Specification requirements for shape dimensions, material requirements and compatibility performance - Sheet 100: Heat-shrinkable moulded shape dimensions

IEC 62329-3-100:2010 gives the dimensional requirements for heat-shrinkable moulded shapes. The moulded shapes may be supplied with a pre-coated adhesive. Refer to the manufacturers/suppliers for options. These moulded shapes are normally supplied in the styles and dimensions given in Tables 1 to 22. The colour is normally black.

Wärmeschrumpfende Formteile - Teil 3: Anforderungen für Formteilmaße, Materialeigenschaften und Kompatibilitätsverhalten - Blatt 100: Abmessungen für wärmeschrumpfende Formteile

Profilés thermorétractables - Partie 3: Exigences relatives aux dimensions des profilés, exigences de matériaux et performances de compatibilité - Feuille 100: Dimensions des profilés thermorétractables

La CEI 62329-2-100:2010 donne les exigences dimensionnelles pour les profilés thermorétractables. Les profilés peuvent être fournis avec un adhésif prérevêtu. Pour les différentes options, consulter les fabricants/fournisseurs. Ces profilés sont généralement fournis dans les modèles et les dimensions indiqués dans les Tableaux 1 à 22. Ils sont généralement de couleur noire.

Toplotno skrčljive vlite oblike - 3. del: Specifikacijske zahteve za mere oblik, material in skladnost - 100. list: Mere toplotno skrčljivih vlitih oblik (IEC 62329-3-100:2010)

Ta list IEC 62329-3 podaja zahteve za mere toplotno skrčljivih vlitih oblik. Vlite oblike so lahko na voljo predhodno premazane z lepilom. O možnostih se pozanimajte pri proizvajalcih/dobaviteljih. Te vlite oblike so običajno na voljo v slogih in merah, navedenih v Preglednicah 1 do 22. Običajno so črne barve. Slogi in mere, ki niso navedeni v Preglednici od 1 do 22, so lahko na voljo na zahtevo. Ti predmeti so skladni s tem standardom, če izpolnjujejo zahteve glede lastnosti v listih za zmogljivost materiala, z izjemo mer. Materiali, skladni s to specifikacijo, ustrezajo vzpostavljenim ravnem delovanja. Vendar mora uporabnik material za določeno uporabo izbrati na podlagi dejanskih zahtev za ustrezno delovanje pri takšni uporabi, in ne le na podlagi same specifikacije.

General Information

Status
Published
Publication Date
29-Jul-2010
Drafting Committee
Parallel Committee
Current Stage
6060 - Document made available - Publishing
Start Date
30-Jul-2010
Completion Date
30-Jul-2010

Buy Standard

Standard
EN 62329-3-100:2010
English language
33 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Wärmeschrumpfende Formteile - Teil 3: Anforderungen für Formteilmaße, Materialeigenschaften und Kompatibilitätsverhalten - Blatt 100: Abmessungen für wärmeschrumpfende Formteile (IEC 62329-3-100:2010)Profilés thermorétractables - Partie 3: Exigences relatives aux dimensions des profilés, exigences de matériaux et performancesde compatibilité - Feuille 100: Dimensions des profilés thermorétractables (CEI 62329-3-100:2010)Heat-shrinkable moulded shapes - Part 3: Specification requirements for shape dimensions, material requirements and compatibility performance - Sheet 100: Heat-shrinkable moulded shape dimensions (IEC 62329-3-100:2010)29.035.01Izolacijski materiali na splošnoInsulating materials in generalICS:Ta slovenski standard je istoveten z:EN 62329-3-100:2010SIST EN 62329-3-100:2010en01-oktober-2010SIST EN 62329-3-100:2010SLOVENSKI

STANDARD
SIST EN 62329-3-100:2010
EUROPEAN STANDARD EN 62329-3-100 NORME EUROPÉENNE
EUROPÄISCHE NORM July 2010

CENELEC European Committee for Electrotechnical Standardization Comité Européen de Normalisation Electrotechnique Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels
© 2010 CENELEC -

All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.

Ref. No. EN 62329-3-100:2010 E
ICS 29.035.01
English version
Heat-shrinkable moulded shapes -

Part 3: Specification requirements for shape dimensions, material requirements and compatibility performance -

Sheet 100: Heat-shrinkable moulded shape dimensions (IEC 62329-3-100:2010)
Profilés thermorétractables -
Partie 3: Exigences relatives
aux dimensions des profilés, exigences
de matériaux et performances
de compatibilité -
Feuille 100: Dimensions des profilés thermorétractables (CEI 62329-3-100:2010)
Wärmeschrumpfende Formteile -
Teil 3: Anforderungen für Formteilmaße, Materialeigenschaften
und Kompatibilitätsverhalten -
Blatt 100: Abmessungen
für wärmeschrumpfende Formteile (IEC 62329-3-100:2010)

This European Standard was approved by CENELEC on 2010-07-01. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and the United Kingdom.

SIST EN 62329-3-100:2010

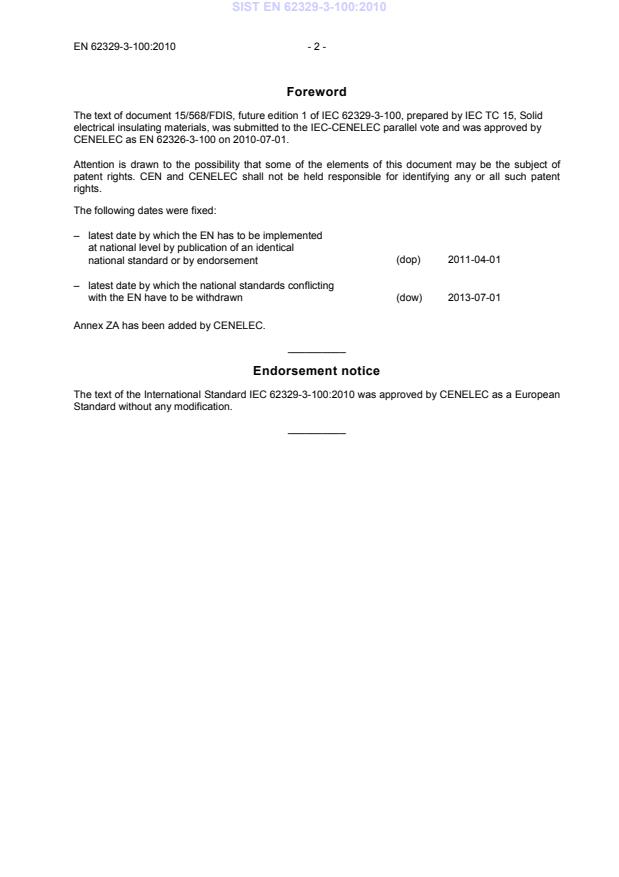

EN 62329-3-100:2010 - 2 -

Foreword The text of document 15/568/FDIS, future edition 1 of IEC 62329-3-100, prepared by IEC TC 15, Solid electrical insulating materials, was submitted to the IEC-CENELEC parallel vote and was approved by CENELEC as EN 62326-3-100 on 2010-07-01. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN and CENELEC shall not be held responsible for identifying any or all such patent rights. The following dates were fixed: – latest date by which the EN has to be implemented

at national level by publication of an identical
national standard or by endorsement
(dop)
2011-04-01 – latest date by which the national standards conflicting
with the EN have to be withdrawn
(dow)

2013-07-01 Annex ZA has been added by CENELEC. __________ Endorsement notice The text of the International Standard IEC 62329-3-100:2010 was approved by CENELEC as a European Standard without any modification. __________

SIST EN 62329-3-100:2010
- 3 - EN 62329-3-100:2010 Annex ZA

(normative) Normative references to international publications with their corresponding European publications

The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.

NOTE

When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD applies.

Publication Year Title EN/HD Year
IEC 60757 1983 Code for designation of colours HD 457 S1 1985
IEC 62329-1 - Heat shrinkable moulded shapes -
Part 1: Definitions and general requirements EN 62329-1 -
SIST EN 62329-3-100:2010
SIST EN 62329-3-100:2010

IEC 62329-3-100Edition 1.0 2010-06INTERNATIONAL STANDARD NORME INTERNATIONALEHeat-shrinkable moulded shapes –

Part 3: Specification requirements for shape dimensions, material requirements and compatibility performance – Sheet 100: Heat-shrinkable moulded shape dimensions

Profilés thermorétractables –

Partie 3: Exigences relatives aux dimensions des profilés, exigences de matériaux et performances de compatibilité – Feuille 100: Dimensions des profilés thermorétractables

INTERNATIONAL ELECTROTECHNICAL COMMISSION COMMISSION ELECTROTECHNIQUE INTERNATIONALE VICS 29.035.01 PRICE CODECODE PRIXISBN 978-2-88912-009-3

® Registered trademark of the International Electrotechnical Commission

Marque déposée de la Commission Electrotechnique Internationale ® SIST EN 62329-3-100:2010

– 2 – 62329-3-100 © IEC:2010 CONTENTS FOREWORD...........................................................................................................................4 INTRODUCTION.....................................................................................................................6 1 Scope...............................................................................................................................7 2 Normative references.......................................................................................................7 3 Designation......................................................................................................................7 4 Requirements...................................................................................................................8

Figure 1 – Style AA (small lipped bottle).................................................................................9 Figure 2 – Style A (lipped short bottle with short body).........................................................10 Figure 3 – Style B (lipped straight bottle with medium body).................................................11 Figure 4 – Style C (lipped straight bottle with long body).......................................................12 Figure 5 – Style D (non-lipped straight bottle).......................................................................13 Figure 6 – Style E (lipped straight bottle with long tail)..........................................................14 Figure 7 – Style F (lipped right-angle boot)...........................................................................15 Figure 8 – Style G (non-lipped right-angle boot)....................................................................16 Figure 9 – Style H (lipped right-angle boot with long tail)......................................................17 Figure 10 – Style I (lipped right-angle boot with longer tail)...................................................18 Figure 11 – Style J (lipped straight bottle with longer tail).....................................................19 Figure 12 – Style K (non-lipped straight long tail boot)..........................................................20 Figure 13 – Style L (transitions ("T" junction)).......................................................................21 Figure 14 – Style M (transitions (30°/45° junction))...............................................................22 Figure 15 – Style N (transitions ("Y" junction 45° low profile))...............................................23 Figure 16 – Style O (straight, high ratio lipped boot).............................................................24 Figure 17 – Style P (transitions ("Y" junction))......................................................................25 Figure 18 – Style R (transitions (three branched outlets)).....................................................26 Figure 19 – Style S (transitions (four branched outlets)).......................................................27 Figure 20 – Style T (D sub-miniature boot straight)...............................................................28 Figure 21 – Style U (D sub-miniature boot right angle) (longitudinal).....................................29 Figure 22 – Style V (D sub-miniature boot right angle) (across width))..................................30

Table 1 – Dimensions in millimetres of style AA......................................................................9 Table 2 – Dimensions in millimetres of style A......................................................................10 Table 3 – Dimensions in millimetres of style B......................................................................11 Table 4 – Dimensions in millimetres of style C......................................................................12 Table 5 – Dimensions in millimetres of style D......................................................................13 Table 6 – Dimensions in millimetres of style E......................................................................14 Table 7 – Dimensions in millimetres of style F......................................................................15 Table 8 – Dimensions in millimetres of style G......................................................................16 Table 9 – Dimensions in millimetres of style H......................................................................17 Table 10 – Dimensions in millimetres of style I......................................................................18 Table 11 – Dimensions in millimetres of style J.....................................................................19 SIST EN 62329-3-100:2010

62329-3-100 © IEC:2010 – 3 – Table 12 – Dimensions in millimetres of style K....................................................................20 Table 13 – Dimensions in millimetres of style L.....................................................................21 Table 14 – Dimensions in millimetres of style M....................................................................22 Table 15 – Dimensions in millimetres of style N....................................................................23 Table 16 – Dimensions in millimetres of style O....................................................................24 Table 17 – Dimensions in millimetres of style P....................................................................25 Table 18 – Dimensions in millimetres of style R....................................................................26 Table 19 – Dimensions in millimetres of style S....................................................................27 Table 20 – Dimensions in millimetres of style T.....................................................................28 Table 21 – Dimensions in millimetres of style U....................................................................29 Table 22 – Dimensions in millimetres of style V....................................................................30

SIST EN 62329-3-100:2010

– 4 – 62329-3-100 © IEC:2010 INTERNATIONAL ELECTROTECHNICAL COMMISSION ____________

HEAT-SHRINKABLE MOULDED SHAPES –
Part 3: Specification requirements for shape dimensions,
material requirements and compatibility performance –
Sheet 100: Heat-shrinkable moulded shape dimensions

FOREWORD 1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with may participate in this preparatory work. International, governmental and non-governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for Standardization (ISO) in accordance with conditions determined by agreement between the two organizations. 2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international consensus of opinion on the relevant subjects since each technical committee has representation from all interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any misinterpretation by any end user. 4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications transparently to the maximum extent possible in their national and regional publications. Any divergence between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter. 5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any services carried out by independent certification bodies. 6) All users should ensure that they have the latest edition of this publication. 7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and members of its technical committees and IEC National Committees for any personal injury, property damage or other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is indispensable for the correct application of this publication. 9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent rights. IEC shall not be held responsible for identifying any or all such patent rights. International Standard IEC 62329-3-100 has been prepared by IEC technical committee 15: Solid electrical insulating materials. The text of this standard is based on the following documents: FDIS Report on voting 15/568/FDIS 15/588/RVD

Full information on the voting for the approval of this standard can be found in the report on voting indicated in the above table. This publication has been drafted in accordance with the ISO/IEC Directives, Part 2. SIST EN 62329-3-100:2010

62329-3-100 © IEC:2010 – 5 – A list of all the parts in the IEC 62329 series, under the general title Heat-shrinkable moulded shapes, can be found on the IEC website. The committee has decided that the contents of this publication will remain unchanged until the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data related to the specific publication. At this date, the publication will be

• reconfirmed, • withdrawn, • replaced by a revised edition, or • amended.
SIST EN 62329-3-100:2010

– 6 – 62329-3-100 © IEC:2010 INTRODUCTION This International Standard is one of a series that deals with heat-shrinkable moulded shapes for electrical purposes. The series consists of three parts: Part 1: Definitions and general requirements (IEC 62329-1) Part 2: Methods of test (IEC 62329-2) Part 3: Specification requirements for shape dimensions, material requirements and compatibility performance This standard gives one of the sheets comprising part 3 as follows: Sheet 100: Heat-shrinkable moulded shape dimensions

SIST EN 62329-3-100:2010
62329-3-100 © IEC:2010 – 7 – HEAT-SHRINKABLE MOULDED SHAPES –
Part 3: Specification requirements for shape dimensions,
material requirements and compatibility performance –
Sheet 100: Heat-shrinkable moulded shape dimensions

1 Scope This sheet of IEC 62329-3 gives the dimensional requirements for heat-shrinkable moulded shapes. The moulded shapes may be supplied with a pre-coated adhesive. Refer to the manufacturers/suppliers for options. These moulded shapes are normally supplied in the styles and dimensions given in Tables 1 to 22. The colour is normally black. Styles and dimensions other than those specifically listed in Tables 1 to 22 may be available as custom items. These items shall be considered to comply with this standard if they comply with the property requirements listed in the sheets for material performance, with the exception of dimensions. Materials that conform to this specification meet established levels of performance. However, the selection of a material by a user for a specific application should be based on the actual requirements necessary for adequate performance in that application and not based on this specification alone. 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. IEC 62329-1, Heat-shrinkable moulded shapes – Part 1: Definitions and general requirements IEC 60757:1983, Code for designation of colours 3 Designation The moulded shapes shall be designated as shown by the following example: Description IEC publication number IEC Part number IEC Sheet number

c IEC style/size code Colour Adhesive
a Drain holes b ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ Moulded shapes IEC 62329
3 101 B/01
W1 D

a Insert UC if uncoated. b Insert N if no drain holes. c Sheets for material requirements and compatibility performance. SIST EN 62329-3-100:2010

– 8 – 62329-3-100 © IEC:2010 Any abbreviation for colour shall comply with IEC 60757. Where no abbreviation is given, the colour shall be written in full. 4 Requirements In addition to the general requirements given in IEC 62329-1, the heat-shrinkable moulded shapes shall comply with the requirements in Tables and Figures 1 to 22 and the sheets for material and compatibility performance.

SIST EN 62329-3-100:2010
62329-3-100 © IEC:2010 – 9 –
X d2 l2 l1 l3 S2 d3 l4 S1 d1 S2 Detail X Recovered As supplied IEC
1395/10

Figure 1 – Style AA (small lipped bottle) Table 1 – Dimensions in millimetres of style AA Size code d1 max. d2 max. d3 min. a l1 ±10 % l2

ref. l3 ref. l4 max. S1 ±20 % S2 ±20 % S3
±30 % Max. mass

g b 01 5,2 1,5 9,0 20,0 4,0 6,6 0,8 0,35 0,8 0,6 1,5 02 5,8 2,2 10,0 19,0 11,0 4,5 1,5 0,5 0,8 0,5 1,5 03 5,5 2,0 9,0 5,0 1,0 1,5 04 7,0 3,0 12,0 25,0 14,0 7,5 1,1 1,5 05 8,0 3,5 30,0 19,0 10,0 1,5 06 29,0 14,0 1,5 07 6,9 3,0 17,0 39,0 24,0 11,0 2,0 1,0 1,3 0,7 1,5 NOTE These parts may be available with eyelets for connector protection caps. Refer to the individual manufacturer. a Shapes made from some material types may be supplied with a reduced d3 diameter. Refer to the individual manufacturer for exact dimensions. b The values of mass may be higher for some material types. Refer to the individual manufacturer.

SIST EN 62329-3-100:2010
– 10 – 62329-3-100 © IEC:2010

X l2 Detail X Recovered As supplied l3 l1 d2 S3 d3 S2 d1 S1 l4 d3 As supplied (size code 02 only) 9,0 mm IEC

1396/10

Figure 2 – Style A (lipped short bottle with short body) Table 2 – Dimensions in millimetres of style A Size code d1 max. d2 max. d3 min. a l1 ±10 % l2

ref. l3 ref. l4 max. s1 ±20 % s2 ±20 % s3
±30 % Max.

mass g b 01 10,5 6,0 24,0 26,0 9,0 10,0 1,6 c 1,6 02 14,0 3,5 25,0 40,0 13,0 16,0 c 3,3 03 14,0 6,0 30,0 43,0 20,0 13,0 4,5 04 18,0 7,0 31,0 47,0 15,0 18,0 1,8 5,5 05 22,5 8,5 36,0 22,0 20,0 1,0 2,0 10,0 06 28,0 10,0 43,0 60,0 21,0 20,0 2,2 1,0 12,7 07 35,0 16,0 60,0 90,0 32,0 38,0 1,7 3,2 1,5 29,5 08 45,0 17,0 66,0 130,0 50,0 50,0 2,0 71,5 09 58,0 27,0 82,0 137,0 37,0 62,0 3,3 2,0 4,0 4,0 100,0 NOTE These parts may be available with eyelets for connector protection caps. Refer to the individual manufacturer. a Shapes made from some material types may be supplied with a d3 reduced diameter. Refer to the individual manufacturer for exact dimensions. b The values of mass may be higher for some material types. Refer to the individual manufacturer. c For these small shapes, this dimension shall be between 0,35 mm and 1,0 mm.

SIST EN 62329-3-100:2010
62329-3-100 © IEC:2010 – 11 – X l2 Detail X Recovered As suppli
...
