Railway applications - Electromagnetic compatibility - Part 4: Emission and immunity of the signalling and telecommunications apparatus

This European Standard applies to signalling and telecommunication apparatus that is installed inside the railway environment. Signalling and telecommunication apparatus mounted in vehicles is covered by FprEN 50121 3 2:2016, signalling and telecommunication apparatus installed inside the substation and connected to substation equipment is covered by FprEN 50121 5:2016. This European Standard specifies limits for emission and immunity and provides performance criteria for signalling and telecommunications (S&T) apparatus (including power supply systems belonging to S&T) which may interfere with other apparatus inside the railway environment, or increase the total emissions for the railway environment and so risk causing Electro-Magnetic Interference (EMI) to apparatus outside the railway system. The requirements specified given in this standard apply for: — vital equipment such as interlocking or command and control; — apparatus inside the 3 m zone; — ports of apparatus inside the 10 m zone with connection inside the 3 m zone; — ports of apparatus inside the 10 m zone with cable length > 30 m. Other apparatus not covered by at least one of these given cases should be in compliance with EN 61000 6 2. If a port is intended to transmit or receive for the purpose of radio communication (intentional radiators, e.g. transponder systems), then the radiated emission requirement in this standard are not intended to be applicable to the intentional transmission from a radio-transmitter as defined by the ITU. Immunity limits do not apply in the exclusion bands as defined in the corresponding EMC related standard for radio equipment. The standard does not specify basic personal safety requirements for apparatus such as protection against electric shock, unsafe operation, insulation co-ordination and related dielectric tests. The requirements were developed for and are applicable to this set of apparatus when operating under normal conditions. Fault conditions of the apparatus have not been taken into account. The frequency range considered is from DC to 400 GHz. No measurements need to be performed at frequencies where no requirement is specified. For products in the scope of EN 61000 3 2, EN 61000 3 3, EN 61000 3 11 or EN 61000 3 12 the requirements of those standards also apply. These specific provisions are to be used in conjunction with the general provisions in FprEN 50121 1:2016. The immunity and emission levels do not of themselves guarantee that the integration of apparatus will necessarily be satisfactory. The standard cannot cover all the possible configurations of the apparatus, but the test levels are sufficient to achieve satisfactory EMC in the majority of cases.

Bahnanwendungen - Elektromagnetische Verträglichkeit - Teil 4: Störaussendungen und Störfestigkeit von Signal- und Telekommunikationseinrichtungen

Applications ferroviaires - Compatibilité électromagnétique - Partie 4: Emission et immunité des appareils de signalisation et de télécommunication

La présente Norme européenne s’applique aux appareils de signalisation et de télécommunication qui sont installés à l’intérieur de l’environnement ferroviaire. Les appareils de signalisation et de télécommunication montés dans les véhicules sont traités dans le FprEN 50121 3 2 :2016, les appareils de signalisation et de télécommunication installés dans la sous-station et connectés aux appareils de sous-station sont traités dans le FprEN 50121 5 :2016. La présente Norme européenne spécifie les limites d’émission et d’immunité et donne les critères d’aptitude à la fonction pour les appareils de signalisation et de télécommunication (S&T) (y compris les réseaux d'alimentation appartenant à S&T) qui peuvent perturber d’autres appareils dans l’environnement ferroviaire ou augmenter les émissions totales pour l’environnement ferroviaire et qui risquent ainsi d’être la cause d’un brouillage électromagnétique pour des appareils à l’extérieur du système ferroviaire. Les exigences spécifiées données dans la présente Norme s'appliquent aux: - équipements vitaux tels que les équipements d’aiguillage ou de contrôle/commande, - appareils situés dans la zone de 3 m, - accès des appareils situés dans la zone de 10 m avec connexion dans la zone de 3 m, - accès des appareils situés dans la zone de 10 m avec longueur de câble > 30 m. Il convient que les autres appareils non couverts par au moins un des cas donnés soient conformes à l'EN 61000 6 2. Si un accès est destiné à émettre ou recevoir des communications radio (émetteurs intentionnels de rayonnement, par exemple, systèmes de balises), l'exigence relative aux émissions rayonnées de la présente Norme n'est pas destinée à s'appliquer à l'émission intentionnelle d'un émetteur radio telle que définie par l'UIT. Les limites d’immunité ne s'appliquent pas dans les bandes d'exclusion définies dans la norme CEM correspondante applicable aux appareils radio. La présente Norme ne spécifie pas d'exigences fondamentales de sécurité du personnel pour les appareils telles que la protection contre les chocs électriques, le fonctionnement non sécuritaire, la coordination de l’isolement et les essais diélectriques correspondants. Ces exigences ont été développées pour cet ensemble d’appareils et elles lui sont applicables dans des conditions normales de fonctionnement. Les conditions de défaut des appareils n’ont pas été prises en compte. La gamme de fréquences concernée va du courant continu à 400 GHz. Aucun mesurage n’est nécessaire aux fréquences pour lesquelles aucune exigence n’est spécifiée. Pour les produits du domaine d’application de l'EN 61000 3 2, de l’EN 61000 3 3, de l’EN 61000 3 11 ou de l’EN 61000 3 12, les exigences de ces normes s’appliquent également. Ces dispositions spécifiques sont destinées à être utilisées conjointement avec les dispositions générales de l’FprEN 50121 1 :2016. L’immunité et les niveaux d’émission ne garantissent pas à eux seuls que l’intégration des appareils sera nécessairement satisfaisante. La norme ne peut pas couvrir toutes les configurations possibles des appareils mais les niveaux d’essai sont suffisants pour obtenir une CEM satisfaisante dans la majorité des cas.

Železniške naprave - Elektromagnetna združljivost - 4. del: Sevanje in odpornost signalnih in telekomunikacijskih naprav

Ta evropski standard se uporablja za signalne in telekomunikacijske naprave, nameščene v železniškem okolju. Signalne in telekomunikacijske naprave, vgrajene v vozila, so zajete v standardu FprEN 50121 3 2:2016, signalne in telekomunikacijske naprave, nameščene v podpostaji in opremi, priključeni na podpostajo, so zajete v standardu FprEN 50121 5:2016.
Ta evropski standard določa mejne vrednosti sevanja in odpornosti ter podaja merila učinkovitosti za signalne in telekomunikacijske (S&T) naprave (vključno z napajalnimi sistemi, ki pripadajo S&T), ki lahko vplivajo na druge naprave v železniškem okolju ali povečajo skupno sevanje v železniškem okolju ter tako tvegajo povzročitev elektromagnetnih vplivov (EMI) na naprave zunaj železniškega sistema.
Zahteve, določene v tem standardu, se uporabljajo za:
– ključno opremo, kot so sistemi za spajanje in izvajanje ukazov ter kontrolni sistemi;
– naprave znotraj območja 3 m;
– vrata naprav znotraj območja 10 m s povezavo znotraj območja 3 m;
– vrata naprav znotraj območja 10 m z dolžino kabla > 30 m;
Druge naprave, ki niso zajete v vsaj enem od podanih primerov, morajo biti skladne s standardom EN 61000 6 2.
Če so vrata namenjena oddajanju ali sprejemanju za radijsko komunikacijo (namenski oddajniki, npr. sistemi transponderjev), se zahteva glede sevanja v tem standardu ne uporablja za namensko oddajanje radijskega oddajnika, kot je opredeljeno v ITU.
Omejitve odpornosti ne veljajo za pasove izključenosti, kakor je opredeljeno v ustreznem standardu glede elektromagnetne združljivosti za radijsko opremo.
Standard ne določa osnovnih osebnih varnostnih zahtev za naprave, kot so zaščita pred električnim udarom, nevarno delovanje, koordinacija izolacije in povezani dielektrični preskusi. Zahteve so bile oblikovane in se uporabljajo za ta sklop naprav, kadar te delujejo pri običajnih pogojih. Motnje naprav se ne upoštevajo.
Obravnavan frekvenčni razpon je od DC do 400 GHz. Za frekvence, za katere ni določenih zahtev, ni treba opraviti meritev.
Za izdelke v okviru standardov EN 61000 3 2, EN 61000 3 3, EN 61000 3 11 ali EN 61000 3 12 veljajo tudi zahteve teh standardov.
Te posebne določbe je treba uporabljati v povezavi s splošnimi določbami standarda FprEN 50121 1:2016.
Stopnje odpornosti in sevanja same po sebi ne zagotavljajo, da bo integracija naprave nujno zadovoljiva. Standard ne more zajeti vseh možnih konfiguracijah naprave, vendar preskusne ravni zadoščajo za zadovoljivo elektromagnetno združljivost v večini primerov.

General Information

Status
Published
Publication Date
22-Dec-2016
Withdrawal Date
23-Oct-2019
Current Stage
6060 - Document made available - Publishing
Start Date
23-Dec-2016
Due Date
08-Mar-2018
Completion Date
23-Dec-2016

Relations

Buy Standard

Standard
EN 50121-4:2017
English language
17 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)


SLOVENSKI STANDARD
01-april-2017
1DGRPHãþD
SIST EN 50121-4:2015
Železniške naprave - Elektromagnetna združljivost - 4. del: Sevanje in odpornost
signalnih in telekomunikacijskih naprav
Railway applications - Electromagnetic compatibility - Part 4: Emission and immunity of
the signalling and telecommunications apparatus
Bahnanwendungen - Elektromagnetische Verträglichkeit - Teil 4: Störaussendungen und
Störfestigkeit von Signal- und Telekommunikationseinrichtungen
Applications ferroviaires - Compatibilité électromagnétique - Partie 4: Emission et
immunité des appareils de signalisation et de télécommunication
Ta slovenski standard je istoveten z: EN 50121-4:2016
ICS:
33.100.01 Elektromagnetna združljivost Electromagnetic compatibility
na splošno in general
45.020 Železniška tehnika na Railway engineering in
splošno general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN 50121-4
NORME EUROPÉENNE
EUROPÄISCHE NORM
December 2016
ICS 29.280; 33.100.01; 45.020 Supersedes EN 50121-4:2015
English Version
Railway applications - Electromagnetic compatibility - Part 4:
Emission and immunity of the signalling and telecommunications
apparatus
Applications ferroviaires - Compatibilité électromagnétique - Bahnanwendungen - Elektromagnetische Verträglichkeit -
Partie 4: Emission et immunité des appareils de Teil 4: Störaussendungen und Störfestigkeit von Signal-
signalisation et de télécommunication und Telekommunikationseinrichtungen
This European Standard was approved by CENELEC on 2016-10-24. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2016 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 50121-4:2016 E

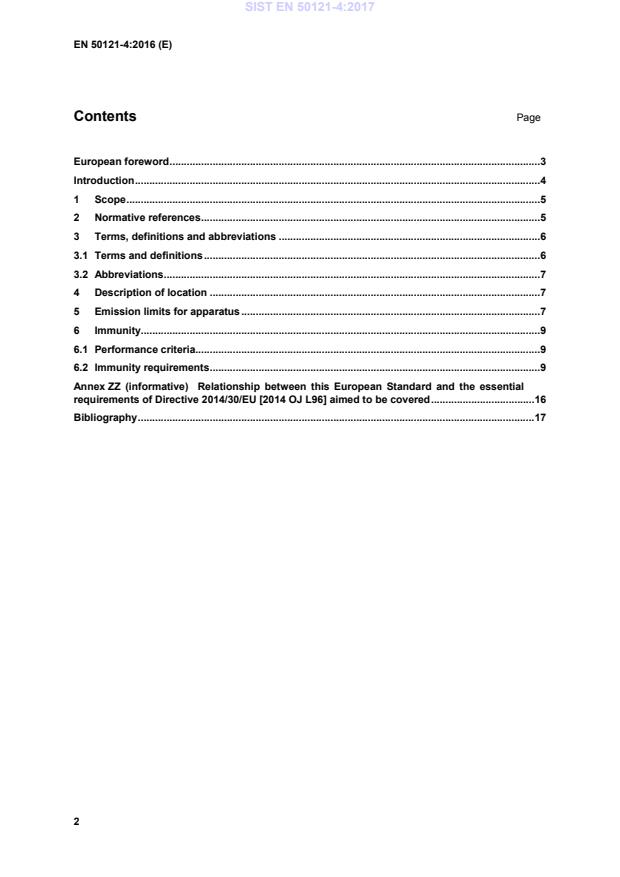

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms, definitions and abbreviations . 6
3.1 Terms and definitions . 6
3.2 Abbreviations . 7
4 Description of location . 7
5 Emission limits for apparatus . 7
6 Immunity. 9
6.1 Performance criteria. 9
6.2 Immunity requirements . 9
Annex ZZ (informative) Relationship between this European Standard and the essential
requirements of Directive 2014/30/EU [2014 OJ L96] aimed to be covered . 16
Bibliography . 17

European foreword
This document (EN 50121-4:2016) has been prepared by CLC/TC 9X: “Electrical and electronic
applications for railways”.
The following dates are fixed:
• latest date by which this document has to be (dop) 2017-07-24
implemented at national level by publication of
an identical national standard or by
endorsement
• latest date by which the national standards (dow) 2019-10-24
conflicting with this document have to
be withdrawn
This document supersedes EN 50121-4:2015.
EN 50121-4:2006:
— clarification of scope (Clause 1);
— set dated normative references (Clause 2);
— new definition (Clause 3);
— emission requirement extended in the frequency range 1 GHz to 6 GHz following EN 61000-6-4;
— immunity requirement extended in the frequency range 5,1 GHz to 6 GHz;
— revision of Annex ZZ.
This European Standard is to be read in conjunction with EN 50121-1.
This document has been prepared under a mandate given to CENELEC by the European Commission
and the European Free Trade Association, and supports essential requirements of EU Directive(s).
For the relationship with EU Directive(s) see informative Annex ZZ, which is an integral part of this
document.
This standard forms Part 4 of the European Standard series EN 50121, published under the general
title “Railway applications - Electromagnetic compatibility”. The series consists of:
— Part 1: General;
— Part 2: Emission of the whole railway system to the outside world;
— Part 3-1: Rolling stock – Train and complete vehicle;
— Part 3-2: Rolling stock – Apparatus;
— Part 4: Emission and immunity of the signalling and telecommunications apparatus;
— Part 5: Emission and immunity of fixed power supply installations and apparatus.
Introduction
This European Standard has been prepared in the form of a Product Standard.
It defines the immunity and emission test requirements for apparatus defined in the scope in relation to
the electromagnetic disturbances likely to be experienced in the railway. In particular, the test
requirements represent the essential electromagnetic immunity requirements and have been selected
to ensure an adequate level of immunity for apparatus installed on the railway locations.
Test requirements are specified for each port considered.
Safety considerations are not covered by this standard.
In specific situations, where the level of disturbances may exceed the levels considered in this
standard, e.g. at a special location or where a hand-held transmitter is used in very close proximity to
an apparatus, special mitigation measures may have to be employed.
1 Scope
This European Standard applies to signalling and telecommunication apparatus that is installed inside
the railway environment. Signalling and telecommunication apparatus mounted in vehicles is covered
by EN 50121-3-2:2016, signalling and telecommunication apparatus installed inside the substation and
connected to substation equipment is covered by EN 50121-5:2016.
This European Standard specifies limits for emission and immunity and provides performance criteria
for signalling and telecommunications (S&T) apparatus (including power supply systems belonging to
S&T) which may interfere with other apparatus inside the railway environment, or increase the total
emissions for the railway environment and so risk causing Electro-Magnetic Interference (EMI) to
apparatus outside the railway system.
The requirements specified in this standard apply for:
— vital equipment such as interlocking or command and control;
— apparatus inside the 3 m zone;
— ports of apparatus inside the 10 m zone with connection inside the 3 m zone;
— ports of apparatus inside the 10 m zone with cable length > 30 m.
Other apparatus not covered by at least one of these given cases should be in compliance with
EN 61000-6-2.
If a port is intended to transmit or receive for the purpose of radio communication (intentional radiators,
e.g. transponder systems), then the radiated emission requirement in this standard are not intended to
be applicable to the intentional transmission from a radio-transmitter as defined by the ITU.
Immunity limits do not apply in the exclusion bands as defined in the corresponding EMC related
standard for radio equipment.
The standard does not specify basic personal safety requirements for apparatus such as protection
against electric shock, unsafe operation, insulation co-ordination and related dielectric tests. The
requirements were developed for and are applicable to this set of apparatus when operating under
normal conditions. Fault conditions of the apparatus have not been taken into account.
The frequency range considered is from DC to 400 GHz. No measurements need to be performed at
frequencies where no requirement is specified.
For products in the scope of EN 61000-3-2, EN 61000-3-3, EN 61000-3-11 or EN 61000-3-12 the
requirements of those standards also apply.
These specific provisions are to be used in conjunction with the general provisions in
EN 50121-1:2016.
The immunity and emission levels do not of themselves guarantee that the integration of apparatus will
necessarily be satisfactory. The standard cannot cover all the possible configurations of the apparatus,
but the test levels are sufficient to achieve satisfactory EMC in the majority of cases.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
EN 50121-1:2017, Railway applications — Electromagnetic compatibility — Part 1: General
EN 55016-2-1:2014, Specification for radio disturbance and immunity measuring apparatus and
methods — Part 2-1: Methods of measurement of disturbances and immunity — Conducted
disturbance measurements (CISPR 16-2-1:2014)
EN 61000-4-2:2009, Electromagnetic compatibility (EMC) — Part 4-2: Testing and measurement
techniques — Electrostatic discharge immunity test (IEC 61000-4-2:2008)
EN 61000-4-3:2006, Electromagnetic compatibility (EMC) — Part 4-3: Testing and measurement
techniques — Radiated, radio-frequency, electromagnetic field immunity test (IEC 61000-4-3:2006)
EN 61000-4-4:2012, Electromagnetic compatibility (EMC) — Part 4-4: Testing and measurement
techniques — Electrical fast transient/burst immunity test (IEC 61000-4-4:2012)
EN 61000-4-5:2014, Electromagnetic compatibility (EMC) — Part 4-5: Testing and measurement
techniques — Surge immunity test (IEC 61000-4-5:2014)
EN 61000-4-6:2014, Electromagnetic compatibility (EMC) — Part 4-6: Testing and measurement
techniques — Immunity to conducted disturbances, induced by radio-frequency fields (IEC 61000-4-
6:2013)
EN 61000-4-8:2010, Electromagnetic compatibility (EMC) — Part 4-8: Testing and measurement
techniques — Power frequency magnetic field immunity test (IEC 61000-4-8:2009)
EN 61000-6-2:2005, Electromagnetic compatibility (EMC) — Part 6-2: Generic standards — Immunity
for industrial environments (IEC 61000-6-2:2005)
EN 61000-6-4:2007 , Electromagnetic compatibility (EMC) — Part 6-4: Generic standards — Emission
standard for industrial environments (IEC 61000-6-4:2006)
3 Terms, definitions and abbreviations
3.1 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1.1
port
particular interface of the specified apparatus with the external environment
EXAMPLE AC power port, DC power port, I/O (input/output) port, earth port.
[SOURCE: IEC 60050-821: CDV2015, 821-11-36]
3.1.2
enclosure port
physical boundary of the apparatus through which electromagnetic fields may radiate or impinge

Enclosure port
AC power port  I/O port
DC power port APPARATUS earth port

Figure 1 — Main categories of ports

As impacted by EN 61000-6-4:2007/A1:2011
3.1.3
3 m zone
area along the railway line within a distance of 3 m from the centreline of the nearest track at both
sides of the track
3.1.4
10 m zone
area along the railway line within a distance of 10 m from the centreline of the nearest track at both
sides of the track
3.2 Abbreviations
AC Alternating current
AM Amplitude modulation
DC Direct current
EMC Electromagnetic compatibility
EMI Electromagnetic interference
I/O Input / Output
ITU International Telegraph Union
S&T Signalling and telecommunication
4 Description of location
The railway environment is characterized as described in EN 50121-1:2017.
5 Emission limits for apparatus
Apparatus which
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
