EN 60399:2004

Barrel thread for lampholders with shade holder ring

Gives limit dimensions of thread for metal or plastic and ceramic lampholders with shade holder rings made of metal or plastic. Dimensions

Mantelgewinde für Lampenfassungen mit Schirmträgerring

Filetage à filet rond pour douilles avec bague support d'abat-jour

Donne les limites des dimensions des filetages à filets ronds pour douilles en métal, en matière plastique et en céramique avec bague support d'abat-jour. Les dimensions des calibres correspondant sont également inclues

Sodčkasti navoj za okove za žarnice in sijalke z nosilnim obročkom za senčnik (IEC 60399:2004)

General Information

• Status: Published
• Publication Date: 01-Nov-2004
• Withdrawal Date: 30-Sep-2007
• ICS: 29.140.10 - Lamp caps and holders
• Technical Committee: CLC/TC 34 - 'Lamps and related equipment
• Drafting Committee: IEC/SC 34B - IEC_SC_34B
• Parallel Committee: IEC/SC 34B - IEC_SC_34B
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 02-Nov-2004
• Completion Date: 02-Nov-2004
• Directive: 2006/95/EC - Directive 2006/95/EC of the European Parliament and of the Council of 12 December 2006 on the harmonisation of the laws of Member States relating to electrical equipment designed for use within certain voltage limits (codified version)
• Directive: 2014/35/EU - Directive 2014/35/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits
• Directive: 2014/53/EU - Directive 2014/53/EU of The European Parliament and of the Council of 16 April 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of radio equipment and repealing Directive 1999/5/EC
• Directive: 73/23/EEC - Electrical equipment designed for use within certain voltage limits
• Ref Project: SIST EN 60399:2005 - Barrel thread for lampholders with shade holder ring

Relations

• Replaces: EN 60399:1993/A1:1997 - Standard sheets for barrel thread for E14 and E27 lampholders with shade holder ring
• Effective Date: 29-Jan-2023
• Replaces: EN 60399:1993/A2:1999 - Standard sheets for barrel thread for E14 and E27 lampholders with shade holder ring
• Effective Date: 29-Jan-2023
• Replaces: EN 60399:1993 - Standard sheets for barrel thread for E14 and E27 lampholders with shade holder ring
• Effective Date: 28-Jan-2023
• Amended By: EN 60399:2004/A1:2008 - Barrel thread for lampholders with shade holder ring
• Effective Date: 29-Jan-2023

Overview

EN 60399:2004 is a European Standard developed and published by the CLC (European Committee for Electrotechnical Standardization) that specifies the limit dimensions for barrel threads used in lampholders equipped with shade holder rings. This standard applies to lampholders made of metal, plastic, or ceramic materials, as well as shade holder rings constructed from metal or plastic. EN 60399:2004 aligns with IEC 60399:2004 and supersedes previous editions, including EN 60399:1993 and its amendments.

The primary objective of this standard is to harmonize the dimensions and tolerances for these barrel threads, ensuring interchangeability, safety, and compatibility across the lighting industry. It supports manufacturers, designers, and regulatory bodies by providing clear specifications for producing lampholders that accommodate shade holder rings reliably.

Key Topics

• Thread Dimension Specifications
  EN 60399:2004 defines the limit dimensions for barrel threads used in lampholders, which ensures consistent manufacturing and fitting of shade holder rings.

• Material Compatibility
  The standard covers lampholders made from metal, plastic, and ceramic materials, as well as shade holder rings made of metal or plastic, reflecting diverse industrial applications.

• Interoperability and Safety
  By standardizing thread dimensions, EN 60399:2004 facilitates interchangeability between products from different manufacturers while maintaining safety standards.

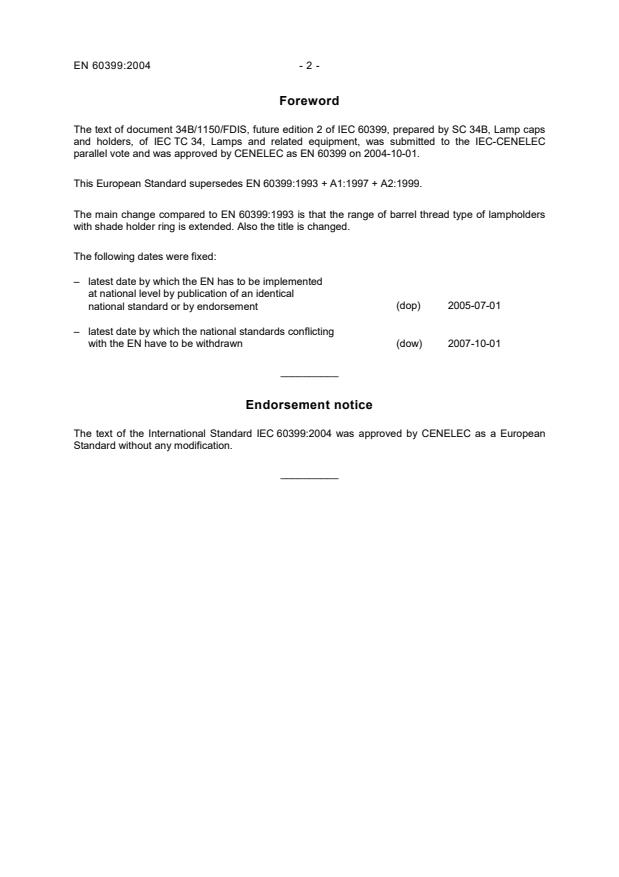

• Updated Scope and Title
  The 2004 edition extends the range of barrel thread types and updates the title to reflect the broader scope related to lampholders with shade holder rings.

• Implementation Timeline
  Adopted as a European standard in October 2004, member countries were mandated to implement EN 60399:2004 by July 1, 2005, and to withdraw conflicting national standards by October 1, 2007.

Applications

• Lighting Fixture Manufacturing
  Manufacturers use EN 60399:2004 to design and produce lampholders with barrel threads that securely hold lampshades or other fixture components.

• Quality Control and Testing
  Testing laboratories and quality control units apply the dimensional limits in EN 60399:2004 to verify compliance and ensure product reliability.

• Product Design Standardization
  Designers incorporate EN 60399 specifications into new lighting products to guarantee compatibility with existing lampshade holder rings and accessories.

• Maintenance and Replacement
  Maintenance professionals utilize the standardized thread dimensions for selecting correct replacement parts in lighting installations.

• International Trade Facilitation
  Harmonized standards such as EN 60399:2004 promote the free movement of lighting products across European markets and beyond.

Related Standards

• IEC 60399:2004
  The international standard on which EN 60399:2004 is based, establishing globally recognized technical requirements.

• EN 60061 Series
  Standards covering lamp caps and holders, relevant to ensuring complete system compatibility.

• EN 60400:2004
  Specifications on lampholder safety requirements and tests, complementing the mechanical dimension guidelines of EN 60399.

• National Lighting Standards
  Post-implementation, national standards conflicting with EN 60399 were withdrawn to unify technical requirements across Europe.

---

Keywords: EN 60399, barrel thread standard, lampholders, shade holder ring, lantern threads, lamp cap dimensions, CLC, IEC 60399, lighting fixture standards, electrical lampholders, European lighting standards, lighting components, thread dimensions for lampholders.

Standards Content (Sample)

SLOVENSKI SIST EN 60399:2005
STANDARD
junij 2005
Sodčkasti navoj za okove za žarnice in sijalke z nosilnim obročkom za
senčnik (IEC 60399:2004)
Barrel thread for lampholders with shade holder ring (IEC 60399:2004)
ICS 29.140.10 Referenčna številka
©  Standard je založil in izdal Slovenski inštitut za standardizacijo. Razmnoževanje ali kopiranje celote ali delov tega dokumenta ni dovoljeno

EUROPEAN STANDARD EN 60399
NORME EUROPÉENNE
EUROPÄISCHE NORM November 2004

ICS 29.140.10 Supersedes EN 60399:1993 + A1:1997 + A2:1999

English version
Barrel thread for lampholders with shade holder ring
(IEC 60399:2004)
Filetage à filet rond pour douilles  Mantelgewinde für Lampenfassungen
avec bague support d'abat-jour mit Schirmträgerring
(CEI 60399:2004) (IEC 60399:2004)

This European Standard was approved by CENELEC on 2004-10-01. CENELEC members are bound to
comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and
notified to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Cyprus, Czech
Republ
...
