EN 60061-3:1993/A60:2024

Lamp caps and holders together with gauges for the control of interchangeability and safety - Part 3: Gauges

Lampensockel und -fassungen sowie Lehren zur Kontrolle der Austauschbarkeit und Sicherheit - Teil 3: Lehren

Culots de lampes et douilles ainsi que calibres pour le contrôle de l'interchangeabilité et de la sécurité - Partie 3: Calibres

Vznožki in okovi žarnic in sijalk skupaj s kalibri za kontrolo medsebojne zamenljivosti in varnosti - 3. del: Profili - Dopolnilo A60 (IEC 60061-3:1969/AMD60:2024)

General Information

• Status: Published
• Publication Date: 21-Mar-2024
• ICS: 29.140.10 - Lamp caps and holders
• Technical Committee: CLC/TC 34 - 'Lamps and related equipment
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 22-Mar-2024
• Due Date: 28-Feb-2024
• Completion Date: 22-Mar-2024
• Ref Project: SIST EN 60061-3:2000/A60:2024 - Lamp caps and holders together with gauges for the control of interchangeability and safety - Part 3: Gauges (IEC 60061-3:1969/AMD60:2024)

Relations

• Amends: EN 60061-3:1993 - Lamp caps and holders together with gauges for the control of interchangeability and safety - Part 3: Gauges
• Effective Date: 12-Mar-2024

Standards Content (Sample)

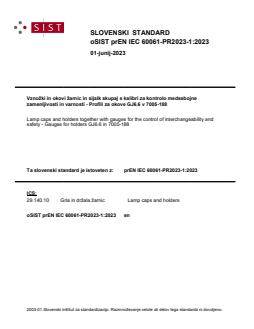

SLOVENSKI STANDARD
oSIST prEN IEC 60061-PR2023-1:2023
01-junij-2023
Vznožki in okovi žarnic in sijalk skupaj s kalibri za kontrolo medsebojne
zamenljivosti in varnosti - Profili za okove GJ6.6 v 7005-188
Lamp caps and holders together with gauges for the control of interchangeability and
safety - Gauges for holders GJ6.6 in 7005-188
Ta slovenski standard je istoveten z: prEN IEC 60061-PR2023-1:2023
ICS:
29.140.10 Grla in držala žarnic Lamp caps and holders
oSIST prEN IEC 60061-PR2023-1:2023 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
oSIST prEN IEC 60061-PR2023-1:2023

---------------------- Page: 2 ----------------------
oSIST prEN IEC 60061-PR2023-1:2023

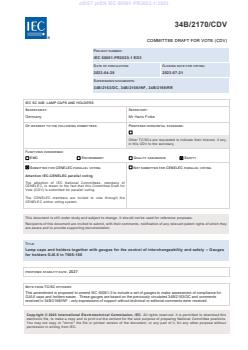

34B/2170/CDV

COMMITTEE DRAFT FOR VOTE (CDV)
PROJECT NUMBER:
IEC 60061-PR2023-1 ED3
DATE OF CIRCULATION: CLOSING DATE FOR VOTING:
2023-04-28 2023-07-21
SUPERSEDES DOCUMENTS:
34B/2163/DC, 34B/2168/INF, 34B/2169/RR

IEC SC 34B: LAMP CAPS AND HOLDERS
SECRETARIAT: SECRETARY:
Germany Mr Hans Finke
OF INTEREST TO THE FOLLOWING COMMITTEES: PROPOSED HORIZONTAL STANDARD:


Other TC/SCs are requested to indicate their interest, if any,
in this CDV to the secretary.
FUNCTIONS CONCERNED:
EMC ENVIRONMENT QUALITY ASSURANCE SAFETY
SUBMITTED FOR CENELEC PARALLEL VOTING NOT SUBMITTED FOR CENELEC PARALLEL VOTING
Attention IEC-CENELEC parallel voting
The attention of IEC National Committees, members of
CENELEC, is drawn to the fact that this Committee Draft for
Vote (CDV) is submitted for parallel voting.
The CENELEC members are invited to vote through the
CENELEC online voting system.

This document is still under study and subject to change. It should not be used for reference purposes.
Recipients of this document are invited to submit, with their comments, notification of any relevant patent rights of which they
are aware and to provide supporting documentation.

TITLE:
Lamp caps and holders together with gauges for the control of interchangeability and safety – Gauges
for holders GJ6.6 in 7005-188

PROPOSED STABILITY DATE: 2027

NOTE FROM TC/SC OFFICERS:
This amendment is proposed to amend IEC 60061-3 to include a set of gauges to make assessment of compliance for
GJ6.6 caps and holders easier. These gauges are based on the previously circulated 34B/2163/DC and comments
received in 34B/2168/INF - only expressions of support without technical or editorial comments were received.

Copyright © 2023 International Electrotechnical Commission, IEC. All rights reserved. It is permitted to download this
electronic file, to make a copy and to print out the content for the sole purpose of preparing National Committee positions.
You may not copy or "mirror" the file or printed version of the document, or any part of it, for any other purpose without
permission in writing from IEC.

---------------------- Page: 3 ----------------------
oSIST prEN IEC 60061-PR2023-1:2023
IEC CDV 60061-PR2023-1 © IEC 2023 – 2 – 34B/2170/CDV

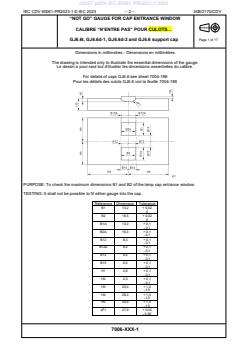

“NOT GO” GAUGE FOR CAP ENTRANCE WINDOW

 CALIBRE “N’ENTRE PAS” POUR CULOTS…

 GJ6.6t, GJ6.6d-1, GJ6.6d-2 and GJ6.6 support cap Page 1 of 17


Dimensions in millimetres - Dimensions en millimètres

The drawing is intended only to illustrate the essential dimensions of the gauge.
Le dessin a pour seul but d’illustrer les dimensions essentielles du calibre.
For details of caps GJ6.6 see sheet 7004-188
Pour les détails des culots GJ6.6 voir la feuille 7004-188


PURPOSE: To check the maximum dimensions B1 and B2 of the lamp cap entrance window.
TESTING: It shall not be possible to fit either gauge into the cap.
Reference Dimension Tolerance
B1 13,2 + 0,02
0
B2 16,5 + 0,02
0
B1A 13,0 + 0,1
- 0,1
B2A 16,4 + 0,1
- 0,1
B12 8,3 + 0,1
- 0,1
B12A 8,2 + 0,1
- 0,1
B14 8,4 + 0,1
- 0,1
B15 6,5 + 0,1
- 0,1
H1 2,8 + 0,1
- 0,1
H2 2,3 + 0,1
- 0,1
H3 20,0 + 1,0
-1,0
H4 26,0 + 1,0
-1,0
H5 30,0 + 1,0
-1,0
27,9 + 0,05
F1
- 0,05
7006-XXX-1

---------------------- Page: 4 ----------------------
oSIST prEN IEC 60061-PR2023-1:2023
IEC CDV 60061-PR2023-1 © IEC 2023 – 3 – 34B/2170/CDV
PIN DIMENSION AND LOCATOR “GO” GAUGE FOR CAPS

 …CULOTS

 GJ6.6t, GJ6.6d-1 Page 2 of 17


Dimensions in millimetres - Dimensions en millimètres

The drawing is intended only to illustrate the essential dimensions of the gauge.
Le dessin a pour seul but d’illustrer les dimensions essentielles du calibre.
For details of caps GJ6.6 see sheet 7004-188
Pour les détails des culots GJ6.6 voir la feuille 7004-188

PURPOSE: To check the minimum dimensions B1 and B2 of the lamp cap entrance window, the maximum
pin diameter, C1, and maximum pin length dimensions, B9 and B10, and the pin locations, B4, B5 and B6.
TESTING: It shall be possible to fit the gauge into the cap to fully contact the surface, F1.
Reference Dimension Tolerance
B1 13,0 0
...
