EN 60626-3:2008/A1:2012

Combined flexible materials for electrical insulation - Part 3: Specifications for individual materials

2012-07-18 - Publication editing allocated to [e-mail]

Flexible Mehrschichtisolierstoffe zur elektrischen Isolierung - Teil 3: Bestimmungen für einzelne Materialien

Matériaux combinés souples destinés à l'isolement électrique - Partie 3: Spécifications pour matériaux particuliers

Kombinirani zvijavi materiali za električno izolacijo - 3. del: Specifikacije za posamezne materiale

Ta del standarda IEC 60626 določa mere in zahtevane karakteristike za posamezne kombinirane zvijave materiale za električno izolacijo. Ta del je v obliki skupin razpredelnic. Listi so oštevilčeni v skladu s preglednico 1, ki podaja popoln seznam vseh razpredelnic, ki spadajo k temu standardu. Materiali, ki so skladni s to specifikacijo, ustrezajo določenim ravnem delovanja. Vendar mora uporabnik material za določeno uporabo izbrati glede na dejanske zahteve za zadostno učinkovitost pri tej uporabi, ne samo na podlagi te specifikacije.

General Information

• Status: Published
• Publication Date: 06-Sep-2012
• Withdrawal Date: 20-Aug-2015
• ICS: 29.035.01 - Insulating materials in general
• Technical Committee: CLC/SR 15 - Insulating materials
• Drafting Committee: IEC/TC 15 - IEC_TC_15
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 07-Sep-2012
• Completion Date: 07-Sep-2012
• Ref Project: SIST EN 60626-3:2008/A1:2013 - Combined flexible materials for electrical insulation - Part 3: Specifications for individual materials

Relations

• Amends: EN 60626-3:2008 - Combined flexible materials for electrical insulation - Part 3: Specifications for individual materials
• Effective Date: 28-Jan-2023

EN 60626-3:2008/A1:2012 - Combined flexible materials for electrical insulation (Part 3: Specifications for individual materials)

Overview

This CENELEC adoption (amendment A1 to EN 60626-3:2008, approved 2012) defines material-level specifications for combined flexible insulating materials (laminates) used in electrical insulation systems. It complements the base EN/IEC series by giving detailed requirement sheets for specific constructions - for example the triplex laminate P-H/F‑PET/P-H (hybrid inorganic‑organic paper 60 µm on both sides of a PET film). The amendment sets thermal classification guidance, single‑layer references and additional mechanical and electrical property limits used for manufacturing and testing.

Key topics and technical requirements

• Material descriptions and constructions: e.g., triplex laminates consisting of insulating paper (P‑H) and polyethylene terephthalate film (F‑PET).
• Thermal classification: practical suitability noted for apparatus rated up to the 155 °C–180 °C temperature range for certain laminates.
• Referenced single‑layer standards: hybrid paper to IEC 60819‑1 / IEC 60819‑3‑2; PET film to IEC 60674‑1 / IEC 60674‑3‑2.
• Dimensional and mass requirements: nominal laminate thickness and grammage values with tolerances (commonly ±15%).
• Mechanical performance: specified tensile strength and elongation in both machine (MD) and cross‑machine (CMD) directions, for unfolded and folded states.
• Electrical performance: minimum electric breakdown voltages for unfolded and folded samples (examples in the amendment range from ~5 kV to 21 kV depending on construction and thickness).
• Test and acceptance criteria: numeric tables in the amendment replace or add sheets (e.g., Sheets 340, 350, 351, and new Sheet 352) that manufacturers and test labs use to verify compliance.

Applications and users

Who uses EN 60626-3:2008/A1:2012:

• Material manufacturers specifying laminate formulations and production tolerances.
• Designers and engineers of electrical apparatus (motors, transformers, coils, power electronics) selecting insulating materials for thermal and dielectric performance.
• Testing and certification laboratories performing mechanical and electrical qualification.
• Procurement and quality assurance teams verifying supplier compliance.

Practical applications:

• Sourcing and qualifying combined flexible insulating materials for high‑temperature windings and insulation systems.
• Establishing production quality control limits (thickness, grammage, tensile strength, breakdown voltage).
• Ensuring interoperability with other IEC/CENELEC product standards and national adoptions.

Related standards

• IEC/EN 60626-3 (base standard)
• IEC 60626-2 (test methods referenced)
• IEC 60819‑1, IEC 60819‑3‑2 (paper requirements)
• IEC 60674‑1, IEC 60674‑3‑2 (PET film requirements)

This amendment provides precise, testable specifications that help manufacturers and laboratories ensure the safety, reliability and interchangeability of combined flexible materials used in electrical insulation systems. Keywords: combined flexible materials, electrical insulation, EN 60626-3:2008/A1:2012, triplex laminate, P‑H/F‑PET/P‑H, dielectric breakdown, tensile strength, thermal classification.

Standards Content (Sample)

SLOVENSKI STANDARD
01-junij-2013
.RPELQLUDQL]YLMDYLPDWHULDOL]DHOHNWULþQRL]RODFLMRGHO6SHFLILNDFLMH]D
SRVDPH]QHPDWHULDOH
Combined flexible materials for electrical insulation - Part 3: Specifications for individual
materials
Flexible Mehrschichtisolierstoffe zur elektrischen Isolierung - Teil 3: Bestimmungen für
einzelne Materialien
Matériaux combinés souples destinés à l'isolement électrique - Partie 3: Spécifications
pour matériaux particuliers
Ta slovenski standard je istoveten z: EN 60626-3:2008/A1:2012
ICS:
29.035.01 Izolacijski materiali na Insulating materials in
splošno general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 60626-3/A1
NORME EUROPÉENNE
September 2012
EUROPÄISCHE NORM
ICS 29.035.01
English version
Combined flexible materials for electrical insulation -
Part 3: Specifications for individual materials
(IEC 60626-3:2008/A1:2012)
Matériaux combinés souples destinés à Flexible Mehrschichtisolierstoffe zur
l'isolement électrique - elektrischen Isolierung -
Partie 3: Spécifications pour matériaux Teil 3: Bestimmungen für einzelne
particuliers Materialien
(CEI 60626-3:2008/A1:2012) (IEC 60626-3:2008/A1:2012)

This amendment A1 modifies the European Standard EN 60626-3:2008; it was approved by CENELEC on 2012-
08-21. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate
the conditions for giving this amendment the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.

This amendment exists in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CENELEC member into its own language and notified to the
CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,
Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2012 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60626-3:2008/A1:2012 E

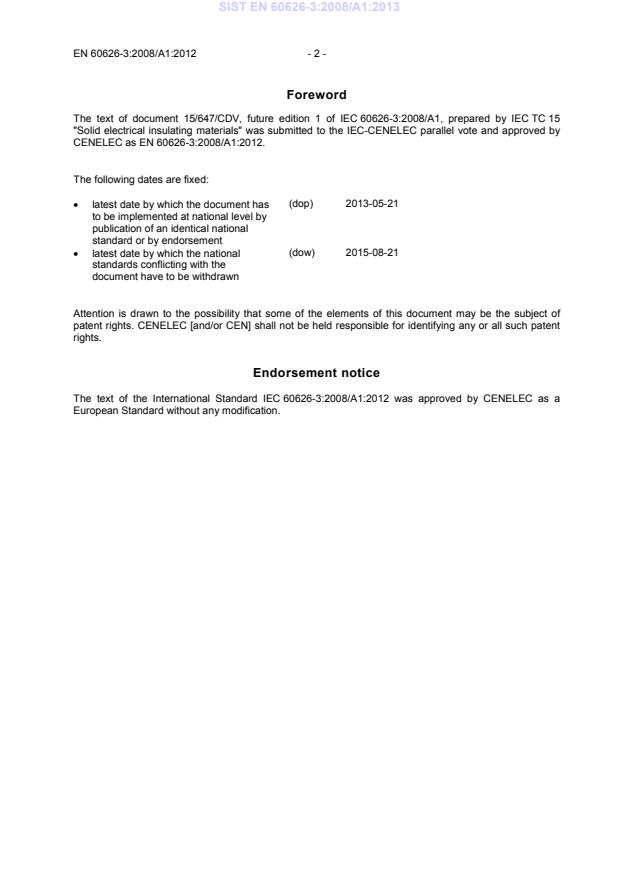

Foreword
The text of document 15/647/CDV, future edition 1 of IEC 60626-3:2008/A1, prepared by IEC TC 15
"Solid electrical insulating materials" was submitted to the IEC-CENELEC parallel vote and approved by
CENELEC as EN 60626-3:2008/A1:2012.

The following dates are fixed:
(dop) 2013-05-21
• latest date by which the document has
to be implemented at national level by
publication of an identical national
standard or by endorsement
(dow) 2015-08-21
• latest date by which the national
standards conflicting with the
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent
rights.
Endorsement notice
The text of the International Standard IEC 60626-3:2008/A1:2012 was approved by CENELEC as a
European Standard without any modification.

IEC 60626-3 ®
Edition 3.0 2012-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
AMENDMENT 1
AMENDEMENT 1
Combined flexible materials for electrical insulation –

Part 3: Specifications for individual materials

Matériaux combinés souples destinés à l'isolement électrique –

Partie 3: Spécifications pour matériaux particuliers

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX F
ICS 29.035.01 ISBN 978-2-83220-149-7

– 2 – 60626-3 Amend. 1 © IEC:2012
FOREWORD
This amendment has been prepared by IEC technical committee 15: Solid electrical insulating
materials.
The text of this amendment is based on the following documents:
CDV Report on voting
15/647/CDV 15/673A/RVC
Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until
...
