SLOVENSKI STANDARD
oSIST prEN 50735-1:2023
01-september-2023
Elektromotorna ročna orodja, prenosna orodja ter stroji za trato in vrt - Okoljski
vidiki - 1. del: Zahteve za popravljivost
Electric motor-operated hand-held tools, transportable tools and lawn and garden
machinery - Environmental aspects - Part 1: Requirements for repairability
Outils électroportatifs à moteur, outils portables et machines pour jardins et pelouses -
Aspects liés à l’environnement - Partie 1: Exigences de réparabilité
Ta slovenski standard je istoveten z: prEN 50735-1
ICS:
25.140.20 Električna orodja Electric tools
65.060.70 Vrtnarska oprema Horticultural equipment
oSIST prEN 50735-1:2023 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
oSIST prEN 50735-1:2023
oSIST prEN 50735-1:2023
EUROPEAN STANDARD DRAFT
prEN 50735-1
NORME EUROPÉENNE
EUROPÄISCHE NORM
June 2023
ICS 25.140.20; 65.060.70 -
English Version
Electric motor-operated hand-held tools, transportable tools and
lawn and garden machinery - Environmental aspects - Part 1:
Requirements for repairability
To be completed To be completed
This draft European Standard is submitted to CENELEC members for enquiry.
Deadline for CENELEC: 2023-09-22.
It has been drawn up by CLC/TC 116.
If this draft becomes a European Standard, CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CENELEC in three official versions (English, French, German).
A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to
the CEN-CENELEC Management Centre has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to
provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and
shall not be referred to as a European Standard.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Project: 77635 Ref. No. prEN 50735-1 E
oSIST prEN 50735-1:2023
prEN 50735-1:2023 (E)

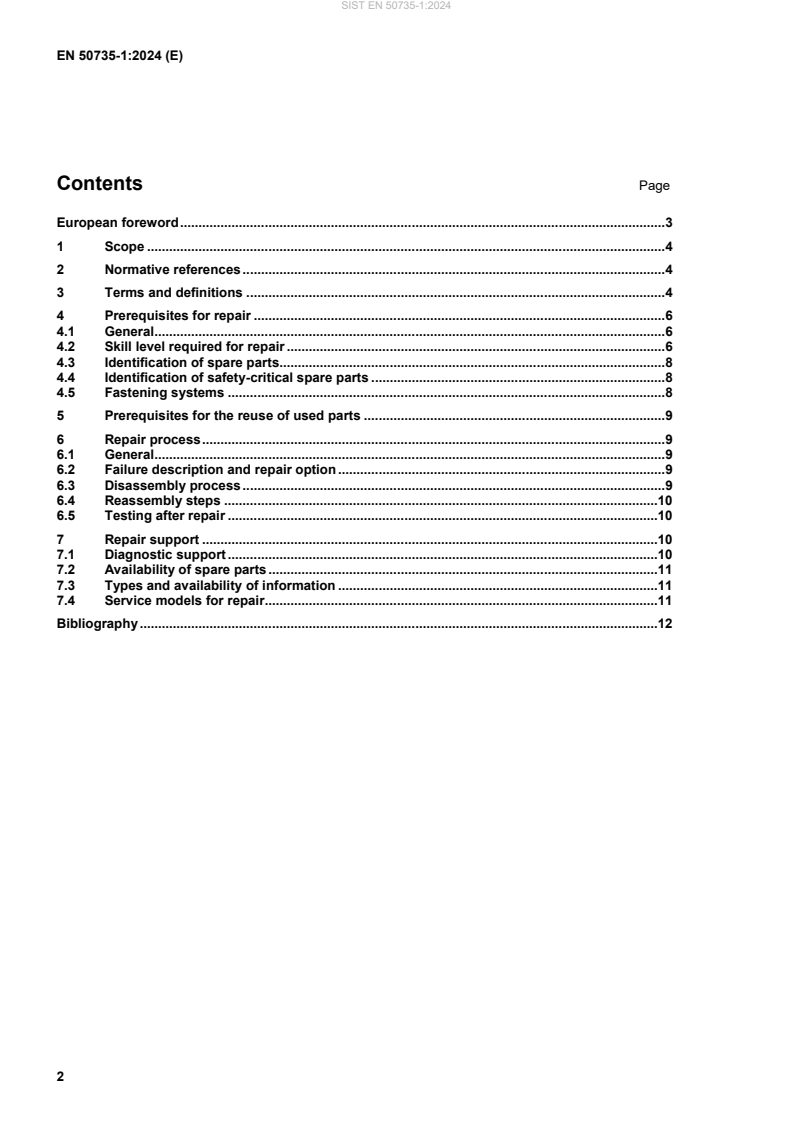

1 Contents Page
2 European foreword . 3
3 1 Scope . 4
4 2 Normative references . 4
5 3 Terms and definitions . 4
6 4 Prerequisites for repair . 6
7 4.1 General . 6
8 4.2 Skill level required for repair . 6
9 4.3 Identification of spare parts. 7
10 4.4 Identification of safety-critical spare parts . 7
11 4.5 Fastening systems . 7
12 5 Prerequisites for the reuse of used parts . 8
13 6 Repair process . 8
14 6.1 General . 8
15 6.2 Failure description and repair option . 8
16 6.3 Disassembly process . 8
17 6.4 Reassembly steps . 9
18 6.5 Testing after repair . 9
19 7 Repair support . 9
20 7.1 Diagnostic support . 9
21 7.2 Availability of spare parts .10
22 7.3 Types and availability of information .10
23 7.4 Service models for repair.10
24 Bibliography .11
oSIST prEN 50735-1:2023
prEN 50735-1:2023 (E)
26 European foreword
27 This document (prEN 50735-1:2023) has been prepared by CLC/TC 116 “Safety and environmental aspects of
28 motor-operated electric tools”.
29 This document is currently submitted to the Enquiry.
30 The following dates are proposed:
• latest date by which the existence of this (doa) dor + 6 months
document has to be announced at national
level
• latest date by which this document has to be (dop) dor + 12 months
implemented at national level by publication of
an identical national standard or by
endorsement
• latest date by which the national standards (dow) dor + 36 months
conflicting with this document have to be (to be confirmed or
withdrawn modified when voting)
31 This document has been prepared in order to specify the requirements laid down in EN 45554:2020.
32 The following print types are used:
33 — requirements; in roman type;
34 — test specifications: in italic type;
35 — notes: in smaller roman type.
36 The terms defined in Clause 3 are printed in bold typeface.
oSIST prEN 50735-1:2023
prEN 50735-1:2023 (E)
37 1 Scope
38 This document provides product group specific guidance for a common understanding of measures, given by
39 any legislation, to define product specific information on the repairability and the reuse of used parts of motor-
40 operated hand-held tools, transportable tools, lawn and garden machinery. It is based on the following aspects:
41 • the inherent technical possibility/features to repair a product;
42 • the ability of the person repairing the product (skill level and tools);
43 • the possibility to reuse used parts of a product;
44 • the ability during repair for software updates.
45 The decision whether a product should be repaired is dependent on a range of factors such as health and
46 safety, intended use as well as economic, legal, and environmental aspects. However, the question of whether
47 it is reasonable to repair the product or reuse of used parts is outside of the scope of this document. This
48 document does not cover software (firmware and application software) or hardware modifications that change
49 the intended use of the product. Other risks making products non-compliant with safety standards are also
50 not covered by this document. The safety of the repairer during the repair is out of scope of this document.
51 2 Normative references
52 There are no normative references in this document.
53 3 Terms and definitions
54 3.1
55 accidental breakdown
56 failure of a product by unintentional action, inadvertence, a mistake or a misuse by the user
57 3.2
58 commercially available tool
59 tool that is available for purchase
60 3.3
61 core product
62 part of parts of a product which expose(s) dangerous parts during disassembly
63 3.4
64 disassembly
65 process whereby a product is taken apart in such a way that it can subsequently be reassembled and made
66 operational
67 [SOURCE: IEC 62542 definition 6.1, modified by changing “an item” into “a product” and deleting the note].
68 3.5
69 intended use
70 use of a product and parts in accordance with the information provided by the manufacturer
71 3.6
72 part
73 hardware, software (firmware and application software) constituent of a product
74 Note 1 to entry: A part can be an assembly of several parts.
oSIST prEN 50735-1:2023
prEN 50735-1:2023 (E)
75 3.7
76 product
77 any good that is placed on the market and/or put into service and includes parts intended to be incorporated
78 into it
79 Note 1 to entry: Products covered by this standard which are placed on the market and/or put into service as individual
80 parts for users and of which the environmental performance can be assessed independently.
81 3.8
82 reassembly
83 process by which a product, a spare part or a fastener is reassembled so as to fulfil its functional role and be
84 made operational
85 3.9
86 remote assistance
87 any system that is intended to facilitate the search for information in the event of a breakdown, information how
88 to identify the origin of a breakdown, or information how to carry out the repair
89 Note 1 to entry: Remote assistance services include information (website, FAQs, etc.), remote diagnostic support (phone
90 call line, chat, application included in the equipment, interactive decision tree, etc.) and repair support (phone call line, video
91 call, remote control of the equipment, etc.).
92 3.10
93 repair
94 process of returning a faulty product to a condition where it can fulfil its intended use
95 Note 1 to entry: Repair does not include maintenance (operation to be carried out as described in the instruction manual).
96 3.11
97 reuse
98 any operation by which a part extracted from a product at the end of its life is used in another product for the
99 same purpose for which it was intended
100 3.12
101 safety-critical spare part
102 spare part that fulfils a safety-critical function
103 Note 1 to entry: Potentially needs special attention, skills or testing during the assembly/disassembly.
104 3.13
105 spare part
106 separate part that can replace a part with the same function
107 3.14
108 special tool
109 tool that is generally only available to a manufacturer or a trained person
110 Note 1 to entry: Special measuring devices are included, i.e. devices for failure detection and testing after repair that can
111 only be handled by a trained person (level 2 professional repairer or a level 3 authorized professional repairer).
112 3.15
113 step
114 operation that finishes with a change of tool or with the removal and installation of a part when referring to
115 dismantling, disassembly, or reassembly
oSIST prEN 50735-1:2023
prEN 50735-1:2023 (E)
116 3.16
117 tool
118 any physical object (hardware) or non-physical object (software) which supports the disassembly, reassembly,
119 repair or replacement process
120 4 Prerequisites for repair
121 4.1 General
122 The repairability of a product is conditioned by a number of prerequisites, which, often by law, shall be met in
123 advance of the repair process. The following list is a non-exhaustive overview over some of the general aspects
124 which shall be taken into consideration.
125 NOTE In order to determine a comparable index of repairability, it makes sense to distinguish between possible repairs
126 and those that are not permitted to be performed by the end user due to safety legislation.
127 4.2 Skill level required for repair
128 Repairs are distinguished according to their complexity level as follows:
129 Complexity level of the repair A: No tools are needed or only commercially available tools. No safety-critical
130 spare parts and no special tests or calibration needed when the repair is carried out in accordance with the
131 instruction manual. Opening of the core product is not necessary.
132 Complexity level of the repair B: Special tools, but no safety-critical spare parts and no calibration needed
133 when the repair is carried out in accordance with the repair manual. Opening of the core product might be
134 necessary.
135 Complexity level of the repair C: Special tools, safety-critical spare parts and, if necessary, calibration
136 needed when the repair is carried out in accordance with the repair manual. Opening of the core product
137 might be necessary.
138 The skill levels of repairers are defined as follows:
139 Level 1 end user: person that can only perform the repair as described in the instruction manual.
140 NOTE For safety reasons, the repair of certain products or parts is not permitted to be performed by the end user,
141 including, without limitation, the following:
142 • Reset an immobilizer system or security-related electronic modules;
143 • Reprogram any electronic processing units or electric motor control units;
144 • Change any equipment or electric motor settings negatively affecting safety compliance;
145 • Download or a
...
