EN IEC 62325-451-6:2018

(Main)

Framework for energy market communications - Part 451-6: Publication of information on market, contextual and assembly models for European-style markets

Framework for energy market communications - Part 451-6: Publication of information on market, contextual and assembly models for European-style markets

IEC 62325-451-6:2018 specifies a UML package for the market information publication business process and its associated document contextual models, assembly models and XML schemas for use within the European-style electricity markets. This standard is based on the European-style market contextual model (IEC 62325‑351). The relevant aggregate core components (ACCs) defined in IEC 62325-351 have been contextualised into aggregated business information entities (ABIEs) to satisfy the requirements of the European-style market publication business process. This new edition includes the following significant technical changes with respect to the previous edition:
Addition of a new model allowing to publish information about the transmission capacity allocation participants.
Updates allowing to publish information about implicit transmission allocations on third countries borders, to publish outage related to consumption units and to publish information for resource object that can either consume or generate.

Kommunikation im Energiemarkt - Teil 451-6: Veröffentlichung von Marktinformationen, kontextbezogene Modelle und Einbindungsmodelle für den europäischen Markt

Cadre pour les communications pour le marché de l'énergie - Partie 451-6: Publication d'informations de marché, modèles contextuels et modèles d'assemblage pour les marchés de style européen

L'IEC 62325-451-6:2018 spécifie un paquetage UML pour le processus métier de publication des informations de marché, ainsi que les modèles contextuels de documents, les modèles d'assemblage et les schémas XML associés. Ces éléments sont destinés à être utilisés sur les marchés de l'électricité de style européen. La présente partie de l'IEC 62325 s'appuie sur un modèle contextuel spécifique, c'est-à-dire le profil de marché de style européen (IEC 62325-351). Les composants de base agrégés (ACC) pertinents définis dans l'IEC 62325-351 ont été contextualisés sous la forme d'entités d'information métier agrégées (ABIE) afin de satisfaire aux exigences du processus métier de publication sur les marchés de style européen. Cette nouvelle édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
Ajout d'un nouveau modèle pour la publication d'informations concernant les acteurs de l'attribution de la capacité de transport.
Mise à jour permettant la publication d'informations concernant les attributions implicites de transport aux frontières des pays tiers, la publication de l'indisponibilité liée aux unités de consommation, la publication d'informations concernant l'objet ressource pouvant consommer ou produire.

Okvir za komunikacije na trgu z električno energijo - 451-6. del: Objava informacij o trgu, kontekstni in združevalni modeli evropskega trga

Ta del standarda IEC 62325 določa paket UML za poslovni proces objave informacij o trgu in povezani dokument kontekstnih modelov, modelov sestavljanja in shem XML za uporabo na evropskih trgih za električno energijo.
Ta del standarda IEC 62325 temelji na kontekstnem modelu evropskega trga (IEC 62325-351). Poslovni proces, ki ga zajema ta del standarda IEC 62325, je opisan v točki 5.
Ustrezne združene osrednje komponente (ACC), definirane v standardu IEC 62325-351, so bile kontekstualizirane v združene entitete poslovnih informacij (ABIE), da ustrezajo zahtevam za poslovni proces tržnih objav na evropskem trgu.

General Information

Status
Published
Publication Date
16-Aug-2018
Withdrawal Date
11-Jun-2021
ICS
33.200 - Telecontrol. Telemetering
Technical Committee
CLC/TC 57 - Power systems management and associated information exchange
Drafting Committee
IEC/TC 57 - IEC_TC_57
Current Stage
6060 - Document made available - Publishing
Start Date
17-Aug-2018
Completion Date
17-Aug-2018
Ref Project
SIST EN IEC 62325-451-6:2018 - Framework for energy market communications - Part 451-6: Publication of information on market, contextual and assembly models for European style market

Relations

Replaces
EN 62325-451-6:2016 - Framework for energy market communications - Part 451-6: Publication of information on market, contextual and assembly models for European style market
Effective Date
12-Jun-2018

Buy Standard

EN IEC 62325-451-6:2018 - BARVEEN IEC 62325-451-6:2018 - BARVE
PreviousNext
Standard
EN IEC 62325-451-6:2018 - BARVE
English language
254 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN IEC 62325-451-6:2018
01-oktober-2018
1DGRPHãþD
SIST EN 62325-451-6:2016
2NYLU]DNRPXQLNDFLMHQDWUJX]HOHNWULþQRHQHUJLMRGHO2EMDYDLQIRUPDFLM
RWUJXNRQWHNVWQLLQ]GUXåHYDOQLPRGHOLHYURSVNHJDWUJD
Framework for energy market communications - Part 451-6: Publication of information on
market, contextual and assembly models for European style market
Kommunikation im Energiemarkt - Teil 451-6: Veröffentlichung von Marktinformationen,
kontextbezogene Modelle und Einbindungsmodelle für den europäischen Markt
Cadre pour les communications pour le marché de l'énergie - Partie 451-6: Publication
d'informations de marché, modèles contextuels et modèles d'assemblage pour les
marchés de style européen
Ta slovenski standard je istoveten z: EN IEC 62325-451-6:2018
ICS:
29.240.30 Krmilna oprema za Control equipment for electric
elektroenergetske sisteme power systems
33.200 Daljinsko krmiljenje, daljinske Telecontrol. Telemetering
meritve (telemetrija)
SIST EN IEC 62325-451-6:2018 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST EN IEC 62325-451-6:2018

---------------------- Page: 2 ----------------------

SIST EN IEC 62325-451-6:2018


EUROPEAN STANDARD EN IEC 62325-451-6

NORME EUROPÉENNE

EUROPÄISCHE NORM
August 2018
ICS 33.200 Supersedes EN 62325-451-6:2016
English Version
Framework for energy market communications -
Part 451-6: Publication of information on market, contextual and
assembly models for European-style markets
(IEC 62325-451-6:2018)
Cadre pour les communications pour le marché de l'énergie Kommunikation im Energiemarkt -
- Partie 451-6: Publication d'informations de marché, Teil 451-6: Veröffentlichung von Marktinformationen,
modèles contextuels et modèles d'assemblage pour les kontextbezogene Modelle und Einbindungsmodelle für den
marchés de style européen europäischen Markt
(IEC 62325-451-6:2018) (IEC 62325-451-6:2018)
This European Standard was approved by CENELEC on 2018-06-12. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,
Switzerland, Turkey and the United Kingdom.


European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2018 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
 Ref. No. EN IEC 62325-451-6:2018 E

---------------------- Page: 3 ----------------------

SIST EN IEC 62325-451-6:2018
EN IEC 62325-451-6:2018

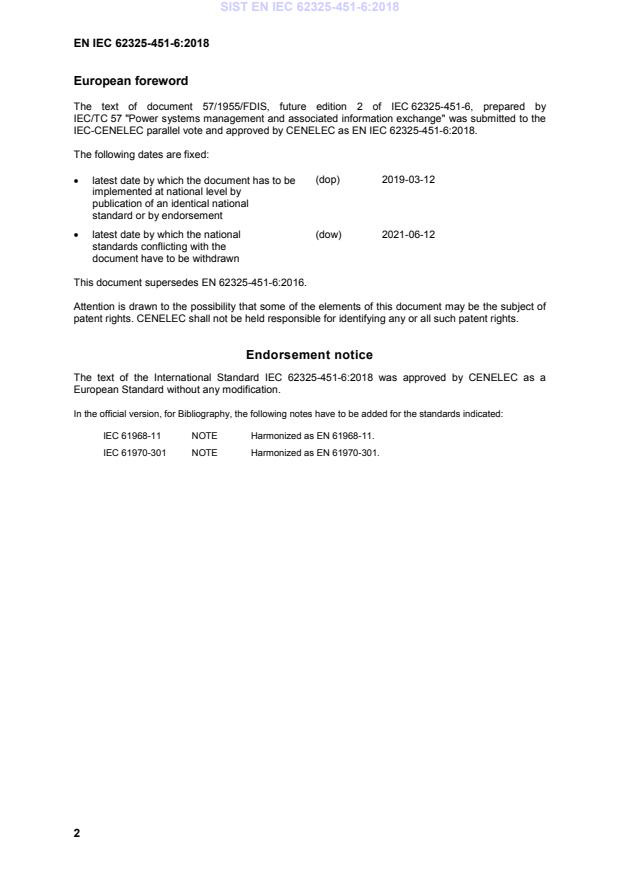

European foreword
The text of document 57/1955/FDIS, future edition 2 of IEC 62325-451-6, prepared by
IEC/TC 57 "Power systems management and associated information exchange" was submitted to the
IEC-CENELEC parallel vote and approved by CENELEC as EN IEC 62325-451-6:2018.

The following dates are fixed:
(dop) 2019-03-12
• latest date by which the document has to be
implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2021-06-12
standards conflicting with the
document have to be withdrawn

This document supersedes EN 62325-451-6:2016.

Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.

Endorsement notice
The text of the International Standard IEC 62325-451-6:2018 was approved by CENELEC as a
European Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:

IEC 61968-11 NOTE Harmonized as EN 61968-11.
IEC 61970-301 NOTE Harmonized as EN 61970-301.
2

---------------------- Page
...
