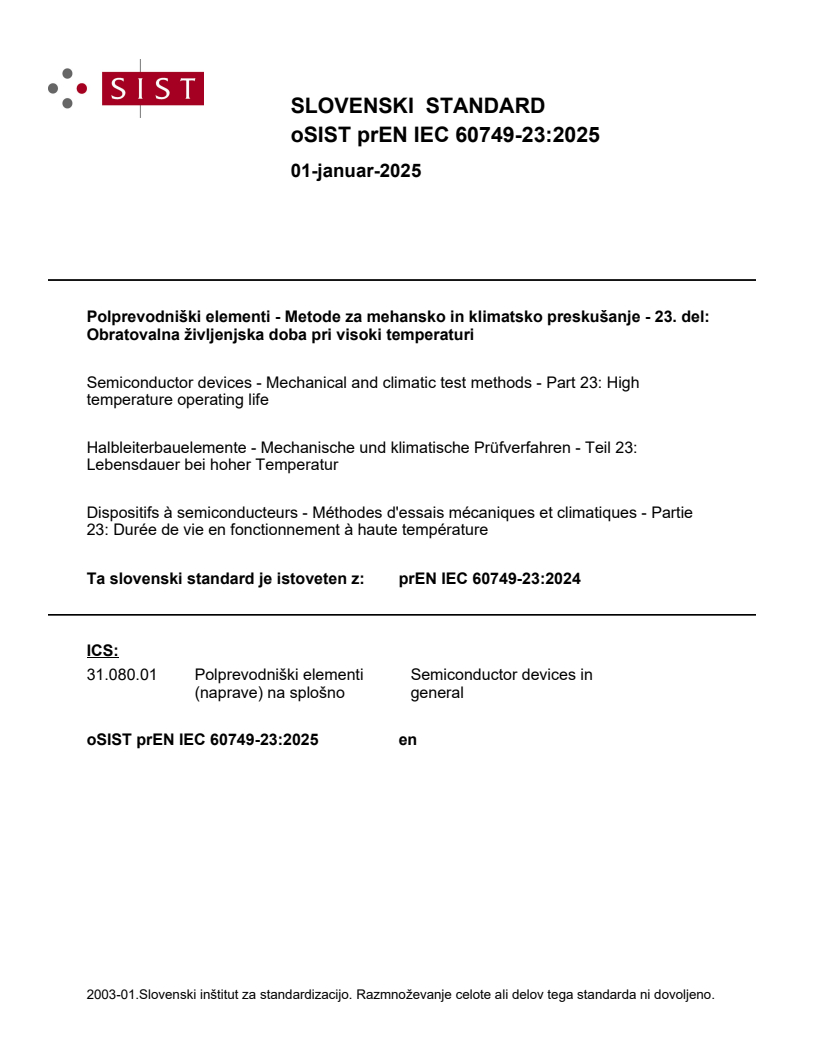

SLOVENSKI STANDARD
01-januar-2025
Polprevodniški elementi - Metode za mehansko in klimatsko preskušanje - 23. del:
Obratovalna življenjska doba pri visoki temperaturi
Semiconductor devices - Mechanical and climatic test methods - Part 23: High
temperature operating life
Halbleiterbauelemente - Mechanische und klimatische Prüfverfahren - Teil 23:
Lebensdauer bei hoher Temperatur
Dispositifs à semiconducteurs - Méthodes d'essais mécaniques et climatiques - Partie
23: Durée de vie en fonctionnement à haute température
Ta slovenski standard je istoveten z: prEN IEC 60749-23:2024
ICS:
31.080.01 Polprevodniški elementi Semiconductor devices in
(naprave) na splošno general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

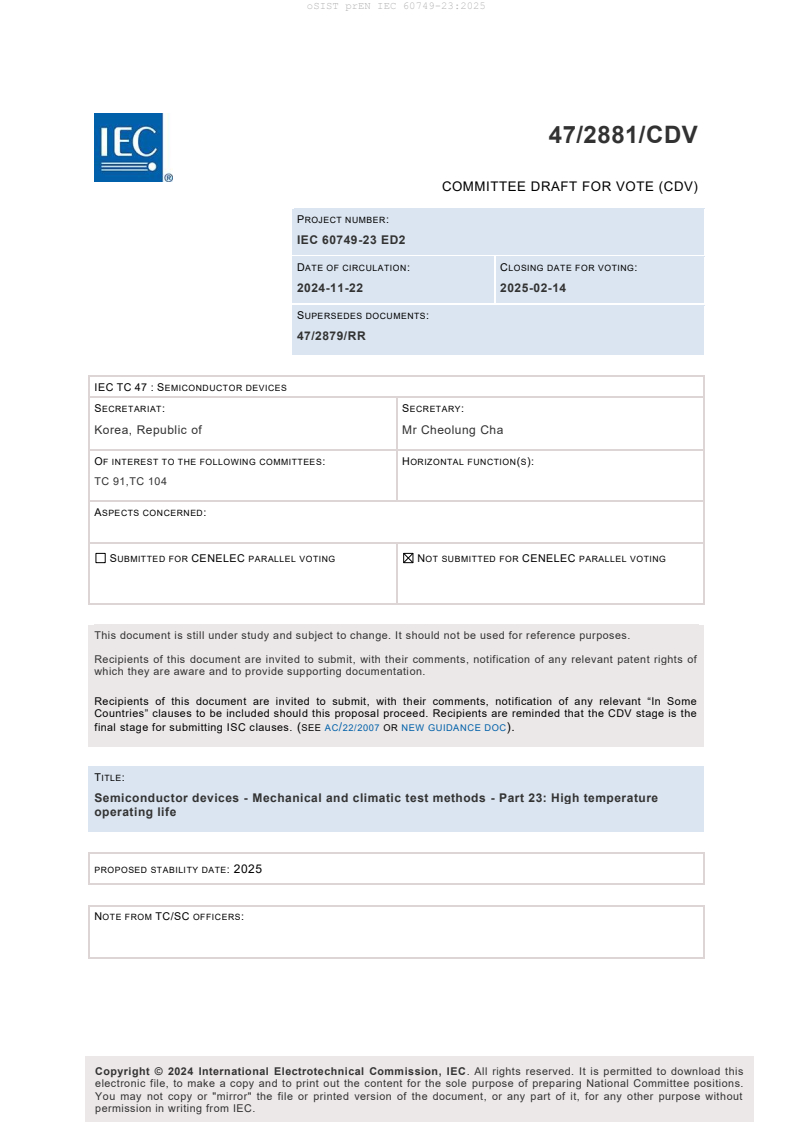

47/2881/CDV
COMMITTEE DRAFT FOR VOTE (CDV)
PROJECT NUMBER:
IEC 60749-23 ED2
DATE OF CIRCULATION: CLOSING DATE FOR VOTING:
2024-11-22 2025-02-14
SUPERSEDES DOCUMENTS:
47/2879/RR
IEC TC 47 : SEMICONDUCTOR DEVICES
SECRETARIAT: SECRETARY:
Korea, Republic of Mr Cheolung Cha
OF INTEREST TO THE FOLLOWING COMMITTEES: HORIZONTAL FUNCTION(S):
TC 91,TC 104
ASPECTS CONCERNED:
SUBMITTED FOR CENELEC PARALLEL VOTING NOT SUBMITTED FOR CENELEC PARALLEL VOTING
This document is still under study and subject to change. It should not be used for reference purposes.
Recipients of this document are invited to submit, with their comments, notification of any relevant patent rights of
which they are aware and to provide supporting documentation.
Recipients of this document are invited to submit, with their comments, notification of any relevant “In Some
Countries” clauses to be included should this proposal proceed. Recipients are reminded that the CDV stage is the
final stage for submitting ISC clauses. (SEE AC/22/2007 OR NEW GUIDANCE DOC).
TITLE:
Semiconductor devices - Mechanical and climatic test methods - Part 23: High temperature
operating life
PROPOSED STABILITY DATE: 2025
NOTE FROM TC/SC OFFICERS:
electronic file, to make a copy and to print out the content for the sole purpose of preparing National Committee positions.
You may not copy or "mirror" the file or printed version of the document, or any part of it, for any other purpose without
permission in writing from IEC.
IEC CDV 60749-23 © IEC 2024 2 47/2881/CDV
1 CONTENTS
3 FOREWORD . 3
4 1 Scope . 5
5 2 Normative references . 5
6 3 Terms and definitions . 5
7 4 Test apparatus . 6
8 4.1 Testing requirements . 6
9 4.1.1 Circuitry . 6
10 4.1.2 Device schematic . 6
11 4.1.3 Power . 6
12 4.1.4 Device mounting . 6
13 4.1.5 Power supplies and signal sources . 6
14 4.1.6 Environmental chamber . 6
15 5 Procedure . 6
16 5.1 Stress requirements . 6
17 5.2 Stress duration . 6
18 5.3 Stress conditions . 6
19 5.3.1 Stress condition application . 6
20 5.3.2 Ambient temperature . 7
21 5.3.3 Operating voltage . 7
22 5.3.4 Biasing configurations . 7
23 6 Cool-down . 8
24 7 Measurements . 8
25 8 Failure criteria . 9
26 9 Life Testing reporting . 9
27 10 Summary . 9
29 Table 1 – Additional Stress Requirements for Parts Not Tested Within Time Window . 9
IEC CDV 60749-23 © IEC 2024 3 47/2881/CDV
33 INTERNATIONAL ELECTROTECHNICAL COMMISSION
34 ____________
36 SEMICONDUCTOR DEVICES –
37 MECHANICAL AND CLIMATIC TEST METHODS –
39 Part 23: High temperature operating life
41 FOREWORD
42 1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
43 all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
44 international co-operation on all questions concerning standardization in the electrical and electronic fields. To
45 this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
46 Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
47 Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
48 in the subject dealt with may participate in this preparatory work. International, governmental and non -
49 governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
50 with the International Organization for Standardization (ISO) in accordance with conditions determined by
51 agreement between the two organizations.
52 2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
53 consensus of opinion on the relevant subjects since each technical committee has representation from all
54 interested IEC National Committees.
55 3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
56 Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
57 Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
58 misinterpretation by any end user.
59 4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
60 transparently to the maximum extent possible in their national and regional publications. Any divergence
61 between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
62 the latter.
63 5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
64 assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
65 services carried out by independent certification bodies.
66 6) All users should ensure that they have the latest edition of this publication.
67 7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
68 members of its technical committees and IEC National Committees for any personal injury, property damage or
69 other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
70 expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
71 Publications.
72 8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
73 indispensable for the correct application of this publication.
74 9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
75 patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
76 respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s),
77 which may be required to implement this document. However, implementers are cautioned that this may not
78 represent the latest information, which may be obtained from the patent database available at
79 https://patents.iec.ch. IEC shall not be held responsible for identifying any or all such patent rights.
80 IEC 60749-23 ED2 has been prepared by IEC technical committee 47: Semiconductor
81 Devices. It is an International Standard.
82 This second edition, based on JEDEC document JESD22-A108G, cancels and replaces the
83 first edition published in 2004, It is used with permission of the copyright holder, JEDEC Solid
84 State Technology Association. This edition constitutes a technical revision.
85 This edition includes the following significant technical changes with respect to the previous
86 edition:
87 a) Absolute stress test definitions and resultant test durations have been updated.
IEC CDV 60749-23 © IEC 2024 4 47/2881/CDV
88 The text of this International Standard is based on the following documents:
Draft Report on voting
XX/XX/FDIS XX/XX/RVD
90 Full information on the voting for its approval can be found in the report on voting indicated in
91 the above table.
92 The language used for the development of this International Standard is English.
93 This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
94 accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement,
95 available at www.iec.ch/members_experts/refdocs. The main document types developed by
96 IEC are described in greater detail at www.iec.ch/publications.
97 The committee has decided that the contents of this document will remain unchanged until the
98 stability date indicated on the IEC website under webstore.iec.ch in the data related to the
99 specific document. At this date, the document will be
100 • reconfirmed,
101 • withdrawn, or
102 • revised.
IEC CDV 60749-23 © IEC 2024 5 47/2881/CDV
106 SEMICONDUCTOR DEVICES –
107 MECHANICAL AND CLIMATIC TEST METHODS –
109 Part 23: High temperature operating life
113 1 Scope
114 This test is used to determine the effects of bias conditions and temperature on solid state
115 devices over time. It simulates the device operating condition in an accelerated way, and is
116 primarily for device qualification and reliability monitoring. A form of high temperature bias life
117 using a short duration, popularly known as “burn-in”, may be used to screen for infant-
118 mortality related failures. The detailed use and application of burn-in is outside the scope of
119 this standard.
120 2 Normative references
121 The following documents are referred to in the text in such a way that some or all of their
122 content constitutes requirements of this document. For dated references, only the edition
123 cited applies. For undated references, the latest edition of the referenced document (including
124 any amendments) applies.
125 IEC 60747 (all parts), Semiconductor devices – Discrete devices and integrated circuits
126 IEC 60749-34, Semiconductor devices – Mechanical and climatic test methods – Part 34:
127 Power cycling
128 3 Terms and definitions
129 For the purposes of this document, the following terms and definitions apply.
130 3.1
131 maximum operating voltage
132 maximum supply voltage at which a device is specified to operate in compliance with the
133 applicable device specification or data sheet
134 3.2
135 absolute maximum rated voltage
136 maximum voltage that may be applied to a device, beyond which damage (latent or otherwise)
137 may occur
138 NOTE It is frequently specified by device manufacturers for a specific device and/or technology
139 3.3
140 absolute maximum rated junction temperature
141 maximum junction temperature of an operating device beyond which damage (latent or
142 otherwise) may occur
143 NOTE 1 It is frequently specified by device manufacturers for a specific device and/or technology.
144 NOTE 2 Manufacturers may also specify maximum case temperatures for specific packages.
IEC CDV 60749-23 © IEC 2024 6 47/2881/CDV
145 4 Test apparatus
146 4.1 Testing requirements
147 The performance of this test requires equipment that is capable of providing the particular
148 stress conditions to which the test samples will be subjected.
149 4.1.1 Circuitry
150 The circuitry through which the samples will be biased must be designed taking into account
151 several considerations, as outlined below.
152 4.1.2 Device schematic
153 The biasing and operating schemes shall consider the limitations of the device and shall not
154 overstress the devices or contribute to thermal runaway.
155 4.1.3 Power
156 The test ci
...
