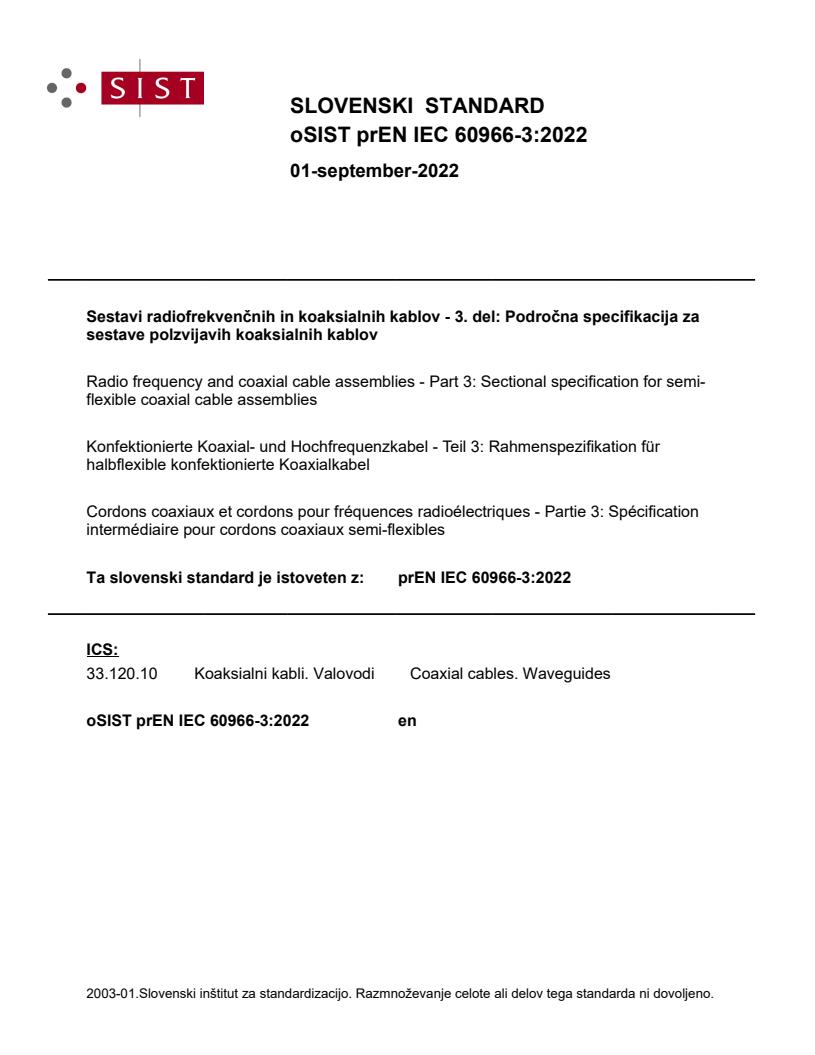

SLOVENSKI STANDARD
oSIST prEN IEC 60966-3:2022
01-september-2022
Sestavi radiofrekvenčnih in koaksialnih kablov - 3. del: Področna specifikacija za
sestave polzvijavih koaksialnih kablov
Radio frequency and coaxial cable assemblies - Part 3: Sectional specification for semi-
flexible coaxial cable assemblies
Konfektionierte Koaxial- und Hochfrequenzkabel - Teil 3: Rahmenspezifikation für
halbflexible konfektionierte Koaxialkabel
Cordons coaxiaux et cordons pour fréquences radioélectriques - Partie 3: Spécification
intermédiaire pour cordons coaxiaux semi-flexibles
Ta slovenski standard je istoveten z: prEN IEC 60966-3:2022
ICS:
33.120.10 Koaksialni kabli. Valovodi Coaxial cables. Waveguides
oSIST prEN IEC 60966-3:2022 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
oSIST prEN IEC 60966-3:2022
---------------------- Page: 2 ----------------------
oSIST prEN IEC 60966-3:2022

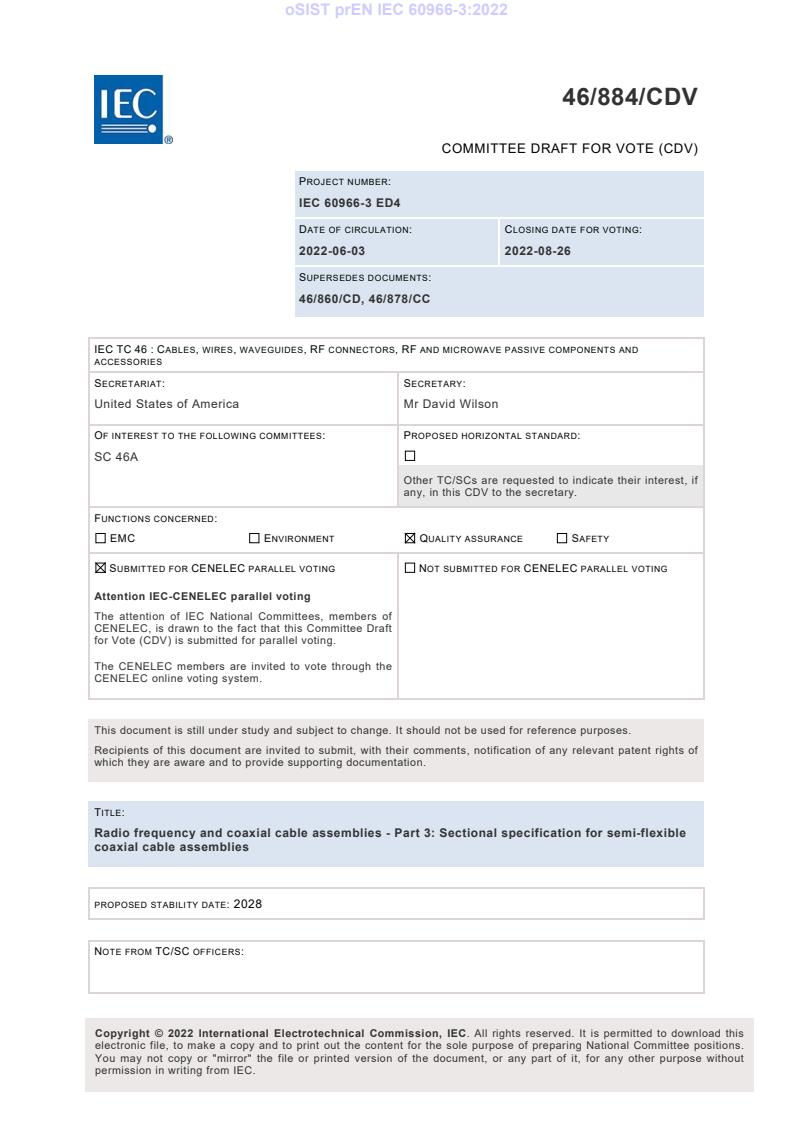

46/884/CDV
COMMITTEE DRAFT FOR VOTE (CDV)
PROJECT NUMBER:
IEC 60966-3 ED4
DATE OF CIRCULATION: CLOSING DATE FOR VOTING:
2022-06-03 2022-08-26
SUPERSEDES DOCUMENTS:
46/860/CD, 46/878/CC
IEC TC 46 : CABLES, WIRES, WAVEGUIDES, RF CONNECTORS, RF AND MICROWAVE PASSIVE COMPONENTS AND
ACCESSORIES
SECRETARIAT: SECRETARY:
United States of America Mr David Wilson
OF INTEREST TO THE FOLLOWING COMMITTEES: PROPOSED HORIZONTAL STANDARD:
SC 46A
Other TC/SCs are requested to indicate their interest, if
any, in this CDV to the secretary.
FUNCTIONS CONCERNED:
EMC ENVIRONMENT QUALITY ASSURANCE SAFETY
SUBMITTED FOR CENELEC PARALLEL VOTING NOT SUBMITTED FOR CENELEC PARALLEL VOTING
Attention IEC-CENELEC parallel voting
The attention of IEC National Committees, members of
CENELEC, is drawn to the fact that this Committee Draft
for Vote (CDV) is submitted for parallel voting.
The CENELEC members are invited to vote through the
CENELEC online voting system.
This document is still under study and subject to change. It should not be used for reference purposes.
Recipients of this document are invited to submit, with their comments, notification of any relevant patent rights of
which they are aware and to provide supporting documentation.
TITLE:
Radio frequency and coaxial cable assemblies - Part 3: Sectional specification for semi-flexible
coaxial cable assemblies
PROPOSED STABILITY DATE: 2028
NOTE FROM TC/SC OFFICERS:
Copyright © 2022 International Electrotechnical Commission, IEC. All rights reserved. It is permitted to download this
electronic file, to make a copy and to print out the content for the sole purpose of preparing National Committee positions.
You may not copy or "mirror" the file or printed version of the document, or any part of it, for any other purpose without
permission in writing from IEC.
---------------------- Page: 3 ----------------------
oSIST prEN IEC 60966-3:2022
IEC CDV 60966-3 © IEC 2022 2 46/884/CDV
1
2
3 CONTENTS
4 1 Scope . 4
5 2 Normative references . 4
6 3 Definitions . 4
7 4 Design and construction . 5
8 4.1 Cable design and construction. 5
9 4.2 Connector design and construction . 5
10 4.3 The relative position dimensions of the interface . 5
11 4.4 Outline of the cable assembly . 5
12 5 Workmanship, marking and packaging . 6
13 6 IEC type designation . 7
14 7 Rating and characteristics . 8
15 7.1 Nominal characteristic impedance . 8
16 7.2 Temperature range . 8
17 8 Requirements of finished cable assemblies . 8
18 8.1 General . 8
19 8.2 Electrical requirements . 8
20 8.3 Mechanical requirements . 10
21 8.4 Environmental requirements . 12
22 8.5 Content of toxic and harmful substances . 14
23 9 Quality management . 14
24 10 Test schedules . 14
25 Annex A . 18
26 Annex B . 20
27
28 Figure 1 - Length definition of cable assemblies with two connectors . 6
29 Figure 2 - Length definition of cable assemblies with one connector . 6
30 Figure 3 – The marking example of a cable assembly . 7
31 Figure A.1 –The relative position dimensions of the interface of some typical
32 connectors . 19
33 Figure B.1 – Preferred arrangement for vibrations, shocks test . 20
34
35 Table 1 Rated temperature of cable assemblies with semi-flexible cables with
36 polytetrafluoroethylene dielectric (IEC 61196-8) . 8
37 Table 2- Electrical requirements . 8
38 Table 3- Mechanical requirements . 10
39 Table 4- Environmental requirements . 12
40 Table 5 – Content of toxic and harmful substance . 14
41 Table 6 Qualification test . 15
42 Table 7 Acceptance test . 16
43 Table 8 Sampling plan . 16
44 Table 9 Periodic test . 17
---------------------- Page: 4 ----------------------
oSIST prEN IEC 60966-3:2022
46/884/CDV 3 IEC CDV 60966-3 © IEC 2022
45 Table A.1 –The dimensions of A and B in Figure A.1 . 19
46
---------------------- Page: 5 ----------------------
oSIST prEN IEC 60966-3:2022
IEC CDV 60966-3 © IEC 2022 4 46/884/CDV
47
48 INTERNATIONAL ELECTROTECHNICAL COMMISSION
49 ____________
50
51 RADIO FREQUENCY AND COAXIAL CABLE ASSEMBLIES -
52 Part 3: Sectional specification for semi-flexible coaxial cable assemblies
53
54 1 Scope
55 This part of IEC 60966 is a sectional specification that relates to semi-flexible coaxial cable
56 assemblies operating in the transverse electromagnetic mode (TEM). It specifies the design
57 and construction, IEC type designation, workmanship, marking and packaging, standard rating
58 and characteristics, electrical, mechanical and environmental requirements of finished semi-
59 flexible cable assemblies, quality assessment, delivery and storage, etc.
60 This part of IEC 60966 applies to semi-flexible cable assemblies composed of semi-flexible
61 coaxial cables and coaxial connectors. Semi-flexible cable assemblies are widely used in
62 mobile communication systems, microwave test equipment, radar, aerospace and other fields.
63 NOTE 1： For the purpose of this sectional specification, a cable assembly is always regarded as an integral unit.
64 All specifications apply to the finished assembly and not to individual and non-assembled parts thereof.
65 NOTE 2： This sectional specification should be supplemented with detail specifications giving additional details as
66 required by the particular application. This application will not necessarily require all tests.
67 2 Normative references
68 The following referenced documents are indispensable for the application of this document.
69 For dated references, only the edition cited applies. For undated references, the latest edition
70 of the referenced document (including any amendments) applies.
71 IEC 60966-1:2019, Radio-frequency and coaxial cable assemblies Part 1: Generic
72 specification - General requirements and test methods
73 IEC 61169 (all parts), Radio-frequency connectors
74 IEC 61196-1-126 Coaxial communication cables Part 1-126: Electrical test methods – Corona
75 extinction voltage
76 IEC 61196-8 Coaxial communication cables-Part 8: Sectional specification for semi-flexible
77 cables with polytetrafluoroethylene(PTFE) dielectric
78 IEC 62321 Electrotechnical products-Determination of levels of six regulated substance (lead,
79 mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl
80 ethers)
81 3 Definitions
82 For the purposes of this document, the definitions given in IEC 60966-1:2019 apply.
---------------------- Page: 6 ----------------------
oSIST prEN IEC 60966-3:2022
46/884/CDV 5 IEC CDV 60966-3 © IEC 2022
83 4 Design and construction
84 4.1 Cable design and construction
85 Cables should conform to IEC 61196-8. Where cable designs deviating from these
86 publications are required, they shall comply with the requirements of the detail specification of
87 the cable.
88 If required, the manufacturer may use additional protective tubing or cable deviating from IEC
89 61196-8, in order to comply with the requirements of the detail specification.
90 The materials used in the cable shall be given as engineering information the relevant detail
91 specification.
92 According to local regulation, raw material of the cable as well as those of additional
93 protection shall be chosen to comply with regional or national Directives and Regulations such
94 as RoHS and REACH in Europe.
95 4.2 Connector design and construction
96 Connectors should conform to IEC 61169. Where connector designs deviating from IEC 61169
97 are required, the interface should conform to the relevant part of IEC 61169 where available
98 and shall comply with the requirements of the detail specification.
99 The materials used in the connector shall be given as engineering information the relevant
100 detail specification.
101 According to local regulation, raw material of the connector as well as those of additional
102 protection shall be chosen to comply with RoHS and other environmental regulation such as
103 REACH in Europe.
104 4.3 The relative position dimensions of the interface
105 The relative position dimensions of the interface of end connector(s) of the cable assemblies
106 should comply with the interface of the relevant part of IEC 61169 or the relevant detail
107 specification. The relative position dimensions of the interface of end connector(s) include the
108 dimension of inner conductor relative to dielectric and inner conductor relative to out
109 conductor.
110 The relative position dimensions of the interface of some typical connectors are shown in
111 Annex A.
112 4.4 Outline of the cable assembly
113 The outline shall be in accordance with the detail specification of the cable assembly.
114 The length, unless otherwise specified in the relevant detail specification, is defined as
115 between the end planes of the connectors. In the case of right-angle connectors, the length
116 applies to the axis of the connectors (see figure 1 and figure2).
117 Unless specified in the relevant detail specification, the length tolerance shall be ±1 % for
118 cables equal to or longer than 300 mm, and±3 mm for cables shorter than 300 mm.
---------------------- Page: 7 ----------------------
oSIST prEN IEC 60966-3:2022
IEC CDV 60966-3 © IEC 2022 6 46/884/CDV
119
120 Figure 1 - Length definition of cable assemblies with two connectors
121
122 Figure 2 - Length definition of cable assemblies with one connector
123 5 Workmanship, marking and packaging
124 Clause 5 of IEC 60966-1:2019 and the following applies:
125 Cable assemblies made in accordance with this sectional specification comprise a section of
126 cable and two connectors. Occasionally the cable assembly will comprise only a cable and
127 one connector. When specified in the relevant detail specification, the assembly may
---------------------- Page: 8 ----------------------
oSIST prEN IEC 60966-3:2022
46/884/CDV 7 IEC CDV 60966-3 © IEC 2022
128 additionally include markers for identification of the assembly and interconnecting ends. End
129 caps and other accessories may also be specified (see figure 3).
Semi-flexible cable
a a
a
Marking end 1 Identification
Marking end 2
130
Connector 2
Connector 1
Semi-flexible cable
a
a
Identification
Marking end 1
Connector 1
131
a
132 When specified
133 Figure 3 – The marking example of a cable assembly
134
135 6 IEC type designation
136 IEC type designation of cable assembly consists of the type of cable and connectors, the
137 length of the cable assembly and the IEC standard number, as shown below:
138 × － × / × － × － ×－IEC XXX
IEC standard number
139
Distinguishing number (when needed)
140
141
Length of cable assembly, in mm
142
143
Connector type at the other end
144
145 Connector type at one end
146
Cable type, Variant
147
148 For example 1：50-141-13-SMA/SMA-100-A-IEC60966-3 cable assembly is comprised with
149 50-141-13 semi-flexible cable, one end is SMA pin connector and the other end is SMA pin
150 connector, the length of the cable assembly is 100mm, its distinguishing number is A. This
151 cable assembly comply with IEC 60966-3.
152 For example 2： 50-141-13-SMA-100-A-IEC60966-3 cable assembly is comprised with 50-
153 141-13 semi-flexible cable, one end is SMA pin connector and the other end empty, the length
154 of the cable assembly is 100mm, its distinguishing number is A. This cable assembly comply
155 with IEC 60966-3.
---------------------- Page: 9 ----------------------
oSIST prEN IEC 60966-3:2022
IEC CDV 60966-3 © IEC 2022 8 46/884/CDV
156 7 Rating and characteristics
157 7.1 Nominal characteristic impedance
158 The nominal characteristic impedance shall be 50Ω, 75Ω or specified in the relevant detail
159 specification.
160 7.2 Temperature range
161 The rated temperature range of the cable assemblies with different cables shall be in
162 according to Table 1 or as specified in its detail specification.
163 Table 1 Rated temperature of cable assemblies with semi-flexible cables with
164 polytetrafluoroethylene dielectric (IEC 61196-8)
No sheath PVC Sheath FEP Sheath LSZH Sheath
Parameter
°C °C °C °C
Operational
-55~125 -40~85 -55~125 -15~70
temperature range
Storage
-55~125 -40~85 -55~125 -15~70
temperature range
Installation
-10~40 -30~60 -40~60 -10~60
temperature range
165 8 Requirements of finished cable assemblies
166 8.1 General
167 For finished cable assemblies, the requirements given below shall apply when they are tested
168 in accordance with IEC 60966-1:2019 and the test methods specified herein.
169 When needed, cable assemblies with one connector shall be terminated with a suitable
170 connector at the cable end to do the test and cut off after the test.
171 Unless otherwise specified, all measurements shall be carried out under standard
172 atmospheric conditions for testing in accordance with clause 5 of IEC 60068-1:2013.
173 8.2 Electrical requirements
174 Electrical requirements are given in Table 2.
175 Table 2- Electrical requirements
Subclause Parameter Test method Requirements/Remarks
IEC 60966-1:2019
Value in accordance with the relevant detail
specification
Ar) is preferred, the
While the parameter return loss (
reflection factor (r) or the VSWR (voltage standing
wave ratio) may be specified
Reflection
8.2.1 8.1
properties
where
A = −20 log |r|
r 10
and
1 + r
VSWR =
1 − r
---------------------- Page: 10 ----------------------
oSIST prEN IEC 60966-3:2022
46/884/CDV 9 IEC CDV 60966-3 © IEC 2022
Subclause Parameter Test method Requirements/Remarks
IEC 60966-1:2019
Rise time of the TDR system according to the detail
specification.
Uniformity of
8.2.2 8.2
The characteristic impedance variation shall not
impedance
exceed ± 5 % of the nominal value or in according to
the relevant detail specifications.
Value in accordance with the relevant detail
8.2.3 Insertion loss 8.3
specification
When required, unless otherwise specified in the
relevant detail specification, test conditions and
requirements are as follows :
a) test mandrel radius: dynamic state bending
radius in the relevant detail specification of
Insertion loss
cable
8.2.4 8.4
stability
b) number of turns: 1
c) portion of the cable assembly on the mandrel is
its central portion
After bending, the insertion loss shall be in
according to the detail specification.
When required, value in accordance with the detail
specification.
8.2.5 Propagation time 8.5
Typical values are for solid PTFE dielectric of cable:
4,76 ns/m.
When required, method 1 or method 2 in 8.6.2.1 of
IEC 60966-1:2019 shall be used in according to detail
Stability of
specification.
8.2.6 8.6
electrical length
Test conditions and requirements in according to the
detail specification.
When required, the phase difference shall not exceed
the limits specified in the relevant detail specification.
8.2.7 Phase difference 8.7 When more than two cable assemblies measured, the
refe
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
