EN 60317-21:2014

Specifications for particular types of winding wires - Part 21: Solderable polyurethane enamelled round copper wire overcoated with polyamide, class 155

IEC 60317-21:2013 specifies the requirements of solderable enamelled round copper winding wire of class 155 with a dual coating. The underlying coating is based on polyurethane resin, which may be modified providing it retains the chemical identity of the original resin and meets all specified wire requirements. The superimposed coating is based on polyamide resin. NOTE - A modified resin is a resin that has undergone a chemical change, or contains one or more additives to enhance certain performance or application characteristics. The range of nominal conductor diameters covered by this standard is: - Grade 1: 0,050 mm up to and including 1,600 mm; - Grade 2: 0,050 mm up to and including 1,600 mm. The nominal conductor diameters are specified in Clause 4 of IEC 60317-0-1:2013. This third edition cancels and replaces the second edition published in 1990, Amendment 1:1997 and Amendment 2:1999. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition: - new 3.2.2 containing general notes on winding wire, formerly a part of the scope; - revision to references to IEC 60317-0-1:2013 to clarify that their application is normative; - consolidation of 17.1 and 17.2 of the solderability requirements; - modification to Clause 19, Dielectric dissipation factor; - new Clause 23, Pin hole test. Keywords: requirements of solderable enamelled round copper winding wire, class 155, dual coating

Technische Lieferbedingungen für bestimmte Typen von Wickeldrähten - Teil 21: Runddrähte aus Kupfer, verzinnbar, lackisoliert mit Polyurethan und darüber mit Polyamid, Klasse 155

Spécifications pour types particuliers de fils de bobinage - Partie 21: Fil brasable de section circulaire en cuivre émaillé avec polyuréthane et avec surcouche polyamide, classe 155

La CEI 60317-21:2013 spécifie les exigences pour les fils de bobinage brasables de section circulaire en cuivre émaillé de classe 155 avec un double revêtement. La sous-couche est à base de résine polyuréthanne, qui peut être modifiée sous réserve de conserver l'identité chimique de la résine initiale et de répondre à toutes les exigences spécifiées pour le fil. La surcouche est à base de résine polyamide. NOTE - Une résine modifiée est une résine qui a subi une modification chimique, ou qui contient un ou plusieurs additifs pour améliorer les résultats obtenus ou les caractéristiques d'utilisation. La gamme des diamètres nominaux des conducteurs couverte par la présente norme est: - Grade 1: 0,050 mm jusqu'à 1,600 mm compris; - Grade 2: 0,050 mm jusqu'à 1,600 mm compris. Les diamètres nominaux des conducteurs sont spécifiés dans l'Article 4 de la CEI 60317-0-1:2013. Cette troisième édition annule et remplace la deuxième édition parue en 1990, l'Amendement 1:1997 et l'Amendement 2:1999. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente: - un nouveau 3.2.2 contenant des notes générales sur le fil de bobinage intégrées auparavant au domaine d'application; - la révision des références à la CEI 60317-0-1:2013 pour bien établir que leur application est normative; - la consolidation de 17.1 et 17.2 des exigences relatives à la brasabilité; - la modification de l'Article 19, facteur de dissipation diélectrique; - un nouvel Article 23, détection des microfissures en immersion. Mots clés: exigences pour les fils de bobinage brasables de section circulaire en cuivre émaillé classe 155, double revêtement

Specifikacije za posebne vrste navijalnih žic - 21. del: S poliuretanom emajlirana okrogla bakrena žica, prevlečena s poliamidom, za spajkanje, razred 155 (IEC 60317-21:2013)

General Information

• Status: Published
• Publication Date: 13-Feb-2014
• Withdrawal Date: 13-Nov-2016
• ICS: 29.060.10 - Wires
• Technical Committee: CLC/TC 55 - Winding wires
• Drafting Committee: IEC/TC 55 - IEC_TC_55
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 14-Feb-2014
• Completion Date: 14-Feb-2014
• Ref Project: SIST EN 60317-21:2014 - Specifications for particular types of winding wires - Part 21: Solderable polyurethane enamelled round copper wire overcoated with polyamide, class 155

Relations

• Replaces: EN 60317-21:1995/A1:1998 - Specifications for particular types of winding wires - Part 21: Solderable polyurethane enamelled round copper wire overcoated with polyamide, class 155
• Effective Date: 29-Jan-2023
• Replaces: EN 60317-21:1995/A2:2000 - Specifications for particular types of winding wires - Part 21: Solderable polyurethane enamelled round copper wire overcoated with polyamide, class 155
• Effective Date: 29-Jan-2023
• Replaces: EN 60317-21:1995 - Specifications for particular types of winding wires - Part 21: Solderable polyurethane enamelled round copper wire overcoated with polyamide, class 155
• Effective Date: 29-Jan-2023
• Amended By: EN 60317-21:2014/A1:2019 - Specifications for particular types of winding wires - Part 21: Solderable polyurethane enamelled round copper wire overcoated with polyamide, class 155
• Effective Date: 26-Jan-2023

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN 60317-21:2014
01-april-2014
1DGRPHãþD
SIST EN 60317-21:2001
SIST EN 60317-21:2001/A1:2002
SIST EN 60317-21:2001/A2:2001
6SHFLILNDFLMH]DSRVHEQHYUVWHQDYLMDOQLKåLFGHO6SROLXUHWDQRPHPDMOLUDQD
RNURJODEDNUHQDåLFDSUHYOHþHQDVSROLDPLGRP]DVSDMNDQMHUD]UHG,(&

Specifications for particular types of winding wires - Part 21: Solderable polyurethane
enamelled round copper wire overcoated with polyamide, class 155
/
Spécifications pour types particuliers de fils de bobinage - Partie 21: Fil de section
circulaire en cuivre émaillé avec polyuréthanne brasable et avec surcouche polyamide,
classe 155
Ta slovenski standard je istoveten z: EN 60317-21:2014
ICS:
29.060.10 Žice Wires
SIST EN 60317-21:2014 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST EN 60317-21:2014

---------------------- Page: 2 ----------------------

SIST EN 60317-21:2014

EUROPEAN STANDARD
EN 60317-21

NORME EUROPÉENNE
February 2014
EUROPÄISCHE NORM

ICS 29.060.10 Supersedes EN 60317-21:1995 + A1:1998 + A2:2000


English version


Specifications for particular types of winding wires -
Part 21: Solderable polyurethane enamelled round copper wire overcoated
with polyamide, class 155
(IEC 60317-21:2013)


Spécifications pour types particuliers de Technische Lieferbedingungen für
fils de bobinage - bestimmte Typen von Wickeldrähten -
Partie 21: Fil brasable de section circulaire Teil 21: Runddrähte aus Kupfer,
en cuivre émaillé avec polyuréthane et verzinnbar, lackisoliert mit Polyurethan
avec surcouche polyamide, classe 155 und darüber mit Polyamid, Klasse 155
(CEI 60317-21:2013) (IEC 60317-21:2013)





This European Standard was approved by CENELEC on 2013-11-14. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,
Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

CEN-CENELEC Management Centre: Avenue Marnix 17, B - 1000 Brussels


© 2014 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60317-21:2014 E

---------------------- Page: 3 ----------------------

SIST EN 60317-21:2014

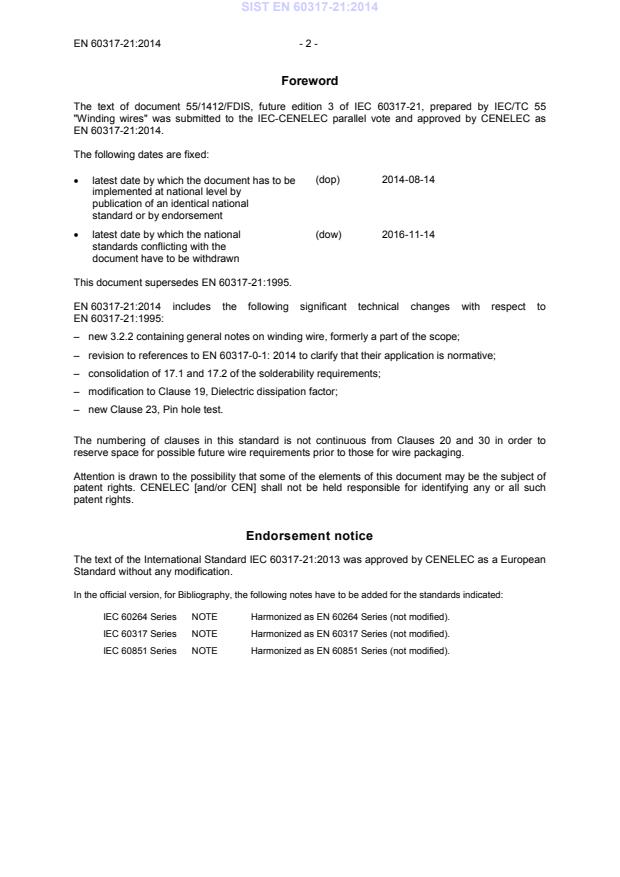

EN 60317-21:2014 - 2 -
Foreword
The text of document 55/1412/FDIS, future edition 3 of IEC 60317-21, prepared by IEC/TC 55
"Winding wires" was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as
EN 60317-21:2014.

The following dates are fixed:
(dop) 2014-08-14
• latest date by which the document has to be
implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2016-11-14
standards conflicting with the
document have to be withdrawn

This document supersedes EN 60317-21:1995.

EN 60317-21:2014 includes the following significant technical changes with respect to
EN 60317-21:1995:
– new 3.2.2 containing general notes on winding wire, formerly a part of the scope;
– revision to references to EN 60317-0-1: 2014 to clarify that their application is normative;
– consolidation of 17.1 and 17.2 of the solderability requirements;
– modification to Clause 19, Dielectric dissipation factor;
– new Clause 23, Pin hole test.

The numbering of clauses in this standard is not continuous from Clauses 20 and 30 in order to
reserve space for possible future wire requirements prior to those for wire packaging.

Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.

Endorsement notice
The text of the International Standard IE
...
