Standards Content (Sample)


SLOVENSKI STANDARD
01-november-2023
Industrijska komunikacijska omrežja - Specifikacije za procesna vodila - 5-28. del:
Definicija opravil na aplikacijski ravni - Elementi tipa 28 (IEC 61158-5-28:2023)
Industrial communication networks - Fieldbus specifications - Part 5-28: Application layer
service definition - Type 28 elements (IEC 61158-5-28:2023)
Industrielle Kommunikationsnetze - Feldbusse - Teil 5-28: Dienstfestlegungen des
Application Layer (Anwendungsschicht) - Typ 28-Elemente (IEC 61158-5-28:2023)
Réseaux de communication industriels - Spécifications des bus de terrain - Partie 5-28:
Définition des services de la couche application - Eléments de type 28 (IEC 61158-5-
28:2023)
Ta slovenski standard je istoveten z: EN IEC 61158-5-28:2023
ICS:
25.040.40 Merjenje in krmiljenje Industrial process
industrijskih postopkov measurement and control
35.100.70 Uporabniški sloj Application layer
35.110 Omreževanje Networking
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN IEC 61158-5-28

NORME EUROPÉENNE
EUROPÄISCHE NORM April 2023
ICS 25.040
English Version
Industrial communication networks - Fieldbus specifications -
Part 5-28: Application layer service definition - Type 28 elements
(IEC 61158-5-28:2023)
Réseaux de communication industriels - Spécifications des Industrielle Kommunikationsnetze - Feldbusse - Teil 5-28:
bus de terrain - Partie 5-28: Définition des services de la Dienstfestlegungen des Application Layer
couche application -¿ Eléments de type 28 (Anwendungsschicht) - Typ 28-Elemente
(IEC 61158-5-28:2023) (IEC 61158-5-28:2023)
This European Standard was approved by CENELEC on 2023-04-14. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 61158-5-28:2023 E

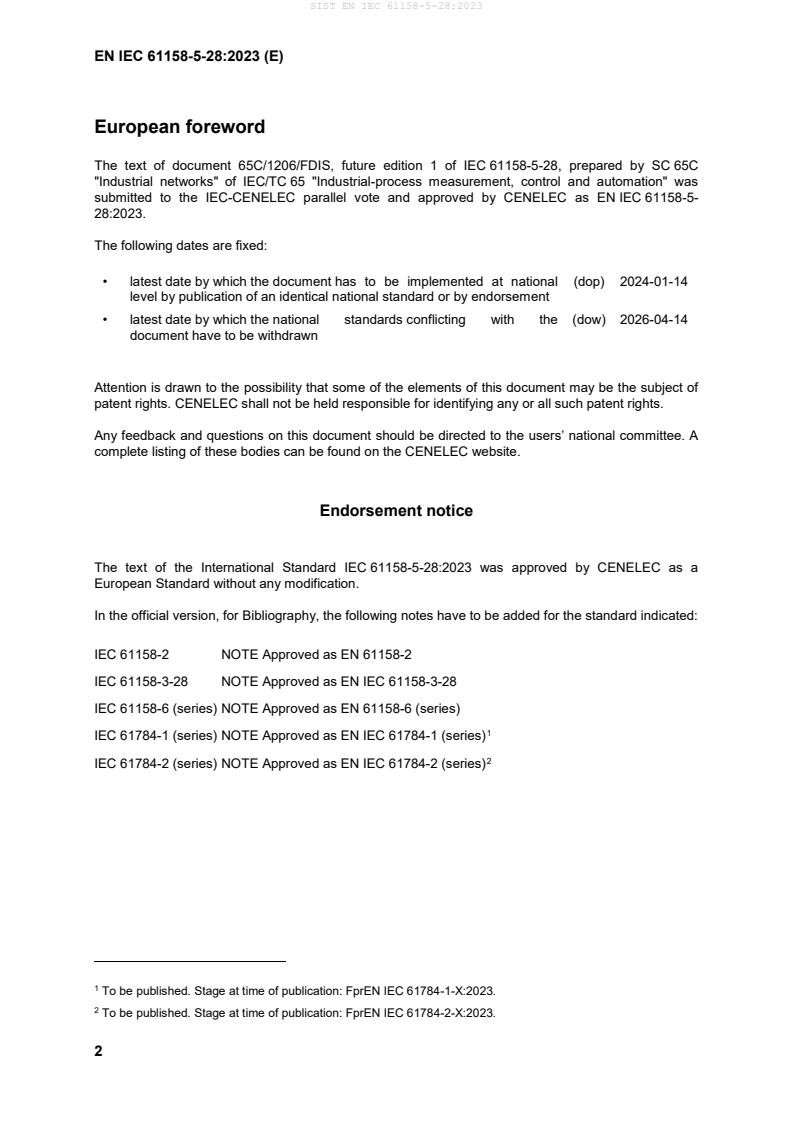

European foreword
The text of document 65C/1206/FDIS, future edition 1 of IEC 61158-5-28, prepared by SC 65C
"Industrial networks" of IEC/TC 65 "Industrial-process measurement, control and automation" was
submitted to the IEC-CENELEC parallel vote and approved by CENELEC as EN IEC 61158-5-
28:2023.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2024-01-14
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2026-04-14
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 61158-5-28:2023 was approved by CENELEC as a
European Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standard indicated:
IEC 61158-2 NOTE Approved as EN 61158-2
IEC 61158-3-28 NOTE Approved as EN IEC 61158-3-28
IEC 61158-6 (series) NOTE Approved as EN 61158-6 (series)
IEC 61784-1 (series) NOTE Approved as EN IEC 61784-1 (series)
IEC 61784-2 (series) NOTE Approved as EN IEC 61784-2 (series)

To be published. Stage at time of publication: FprEN IEC 61784-1-X:2023.
To be published. Stage at time of publication: FprEN IEC 61784-2-X:2023.
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod), the
relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Publication Year Title EN/HD Year
IEC 61158-1 2023 Industrial communication networks - EN IEC 61158-1 2023
Fieldbus specifications - Part 1: Overview
and guidance for the IEC 61158 and IEC
61784 series
IEC 61158-4-28 2023 Industrial communication networks - EN IEC 61158-4-28 2023
Fieldbus specifications - Part 4-28: Data-
link layer protocol specification - Type 28
elements
IEC 61158-6-28 2023 Industrial communication networks - EN IEC 61158-6-28 2023
Fieldbus specifications - Part 6-28:
Application layer protocol specification -
Type 28 elements
ISO/IEC 7498-1 1994 Information technology - Open Systems - -
Interconnection - Basic reference model:
The basic model
ISO/IEC 7498-3 1997 Information technology - Open Systems - -
Interconnection - Basic reference model:
Naming and addressing
ISO/IEC 8822 - Information technology - Open Systems - -
Interconnection - Presentation service
definition
ISO/IEC 8824-1 - Information technology - Abstract Syntax - -
Notation One (ASN.1) - Part 1:
Specification of basic notation
ISO/IEC 9545 - Information technology - Open Systems - -
Interconnection - Application layer
structure
ISO/IEC 10731 1994 Information technology - Open Systems - -
Interconnection - Basic Reference Model -
Conventions for the definition of OSI
services
IETF RFC 2460 1998 Internet Protocol - Version 6 (IPv6) - - -
Specification
IETF RFC 791 1981 Internet Protocol - -
ISO/IEC/IEEE 8802-3 2021 Telecommunications and exchange - -
between information technology systems -
Requirements for local and metropolitan
area networks - Part 3: Standard for
Ethernet
IEC 61158-5-28 ®
Edition 1.0 2023-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Industrial communication networks –Fieldbus specifications –
Part 5-28: Application layer service definition – Type 28 elements
Réseaux de communication industriels – Spécifications des bus de terrain –
Partie 5-28: Définition des services de la couche application –
Éléments de type 28
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 25.040 ISBN 978-2-8322-6583-3
– 2 – IEC 61158-5-28:2023 © IEC 2023
CONTENTS
FOREWORD . 5
INTRODUCTION . 7
1 Scope . 8
1.1 Overview. 8
1.2 Specifications . 9
1.3 Conformance . 9
2 Normative references . 9
3 Terms, definitions, symbols, abbreviated terms and conventions . 10
3.1 Referenced terms and definitions . 10
3.1.1 ISO/IEC 7498-1 terms . 10
3.1.2 ISO/IEC 8822 terms . 10
3.1.3 ISO/IEC 9545 terms . 11
3.1.4 ISO/IEC 8824 terms . 11
3.2 Additional terms and definitions for this IEC 61158-5-28 . 11
3.3 Abbreviations and symbols . 12
3.4 Conventions . 13
3.4.1 Overview . 13
3.4.2 Conventions for class definitions . 13
3.4.3 Conventions for service definitions . 14
4 Concepts . 15
5 Data type ASE . 15
5.1 General . 15
5.1.1 Overview . 15
5.1.2 Overview of basic types . 16
5.1.3 Overview of fixed-length types . 16
5.1.4 Overview of constructed types . 17
5.2 AL defined data types . 17
5.2.1 Fixed length types . 17
5.2.2 String type . 19
5.2.3 Structure type . 20
6 Type 28 communication model specification . 25
6.1 General . 25
6.2 Protocol stack for Type 28 fieldbus . 26
6.3 Data mapping modelling. 27
6.4 Overview of Type 28 communication model . 29
6.4.1 General . 29
6.4.2 P/S . 29
6.4.3 C/S . 30
6.5 AL related management information table . 30
6.5.1 General . 30
6.5.2 Time management information table . 31
6.5.3 Network management information table . 32
6.6 ASEs . 33
6.6.1 Overview . 33
6.6.2 RT data ASE. 34
6.6.3 nRT data ASE . 36

IEC 61158-5-28:2023 © IEC 2023 – 3 –
6.6.4 Time ASE . 38
6.6.5 Resource ASE . 41
6.6.6 Addressing ASE . 43
6.6.7
...
