Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN 50441-2:2012
01-maj-2012
1DGRPHãþD
SIST EN 50441-2:2006
Kabli za notranjo stanovanjsko telekomunikacijsko montažo - 2. del: Zaslonjeni
kabli - 2. stopnja
Cables for indoor residential telecommunication installations - Part 2: Screened cables -
Grade 2
Innenkabel für Telekommunikationseinrichtungen im Wohnbereich - Teil 2: Geschirmte
Innenkabel - Klasse 2
Câbles pour les installations résidentielles de télécommunications en intérieur - Partie 2:
Câbles écrantés - Classe 2
Ta slovenski standard je istoveten z: EN 50441-2:2012
ICS:
33.120.10 Koaksialni kabli. Valovodi Coaxial cables. Waveguides
SIST EN 50441-2:2012 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST EN 50441-2:2012

---------------------- Page: 2 ----------------------

SIST EN 50441-2:2012

EUROPEAN STANDARD
EN 50441-2

NORME EUROPÉENNE
March 2012
EUROPÄISCHE NORM

ICS 33.120.10 Supersedes EN 50441-2:2006


English version


Cables for indoor residential telecommunication installations -
Part 2: Screened cables -
Grade 1



Câbles pour les installations résidentielles Innenkabel für
de télécommunications en intérieur - Telekommunikationseinrichtungen im
Partie 2: Câbles écrantés - Wohnbereich -
Classe 1 Teil 2: Geschirmte Innenkabel -
Klasse 1






This European Standard was approved by CENELEC on 2012-01-23. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels


© 2012 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 50441-2:2012 E

---------------------- Page: 3 ----------------------

SIST EN 50441-2:2012
EN 50441-2:2012 – 2 –

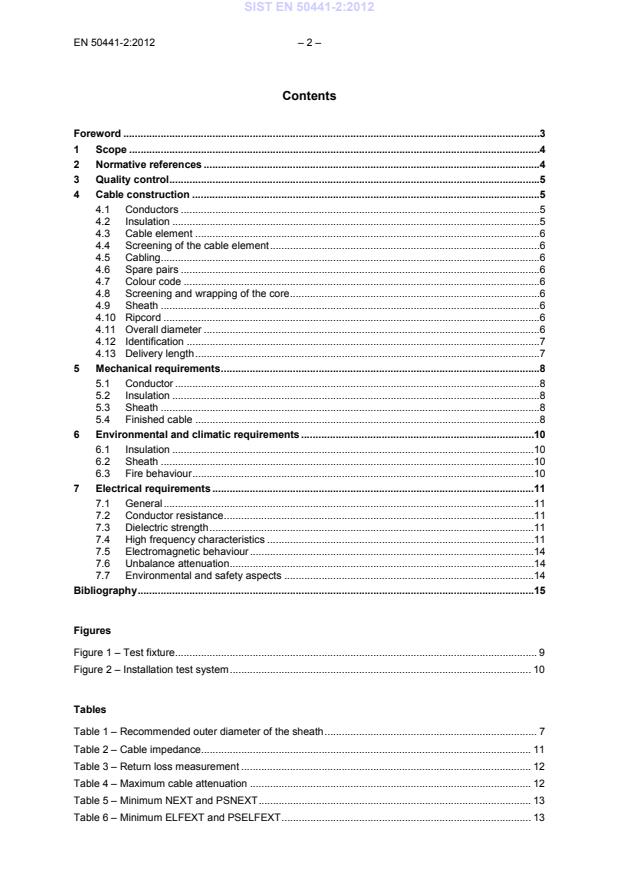

Contents
Foreword . 3
1 Scope . 4
2 Normative references . 4
3 Quality control . 5
4 Cable construction . 5
4.1 Conductors . 5
4.2 Insulation . 5
4.3 Cable element . 6
4.4 Screening of the cable element . 6
4.5 Cabling. 6
4.6 Spare pairs . 6
4.7 Colour code . 6
4.8 Screening and wrapping of the core . 6
4.9 Sheath . 6
4.10 Ripcord . 6
4.11 Overall diameter . 6
4.12 Identification . 7
4.13 Delivery length . 7
5 Mechanical requirements . 8
5.1 Conductor . 8
5.2 Insulation . 8
5.3 Sheath . 8
5.4 Finished cable . 8
6 Environmental and climatic requirements .10
6.1 Insulation .10
6.2 Sheath .10
6.3 Fire behaviour .10
7 Electrical requirements .11
7.1 General .11
7.2 Conductor resistance .11
7.3 Dielectric strength .11
7.4 High frequency characteristics .11
7.5 Electromagnetic behaviour .14
7.6 Unbalance attenuation .14
7.7 Environmental and safety aspects .14
Bibliography .15

Figures
Figure 1 – Test fixture . 9
Figure 2 – Installation test system . 10

Tables
Table 1 – Recommended outer diameter of the sheath . 7
Table 2 – Cable impedance. 11
Table 3 – Return loss measurement . 12
Table 4 – Maximum cable attenuation . 12
Table 5 – Minimum NEXT and PSNEXT . 13
Table 6 – Minimum ELFEXT and PSELFEXT . 13

---------------------- Page: 4 ----------------------

SIST EN 50441-2:2012
– 3 – EN 50441-2:2012
Foreword
This document (EN 50441-2:2012) has been prepared by SC 46XC, "Multicore, multipair and quad
data communication cables", of CLC/TC 46X, "Communication cables".

The following dates are fixed:
• latest date by which this document has
(dop) 2013-01-23
to be implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national
(dow) 2015-01-23
standards conflicting with this
document have to be withdrawn
This document supersedes EN 50441-2:2006.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.
This standard covers the Principle Elements of the Safety Objectives for Electrical Equipment
Designed for Use within Certain Voltage Limits (LVD - 2006/95/EC).
__________

---------------------- Page: 5 ----------------------

SIST EN 50441-2:2012
EN 50441-2:2012 – 4 –
1 Scope
This European Standard specifies the constructional details and performance requirements for cables
for indoor Residential Cabling Systems characterized up to 100 MHz. Cables in this European
Standard are based on the common design rules specified in EN 50290-2-1 and are specifically
intended for supporting ICT and BCT applications (telephone, computer and TV services) as specified
in EN 50173-4.
The cables covered in this European Standard are intended to operate with voltages and currents
normally encountered in communication systems. These cables are not intended to be used in
conjunction with low impedance sources, for example, the electrical power supply of public utility mains.
Cables covered in this European Standard may however be subjected to voltages of not more than
300 V a.c. or 450 V d.c and comply with the requirements of the Low Voltage Directive.
The maximum current rating per conductor is 3 A/mm² unless otherwise specified in the relevant detail
specification.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
EN 50173-1 Information technology – Generic cabling systems -
Part 1: General requirements
EN 50289-1-2 Communication cables – Specifications for test methods -
Part 1-2: Electrical test methods – DC resistance
EN 50289-1-3 Communication cables – Specifications for test methods –
Part 1-3: Electrical test methods – Dielectric strength
EN 50289-1-4 Communication cables – Specifications for test methods –
Part 1-4: Electrical test methods – Insulation resistance
EN 50289-1-6 Communication cables – Specifications for test methods –
Part 1-6: Electrical test methods – Electromagnetic performance
EN 50289-1-7 Communication cables – Specifications for test methods –
Part 1-7: Electrical test methods – Velocity of propagation
EN 50289-1-8 Communication cables – Specifications for test methods –
Part 1-8: Electrical test methods – Attenuation
EN 50289-1-9 Communication cables – Specifications for test methods –
Part 1-9: Electrical test methods – Unbalance attenuation (longitudinal
conversion loss, longitudinal conversion transfer loss)
EN 50289-1-10 Communication cables – Specifications for test methods –
Part 1-10: Electrical test methods – Crosstalk
EN 50289-1-11 Communication cables – Specifications for test methods –
Part 1-11: Electrical test methods – Characteristic impedance, input
impedance, return loss
EN 50289-3-7 Communication cables – Specifications for test methods –
Part 3-7: Mechanical test methods – Abrasion resistance of the cable
sheath
EN 50289-3-9:2001 Communication cables – Specifications for test methods –
Part 3-9: Mechanical test methods – Bending tests
EN 50289-3-17 Communication cables – Specifications for test methods –
Part 3-17: Mechanical test methods – Adhesion of dielectric and sheath

---------------------- Page: 6 ----------------------

SIST EN 50441-2:2012
– 5 – EN 50441-2:2012
EN 50290-2-1 Communication cables –
Part 2-1: Common design rules and construction
EN 50290-2-22 Communication cables –
Part 2-22: Common design rules and construction – PVC sheathing
compounds
EN 50290-2-23 Communication cables –
Part 2-23: Common design rules and construction – PE insulation
EN 50290-2-27 Communication cables –
Part 2-27: Common design rules and construction – Halogen free flame
retardant thermoplastic sheathing compounds
EN 60332-1-2 Tests on electric and optical fibre cables under fire conditions – Part 1-2:
Test for vertical flame propagation for a single insulated wire or cable –
Procedure for 1 kW pre-mixed flame (IEC 60332-1-2)
EN 60794-1-2 Optical fibre cables – Part 1-2: Generic specification – Basic optical cable
test procedures (IEC 60794-1-2)
EN 60811-1-1 Insulating and sheathing materials of electric and optical cables – Common
test methods – Part 1-1: General application – Measurement of thickness
and overall dimensions – Tests for determining the mechanical properties
(IEC 60811-1-1)
HD 402 S2:1984 Standard colours for insulation for low-frequency cables and wires
(IEC 60304:1982)
3 Quality control
Not applicable.
4 Cable construction
4.1 Conductors
4.1.1 Conductor construction
Conductor construction shall be in accordance with EN 50290-2-1.
NOTE Constructions with ‘’Copper Clad’’ conductors do not meet the requirements.
4.1.2 Conductor type
The conductor shall be a solid wire of annealed copper with a minimum diameter of 0,5 mm in
accordance with EN 50290-2-1.
NOTE Diameters < 0,5 mm and > 0,65 mm may cause problems with connecting hardware. Diameters larger than 0,8 mm
could cause connectorisation problems.
4.2 Insulation
4.2.1 Insulation material
The insulation shall be polyethylene in accordance with EN 50290-2-23. Other materials may be used
providing that they do not affect compliance with this European Standard and any local regulations
(e.g. Environmental Directives).
4.2.2 Thickness of the insulation
The thickness of the insulation shall be compatible with the electrical requirements specified in
Clause 7.
4.2.3 Colour of the insulated conductor
The colour of insulation shall be a reasonable match to HD 402 S2:1984.

---------------------- Page: 7 ----------------------

SIST EN 50441-2:2012
EN 50441-2:2012 – 6 –
4.3 Cable element
The cable element shall be a pair or a quad.
The lay length shall be in accordance with EN 50290-2-1.
4.4 Screening of the cable element
No
...
