EN 50341-2-13:2017

(Main)

Overhead electrical lines exceeding AC 1 kV - Part 2-13: National Normative Aspects (NNA) for ITALY (based on EN 50341-1:2012)

Overhead electrical lines exceeding AC 1 kV - Part 2-13: National Normative Aspects (NNA) for ITALY (based on EN 50341-1:2012)

This NNA (National Normative Annex) is only applicable to all new overhead lines equipped with bare conductors, covered conductors or cables, with voltages above 1kV AC. This standard is not applicable to overhead lines pre-existing before its coming into force and shall not be applied to maintenance or reconductoring; the standard can be applied in case of significant modifications of existing lines.

Lignes électriques aériennes dépassant 1 kV en courant alternatif - Partie 2-13: Aspects normatifs nationaux (NNA) pour l'ITALIE (basés sur l'’EN 50341-1:2012)

Nadzemni električni vodi za izmenične napetosti nad 1 kV - 2-13. del: Nacionalna normativna določila (NNA) za Italijo (na podlagi EN 50341-1:2012)

Ta nacionalna normativna določila (NNA) se uporabljajo samo za nove nadzemne električne vode, opremljene z neizoliranimi vodniki, izoliranimi vodniki ali kabli, z napetostmi nad 1 kV pri izmeničnem toku. Ta standard se ne uporablja za nadzemne električne vode, ki so že obstajali pred začetkom veljavnosti določil, in se ne uporablja za vzdrževanje ali zamenjavo napeljave. Standard je mogoče uporabiti v primeru večjih sprememb obstoječih vodov.

General Information

Status
Published
Publication Date
19-Jan-2017
Withdrawal Date
12-Dec-2019
ICS
29.240.20 - Power transmission and distribution lines
Technical Committee
CLC/TC 11 - Overhead electrical lines exceeding 1 kV a.c. (1,5 kV d.c.)
Drafting Committee
CLC/TC 11 - Overhead electrical lines exceeding 1 kV a.c. (1,5 kV d.c.)
Current Stage
6060 - Document made available - Publishing
Start Date
20-Jan-2017
Completion Date
20-Jan-2017
Ref Project
SIST EN 50341-2-13:2018 - Overhead electrical lines exceeding AC 1 kV - Part 2-13: National Normative Aspects (NNA) for ITALY (based on EN 50341-1:2012)

Relations

Amended By
EN 50341-2-13:2017/A1:2017 - Overhead electrical lines exceeding AC 1 kV - Part 2-13: National Normative Aspects (NNA) for ITALY (based on EN 50341-1:2012)
Effective Date
18-Apr-2017

Buy Standard

EN 50341-2-13:2018EN 50341-2-13:2018
PreviousNext
Standard
EN 50341-2-13:2018
English language
32 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Overhead electrical lines exceeding AC 1 kV - Part 2-13: National Normative Aspects (NNA) for ITALY (based on EN 50341-1:2012)29.240.20DaljnovodiPower transmission and distribution linesICS:Ta slovenski standard je istoveten z:EN 50341-2-13:2017SIST EN 50341-2-13:2018en01-februar-2018SIST EN 50341-2-13:2018SLOVENSKI
STANDARD



SIST EN 50341-2-13:2018



EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 50341-2-13
January 2017 ICS 29.240.20
English Version
Overhead electrical lines exceeding AC 1 kV - Part 2-13: National Normative Aspects (NNA) for ITALY (based on EN 50341-1:2012)
Lignes électriques aériennes dépassant 1 kV en courant alternatif - Partie 2-13: Aspects normatifs nationaux (NNA) pour l'ITALIE (basés sur l'EN 50341-1:2012)
This European Standard was approved by CENELEC on 2016-12-13. CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique Europäisches Komitee für Elektrotechnische Normung CEN-CENELEC Management Centre: Avenue Marnix 17,
B-1000 Brussels © 2017 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 50341-2-13:2017 E SIST EN 50341-2-13:2018



Italy - 2/32 - EN 50341-2-13:2017
Contents

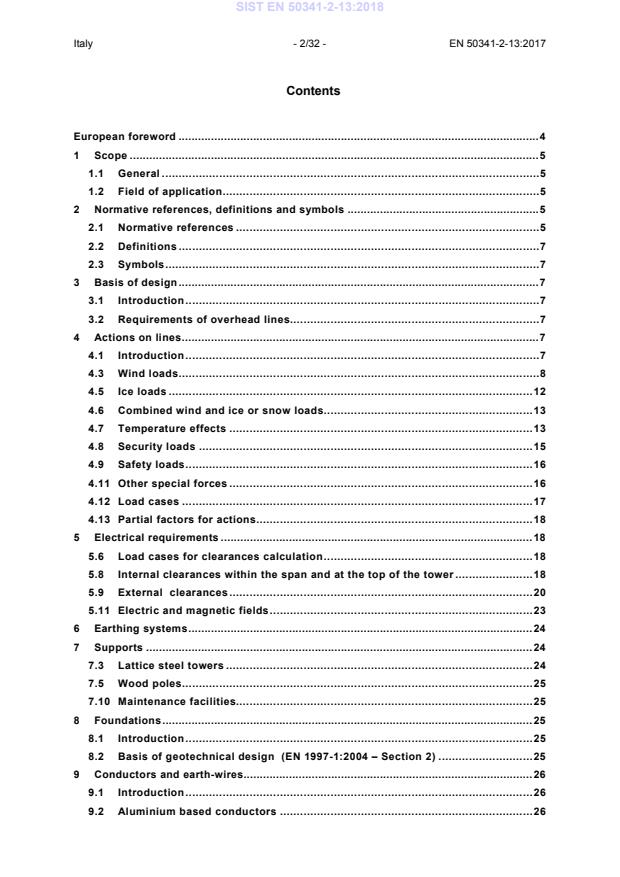

European foreword . 4 1 Scope . 5 1.1 General . 5 1.2 Field of application . 5 2 Normative references, definitions and symbols . 5 2.1 Normative references . 5 2.2 Definitions . 7 2.3 Symbols . 7 3 Basis of design . 7 3.1 Introduction . 7 3.2 Requirements of overhead lines. 7 4 Actions on lines . 7 4.1 Introduction . 7 4.3 Wind loads . 8 4.5 Ice loads . 12 4.6 Combined wind and ice or snow loads . 13 4.7 Temperature effects . 13 4.8 Security loads . 15 4.9 Safety loads . 16 4.11 Other special forces . 16 4.12 Load cases . 17 4.13 Partial factors for actions. 18 5 Electrical requirements . 18 5.6 Load cases for clearances calculation . 18 5.8 Internal clearances within the span and at the top of the tower . 18 5.9 External
