Radio-frequency connectors - Part 49: Sectional specification for SMAA series R.F connectors

IEC 61169-49:2014 which is a sectional specification (SS), provides information and rules for the preparation of detail specifications (DS) for type SMAA series thread mated coaxial connectors. The connectors are normally used for micro wave applications, connecting with 50 Ohms RF cables or microstrips in an operating range up to 27 GHz. These connectors can be intermated with SMA (IEC 60169-15), 3,5 mm (IEEE 287-2007), 2,92 mm (IEC 61169-35) connectors. It also prescribes mating face dimensions for high performance connectors grade 1, dimensional details of standard test connectors grade 0, for general purpose with gauging information and the mandatory tests selected from IEC 61169-1, applicable to all detail specifications relative to type SMAA connectors. This specification indicates the recommended performance characteristics to be considered when writing a DS and covers all tests schedules and inspection requirements.

Hochfrequenz-Steckverbinder - Teil 49: Rahmenspezifikation für Hochfrequenz-Steckverbinder der Serie SMAA

Connecteurs pour fréquences radioélectriques - Partie 49: Spécification intermédiaire relative aux connecteurs RF série SMAA

L'IEC 61169-49:2014 qui est une spécification intermédiaire, fournit des informations et des règles pour l'élaboration des spécifications particulières (SP) pour les connecteurs coaxiaux dotés d'un couplage fileté, de type SMAA. Ces connecteurs sont normalement utilisés pour des applications hyperfréquence, permettant une connexion avec des câbles RF à 50 Ohms ou des microrubans dans une plage de fonctionnement allant jusqu'à 27 GHz. Ces connecteurs peuvent être accouplés avec des connecteurs SMA (IEC 61169-15), de 3,5 mm (IEEE 287-2007) et de 2,92 mm (IEC 61139-35). Elle prescrit également les dimensions des zones d'accouplement pour des connecteurs haute performance de classe 1, les détails dimensionnels des connecteurs d'essai normalisés de classe 0, pour usage général avec les informations concernant les calibres et les essais obligatoires sélectionnés dans l'IEC 61169-1, applicables à toutes les spécifications particulières ayant trait aux connecteurs de type SMAA. Cette spécification indique les caractéristiques de performance recommandées à considérer lors de la rédaction d'une spécification particulière et couvre tous les programmes d'essais et les exigences de contrôle.

Radiofrekvenčni konektorji - 49. del: Področna specifikacija za serijo radiofrekvenčmih SMAA-konektorjev (IEC 61169-49:2014)

General Information

Status
Published
Publication Date
20-Nov-2014
Current Stage
6060 - Document made available
Due Date
21-Nov-2014
Completion Date
21-Nov-2014

Buy Standard

Standard
EN 61169-49:2015
English language
27 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST EN 61169-49:2015
01-julij-2015
5DGLRIUHNYHQþQLNRQHNWRUMLGHO3RGURþQDVSHFLILNDFLMD]DVHULMR
UDGLRIUHNYHQþPLK60$$NRQHNWRUMHY ,(&

Radio-frequency connectors - Part 49: Sectional specification for SMAA series R.F

connectors (IEC 61169-49:2014)
Hochfrequenz-Steckverbinder - Teil 49: Rahmenspezifikation für Hochfrequenz-
Steckverbinder der Serie SMAA (IEC 61169-49:2014)

Connecteurs pour fréquences radioélectriques - Partie 49: Spécification intermédiaire

relative aux connecteurs RF série SMAA (CEI 61169-49:2014)
Ta slovenski standard je istoveten z: EN 61169-49:2014
ICS:
33.120.30 5DGLRIUHNYHQþQLNRQHNWRUML R.F. connectors
5)
SIST EN 61169-49:2015 en

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 61169-49:2015
---------------------- Page: 2 ----------------------
SIST EN 61169-49:2015
EUROPEAN STANDARD EN 61169-49
NORME EUROPÉENNE
EUROPÄISCHE NORM
November 2014
ICS 33.120.30
English Version
Radio-frequency connectors - Part 49: Sectional specification for
SMAA series R.F connectors
(IEC 61169-49:2014)

Connecteurs pour fréquences radioélectriques - Partie 49: Hochfrequenz-Steckverbinder - Teil 49:

Spécification intermédiaire relative aux connecteurs RF Rahmenspezifikation für Hochfrequenz-Steckverbinder der

série SMAA Serie SMAA
(CEI 61169-49:2014) (IEC 61169-49:2014)

This European Standard was approved by CENELEC on 2014-06-12. CENELEC members are bound to comply with the CEN/CENELEC

Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC

Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation

under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the

same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,

Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,

Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,

Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels

© 2014 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.

Ref. No. EN 61169-49:2014 E
---------------------- Page: 3 ----------------------
SIST EN 61169-49:2015
EN 61169-49:2014 - 2 -

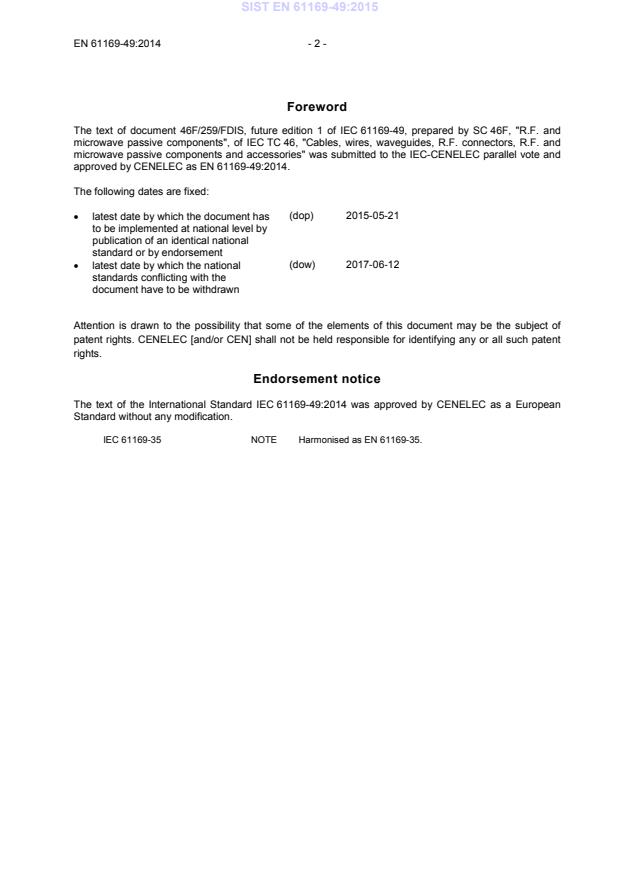

Foreword

The text of document 46F/259/FDIS, future edition 1 of IEC 61169-49, prepared by SC 46F, "R.F. and

microwave passive components", of IEC TC 46, "Cables, wires, waveguides, R.F. connectors, R.F. and

microwave passive components and accessories" was submitted to the IEC-CENELEC parallel vote and

approved by CENELEC as EN 61169-49:2014.
The following dates are fixed:
(dop) 2015-05-21
• latest date by which the document has
to be implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2017-06-12
standards conflicting with the
document have to be withdrawn

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent

rights.
Endorsement notice

The text of the International Standard IEC 61169-49:2014 was approved by CENELEC as a European

Standard without any modification.
IEC 61169-35 NOTE Harmonised as EN 61169-35.
---------------------- Page: 4 ----------------------
SIST EN 61169-49:2015
- 3 - EN 61169-49:2014
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following documents, in whole or in part, are normatively referenced in this document and are

indispensable for its application. For dated references, only the edition cited applies. For undated

references, the latest edition of the referenced document (including any amendments) applies.

NOTE 1 When an International Publication has been modified by common modifications, indicated by (mod), the relevant EN/HD

applies.

NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available here:

www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60068-1 - Environmental testing -- Part 1: General and EN 60068-1 -
guidance
IEC 61169-1 2013 Radio-frequency connectors -- Part 1: EN 61169-1 2013
Generic specification - General
requirements and measuring methods
IEC 62037 series Passive RF and microwave devices, EN 62037 series
intermodulation level measurement -- Part 1:
General requirements and measuring
methods
---------------------- Page: 5 ----------------------
SIST EN 61169-49:2015
---------------------- Page: 6 ----------------------
SIST EN 61169-49:2015
IEC 61169-49
Edition 1.0 2014-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Radio-frequency connectors –
Part 49: Sectional specification for SMAA series R.F connectors
Connecteurs pour fréquences radioélectriques –
Partie 49: Spécification intermédiaire relative aux connecteurs RF série SMAA
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX U
ICS 33.120.30 ISBN 978-2-8322-1535-7

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 7 ----------------------
SIST EN 61169-49:2015
– 2 – IEC 61169-49:2014 © IEC 2014
CONTENTS

FOREWORD ........................................................................................................................... 4

1 Scope .............................................................................................................................. 6

2 Normative references ...................................................................................................... 6

3 Mating face and gauge information .................................................................................. 7

3.1 Dimensions – High performance connectors – Grade 1 ...................................... 7

3.1.1 Connector with pin-centre contact ..................................................... 7

3.1.2 Connector with socket-centre contact ............................................... 8

3.2 Gauges .............................................................................................................. 9

3.2.1 Gauge pins for socket-centre contact ................................................ 9

3.2.2 Test procedure ................................................................................. 9

3.3 Dimensions – standard test connectors – Grade 0 ........................................... 10

3.3.1 Connector with pin-centre contact ................................................... 10

3.3.2 Connector with socket-centre contact ............................................. 11

4 Quality assessment procedure ....................................................................................... 12

4.1 General ............................................................................................................ 12

4.2 Rating and characteristics (see Clause 5 of IEC 61169-1:2013) ....................... 12

4.3 Test schedule and inspection requirements – Periodic tests ............................. 15

4.4 Procedures for the quality conformance ........................................................... 17

4.4.1 Quality conformance inspection ...................................................... 17

4.4.2 Quality conformance and its maintenance – General

procedure ....................................................................................... 17

5 Instructions for preparation of detail specifications (DS) ................................................ 17

5.1 General ............................................................................................................ 17

5.2 Identification of the component ........................................................................ 17

5.3 Performance .................................................................................................... 17

5.4 Marking, ordering information and related matters ........................................... 18

5.5 Selection of tests, test conditions and severities .............................................. 18

5.6 Blank detail specification pro-forma for type SMAA connector .......................... 18

6 Marking ......................................................................................................................... 22

6.1 Marking of component ...................................................................................... 22

6.2 Marking and contents of package ..................................................................... 23

Bibliography .......................................................................................................................... 24

Figure 1 – Connector with pin-centre contact (for dimensions and notes, see Table 1) ........... 7

Figure 2 – Connector with socket-centre contact (for dimensions and notes, see Table 2) ..... 8

Figure 3 – Gauge pins for socket-centre contact (for dimensions and notes, see Table 3) ...... 9

Figure 4 – Connector with pin-centre contact (for dimensions and notes, see Table 4) ......... 10

Figure 5 – Connector with socket-centre contact (for dimensions and notes, see Table 5) ... 11

Table 1 – Dimensions of connector with pin-centre contact ..................................................... 7

Table 2 – Dimensions of connector with socket-centre contact ................................................ 8

Table 3 – Dimensions of gauge pins for socket-centre contact ................................................ 9

Table 4 – Dimensions of connector with pin-centre contact ................................................... 10

Table 5 – Dimensions of connector with socket-centre contact .............................................. 11

---------------------- Page: 8 ----------------------
SIST EN 61169-49:2015
IEC 61169-49:2014 © IEC 2014 – 3 –

Table 6 – Preferred climatic categories (see IEC 60068-1).................................................... 12

Table 7 – Rating and characteristics ..................................................................................... 13

Table 8 – Acceptance tests ................................................................................................... 15

Table 9 – Periodic tests ........................................................................................................ 16

---------------------- Page: 9 ----------------------
SIST EN 61169-49:2015
– 4 – IEC 61169-49:2014 © IEC 2014
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
RADIO-FREQUENCY CONNECTORS –
Part 49: Sectional specification for SMAA series R.F connectors
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 61169-49 has been prepared by subcommittee 46F: R.F. and

microwave passive components, of IEC technical committee 46: Cables, wires, waveguides,

R.F. connectors, R.F. and microwave passive components and accessories.
The text of this standard is based on the following documents:
FDIS Report on voting
46F/259/FDIS 46F/268/RVD

Full information on the voting for the approval of this standard can be found in the report on

voting indicated in the above table.

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all parts of the IEC 61169 series, under the general title: Radio-frequency connectors,

can be found on the IEC website.
---------------------- Page: 10 ----------------------
SIST EN 61169-49:2015
IEC 61169-49:2014 © IEC 2014 – 5 –

The committee has decided that the contents of this publication will remain unchanged until

the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data

related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates

that it contains colours which are considered to be useful for the correct

understanding of its contents. Users should therefore print this document using a

colour printer.
---------------------- Page: 11 ----------------------
SIST EN 61169-49:2015
– 6 – IEC 61169-49:2014 © IEC 2014
RADIO-FREQUENCY CONNECTORS –
Part 49: Sectional specification for SMAA series R.F connectors
1 Scope

This part of IEC 61169, which is a sectional specification (SS) , provides information and rules

for the preparation of detail specifications (DS) for type SMAA series thread mated coaxial

connectors.

The connectors are normally used for micro wave applications, connecting with 50 Ω RF

cables or microstrips in an operating range up to 27 GHz.

These connectors can be intermated with SMA (IEC 60169-15), 3,5 mm (IEEE 287-2007),

2,92 mm (IEC 61169-35) connectors.

It also prescribes mating face dimensions for high performance connectors grade 1,

dimensional details of standard test connectors grade 0, for general purpose with gauging

information and the mandatory tests selected from IEC 61169-1, applicable to all detail

specifications relative to type SMAA connectors.

This specification indicates the recommended performance characteristics to be considered

when writing a DS and covers all tests schedules and inspection requirements.
NOTE Metric dimension are original dimensions.
All undimensioned pictorial configurations are for reference purpose only.
2 Normative references

The following documents, in whole or in part, are normatively referenced in this document and

are indispensable for its application. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any
amendments) applies.

IEC 61169-1:2013, Radio frequency connectors – Part 1: Generic specification – General

requirements and measuring methods
IEC 60068-1, Environmental testing – Part 1: General and guidance

IEC 62037 (all parts), Passive RF and microwave devices, intermodulation level measurement

---------------------- Page: 12 ----------------------
SIST EN 61169-49:2015
IEC 61169-49:2014 © IEC 2014 – 7 –
3 Mating face and gauge information
3.1 Dimensions – High performance connectors – Grade 1
3.1.1 Connector with pin-centre contact
(6) q (1)
g a (4)
f × 45°±5°
(5)
(1)
See Detail A
Detail A
Gasket
(2)
IEC 1208/14
Figure 1 – Connector with pin-centre contact
(for dimensions and notes, see Table 1)
Table 1 – Dimensions of connector with pin-centre contact
Ref. mm Figure footnotes
Min. Max.
a — 3,35
b 2,54 —
c 0,50 1,02
d 4,52 4,59
e 6,48 6,73
f — 0,08 (5)
g 0,00 0,13
h 0,00 0,13
j — 2,54
k — 0,30
m 1,27 — (1)
p — — (3)
q — — (6)
r 1,27 (nominal value)
s 0,902 0,935
t 1/4-36UNS-2B (4)
(1) Mechanical and electrical reference plane.
(2) Gasket possible on Grade 1 connectors.
(3) Diameter is chosen to obtain a normal impedance of 50 Ω ± 1 Ω.
(4) Coupling nut twists position.
(5) 0,08 mm max rounding chamfer, optional.

(6) Dimension q should ensure the reference plane superposition while satisfying the required environmental

performance.
(3)
(4)
---------------------- Page: 13 ----------------------
SIST EN 61169-49:2015
– 8 – IEC 61169-49:2014 © IEC 2014
3.1.2 Connector with socket-centre contact
See Detail A
(5)
f × 45° ±5°
Detail A
Root Cut
(2)
q (1)
IEC 1209/14
Figure 2 – Connector with socket-centre contact
(for dimensions and notes, see Table 2)
Table 2 – Dimensions of connector with socket-centre contact
Ref. mm Figure footnotes
Min. Max.
a 5,54 —
b 4,32 — (5)
c 0,50 1,02
d 4,605 4,673 (2)
e 5,28 5,49
f 0,00 0,13
g 0,00 0,10
h 0,00 0,10
j 2,92 —
p — —
q 1,88 1,98 (1)
r 1,27 (nominal value) (4)
s 1/4-36UNS-2A
Detail A (3)
(1) Mechanical and electrical reference plane.
(2) Design for root cut to be allowed.

(3) Design for slotting is optional. It is chosen to meet electrical and mechanical requirements, when mated

with a Ø 0,902 mm to Ø 0,935 mm gauge pin.
(4) Diameter shall be chosen to obtain a normal impedance of 50 Ω ± 1 Ω.
(5) The shortest full thread length.
∅r (4)
∅p (4)
(3)
---------------------- Page: 14 ----------------------
SIST EN 61169-49:2015
IEC 61169-49:2014 © IEC 2014 – 9 –
3.2 Gauges
3.2.1 Gauge pins for socket-centre contact
60° ±4°
∅0,25 ±0,05
R0,4 max
IEC 1210/14
Figure 3 – Gauge pins for socket-centre contact
(for dimensions and notes, see Table 3)
Table 3 – Dimensions of gauge pins for socket-centre contact
Ref. Gauge A Gauge B
Maximum material Minimum material for
for sizing purposes measurement of retention force
Mass of gauge: 28 g +2 g
mm mm
Min. Max. Min. Max.
0,950 0,955 0,899 0,902
0,76 1,14 1,27 1,90
Material: steel, polished, surface roughness: Ra=0,4 µm maximum.
3.2.2 Test procedure

The gauge A shall be inserted into the socket-centre contact three times with a minimum

depth of 0,76 mm. This is a sizing operation and should only be carried out when the socket-

centre contact is removed from the connector.

After this, the gauge B shall be inserted into socket-centre contact. The contact shall retain

the mass of the gauge in a vertical downward position.
---------------------- Page: 15 ----------------------
SIST EN 61169-49:2015
– 10 – IEC 61169-49:2014 © IEC 2014
3.3 Dimensions – standard test connectors – Grade 0
3.3.1 Connector with pin-centre contact
0,013 A
0,013 A
q (1)
g a (3)
f × 45° ±5°
(4)
0,03 A
0,013 A
0,4
Detail A
See Detail A
IEC 1211/14
Figure 4 – Connector with pin-centre contact
(for dimensions and notes, see Table 4)
Table 4 – Dimensions of connector with pin-centre contact
Ref. mm Figure footnotes
Min. Max.
a 2,590 3,350
b 2,540 4,320
d 4,521 4,592
e 6,480 6,730
f — 0,080 (4)
g 0,000 0,050
h 0,000 0,076
j 2,030 2,290
p — —
q 2,030 — (1)
r 1,270 (nominal value) (2)
s 0,902 0,927
t 42° 48°
u 1/4-36UNS-2B (3)
(1) Mechanical and electrical reference plane.
(2) Diameter shall be chosen to obtain a normal impedance of 50 Ω ± 0,25 Ω.
(3) Coupling nut twists position.
(4) 0,08 mm max. rounding chamfer, optional.
(2)
0,4
---------------------- Page: 16 ----------------------
SIST EN 61169-49:2015
IEC 61169-49:2014 © IEC 2014 – 11 –
3.3.2 Connector with socket-centre contact
See Detail A
0,013 B
f × 45° ±5°
Detail A
Root Cut
(2)
q (1)
0,013 A
0,013 A
IEC 1212/14
Figure 5 – Connector with socket-centre contact
(for dimensions and notes, see Table 5)
Table 5 – Dimensions of connector with socket-centre contact
Ref. mm Figure footnotes
Min. Max.
b 4,320 —
c 0,510 1,020
d 4,597 4,666 (2)
e 5,283 5,490
f — 0,150
g 0,000 0,050
h 0,000 0,076
j 3,050 3,300
k 0,080 —
p 3,925 3,945
q 1,880 1,980 (1)
r 1,260 1,270 (3)
s 0,965 0,990
42° 48°
u 1,650 1,800
v 1,285 1,300 (4)
w 0,150 0,200
y 1/4-36UNS-2A
(1) Mechanical and electrical reference plane.
(2) Design for root cut to be allowed.
(3) Diameter shall be chosen to obtain a normal impedance of 50 Ω ± 0,25 Ω.
(4) Diameter v is for the unslotted dimensions.

(5) The slot width and the slot depth should be chosen to satisfy the requirement of mechanical and the

electrical specification.
0,4
(3)
∅v (4)
(5) w
---------------------- Page: 17 ----------------------
SIST EN 61169-49:2015
– 12 – IEC 61169-49:2014 © IEC 2014
4 Quality assessment procedure
4.1 General

The following Subclauses 4.2 to 4.4 provide recommended rating, performance and test

conditions to be considered when writing a detail specification. They also provide an

appropriate schedule of tests with minimum levels of conformance inspection sampling,

together with the pro-forma blank detail specification (BDS) and instructions for the

preparation of a detail specification.
4.2 Rating and characteristics (see Clause 5 of IEC 61169-1:2013)

The values indicated below are recommended for SMAA series RF connectors and are given

for the writer of the detail specification. They are applicable for the condition when the

connectors are fully mated.

Certain tests are listed without any recommended values being given. These tests will usually

not be required. When these tests are required, appropriate values shall be entered in the

detail specification at the discretion of the specification writer.
Preferred climatic categories are given in Table 6.
Table 6 – Preferred climatic categories (see IEC 60068-1)
Category designation Letter* Temperature range Steady damp heat
40/85/21 A 21 days
–40 to +85
55/155/56 B –55 to +155 56 days
* To be included in the IEC type designation.
Rating and characteristics are given in Table 7.
---------------------- Page: 18 ----------------------
SIST EN 61169-49:2015
IEC 61169-49:2014 © IEC 2014 – 13 –
Table 7 – Rating and characteristics
Rating and characteristics IEC 61169- Values Remarks,
1:2013 deviations from
Subclause standard test
method
Electrical
Nominal impedance 50 Ω
Frequency range Or upper
frequency limit of
Grade1 connectors DC to 27 GHz
cable
Reflection factor 9.2.1
Grade 1 connectors DC to 27 GHz
– straight styles ≤0,030+0,005f (GHz)
– right-angle styles See DS
– component mounting styles See DS
– solder bucket and PCB mounting styles See DS
Centre contact resistance 9.2.3
– initial ≤3,0 mΩ
– after conditioning
≤5,0 mΩ
Outer conductor continuity 9.2.3
– initial
≤2,5 mΩ
– after conditioning ≤5,0 mΩ
Insulation resistance 9.2.5
– initial
≥5 000 MΩ
– after conditioning
≥200 MΩ
c,d
Proof voltage at sea level 9.2.6 86 kPa to 106 kPa
– uncabled styles 750 V
– semi-rigid and semi-flexible 2,16 mm (0,086 in) 750 V
diameter
– semi-rigid and semi-flexible 1,19 mm (0,047 in) 500 V
diameter
c,d
Proof voltage at 4,4 kPa 9.2.6 4,4 kPa
approximately
– uncabled styles 150 V
equivalent to
20 km
– semi-rigid and semi-flexible 2,16 mm (0,086 in) 150 V
diameter
– semi-rigid and semi-flexible 1,19 mm (0,047 in) 100 V
diameter
c,d
Environmental test voltage at sea level 9.2.6 250 V 86 kPa to 106 kPa
– uncabled styles 250 V
– semi-rigid and semi-flexible 2,16 mm (0,086 in) 175 V
diameter
– semi-rigid and semi-flexible 1,19 mm (0,047 in)
diameter
c,d
Environmental test voltage at 4,4 kPa 9.2.6 4,4 kPa
approximately
– uncabled styles 65 V
equivalent to
– semi-rigid and semi-flexible 2,16 mm (0,086 in) 65 V 20 km
diameter
– semi-rigid and semi-flexible 1,19 mm (0,047 in) 45 V
diameter
Screening effectiveness (straight cables only) 9.2.7
≥100 dB at 1 GHz Z≤1 mΩ,
Discharge test (corona effect) 9.2.8 See DS Extinction voltage
---------------------- Page: 19 ----------------------
SIST EN 61169-49:2015
– 14 – IEC 61169-49:2014 © IEC 2014
Rating and characteristics IEC 61169- Values Remarks, deviations
1:2013 from standard test
Subclause method
Mechanical
Centre contact captivation 9.3.5
– axial force ≥22 N
Maximum
displacement
– torque 0,25 mm in each
≥0,03 N·m
direction
Engagement and separation 9.3.6
– coupling nut friction Can be carried out by
≤0,23 N·m
hand
Coupling moment 9.3.6
– normally moment 0,8 N•m~1,1 N·m
– moment resistance 1,.69 N·m
Gauge retention force (resilient contacts) 9.3.4
– centre
≥0,28 N
– outer na
Technical tests on cable fixing
– cable rotation (nutation) 9.3.7 See DS
– cable pulling 9.3.8 See DS
– cable bending 9.3.9 See DS
– cable torsion 9.3.10 See DS
Tensile strength of coupling mechanism 9.3.11
≥180 N
Bending moment 9.3.12 na
Vibration 9.3.3 100 m/s 10 g acceleration
10 Hz to 2 000 Hz
Shock 9.3.14 500 m/s 50 g acceleration
1/2 sine wave
11 ms
Environmental
Climatic category A:40/85/21
B:55/155/56
Sealing non-hermetic 9.4.7 100 kPa·cm /h 100 kPa to 110 kPa
max.
pressure differential
Hermetic 9.4.8 na
Salt mist 9.4.10 48 h Duration of spraying
Endurance
Mechanical 9.3.15 500 operations
High temperature 9.4.5 A: 85 h at 85 °C
B: 1 000 h at
155 °C

These values apply to basic connectors. In practice, these may be influenced by the cable used and

reference should always be made to the actual values given in the detail specification.

Values for a single pair of connectors.

Voltages are r.m.s values of a.c, at 40 Hz to 65 Hz, unless otherwise specified.

Some cables usable with these connectors have ratings lower than the values given here.

For certain connectors, the upper temperature limit is restricted by the cable characteristics. Reference

should be made to the relevant cable specification. When semi-rigid cables are used, the upper temperature

is limited to 115 °C maximum.
na – not applicable.
When interfaces are fully mated.
The test item of this type of co
...
