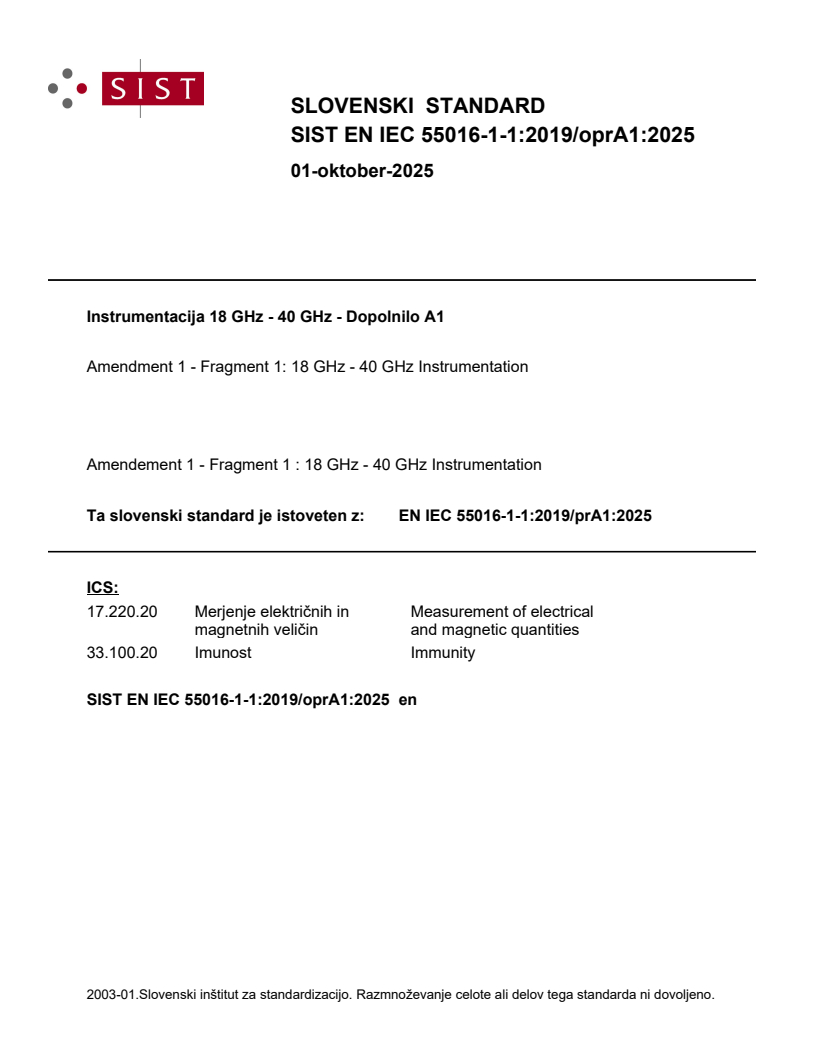

SLOVENSKI STANDARD
01-oktober-2025
Instrumentacija 18 GHz - 40 GHz - Dopolnilo A1
Amendment 1 - Fragment 1: 18 GHz - 40 GHz Instrumentation
Amendement 1 - Fragment 1 : 18 GHz - 40 GHz Instrumentation
Ta slovenski standard je istoveten z: EN IEC 55016-1-1:2019/prA1:2025
ICS:
17.220.20 Merjenje električnih in Measurement of electrical
magnetnih veličin and magnetic quantities
33.100.20 Imunost Immunity
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

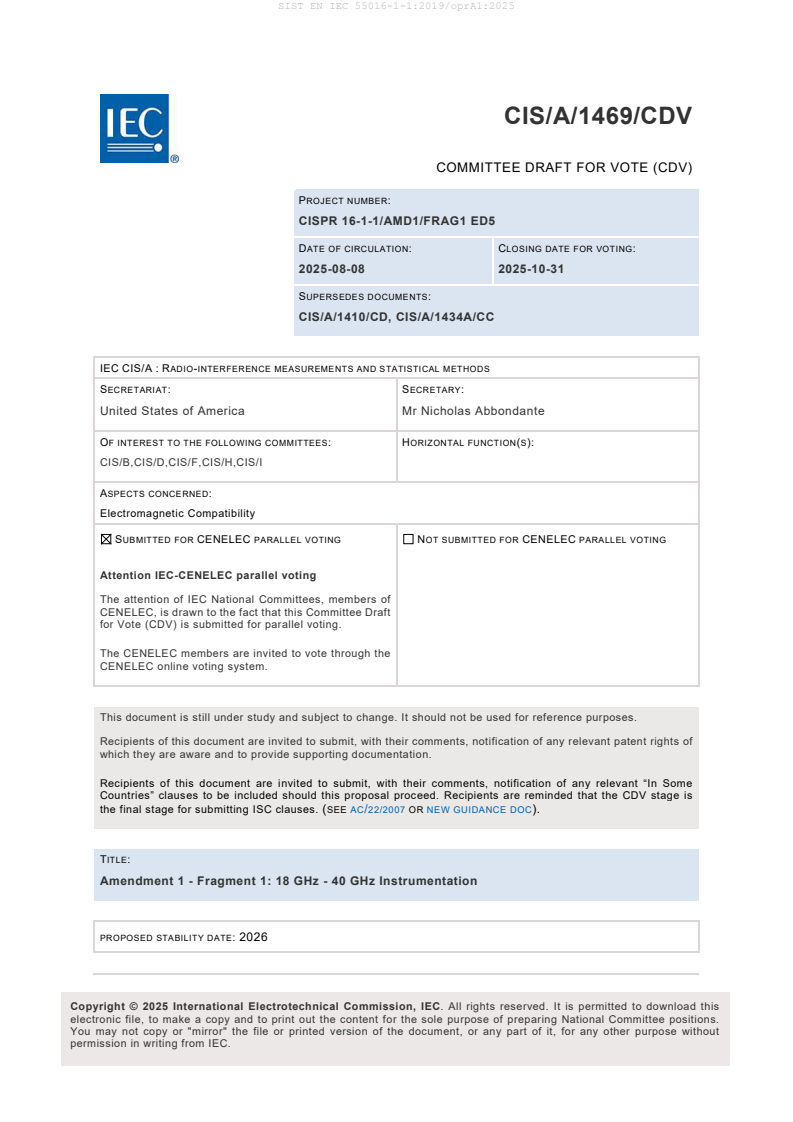

CIS/A/1469/CDV
COMMITTEE DRAFT FOR VOTE (CDV)
PROJECT NUMBER:
CISPR 16-1-1/AMD1/FRAG1 ED5
DATE OF CIRCULATION: CLOSING DATE FOR VOTING:
2025-08-08 2025-10-31
SUPERSEDES DOCUMENTS:
CIS/A/1410/CD, CIS/A/1434A/CC
IEC CIS/A : RADIO-INTERFERENCE MEASUREMENTS AND STATISTICAL METHODS
SECRETARIAT: SECRETARY:
United States of America Mr Nicholas Abbondante
OF INTEREST TO THE FOLLOWING COMMITTEES: HORIZONTAL FUNCTION(S):
CIS/B,CIS/D,CIS/F,CIS/H,CIS/I
ASPECTS CONCERNED:
Electromagnetic Compatibility
SUBMITTED FOR CENELEC PARALLEL VOTING NOT SUBMITTED FOR CENELEC PARALLEL VOTING
Attention IEC-CENELEC parallel voting
The attention of IEC National Committees, members of
CENELEC, is drawn to the fact that this Committee Draft
for Vote (CDV) is submitted for parallel voting.
The CENELEC members are invited to vote through the
CENELEC online voting system.
This document is still under study and subject to change. It should not be used for reference purposes.
Recipients of this document are invited to submit, with their comments, notification of any relevant patent rights of
which they are aware and to provide supporting documentation.
Recipients of this document are invited to submit, with their comments, notification of any relevant “In Some
Countries” clauses to be included should this proposal proceed. Recipients are reminded that the CDV stage is
the final stage for submitting ISC clauses. (SEE AC/22/2007 OR NEW GUIDANCE DOC).
TITLE:
Amendment 1 - Fragment 1: 18 GHz - 40 GHz Instrumentation
PROPOSED STABILITY DATE: 2026
electronic file, to make a copy and to print out the content for the sole purpose of preparing National Committee positions.
You may not copy or "mirror" the file or printed version of the document, or any part of it, for any other purpose without
permission in writing from IEC.
NOTE FROM TC/SC OFFICERS:
This CDV was prepared by CISPR/A AHG7 and is based on the comments received on the second
committee draft (see CISPR/A/1410/CD and CISPR/A/1434/CC) and decisions taken during the AHG7
meeting on 23rd of October 2024. The proposed changes are marked in red.
In addition, correction is included of a clear error in a Clause 3 note-to-entry Bibliography cross-
reference, as found during CISPR/A Editing Committee review of the draft CDV. Specifically, the Biblio.
reference for Formula (4), in Note 1 to entry of 3.6 impulse bandwidth, is corrected from [12] CISPR
16-2 series, to [9] Keller and Feser (in accordance with the associated originating documents
CIS/A/1247/CC and CIS/A/1215A/CD). Other editorial changes across the entire Ed 5.0 are deferred
for consideration during future maintenance work.
CISPR CDV 16-1-1/AMD1/FRAG1 © IEC 2025
1 INTERNATIONAL ELECTROTECHNICAL COMMISSION
2 INTERNATIONAL SPECIAL COMMITTEE ON RADIO INTERFERENCE
3 ____________
5 SPECIFICATION FOR RADIO DISTURBANCE AND IMMUNITY
6 MEASURING APPARATUS AND METHODS –
8 Part 1-1: Radio disturbance and immunity measuring apparatus –
9 Measuring apparatus
11 AMENDMENT 1
13 FOREWORD
14 1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
15 all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
16 co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
17 in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
18 Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
19 preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
20 may participate in this preparatory work. International, governmental and non-governmental organizations liaising
21 with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
22 Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
23 2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
24 consensus of opinion on the relevant subjects since each technical committee has representation from all
25 interested IEC National Committees.
26 3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
27 Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
28 Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
29 misinterpretation by any end user.
30 4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
31 transparently to the maximum extent possible in their national and regional publications. Any divergence between
32 any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
33 5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
34 assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
35 services carried out by independent certification bodies.
36 6) All users should ensure that they have the latest edition of this publication.
37 7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
38 members of its technical committees and IEC National Committees for any personal injury, property damage or
39 other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
40 expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
41 Publications.
42 8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
43 indispensable for the correct application of this publication.
44 9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
45 patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
46 respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
47 may be required to implement this document. However, implementers are cautioned that this may not represent
48 the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
49 shall not be held responsible for identifying any or all such patent rights.
50 Amendment 1 to CISPR 16-1-1 has been prepared by CISPR subcommittee A: Radio-
51 interference measurements and statistical methods.
CISPR CDV 16-1-1/AMD1/FRAG1 © IEC 2025
52 The text of this Amendment is based on the following documents:
Draft Report on voting
XX/XX/XXXX XX/XX/XXX
54 Full information on the voting for its approval can be found in the report on voting indicated in
55 the above table.
56 The language used for the development of this Amendment is English.
57 This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
58 accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
59 at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
60 described in greater detail at www.iec.ch/publications/.
61 The committee has decided that the contents of this document will remain unchanged until the
62 stability date indicated on the IEC website under webstore.iec.ch in the data related to the
63 specific document. At this date, the document will be
64 • reconfirmed,
65 • withdrawn, or
66 • revised.
67 ____________
69 Introduction
70 (not to be included at publication)
71 Proposed revision of CISPR 16-1-1 on specifications for receivers
72 in the frequency range 18 GHz to 40 GHz.
73 This CDV was prepared by CISPR/A AHG7 and is based on the comments received on the
74 second committee draft (see CISPR/A/1410/CD and CISPR/A/1434/CC) and decisions taken
rd
75 during the AHG7 meeting on 23 of October 2024. The proposed changes are marked in red.
76 In addition, correction is included of a clear error in a Clause 3 note-to-entry Bibliography cross-
77 reference, as found during CISPR/A Editing Committee review of the draft CDV. Specifically,
78 the Biblio. reference for Formula (4), in Note 1 to entry of 3.6 impulse bandwidth, is corrected
79 from [12] CISPR 16-2 series, to [9] Keller and Feser (in accordance with the associated
80 originating documents CIS/A/1247/CC and CIS/A/1215A/CD). Other editorial changes across
81 the entire Ed 5.0 are deferred for consideration during future maintenance work.
82 Two projects in the present CISPR/A work programme cover Amendment 1 to Ed. 5.0 of CISPR
83 16-1-1:
84 – CISPR 16-1-1/AMD1/FRAG1 ED5, 18-40 GHz Instrumentation
85 – CISPR 16-1-1/AMD1/FRAG2 ED5, Discontinuous Analyzers; CIS/A/1435/CDV,
86 CIS/A/1463/RVC
87 This draft is part of the FRAG1 project for the first amendment to Ed. 5.0.
88 Numbering of subclauses and figures are per CISPR 16-1-1:2019 (ED5).
CISPR CDV 16-1-1/AMD1/FRAG1 © IEC 2025
89 1 Scope
st
90 Replace 18 GHz by 40 GHz in the first sentence of the 1 paragraph to read:
91 This part of CISPR 16 specifies the characteristics and performance of equipment for the
92 measurement of radio disturbance in the frequency range 9 kHz to 40 GHz.
94 2 Normative references
95 Update the normative references as follows:
96 CISPR 11:2024, Industrial, scientific and medical equipment - Radio-frequency disturbance
97 characteristics - Limits and methods of measurement
98 CISPR 14-1:2020, Electromagnetic compatibility - Requirements for household appliances,
99 electric tools and similar apparatus - Part 1: Emission
100 CISPR 16-2-1:2014, Specification for radio disturbance and immunity measuring apparatus and
101 methods - Part 2-1: Methods of measurement of disturbances and immunity – Conducted
102 disturbance measurements
103 CISPR 16-2-1:2014/AMD1:2017
104 CISPR 16-2-2:2010, Specification for radio disturbance and immunity measuring apparatus and
105 methods - Part 2-2: Methods of measurement of disturbances and immunity - Measurement of
106 disturbance power
107 CISPR 16-2-3:2016, Specification for radio disturbance and immunity measuring apparatus and
108 methods - Part 2-3: Methods of measurement of disturbances and immunity – Radiated
109 disturbance measurements
110 CISPR 16-2-3:2016/AMD1:2019
111 CISPR 16-2-3:2016/AMD2:2023
112 CISPR TR 16-3:2020, Specification for radio disturbance and immunity measuring apparatus
113 and methods - Part 3: CISPR technical reports
114 IEC 60050-161:1990, International Electrotechnical Vocabulary (IEV) – Part 161:
115 Electromagnetic compatibility (available at www.electropedia.org)
117 3 Terms and definitions
118 3.6
119 impulse bandwidth
120 In Note 1 to entry replace [12] by [7], [9] as follows (footnote 1 cross-reference and content
121 unchanged):
122 For the Gaussian filter type, the relationship is [7], [9],
CISPR CDV 16-1-1/AMD1/FRAG1 © IEC 2025
125 4 Fundamental characteristics of a measuring receiver
126 4.2 Input impedance
127 Modify the caption of Table 1 and add a new table row with the VSWR requirements for the frequency
128 range 18 GHz to 40 GHz:
129 Table 1 – Requirements for receiver input impedance
Frequency range RF attenuation VSWR
dB
9 kHz to 1 GHz 0 2,0 to 1
9 kHz to 1 GHz ≥ 10 1,2 to 1
1 GHz to 18 GHz 0 3,0 to 1
1 GHz to 18 GHz ≥ 10 2,0 to 1
18 GHz to 40 GHz 0 3,0 to 1
18 GHz to 40 GHz ≥ 10 2,5 to 1
131 4.3 Sine-wave voltage tolerance
132 Delete the relaxed specification above 1 GHz, use the term “with” instead of “using”, and delete
133 “resistive”, to read:
134 The tolerance of sine-wave voltage measurement shall be better than ±2 dB when the
135 instrument measures a sine-wave signal with a 50 Ω source impedance.
137 4.4 Overall pass-band selectivity
138 Add Band F to the caption of Figure 4 to read:
139 Figure 4 – Limits for the overall selectivity – Pass-band (Bands E and F)
CISPR CDV 16-1-1/AMD1/FRAG1 © IEC 2025
142 4.5 Bandwidth
143 Add in Table 3 the bandwidth requirements for the frequency range 18 GHz to 40 GHz to read:
144 Table 3 – Bandwidth requirements for measuring receivers
Frequency range Bandwidth B Reference bandwidth
a, c
9 kHz to 150 kHz (Band A) 200 Hz (B )
100 Hz to 300 Hz
a, c
0,15 MHz to 30 MHz (Band B) 9 kHz (B )
8 kHz to 10 kHz
a, c
30 MHz to 1 000 MHz (Bands C and D) 120 kHz (B )
100 kHz to 500 kHz
a, c b
1 GHz to 18 GHz (Band E)
300 kHz to 2 MHz 1 MHz (B )
imp
a, c b
18 GHz to 40 GHz (Band F) 1 MHz (B )
300 kHz to 2 MHz
imp
a
Since the response of a peak measuring receiver to non-overlapping pulses is proportional to its impulse
bandwidth, either the actual bandwidth is quoted in the result or the level may be quoted as "in a 1 MHz
bandwidth,", calculated by dividing the measured value by the impulse bandwidth in MHz (see 3.6). For other
types of broadband disturbance, this procedure can introduce an error. Therefore, data measured with th
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
