EN IEC 60947-3:2021
(Main)Low-voltage switchgear and controlgear - Part 3: Switches, disconnectors, switch-disconnectors and fuse-combination units
Low-voltage switchgear and controlgear - Part 3: Switches, disconnectors, switch-disconnectors and fuse-combination units
IEC 60947-3:2020 applies to switches, disconnectors, switch-disconnectors and fuse-combination units and their dedicated accessories to be used in distribution circuits and motor circuits of which the rated voltage does not exceed 1 000 V AC or 1 500 V DC. This fourth edition cancels and replaces the third edition published in 2008, Amendment 1:2012 and Amendment 2:2015. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
addition of critical load current tests for DC switches (see 9.3.9);
addition of requirements for a conditional short-circuit rating for disconnectors, switches, and switch-disconnectors protected by circuit-breakers (see 9.3.7.2);
addition of new categories for high-efficiency motors switching (see Annex A);
addition of new Annex E for connection to aluminium conductors;
addition of new Annex F for power losses measurement.
Niederspannungsschaltgeräte - Teil 3: Lastschalter, Trennschalter, Lasttrennschalter und Schalter-Sicherungs-Einheiten
Appareillage à basse tension - Partie 3: Interrupteurs, sectionneurs, interrupteurs-sectionneurs et combinés-fusibles
L’IEC 60947-3:2020 s’applique à l’appareillage suivant: interrupteurs, sectionneurs, interrupteurs-sectionneurs, combinés-fusibles et leurs accessoires dédiés, destinés à être insérés dans des circuits de distribution et des circuits de moteurs dont la tension assignée est inférieure ou égale à 1 000 V en courant alternatif ou à 1 500 V en courant continu. Cette quatrième édition annule et remplace la troisième édition parue en 2008, l’Amendement 1:2012 et l’Amendement 2:2015. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l’édition précédente:
ajout d'essais de courant critique de charge pour interrupteurs à courant continu (voir 9.3.9);
ajout d’exigences relatives à la caractéristique assignée de court-circuit conditionnel pour les sectionneurs, les interrupteurs et les interrupteurs-sectionneurs protégés par des disjoncteurs (voir 9.3.7.2);
ajout de nouvelles catégories pour commande de moteurs à haut rendement (voir Annexe A);
ajout d’une nouvelle Annexe E pour le raccordement à des conducteurs en aluminium;
ajout d’une nouvelle Annexe F pour la mesure des puissances dissipées.
Nizkonapetostne stikalne in krmilne naprave - 3. del: Stikala, ločilniki, ločilna stikala in stikalni aparati z varovalkami (IEC 60947-3:2020)
Ta del standarda IEC 60947 se uporablja za stikala, ločilnike, ločilna stikala in stikalne aparate z varovalkami
ter njihov namenski pribor, ki so namenjeni uporabi v razdelilnih tokokrogih in motorskih tokokrogih, pri čemer nazivna napetost ne presega 1000 V izmenične napetosti ali 1500 V enosmerne napetosti.
OPOMBA 1: Pribor vključuje vzajemno povezane enote, razširjene priključke, notranje tuljave, pomožne kontakte, motorni pogon in druge dodatke, ki so na voljo za izbiro skupaj z osnovno enoto.
Ta dokument se ne uporablja za opremo, ki spada na področje uporabe standardov IEC 60947-2, IEC 60947-4-1 in IEC 60947-5-1.
Posebne zahteve za stikala, ločilnike, ločilna stikala in stikalne aparate z varovalkami, ki se uporabljajo v fotonapetostnih (PV) aplikacijah pri enosmernem toku, so podane v dodatku D.
Posebne zahteve za nizkonapetostne stikalne naprave, namenjene za povezovanje prevodnikov iz aluminija, so podane v dodatku A.
Navodila za merjenje izgube moči so podana v dodatku F.
Ta dokument ne vključuje dodatnih zahtev, potrebnih za električne naprave za eksplozivne plinske atmosfere.
OPOMBA 2: Glede na njegovo zasnovo lahko stikalo (ali ločilnik) imenujemo »vrtljivo stikalo (ločilnik)«, »odmično stikalo (ločilnik)«, »nožasto stikalo (ločilnik)« itd.
OPOMBA 3: V tem dokumentu se izraz »stikalo« uporablja tudi za naprave, ki se v francoščini imenujejo »commutateurs« ter so namenjene spreminjanju povezav med vezji in med drugim zamenjavi dela vezja z drugim delom.
OPOMBA 4: Na splošno se v tem dokumentu stikala, ločilniki, ločilna stikala in stikalni aparati z varovalkami imenujejo »oprema«.
Cilj tega dokumenta je navesti:
a) značilnosti opreme;
b) pogoje, ki veljajo za opremo v zvezi z:
1) delovanjem in vedenjem v običajnih pogojih;
2) delovanjem in vedenjem v primeru navedenih izrednih razmer (npr. kratek stik);
3) dielektričnimi lastnostmi;
c) preskuse, s katerimi se potrdi, da so bili ti pogoji in metode izvajanja teh preskusov izpolnjeni;
d) ustrezne informacije o označevanju opreme oziroma informacije, ki jih da na voljo proizvajalec (npr. v katalogu).
Posamezne točke, pri katerih je potreben dogovor med uporabnikom in proizvajalcem, so opredeljene v dodatku B.
General Information
Relations
Standards Content (Sample)

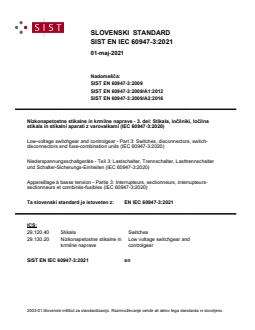

SLOVENSKI STANDARD
01-maj-2021
Nadomešča:
SIST EN 60947-3:2009
SIST EN 60947-3:2009/A1:2012
SIST EN 60947-3:2009/A2:2016
Nizkonapetostne stikalne in krmilne naprave - 3. del: Stikala, ločilniki, ločilna
stikala in stikalni aparati z varovalkami (IEC 60947-3:2020)
Low-voltage switchgear and controlgear - Part 3: Switches, disconnectors, switch-
disconnectors and fuse-combination units (IEC 60947-3:2020)
Niederspannungsschaltgeräte - Teil 3: Lastschalter, Trennschalter, Lasttrennschalter
und Schalter-Sicherungs-Einheiten (IEC 60947-3:2020)
Appareillage à basse tension - Partie 3: Interrupteurs, sectionneurs, interrupteurs-
sectionneurs et combinés-fusibles (IEC 60947-3:2020)
Ta slovenski standard je istoveten z: EN IEC 60947-3:2021
ICS:
29.120.40 Stikala Switches
29.130.20 Nizkonapetostne stikalne in Low voltage switchgear and
krmilne naprave controlgear
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

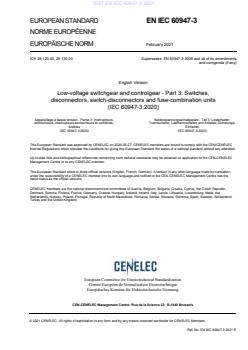

EUROPEAN STANDARD EN IEC 60947-3
NORME EUROPÉENNE
EUROPÄISCHE NORM
February 2021
ICS 29.120.40; 29.130.20 Supersedes EN 60947-3:2009 and all of its amendments
and corrigenda (if any)
English Version
Low-voltage switchgear and controlgear - Part 3: Switches,
disconnectors, switch-disconnectors and fuse-combination units
(IEC 60947-3:2020)
Appareillage à basse tension - Partie 3: Interrupteurs, Niederspannungsschaltgeräte - Teil 3: Lastschalter,
sectionneurs, interrupteurs-sectionneurs et combinés- Trennschalter, Lasttrennschalter und Schalter-Sicherungs-
fusibles Einheiten
(IEC 60947-3:2020) (IEC 60947-3:2020)
This European Standard was approved by CENELEC on 2020-05-27. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 60947-3:2021 E

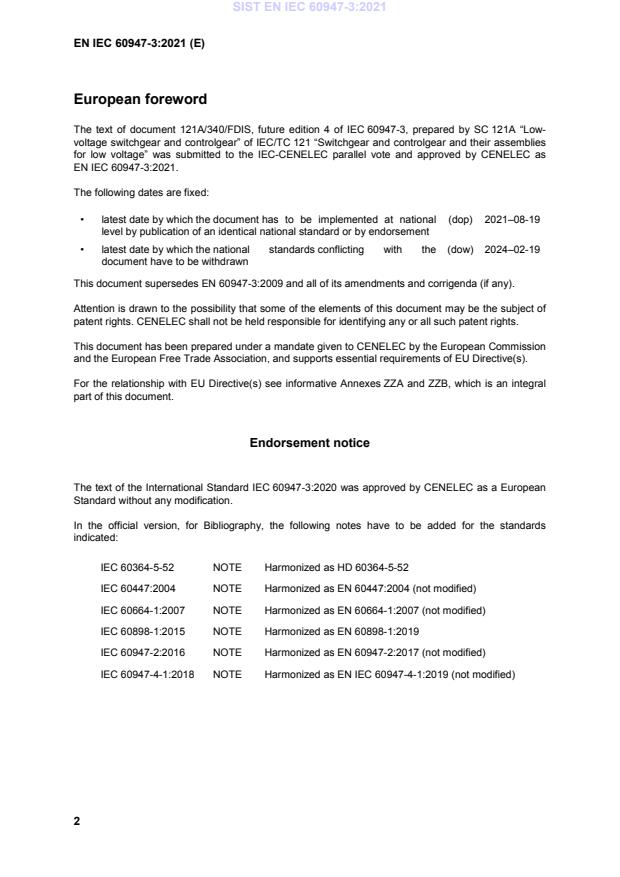

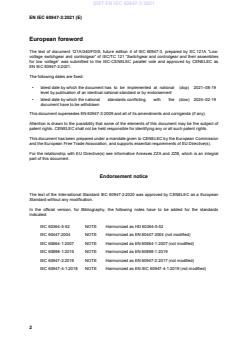

European foreword
The text of document 121A/340/FDIS, future edition 4 of IEC 60947-3, prepared by SC 121A “Low-
voltage switchgear and controlgear” of IEC/TC 121 “Switchgear and controlgear and their assemblies
for low voltage” was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2021–08-19
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2024–02-19
document have to be withdrawn
This document supersedes EN 60947-3:2009 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
This document has been prepared under a mandate given to CENELEC by the European Commission
and the European Free Trade Association, and supports essential requirements of EU Directive(s).
For the relationship with EU Directive(s) see informative Annexes ZZA and ZZB, which is an integral
part of this document.
Endorsement notice
The text of the International Standard IEC 60947-3:2020 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards
indicated:
IEC 60364-5-52 NOTE Harmonized as HD 60364-5-52
IEC 60447:2004 NOTE Harmonized as EN 60447:2004 (not modified)
IEC 60664-1:2007 NOTE Harmonized as EN 60664-1:2007 (not modified)
IEC 60898-1:2015 NOTE Harmonized as EN 60898-1:2019
IEC 60947-2:2016 NOTE Harmonized as EN 60947-2:2017 (not modified)
IEC 60947-4-1:2018 NOTE Harmonized as EN IEC 60947-4-1:2019 (not modified)
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod), the
relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60050-441 - Electrotechnical Vocabulary – Switchgear, - -
controlgear and fuses
IEC 60034-12 2016 Rotating electrical machines - Part 12: EN 60034-12 2017
Starting performance of single-speed
three-phase cage induction motors
IEC 60034-30-1 2014 Rotating electrical machines - Part 30–1: EN 60034-30-1 2014
Efficiency classes of line operated AC
motors (IE code)
IEC 60068-2-14 2009 Environmental testing – Part 2–14: Tests – EN 60068-2-14 2009
Test N: Change of temperature
IEC 60228 2004 Conductors of insulated cables EN 60228 2005
+AC 2005
IEC 60269 (all parts) Low-voltage fuses EN 60269 (series)
IEC 60417 - Graphical symbols for use on equipment - -
IEC 60695-2-11 2014 Fire hazard testing - Part 2–11: EN 60695-2-11 2014
Glowing/hot-wire based test methods -
Glow-wire flammability test method for end
products (GWEPT)
IEC 60947-1 2020 Low-voltage switchgear and controlgear - EN IEC 60947-1 2021
Part 1: General rules
IEC 60947-5-1 2016 Low-voltage switchgear and controlgear - EN 60947-5-1 2017
Part 5–1: Control circuit devices and
+ CORR 1 2016 switching elements - Electromechanical
control circuit devices
IEC 61000-4-2 2008 Electromagnetic compatibility (EMC) – Part EN 61000-4-2 2009
4–2: Testing and measurement techniques
– Electrostatic discharge immunity test
IEC 61000-4-3 2006 , Electromagnetic compatibility (EMC) – EN 61000-4-3 2006
Part 4–3: Testing and measurement
+A1 2007 techniques – Radiated, radio-frequency, +A1 2008
+A2 2010 electromagnetic field immunity test +A2 2010
Publication Year Title EN/HD Year
IEC 61000-4-4 2012 Electromagnetic compatibility (EMC) – Part EN 61000-4-4 2012
4–4: Testing and measurement techniques
– Electrical fast transient/burst immunity
test
IEC 61000-4-5 2014 Electromagnetic compatibility (EMC) – Part EN 61000-4-5 2014
4–5: Testing and measurement techniques
+A1 2017 – Surge immunity test +A1 2017
IEC 61000-4-6 2013 Electromagnetic compatibility (EMC) – Part EN 61000-4-6 2014
4–6: Testing and measurement techniques +AC1 2015
– Immunity to conducted disturbances,
induced by radio-frequency fields
IEC 61238-1-1 - Compression and mechanical connectors EN IEC 61238-1- 2019
for power cables - Part 1–1: Test methods 1
and requirements for compression and
mechanical connectors for power cables
for rated voltages up to 1 kV (Um = 1,2 kV)
tested on non-insulated conductors
IEC 61545 1996 Connecting devices - Devices for the - -
connection of aluminium conductors in
clamping units of any material and copper
conductors in aluminium bodied clamping
units
IEC 62208 2011 Empty enclosures for low-voltage EN 62208 2011
switchgear and controlgear assemblies -
General requirements
IEC 62475 2010 High-current test techniques - Definitions EN 62475 2010
and requirements for test currents and
measuring systems
ISO 2859-1 1999 Sampling procedures for inspection by - -
attributes - Part 1: Sampling schemes
+A1 2011 indexed by acceptance quality limit (AQL)
for lot-by-lot inspection
CISPR 11 2015 Industrial, scientific and medical equipment EN 55011 2016
– Radio-frequency disturbance (modified)
+A1 2016 characteristics – Limits and methods of +A1 2017
measurement
CISPR 32 2015 Electromagnetic compatibility of multimedia EN 55032 2015
equipment - Emission requirements +AC 2016
Annex ZZA
(informative)
Relationship between this European standard and the essential
requirements of Directive 2014/30/EU [2014 OJ L96] aimed to be
covered
This European standard has been prepared under the European Commission standardization request
C(2016) 7641 final of 30.11.2016 , ('M/552'), as regards harmonized standards in support of Directive
2014/30/EU relating to electromagnetic compatibility, to provide one voluntary means of conforming to
essential requirements of Directive 2014/30/EU of the European Parliament and of the Council of 26
February 2014 on the harmonization of the laws of the Member States relating to electromagnetic
compatibility [2014 OJ L96].
Once this standard is cited in the Official Journal of the European Union under that Directive,
compliance with the normative clauses of this standard given in Table ZZA.1 confers, within the limits
of the scope of this standard, a presumption of conformity with the corresponding essential
requirements of that Directive, and associated EFTA regulations.
Table ZZA.1 — Correspondence between this European standard and the Essential
Requirements set out in Directive 2014/30/EU [2014 OJ L96]
Clause(s) / sub-clause(s)
Essential requirements of Directive
Remarks / Notes
2014/30/EU
of this EN
Annex I. 1(a) (electromagnetic disturbances) 8.3.3, 9.4.3, D.9.4
Annex I. 1(b) (electromagnetic immunity) 8.3.2, 9.4.2, D.9.4
WARNING 1: Presumption of conformity stays valid only as long as a reference to this European
standard is maintained in the list published in the Official Journal of the European Union. Users of this
standard should consult frequently the latest list published in the Official Journal of the European
Union.
WARNING 2: Other Union legislation may be applicable to the product(s) falling within the scope of
this standard.
COMMISSION IMPLEMENTING DECISION C(2016) 7641 final of 30.11.2016 on a standardisation request to the European
Committee for Standardisation, to the European Committee for Electrotechnical Standardisation and to the European
Telecommunications Standards Institute as regards harmonised standards in support of Directive 2014/30/EU of the European
Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to
electromagnetic compatibility.
Annex ZZB
(informative)
Relationship between this European standard and the safety
objectives of Directive 2014/35/EU [2014 OJ L96] aimed to be
covered
This European standard has been prepared under a Commission’s standardization request relating to
harmonized standards in the field of the Low Voltage Directive, M/511, to provide one voluntary means
of conforming to safety objectives of Directive 2014/35/EU of the European Parliament and of the
Council of 26 February 2014 on the harmonization of the laws of the Member States relating to the
making available on the market of electrical equipment designed for use within certain voltage limits
[2014 OJ L96].
Once this standard is cited in the Official Journal of the European Union under that Directive,
compliance with the normative clauses of this standard given in Table ZZB.1 confers, within the limits
of the scope of this standard, a presumption of conformity with the corresponding safety objectives of
that Directive, and associated EFTA regulations.
Table ZZB.1 — Correspondence between this European standard and Annex I of Directive
2014/35/EU [2014 OJ L96]
Safety objectives of Clause(s) / sub-clause(s) of this EN Remarks/note
Directive 2014/35/EU
1 a) 1, 2, 3, 6.2, 6.3, Annex D, Annex E
1 b) 1, 2, 3, 6.2, 6.3, Annex C, Annex D,
Annex E
1 c) 1, 2, 3, 5, 6, 7, A.1, A.2, C.1, D.1, D.2, Also refer to 2 a) to 2 d) and 3 a)
E.1, E.6.3 to 3 c) in this table
2 a) 1, 2, 3, 8.1, 8.2, 9.1, 9.3, 9.5, Annex A,
Annex C, Annex D
2 b) 1, 2, 3, 5, 8.1, 8.2.2, 9.3, Annex A,
Annex C, Annex D, Annex E
2 c) 1, 2, 3, 6, 8.1, 8.2, 8.3, 9.1, 9.2, 9.3,
Annex A, Annex C, Annex D, Annex E
2 d) 1, 2, 3, 4.3, 5, 6.2, 6.3, 8.1, 8.2, 9.1,
9.2, 9.3, 9.5, Annex A, Annex C,
Annex D, Annex E
3 a) 1, 2, 3, 5, 6, 8.2, 8.3, 9.1, 9.2, 9.3, 9.5,
Annex A, Annex C, Annex D, Annex E
3 b) 1, 2, 3, 6.2, 6.3, 7, Annex D
3 c) 1, 2, 3, 6.3, 8.3, 9.3, Annex D, Annex E
WARNING 1: Presumption of conformity stays valid only as long as a reference to this European
standard is maintained in the list published in the Official Journal of the European Union. Users of this
standard should consult frequently the latest list published in the Official Journal of the European
Union.
WARNING 2: Other Union legislation may be applicable to the product(s) falling within the scope of
this standard.
IEC 60947-3 ®
Edition 4.0 2020-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Low-voltage switchgear and controlgear
...
SLOVENSKI STANDARD
01-maj-2021
Nadomešča:
SIST EN 60947-3:2009
SIST EN 60947-3:2009/A1:2012
SIST EN 60947-3:2009/A2:2016
Nizkonapetostne stikalne in krmilne naprave - 3. del: Stikala, ločilniki, ločilna
stikala in stikalni aparati z varovalkami (IEC 60947-3:2020)
Low-voltage switchgear and controlgear - Part 3: Switches, disconnectors, switch-
disconnectors and fuse-combination units (IEC 60947-3:2020)
Niederspannungsschaltgeräte - Teil 3: Lastschalter, Trennschalter, Lasttrennschalter und
Schalter-Sicherungs-Einheiten (IEC 60947-3:2020)
Appareillage à basse tension - Partie 3: Interrupteurs, sectionneurs, interrupteurs-
sectionneurs et combinés-fusibles (IEC 60947-3:2020)
Ta slovenski standard je istoveten z: EN IEC 60947-3:2021
ICS:
29.130.20 Nizkonapetostne stikalne in Low voltage switchgear and
krmilne naprave controlgear
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD EN IEC 60947-3
NORME EUROPÉENNE
EUROPÄISCHE NORM
February 2021
ICS 29.120.40; 29.130.20 Supersedes EN 60947-3:2009 and all of its amendments
and corrigenda (if any)
English Version
Low-voltage switchgear and controlgear - Part 3: Switches,
disconnectors, switch-disconnectors and fuse-combination units
(IEC 60947-3:2020)
Appareillage à basse tension - Partie 3: Interrupteurs, Niederspannungsschaltgeräte - Teil 3: Lastschalter,
sectionneurs, interrupteurs-sectionneurs et combinés- Trennschalter, Lasttrennschalter und Schalter-Sicherungs-
fusibles Einheiten
(IEC 60947-3:2020) (IEC 60947-3:2020)
This European Standard was approved by CENELEC on 2020-05-27. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 60947-3:2021 E
European foreword
The text of document 121A/340/FDIS, future edition 4 of IEC 60947-3, prepared by SC 121A “Low-
voltage switchgear and controlgear” of IEC/TC 121 “Switchgear and controlgear and their assemblies
for low voltage” was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2021–08-19
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2024–02-19
document have to be withdrawn
This document supersedes EN 60947-3:2009 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
This document has been prepared under a mandate given to CENELEC by the European Commission
and the European Free Trade Association, and supports essential requirements of EU Directive(s).
For the relationship with EU Directive(s) see informative Annexes ZZA and ZZB, which is an integral
part of this document.
Endorsement notice
The text of the International Standard IEC 60947-3:2020 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards
indicated:
IEC 60364-5-52 NOTE Harmonized as HD 60364-5-52
IEC 60447:2004 NOTE Harmonized as EN 60447:2004 (not modified)
IEC 60664-1:2007 NOTE Harmonized as EN 60664-1:2007 (not modified)
IEC 60898-1:2015 NOTE Harmonized as EN 60898-1:2019
IEC 60947-2:2016 NOTE Harmonized as EN 60947-2:2017 (not modified)
IEC 60947-4-1:2018 NOTE Harmonized as EN IEC 60947-4-1:2019 (not modified)
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod), the
relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60050-441 - Electrotechnical Vocabulary – Switchgear, - -
controlgear and fuses
IEC 60034-12 2016 Rotating electrical machines - Part 12: EN 60034-12 2017
Starting performance of single-speed
three-phase cage induction motors
IEC 60034-30-1 2014 Rotating electrical machines - Part 30–1: EN 60034-30-1 2014
Efficiency classes of line operated AC
motors (IE code)
IEC 60068-2-14 2009 Environmental testing – Part 2–14: Tests – EN 60068-2-14 2009
Test N: Change of temperature
IEC 60228 2004 Conductors of insulated cables EN 60228 2005
+AC 2005
IEC 60269 (all parts) Low-voltage fuses EN 60269 (series)
IEC 60417 - Graphical symbols for use on equipment - -
IEC 60695-2-11 2014 Fire hazard testing - Part 2–11: EN 60695-2-11 2014
Glowing/hot-wire based test methods -
Glow-wire flammability test method for end
products (GWEPT)
IEC 60947-1 2020 Low-voltage switchgear and controlgear - EN IEC 60947-1 2021
Part 1: General rules
IEC 60947-5-1 2016 Low-voltage switchgear and controlgear - EN 60947-5-1 2017
Part 5–1: Control circuit devices and
+ CORR 1 2016 switching elements - Electromechanical
control circuit devices
IEC 61000-4-2 2008 Electromagnetic compatibility (EMC) – Part EN 61000-4-2 2009
4–2: Testing and measurement techniques
– Electrostatic discharge immunity test
IEC 61000-4-3 2006 , Electromagnetic compatibility (EMC) – EN 61000-4-3 2006
Part 4–3: Testing and measurement
+A1 2007 techniques – Radiated, radio-frequency, +A1 2008
+A2 2010 electromagnetic field immunity test +A2 2010
Publication Year Title EN/HD Year
IEC 61000-4-4 2012 Electromagnetic compatibility (EMC) – Part EN 61000-4-4 2012
4–4: Testing and measurement techniques
– Electrical fast transient/burst immunity
test
IEC 61000-4-5 2014 Electromagnetic compatibility (EMC) – Part EN 61000-4-5 2014
4–5: Testing and measurement techniques
+A1 2017 – Surge immunity test +A1 2017
IEC 61000-4-6 2013 Electromagnetic compatibility (EMC) – Part EN 61000-4-6 2014
4–6: Testing and measurement techniques +AC1 2015
– Immunity to conducted disturbances,
induced by radio-frequency fields
IEC 61238-1-1 - Compression and mechanical connectors EN IEC 61238-1- 2019
for power cables - Part 1–1: Test methods 1
and requirements for compression and
mechanical connectors for power cables
for rated voltages up to 1 kV (Um = 1,2 kV)
tested on non-insulated conductors
IEC 61545 1996 Connecting devices - Devices for the - -
connection of aluminium conductors in
clamping units of any material and copper
conductors in aluminium bodied clamping
units
IEC 62208 2011 Empty enclosures for low-voltage EN 62208 2011
switchgear and controlgear assemblies -
General requirements
IEC 62475 2010 High-current test techniques - Definitions EN 62475 2010
and requirements for test currents and
measuring systems
ISO 2859-1 1999 Sampling procedures for inspection by - -
attributes - Part 1: Sampling schemes
+A1 2011 indexed by acceptance quality limit (AQL)
for lot-by-lot inspection
CISPR 11 2015 Industrial, scientific and medical equipment EN 55011 2016
– Radio-frequency disturbance (modified)
+A1 2016 characteristics – Limits and methods of +A1 2017
measurement
CISPR 32 2015 Electromagnetic compatibility of multimedia EN 55032 2015
equipment - Emission requirements +AC 2016
Annex ZZA
(informative)
Relationship between this European standard and the essential
requirements of Directive 2014/30/EU [2014 OJ L96] aimed to be
covered
This European standard has been prepared under the European Commission standardization request
C(2016) 7641 final of 30.11.2016 , ('M/552'), as regards harmonized standards in support of Directive
2014/30/EU relating to electromagnetic compatibility, to provide one voluntary means of conforming to
essential requirements of Directive 2014/30/EU of the European Parliament and of the Council of 26
February 2014 on the harmonization of the laws of the Member States relating to electromagnetic
compatibility [2014 OJ L96].
Once this standard is cited in the Official Journal of the European Union under that Directive,
compliance with the normative clauses of this standard given in Table ZZA.1 confers, within the limits
of the scope of this standard, a presumption of conformity with the corresponding essential
requirements of that Directive, and associated EFTA regulations.
Table ZZA.1 — Correspondence between this European standard and the Essential
Requirements set out in Directive 2014/30/EU [2014 OJ L96]
Clause(s) / sub-clause(s)
Essential requirements of Directive
Remarks / Notes
2014/30/EU
of this EN
Annex I. 1(a) (electromagnetic disturbances) 8.3.3, 9.4.3, D.9.4
Annex I. 1(b) (electromagnetic immunity) 8.3.2, 9.4.2, D.9.4
WARNING 1: Presumption of conformity stays valid only as long as a reference to this European
standard is maintained in the list published in the Official Journal of the European Union. Users of this
standard should consult frequently the latest list published in the Official Journal of the European
Union.
WARNING 2: Other Union legislation may be applicable to the product(s) falling within the scope of
this standard.
COMMISSION IMPLEMENTING DECISION C(2016) 7641 final of 30.11.2016 on a standardisation request to the European
Committee for Standardisation, to the European Committee for Electrotechnical Standardisation and to the European
Telecommunications Standards Institute as regards harmonised standards in support of Directive 2014/30/EU of the European
Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to
electromagnetic compatibility.
Annex ZZB
(informative)
Relationship between this European standard and the safety
objectives of Directive 2014/35/EU [2014 OJ L96] aimed to be
covered
This European standard has been prepared under a Commission’s standardization request relating to
harmonized standards in the field of the Low Voltage Directive, M/511, to provide one voluntary means
of conforming to safety objectives of Directive 2014/35/EU of the European Parliament and of the
Council of 26 February 2014 on the harmonization of the laws of the Member States relating to the
making available on the market of electrical equipment designed for use within certain voltage limits
[2014 OJ L96].
Once this standard is cited in the Official Journal of the European Union under that Directive,
compliance with the normative clauses of this standard given in Table ZZB.1 confers, within the limits
of the scope of this standard, a presumption of conformity with the corresponding safety objectives of
that Directive, and associated EFTA regulations.
Table ZZB.1 — Correspondence between this European standard and Annex I of Directive
2014/35/EU [2014 OJ L96]
Safety objectives of Clause(s) / sub-clause(s) of this EN Remarks/note
Directive 2014/35/EU
1 a) 1, 2, 3, 6.2, 6.3, Annex D, Annex E
1 b) 1, 2, 3, 6.2, 6.3, Annex C, Annex D,
Annex E
1 c) 1, 2, 3, 5, 6, 7, A.1, A.2, C.1, D.1, D.2, Also refer to 2 a) to 2 d) and 3 a)
E.1, E.6.3 to 3 c) in this table
2 a) 1, 2, 3, 8.1, 8.2, 9.1, 9.3, 9.5, Annex A,
Annex C, Annex D
2 b) 1, 2, 3, 5, 8.1, 8.2.2, 9.3, Annex A,
Annex C, Annex D, Annex E
2 c) 1, 2, 3, 6, 8.1, 8.2, 8.3, 9.1, 9.2, 9.3,
Annex A, Annex C, Annex D, Annex E
2 d) 1, 2, 3, 4.3, 5, 6.2, 6.3, 8.1, 8.2, 9.1,
9.2, 9.3, 9.5, Annex A, Annex C,
Annex D, Annex E
3 a) 1, 2, 3, 5, 6, 8.2, 8.3, 9.1, 9.2, 9.3, 9.5,
Annex A, Annex C, Annex D, Annex E
3 b) 1, 2, 3, 6.2, 6.3, 7, Annex D
3 c) 1, 2, 3, 6.3, 8.3, 9.3, Annex D, Annex E
WARNING 1: Presumption of conformity stays valid only as long as a reference to this European
standard is maintained in the list published in the Official Journal of the European Union. Users of this
standard should consult frequently the latest list published in the Official Journal of the European
Union.
WARNING 2: Other Union legislation may be applicable to the product(s) falling within the scope of
this standard.
IEC 60947-3 ®
Edition 4.0 2020-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Low-voltage switchgear and controlgear –
Part 3: Switches, dis
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
