EN 60966-2-4:2016

Radio Frequency and coaxial cable assemblies - Part 2-4: Detail specification for cable assemblies for radio and TV receivers - Frequency range 0 MHz to 3 000 MHz, IEC 61169-2 connectors

IEC 60966-2-4:2016 is a detail specification which applies to flexible coaxial cables described in the IEC 61196 series. It relates to cable assemblies for radio and TV receivers, and in particular to the cable assemblies subfamily 9,52 (IEC 61169-2). These cable assemblies are used as described in IEC 60728-4. This part of IEC 60966 gives subfamily requirements and severities which shall be applied. This edition includes the following significant technical changes with respect to the previous edition. a) The return loss requirements and insertion loss requirements are matched to the relevant cables. b) Screening effectiveness shall be measured according to IEC 62153-4-7, triaxial method. c) Screening class B was cancelled. This publication is to be read in conjunction with IEC 60966-1:1999, IEC 60966-2-1:2008 and IEC 60966-2-2:2003

Konfektionierte Koaxial- und Hochfrequenzkabel - Teil 2-4: Bauartspezifikation für konfektionierte Kabel für Ton- und Fernsehrundfunkempfänger - Frequenzbereich 0 MHz bis 3 000 MHz, Steckverbinder nach IEC 61169-2

Cordons coaxiaux et cordons pour fréquences radioélectriques - Partie 2-4: Spécification particulière relative aux cordons pour récepteurs de télévision ou radio – Plage de fréquences de 0 MHz à 3 000 MHz, connecteurs IEC 61169-2

L'IEC 60966-2-4:2016 est une spécification particulière qui s'applique aux câbles coaxiaux souples décrits dans la série IEC 61196. Elle concerne les cordons pour les récepteurs de télévision ou radio, et en particulier la sous-famille de cordons 9,52 (IEC 61169-2). Ces cordons sont utilisés comme cela est décrit dans l'IEC 60728-4. La présente partie de l'IEC 60966 indique les exigences relatives aux sous-familles et les sévérités qui doivent être appliquées. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente. a) Les exigences d'affaiblissement de réflexion et les exigences de perte d'insertion sont adaptées aux câbles correspondants. b) L'efficacité d'écran doit être mesurée conformément à la méthode triaxiale donnée dans l'IEC 62153-4-7. c) La classe d'écran B a été supprimée. Cette publication doit être lue conjointement avec la IEC 60966-1:1999, IEC 60966-2-1:2008 et IEC 60966-2-2:2003.

Kabelski sestavi - 2-4. del: Podrobna specifikacija za kabelske sestave za radijske in TV sprejemnike - Konektorji IEC 61169-2 za frekvenčno območje od 0 do 3 000 MHz (IEC 60966-2-4:2016)

EN-IEC 60966-2-4 je podrobna specifikacija, ki se uporablja za gibke koaksialne kable, opisane v skupini standardov IEC 61196. Nanaša se na kabelske sestave za radijske in TV sprejemnike ter zlasti na kabelske sestave podskupine 9,52 (standard IEC 61169-2). Uporaba teh kabelskih sestavov je opisana v standardu IEC 60728-4. Ta del standarda IEC 60966 obravnava zahteve za podskupine in stopnje zahtevnosti, ki jih je treba upoštevati. V okviru potrjevanja ustreznosti bo kvalifikacija izvedena v skladu z delom 12.2 standarda IEC 60966-2-1:2008, pri čemer bodo upoštevane določene različice. Ponovljeni bodo samo preskusi, katerih rezultati so lahko odvisni od različic. V okviru potrjevanja zmogljivosti bo kvalifikacija izvedena za povezane komponente s kvalificirano zmogljivostjo (CQC), kot je opredeljeno v delu 12.3 standarda IEC 60966-2-1:2008 in opisano v priročniku za zmogljivost (CM). Razen če je v priročniku za zmogljivost navedeno drugače, bodo za dobavljene proizvode izvedeni samo posamezni preskusi iz skupin Ba in Eb, vsi drugi preskusi pa bodo izvedeni za komponente s kvalificirano zmogljivostjo, kot je opredeljeno v delu 12.3 standarda IEC 60966-2-1:2008 in opisano v priročniku za zmogljivost (CM).

General Information

• Status: Published
• Publication Date: 21-Jul-2016
• Withdrawal Date: 21-Jun-2019
• ICS: 33.120.10 - Coaxial cables. Waveguides
• Technical Committee: CLC/TC 46X - Communication cables
• Drafting Committee: CLC/SC 46XA - Coaxial cables
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 22-Jul-2016
• Completion Date: 22-Jul-2016
• Ref Project: SIST EN 60966-2-4:2016 - Cable assemblies - Part 2-4: Detail specification for cable assemblies for radio and TV receivers - Frequency range 0 MHz to 3 000 MHz, IEC 61169-2 connectors (IEC 60966-2-4:2016)

Relations

• Replaces: EN 60966-2-4:2009 - Radio frequency and coaxial cable assemblies - Part 2-4: Detail specification for cable assemblies for radio and TV receivers - Frequency range 0 MHz to 3 000 MHz, IEC 61169-2 connectors
• Effective Date: 30-Jul-2014

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN 60966-2-4:2016
01-oktober-2016
1DGRPHãþD
SIST EN 60966-2-4:2009
.DEHOVNLVHVWDYLGHO3RGUREQDVSHFLILNDFLMD]DNDEHOVNHVHVWDYH]DUDGLMVNH
LQ79VSUHMHPQLNH.RQHNWRUML,(&]DIUHNYHQþQRREPRþMHRGGR
0+],(&
Cable assemblies - Part 2-4: Detail specification for cable assemblies for radio and TV
receivers - Frequency range 0 MHz to 3 000 MHz, IEC 61169-2 connectors (IEC 60966-
2-4:2016)
Cordons - Partie 2-4: Spécification particulière relative aux cordons pour récepteurs de
télévision ou radio - Plage de fréquences 0 MHz à 3 000 MHz, connecteurs IEC 61169-2
Ta slovenski standard je istoveten z: EN 60966-2-4:2016
ICS:
33.120.10 Koaksialni kabli. Valovodi Coaxial cables. Waveguides
SIST EN 60966-2-4:2016 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST EN 60966-2-4:2016

---------------------- Page: 2 ----------------------

SIST EN 60966-2-4:2016


EUROPEAN STANDARD EN 60966-2-4

NORME EUROPÉENNE

EUROPÄISCHE NORM
July 2016
ICS 33.120.10 Supersedes EN 60966-2-4:2009
English Version
Radio Frequency and coaxial cable assemblies - Part 2-4: Detail
specification for cable assemblies for radio and TV receivers -
Frequency range 0 MHz to 3 000 MHz, IEC 61169-2
connectors
(IEC 60966-2-4:2016)
Cordons coaxiaux et cordons pour fréquences Konfektionierte Koaxial- und Hochfrequenzkabel - Teil 2-4:
radioélectriques - Partie 2-4: Spécification particulière Bauartspezifikation für konfektionierte Kabel für Ton- und
relative aux cordons pour récepteurs de télévision ou radio - Fernsehrundfunkempfänger - Frequenzbereich 0 MHz bis 3
Plage de fréquences de 0 MHz à 3 000 MHz, connecteurs 000 MHz, Steckverbinder nach IEC 61169-2
IEC 61169-2 (IEC 60966-2-4:2016)
(IEC 60966-2-4:2016)
This European Standard was approved by CENELEC on 2016-06-22. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.



European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2016 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
 Ref. No. EN 60966-2-4:2016 E

---------------------- Page: 3 ----------------------

SIST EN 60966-2-4:2016
EN 60966-2-4:2016

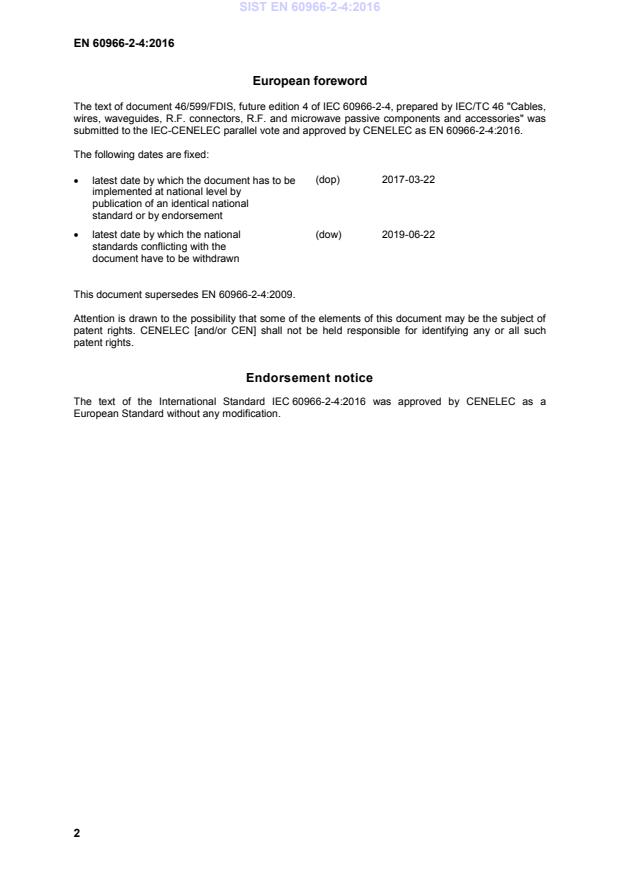

European foreword
The text of document 46/599/FDIS, future edition 4 of IEC 60966-2-4, prepared by IEC/TC 46 "Cables,
wires, waveguides, R.F. connectors, R.F. and microwave passive components and accessories" was
submitted to the IEC-CENELEC parallel vote and approved by CENELEC as EN 60966-2-4:2016.

The following dates are fixed:
(dop) 2017-03-22
• latest date by which the document has to be
implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2019-06-22
standards conflicting with the
document have to be withdrawn


This document supersedes EN 60966-2-4:2009.

Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.

Endorsement notice
The text of the International Standard IEC 60966-2-4:2016 was approved by CENELEC as a
European Standard without any modification.
2

---------------------- Page: 4 ----------------------

SIST EN 60966-2-4:2016
 EN 60966-2-4:2016

Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. F
...
