EN IEC 61753-081-02:2023
(Main)Fibre optic interconnecting devices and passive components - Performance standard - Part 081-02: Non-connectorized single-mode fibre optic middle-scale 1 x N DWDM devices for category C - Controlled environments
Fibre optic interconnecting devices and passive components - Performance standard - Part 081-02: Non-connectorized single-mode fibre optic middle-scale 1 x N DWDM devices for category C - Controlled environments
IEC 61753-081-02:2023 contains the minimum initial test and measurement requirements and severities which a fibre optic middle-scale 1 × N (16 ≤ N ≤ 64) DWDM (dense wavelength division multiplexing) arrayed waveguide grating device with channel spacing of 50 GHz, 100 GHz or 200 GHz satisfies in order to be categorized as meeting the requirements of category C (controlled environment). The requirements are given for the DWDM devices with Gaussian passband profile and flat-top passband profile. The requirements exclude the devices with dynamic electrical temperature control. This first edition cancels and replaces IEC 61753-081-2 published in 2014. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to IEC 61753-081-2:2014: a) change of test conditions harmonizing with IEC 61753-1:2018; b) harmonization of the measurement uncertainties in Table 2 to Table 4 with IEC 61753-081-03 and IEC 61753-081-06.
Lichtwellenleiter - Verbindungselemente und passive Bauteile - Betriebsverhalten - Teil 081-02: Nicht mit Steckverbinder versehene mittelgroße Einmoden-Lichtwellenleiter-1-x-N-DWDM-Bauteile für die Kategorie C - Kontrollierte Umgebung
Dispositifs d'interconnexion et composants passifs fibroniques - Norme de performance - Partie 081-02 : Dispositifs DWDM 1 × N de milieu d'échelle fibroniques unimodaux, non connecteurisés, pour catégorie C - Environnements contrôlés
IEC 61753-081-02:2023 contient les exigences initiales minimales d’essai et de mesure, ainsi que les sévérités auxquelles un dispositif fibronique à réseau de diffraction à guide d’ondes matriciel DWDM (multiplexage par répartition en longueur d'onde dense, dense wavelength division multiplexing) 1 × N (16 ≤ N ≤ 64) de milieu d'échelle avec un espacement entre canaux de 50 GHz, 100 GHz ou 200 GHz satisfait pour entrer dans une catégorie satisfaisant aux exigences de la catégorie C (environnement contrôlé). Les exigences sont données pour les dispositifs DWDM à profil passe-bande gaussien et à profil passe-bande carré. Ces exigences excluent les dispositifs avec organe de commande de température électrique dynamique. Cette première édition annule et remplace l'IEC 61753-081-2 parue en 2014. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l’IEC 61753-081-2:2014: a) modification des conditions d'essai pour harmonisation avec l’IEC 61753-1:2018; b) harmonisation des incertitudes de mesure du Tableau 2 au Tableau 4 avec l’IEC 61753-081-03 et l’IEC 61753-081-06.
Optični spojni elementi in pasivne komponente - Izvedbeni standard - 081-02. del: Električno krmiljeni spremenljivi optični atenuator srednje obsežne naprave 1 x N DWDM brez konektorjev za enorodovna vlakna kategorije C - Nadzorovana okolja (IEC 61753-081-02:2023)
Standard IEC 61753-081-02:2023 vsebuje minimalne zahteve in stopnje zahtevnosti glede začetnega preskusa ter meritev, ki jih mora izpolnjevati optični atenuator srednje obsežne naprave z razporejenim valovodom 1 x N (16 ≤ N ≤ 64) DWDM (zgoščeno valovnodolžinsko multipleksiranje) z medkanalskim razmikom 50 GHz, 100 GHz ali 200 GHz, da izpolnjuje zahteve kategorije C (nadzorovano okolje). Zahteve so podane za naprave za zgoščevalno dolžinsko multipleksiranje (DWDM) s profilom Gaussovega prepustnega pasu in profilom ploščatega prepustnega pasu. Zahteve ne vključujejo naprav z dinamično električno regulacijo temperature. Prva izdaja razveljavlja in nadomešča standard IEC 61753-081-2, objavljen leta 2014. Ta izdaja je tehnično popravljena izdaja. Ta izdaja v primerjavi s standardom IEC 61753-081-2:2014 vključuje naslednje pomembne tehnične spremembe:
a) spremembo preskusnih pogojev v skladu s standardom IEC 61753-1:2018;
b) uskladitev merilnih negotovosti v preglednicah 2 do 4 s standardom IEC 61753-081-03 in IEC 61753-081-06.
General Information
Relations
Standards Content (Sample)

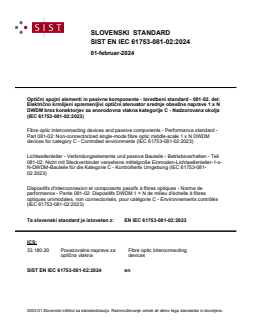

SLOVENSKI STANDARD
01-februar-2024
Optični spojni elementi in pasivne komponente - Izvedbeni standard - 081-02. del:
Električno krmiljeni spremenljivi optični atenuator srednje obsežne naprave 1 x N
DWDM brez konektorjev za enorodovna vlakna kategorije C - Nadzorovana okolja
(IEC 61753-081-02:2023)
Fibre optic interconnecting devices and passive components - Performance standard -
Part 081-02: Non-connectorized single-mode fibre optic middle-scale 1 x N DWDM
devices for category C - Controlled environments (IEC 61753-081-02:2023)
Lichtwellenleiter - Verbindungselemente und passive Bauteile - Betriebsverhalten - Teil
081-02: Nicht mit Steckverbinder versehene mittelgroße Einmoden-Lichtwellenleiter-1-x-
N-DWDM-Bauteile für die Kategorie C - Kontrollierte Umgebung (IEC 61753-081-
02:2023)
Dispositifs d'interconnexion et composants passifs à fibres optiques - Norme de
performance - Partie 081-02: Dispositifs DWDM 1 × N de milieu d'échelle à fibres
optiques unimodales, non connectorisés, pour catégorie C - Environnements contrôlés
(IEC 61753-081-02:2023)
Ta slovenski standard je istoveten z: EN IEC 61753-081-02:2023
ICS:
33.180.20 Povezovalne naprave za Fibre optic interconnecting
optična vlakna devices
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

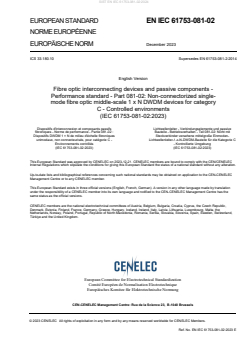

EUROPEAN STANDARD EN IEC 61753-081-02
NORME EUROPÉENNE
EUROPÄISCHE NORM December 2023
ICS 33.180.10 Supersedes EN 61753-081-2:2014
English Version
Fibre optic interconnecting devices and passive components -
Performance standard - Part 081-02: Non-connectorized single-
mode fibre optic middle-scale 1 x N DWDM devices for category
C - Controlled environments
(IEC 61753-081-02:2023)
Dispositifs d'interconnexion et composants passifs Lichtwellenleiter - Verbindungselemente und passive
fibroniques - Norme de performance - Partie 081-02 : Bauteile - Betriebsverhalten - Teil 081-02: Nicht mit
Dispositifs DWDM 1 × N de milieu d'échelle fibroniques Steckverbinder versehene mittelgroße Einmoden-
unimodaux, non connecteurisés, pour catégorie C - Lichtwellenleiter-1-x-N-DWDM-Bauteile für die Kategorie C
Environnements contrôlés - Kontrollierte Umgebung
(IEC 61753-081-02:2023) (IEC 61753-081-02:2023)
This European Standard was approved by CENELEC on 2023-12-21. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 61753-081-02:2023 E

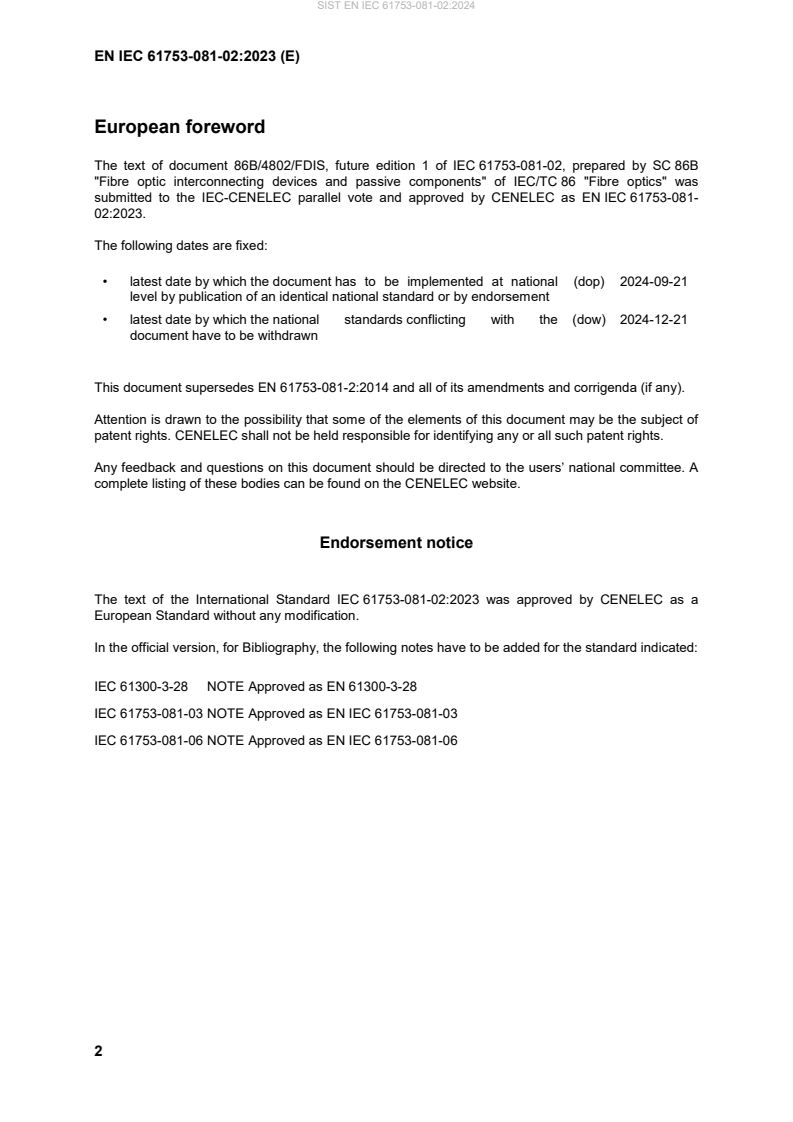

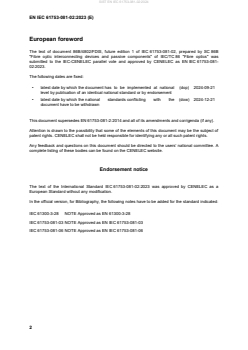

European foreword
