Cable trunking systems and cable ducting systems for electrical installations - Part 2-4: Particular requirements - Service poles and service posts

IEC 61084-2-4:2017 specifies requirements and tests for cable trunking systems (CTS) and cable ducting systems (CDS) intended for the accommodation, and where necessary for the electrically protective separation, of insulated conductors, cables and possibly other electrical equipment in electrical and/or communication systems installations. The maximum voltage of these installations is 1 000 V AC and 1 500 V DC.
Service poles and service posts are intended to be mounted in free space and in contact with mounting surface(s) only at one or two ends, where the word “mounted” means fixed or placed on the floor with a weighted base or linked to a mounting surface through a flexible component.
NOTE Service poles and service posts can also be part of a CTS/CDS intended for wall or ceiling mounting covered by IEC 61084-2-1 or floor mounting covered by IEC 61084-2-2 and are then also tested according to said parts, as appropriate.
This international standard does not apply to conduit systems, cable tray systems, cable ladder systems, powertrack systems or equipment covered by other standards.
This second edition cancels and replaces the first edition published in 1996. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous edition:
- classification;
- construction;
- mechanical and electrical properties.
This International Standard is to be used in conjunction with IEC 61084-1:2017.

Systèmes de goulottes et systèmes de conduits-profilés pour installations électriques - Partie 2-4: Exigences particulières - Colonnes et colonnettes

L'IEC 61084-2-4:2017 spécifie les exigences et les essais pour les systèmes de goulottes (SG) et les systèmes de conduits-profilés (SCP) destinés au logement de conducteurs isolés, câbles et éventuels autres équipements électriques et, si nécessaire, à leur séparation de protection électrique, dans des installations électriques et/ou de systèmes de communication. La tension maximale de ces installations est de 1 000 V en courant alternatif et 1 500 V en courant continu.
Les colonnes et les colonnettes sont destinées à être montées en espace libre et au contact de la ou des surfaces de montage uniquement à une extrémité ou aux deux extrémités, le mot «montées» signifiant fixées ou placées sur le sol avec une base lestée ou reliées à une surface de montage au moyen d’un composant flexible.
NOTE Les colonnes et les colonnettes peuvent aussi faire partie d’un SG/SCP destiné à être monté au mur ou au plafond et relevant de l'IEC 61084-2-1, ou destiné à être monté au sol et relevant de l'IEC 61084-2-2, et sont alors aussi soumises à essai conformément à ces parties selon le cas.
La présente norme internationale ne s’applique pas aux systèmes de conduits, systèmes de chemins de câbles, systèmes d’échelles à câbles, systèmes de canalisations préfabriquées ou aux équipements couverts par d’autres normes.
Cette deuxième édition annule et remplace la première édition parue en 1996. Cette édition constitue une révision technique.
Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
- classification;
- construction;
- propriétés mécaniques et électriques.
Cette Norme internationale doit être utilisée conjointement avec l’IEC 61084-1:2017.

General Information

Status
Published
Publication Date
21-Mar-2017
Current Stage
PPUB - Publication issued
Start Date
22-Mar-2017
Completion Date
22-Mar-2017
Ref Project

Buy Standard

Standard
IEC 61084-2-4:2017 - Cable trunking systems and cable ducting systems for electrical installations - Part 2-4: Particular requirements - Service poles and service posts
English and French language
61 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

IEC 61084-2-4
Edition 2.0 2017-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Cable trunking systems and cable ducting systems for electrical installations –
Part 2-4: Particular requirements – Service poles and service posts
Systèmes de goulottes et systèmes de conduits-profilés pour installations
électriques –
Partie 2-4: Exigences particulières – Colonnes et colonnettes
IEC 61084-2-4:2017-03(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2017 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org

The stand-alone application for consulting the entire The world's leading online dictionary of electronic and

bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in

Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional

documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical

iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary

The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and

variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of

committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been

and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc

details all new publications released. Available online and If you wish to give us your feedback on this publication or

also once a month by email. need further assistance, please contact the Customer Service

Centre: csc@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 20 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 16
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.
Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
65 000 entrées terminologiques électrotechniques, en anglais
La recherche avancée permet de trouver des publications IEC

en utilisant différents critères (numéro de référence, texte, et en français, extraites des articles Termes et Définitions des

comité d’études,…). Elle donne aussi des informations sur les publications IEC parues depuis 2002. Plus certaines entrées

projets et les publications remplacées ou retirées. antérieures extraites des publications des CE 37, 77, 86 et

CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just

Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette

Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:

csc@iec.ch.
---------------------- Page: 2 ----------------------
IEC 61084-2-4
Edition 2.0 2017-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Cable trunking systems and cable ducting systems for electrical installations –
Part 2-4: Particular requirements – Service poles and service posts
Systèmes de goulottes et systèmes de conduits-profilés pour installations
électriques –
Partie 2-4: Exigences particulières – Colonnes et colonnettes
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.060.01; 29.120.10 ISBN 978-2-8322-4123-3

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

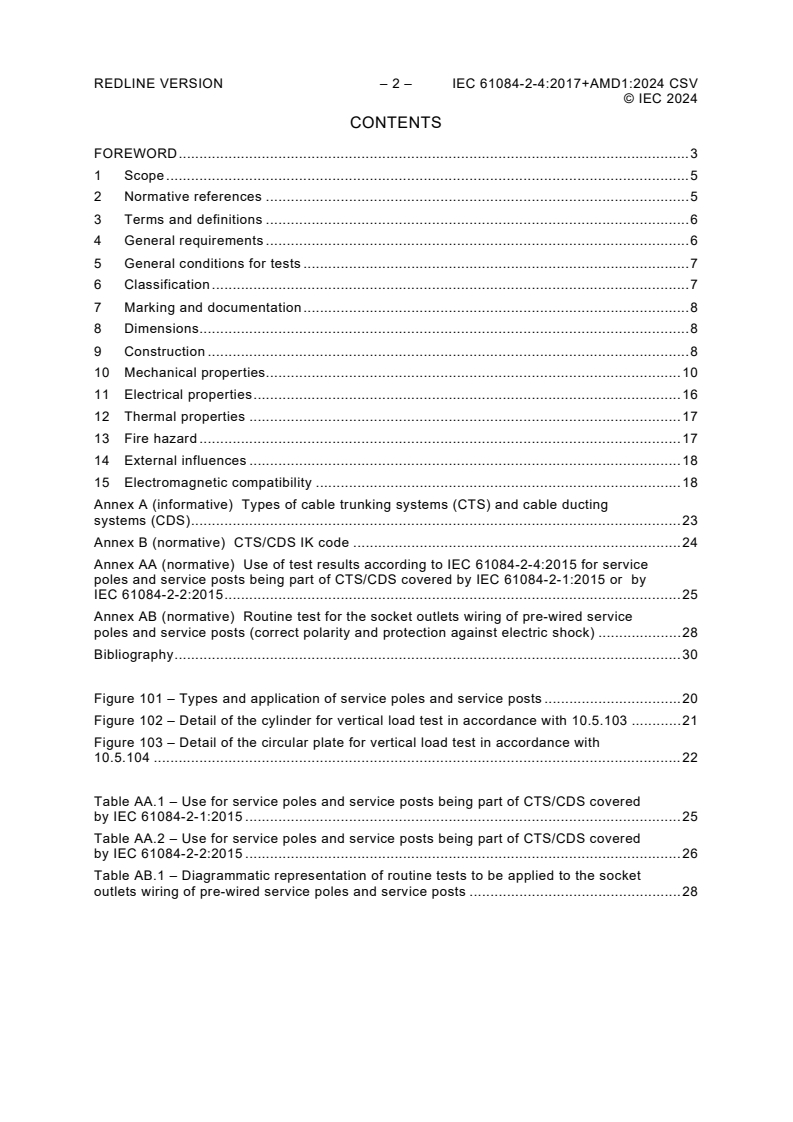

– 2 – IEC 61084-2-4:2017 © IEC 2017
CONTENTS

FOREWORD ........................................................................................................................... 3

1 Scope .............................................................................................................................. 5

2 Normative references ...................................................................................................... 5

3 Terms and definitions ...................................................................................................... 6

4 General requirements ...................................................................................................... 6

5 General conditions for tests ............................................................................................. 7

6 Classification ................................................................................................................... 7

7 Marking and documentation ............................................................................................. 8

8 Dimensions...................................................................................................................... 8

9 Construction .................................................................................................................... 8

10 Mechanical properties.................................................................................................... 10

11 Electrical properties ....................................................................................................... 16

12 Thermal properties ........................................................................................................ 17

13 Fire hazard .................................................................................................................... 17

14 External influences ........................................................................................................ 18

15 Electromagnetic compatibility ........................................................................................ 18

Annex A (informative) Types of cable trunking systems (CTS) and cable ducting

systems (CDS) ...................................................................................................................... 23

Annex B (normative) CTS/CDS IK code ............................................................................... 24

Annex AA (normative) Use of test results according to IEC 61084-2-4:2015 for service

poles and service posts being part of CTS/CDS covered by IEC 61084-2-1:2015 or by

IEC 61084-2-2:2015 .............................................................................................................. 25

Annex AB (normative) Routine test for the socket outlets wiring of pre-wired service

poles and service posts (correct polarity and protection against electric shock) .................... 28

Bibliography .......................................................................................................................... 30

Figure 101 – Types and application of service poles and service posts ................................. 20

Figure 102 – Detail of the cylinder for vertical load test in accordance with 10.5.103 ............ 21

Figure 103 – Detail of the circular plate for vertical load test in accordance with

10.5.104 ............................................................................................................................... 22

Table AA.1 – Use for service poles and service posts being part of CTS/CDS covered

by IEC 61084-2-1:2015 ......................................................................................................... 25

Table AA.2 – Use for service poles and service posts being part of CTS/CDS covered

by IEC 61084-2-2:2015 ......................................................................................................... 26

Table AB.1 – Diagrammatic representation of routine tests to be applied to the socket

outlets wiring of pre-wired service poles and service posts ................................................... 28

---------------------- Page: 4 ----------------------
IEC 61084-2-4:2017 © IEC 2017 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
CABLE TRUNKING SYSTEMS AND CABLE DUCTING
SYSTEMS FOR ELECTRICAL INSTALLATIONS –
Part 2-4: Particular requirements – Service poles and service posts
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 61084-2-4 has been prepared by subcommittee 23A: Cable

management systems, of IEC technical committee 23: Electrical accessories.

This second edition cancels and replaces the first edition published in 1996. This edition

constitutes a technical revision.

This edition includes the following significant technical changes with respect to the previous

edition:
• classification;
• construction;
• mechanical and electrical properties.
---------------------- Page: 5 ----------------------
– 4 – IEC 61084-2-4:2017 © IEC 2017
The text of this standard is based on the following documents:
FDIS Report on voting
23A/830/FDIS 23A/837/RVD

Full information on the voting for the approval of this standard can be found in the report on

voting indicated in the above table.

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

This International Standard is to be used in conjunction with IEC 61084-1:2017.

This part of the IEC 61084 series supplements or modifies the corresponding clauses of

IEC 61084-1:2017 as follows:

• where no particular clause or subclause of IEC 61084-1 is mentioned, the corresponding

clause or subclause of IEC 61084-1 applies as far as is reasonable;

• where “addition” or “replacement” is stated, the relevant text of IEC 61084-1 is to be

adapted accordingly;

• subclauses, figures and tables which are additional to those in IEC 61084-1 are numbered

starting from 101.
In this standard, the following print types are used:
• requirements and definitions: roman type;
• compliance statements: italic type.

A list of all parts in the IEC 61084 series, published under the general title Cable trunking and

cable ducting systems for electrical installations, can be found on the IEC website.

The committee has decided that the contents of this publication will remain unchanged until

the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data

related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates

that it contains colours which are considered to be useful for the correct

understanding of its contents. Users should therefore print this document using a

colour printer.
---------------------- Page: 6 ----------------------
IEC 61084-2-4:2017 © IEC 2017 – 5 –
CABLE TRUNKING SYSTEMS AND CABLE DUCTING
SYSTEMS FOR ELECTRICAL INSTALLATIONS –
Part 2-4: Particular requirements – Service poles and service posts
1 Scope

This part of the IEC 61084 series specifies requirements and tests for cable trunking systems

(CTS) and cable ducting systems (CDS) intended for the accommodation, and where

necessary for the electrically protective separation, of insulated conductors, cables and

possibly other electrical equipment in electrical and/or communication systems installations.

The maximum voltage of these installations is 1 000 V AC and 1 500 V DC

Service poles and service posts are intended to be mounted in free space and in contact with

mounting surface(s) only at one or two ends, where the word “mounted” means fixed or

placed on the floor with a weighted base or linked to a mounting surface through a flexible

component.

NOTE Service poles and service posts can also be part of a CTS/CDS intended for wall or ceiling mounting

covered by IEC 61084-2-1 or floor mounting covered by IEC 61084-2-2 and are then also tested according to said

parts, as appropriate.

This international standard does not apply to conduit systems, cable tray systems, cable

ladder systems, powertrack systems or equipment covered by other standards.
2 Normative references
This clause of Part 1 is applicable, except as follows:
Addition:

IEC 60068-2-75:2014, Environmental testing – Part 2-75: Tests – Test Eh: Hammer tests

IEC 60228:2004, Conductors of insulated cables

IEC 61084-1:2017, Cable trunking systems and cable ducting systems for electrical

installations – Part 1: General requirements

IEC 61084-2-1:2017, Cable trunking and cable ducting systems for electrical installations –

Part 2-1: Particular requirements – Cable trunking systems and cable ducting systems

intended for mounting on walls and ceilings

IEC 61084-2-2:2017, Cable trunking systems and cable ducting systems for electrical

installations – Part 2-2: Particular requirements – Cable trunking systems and cable ducting

systems intended for mounting underfloor, flushfloor, or onfloor

ISO 535:2014, Paper and board – Determination of water absorptiveness – Cobb method

ISO 536:2012, Paper and board – Determination of grammage

ISO 9328-7:2011, Steel flat products for pressure purposes – Technical delivery conditions –

Part 7: Stainless steels
---------------------- Page: 7 ----------------------
– 6 – IEC 61084-2-4:2017 © IEC 2017
3 Terms and definitions
This clause of Part 1 is applicable, except as follows:
Addition:
3.101
service pole

CTS/CDS intended to be mounted in free space and in contact with mounting surfaces only at

two ends

Note 1 to entry: Service pole can be part of a CTS/CDS intended for wall, ceiling or floor mounting. See

Figure 101.

Note 2 to entry: The word “mounted” means fixed or placed on the floor with a weighted base or linked to a

mounting surface through a flexible component.
3.102
service post

CTS/CDS intended to be mounted in free space and in contact with mounting surface only at

one end

Note 1 to entry: Service post can be part of a CTS/CDS intended for wall, ceiling or floor mounting. See

Figure 101.

Note 2 to entry: The word “mounted” means fixed or placed on the floor with a weighted base or linked to a

mounting surface through a flexible component.
3.103
pre-equipped service pole/service post

service pole/service post already assembled by the manufacturer or responsible vendor with

one or more electrical accessories and/or communication components
3.104
pre-wired service pole/service post

service pole/service post already assembled by the manufacturer or responsible vendor, wired

by means of insulated conductors and/or cables connecting one or more electrical
accessories and/or communication components
3.105
modular service pole/service post

service pole/service post which includes the assembly of two or more modules allowing to

increase the height or width or depth of the product
3.106
rated current

value of the current assigned to a pre-wired and/or pre-equipped service pole/service post by

the manufacturer and to which operation and performances characteristics are referred

3.107
rated voltage

value of the voltage assigned to a pre-wired and/or pre-equipped service pole/service post by

the manufacturer and to which operation and performances characteristics are referred

4 General requirements
This clause of Part 1 is applicable.
---------------------- Page: 8 ----------------------
IEC 61084-2-4:2017 © IEC 2017 – 7 –
5 General conditions for tests
This clause of Part 1 is applicable, except as follows:
5.1 Replacement:
5.1 Unless otherwise specified, tests according to this standard are type tests.
Additional subclause:

5.101 Unless otherwise specified in the relevant test, service poles/service posts are tested

on the longest version declared by the manufacturer, and service poles/service posts which

differ only by being shorter than one which complies with the requirements for a given test are

deemed to comply with the requirements for the same test.
6 Classification
This clause of Part 1 is applicable except as follows:
6.4.1 Flame propagating CTS/CDS
This subclause of Part 1 is not applicable.
Additional subclauses:

6.101 According to floor treatment for service poles/service posts placed on the floor

6.101.1 Service poles/service posts for dry-treatment of floor
6.101.2 Service poles/service posts for wet-treatment of floor

6.102 According to resistance to vertical load applied through small surface area

6.102.1 CTS/CDS for 500 N
6.102.2 CTS/CDS for 750 N
6.102.3 CTS/CDS for 1 000 N
6.102.4 CTS/CDS for 1 500 N
6.102.5 CTS/CDS for 2 000 N
6.102.6 CTS/CDS for 2 500 N
6.102.7 CTS/CDS for 3 000 N

6.103 Optional classification according to resistance to vertical load applied through

large surface area
6.103.1 CTS/CDS for 2 000 N
6.103.2 CTS/CDS for 3 000 N
6.103.3 CTS/CDS for 5 000 N
6.103.4 CTS/CDS for 10 000 N
6.103.5 CTS/CDS for 15 000 N
---------------------- Page: 9 ----------------------
– 8 – IEC 61084-2-4:2017 © IEC 2017
7 Marking and documentation
This clause of Part 1 is applicable except as follows:
7.3 Add the following three last bullet points:

• for modular service poles/service posts, the constraints concerning the number or

configuration of assembled modules;
• whether non-vertical mounting is allowed;

• whether the flexible component, if any, linking to the mounting surface is not part of the

enclosure.
8 Dimensions
This clause of Part 1 is applicable except as follows:
Replacement:
There are no dimensional requirements.
9 Construction
This clause of Part 1 is applicable except as follows:
9.1 Sharp edges
Replacement of the second paragraph by:

Compliance is checked by inspection using one sample, if necessary after cutting the samples

apart.
Replacement of the fourth paragraph by:
Compliance is checked by inspection using one sample.
9.3 Means for protective separation and/or retention
Replacement of the second paragraph by:
Compliance is checked by the tests of 10.3 and 10.5.
Additional subclauses:

9.101 Service poles/service posts which are likely to be moved during use shall be provided

with means to relieve conductors from strain in terminals or terminations.

NOTE A service pole with a weighted base is an example of service pole likely to be moved during use. A

clamped service pole is not considered likely to be moved during use.

When a cable anchorage is used, compliance is checked by inspection and by the test of

9.11.
Other means are checked by the following test.
---------------------- Page: 10 ----------------------
IEC 61084-2-4:2017 © IEC 2017 – 9 –

After installation according to the manufacturer’s instructions, a pull force of 100 N ± 2 N is

applied to the means in the most unfavourable direction for 60 s ± 5 s.

During the application of the force, there shall be no stress on insulated conductors.

9.102 Areas of service poles/service posts shall have adequate resistance to vertical load

when both the following conditions are fulfilled.

• These areas are reasonably subjected to vertical load during installation and/or

application. Some areas of service poles or service posts are considered not to be

subjected to vertical load due to their dimensions or shape or height at least 100 mm

above the floor.
• Damage to these areas would impair mechanical or electrical safety.

Compliance is checked by the test of 10.5.103 and, when a resistance to vertical load through

large surface area is declared, by the test of 10.5.104.

9.103 Insulated conductors and/or cables used to connect electrical accessories and/or

communication components in pre-wired service poles/service posts shall be selected in

accordance with the rated voltage of the connected equipment and, in case of electrical

accessories, its rated current.
Compliance is checked by inspection.

9.104 Service poles/service posts placed on the floor declared according to 6.101.2 shall

avoid water coming into contact with insulated conductors and live parts during wet-treatment

of floor by one or a combination of the following methods:

– method 1: ensuring by design that water does not come into contact with insulated

conductors and live parts when the water level is 10 mm above the upper level of the floor

covering;

– method 2: providing manufacturer's instructions which require that insulated conductors

and live parts are positioned not less than 10 mm above the upper level of the floor

covering;
– method 3: providing appropriate sealing.

For method 1, compliance is checked by measurement. For method 2, compliance is checked

by inspection. For method 3, compliance is checked by the following test.

The test is made using the lower part of the service pole/service post fixed on a plywood

board 16 mm thick, with a 50 mm minimum spacing between the sample and the edge of the

support.

Ingress of water is detected by the use of dry absorbent paper positioned between the

plywood board and the sample. The absorbent paper is placed only in areas intended to

accommodate insulated conductors or live parts.

The absorbent paper has a water absorptive height longitudinal of 75 mm per 10 min

according to ISO 535 and a basis weight of 250 g per m according to ISO 536.

The sample is placed carefully into a tray containing water to simulate a mm height of

water on the floor.
NOTE For easy detection of water absorption, coloured water can be used.

After 15 s ± 1 s the sample is removed carefully from the tray and the exterior of the sample is

immediately wiped.
---------------------- Page: 11 ----------------------
– 10 – IEC 61084-2-4:2017 © IEC 2017
The service pole/service post is removed from the plywood board.
The absorbent paper shall show no trace of water absorption.
10 Mechanical properties
This clause of Part 1 is applicable except as follows:
10.2 Cable support test
This subclause of Part 1 is not applicable.
10.3 Impact test
10.3.2 Impact test for installation and application
This subclause of Part 1 is applicable except as follows:
Replacement of the first paragraph by:

The test is carried out with the impact test values declared according to Table 6.

Additional subclauses:

10.3.2.101 The resistance to impact is checked on service poles/service posts including a

flexible component, if any, used to link the service pole/service post to the mounting surface if

the flexible component provides a safety function.

NOTE 1 Examples of safety function are retaining the service pole/service post or relieving conductors from strain

or providing an enclosure.
The test is carried out on an assembly consisting

– for a service pole/service post not longer than 1 000 mm: of a complete service

pole/service post;

NOTE 2 The length to be considered does not take into account the flexible component if any.

– for a service pole/service post longer than 1 000 mm: of one or more sections
1 000 mm ± 5 mm long to simulate the various characteristics (function, design,
material, …) within the service pole/service post.

For service poles/service posts which differ only in length the test is carried out on the

shortest and the longest ones. Other service poles/service posts within the range are deemed

to comply with the requirements for this test.

For a service pole intended for vertical mounting, the test is carried out only on parts of the

service pole which will be lower than 1 500 mm above the floor when installed in accordance

with manufacturer’s instructions.
The assembly includes system components, if any, to
...
