IEC 60684-3-284:2014

Flexible insulating sleeving - Part 3: Specifications for individual types of sleeving - Sheet 284: Heat-shrinkable sleevings, for oil barrier applications

IEC 60684-3-284:2014 gives the requirements for heat-shrinkable sleevings for oil barrier, medium voltage cable jointing and termination applications, with nominal shrink ratios of up to 3:1. These sleevings have been found suitable for use up to temperatures of 80 °C. Included are Type A: polyolefin based and Type B: fluoropolymer based, enhanced oil resistance. These sleevings are normally supplied as translucent. Since these types of sleevings cover a significantly large range of sizes and wall thicknesses, Annex A, Tables A.1 and A.2, in this document, provide a guide to the range of sizes available. The actual size will be agreed between the purchaser and supplier. Materials which conform to this standard meet established levels of performance. However, the selection of a material by a user for a specific application should be based on the actual requirements necessary for adequate performance in that application and not based on this standard alone. This sleeving is designed to be used in MV cable accessories and as such, electrical performance as defined as part of the assembly. Examples of this are described in HD 629 and IEC 60502 series. Keywords: heat-shrinkable sleevings, oil barrier, medium voltage cable jointing, termination applications

Gaines isolantes souples - Partie 3: Spécifications pour types particuliers de gaines - Feuille 284: Gaines thermorétractables pour applications de barrière résistant à l'huile

L'IEC 60684-3-284:2014 fournit les exigences relatives aux gaines thermorétractables pour applications de jonction et de terminaison de câble moyenne tension avec barrière résistant à l'huile, possédant des rapports de rétr-eint nominaux jusqu'à 3:1. Ces gaines se sont révélées être adaptées à une utilisation à des températures allant jusqu'à 80 °C Type A; à base de polyoléfine. Type B; à base de fluoropolymère, résistance améliorée à l'huile. Ces gaines sont normalement fournies en matériau translucide. Comme ces types de gaines couvrent une gamme très large de dimensions et d'épaisseurs de paroi, l'Annexe A, les Tableaux A.1 et A.2, du présent document fournissent des lignes directrices sur la gamme des dimensions disponibles. La dimension réelle fera l'objet d'un accord entre l'acheteur et le fournisseur. Les matériaux conformes à la présente norme satisfont à des niveaux de performance établis. Cependant, il convient que le choix d'un matériau par un utilisateur pour une application particulière soit fondé sur les exigences réelles nécessaires pour obtenir les performances satisfaisantes pour cette application, et qu'il ne soit pas fondé uniquement sur la présente norme. Ces gaines sont conçues pour être utilisées dans des accessoires de câbles moyenne tension et, en conséquence, les performances électriques sont définies dans le cadre de l'assemblage concerné. De tels exemples sont décrits dans le HD 629 et l'IE applications de jonction et de terminaison de câble moyenne tension C 60502. Mots clés: Gaines thermorétractables, barrière résistant à l'huile, de terminaison de câble moyenne tension applications

General Information

• Status: Published
• Publication Date: 22-Oct-2014
• ICS: 01 - GENERALITIES. TERMINOLOGY. STANDARDIZATION. DOCUMENTATION
• ICS: 29.035.20 - Plastics and rubber insulating materials
• Technical Committee: TC 15 - Solid electrical insulating materials
• Drafting Committee: WG 5 - TC 15/WG 5
• Current Stage: PPUB - Publication issued
• Start Date: 15-Feb-2015
• Completion Date: 23-Oct-2014

Standards Content (Sample)

IEC 60684-3-284
®

Edition 1.0 2014-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE


Flexible insulating sleeving –
Part 3: Specifications for individual types of sleeving –
Sheet 284: Heat-shrinkable sleevings, for oil barrier applications

Gaines isolantes souples –
Partie 3: Spécifications pour types particuliers de gaines – Feuille 284: Gaines
thermorétractables pour applications de barrière résistant à l’huile

IEC 60684-3-284:2014-10(en-fr)

---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2014 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.


Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch

About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 15
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 60 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].


A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
15 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.


Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
Plus de 60 000 entrées terminologiques électrotechniques, en
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et
comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus
projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des

CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
[e-mail].

---------------------- Page: 2 ----------------------
IEC 60684-3-284

®


Edition 1.0 2014-10




INTERNATIONAL



STANDARD




NORME



INTERNATIONALE











Flexible insulating sleeving –

Part 3: Specifications for individual types of sleeving –

Sheet 284: Heat-shrinkable sleevings, for oil barrier applications




Gaines isolantes souples –

Partie 3: Spécifications pour types particuliers de gaines – Feuille 284: Gaines


thermorétractables pour applications de barrière résistant à l’huile













INTERNATIONAL

ELECTROTECHNICAL

COMMISSION


COMMISSION

ELECTROTECHNIQUE


INTERNATIONALE




ICS 29.035.20 ISBN 978-2-8322-2977-4



Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale

---------------------- Page: 3 ----------------------
– 2 – IEC 60684-3-284:2014 © IEC 2014

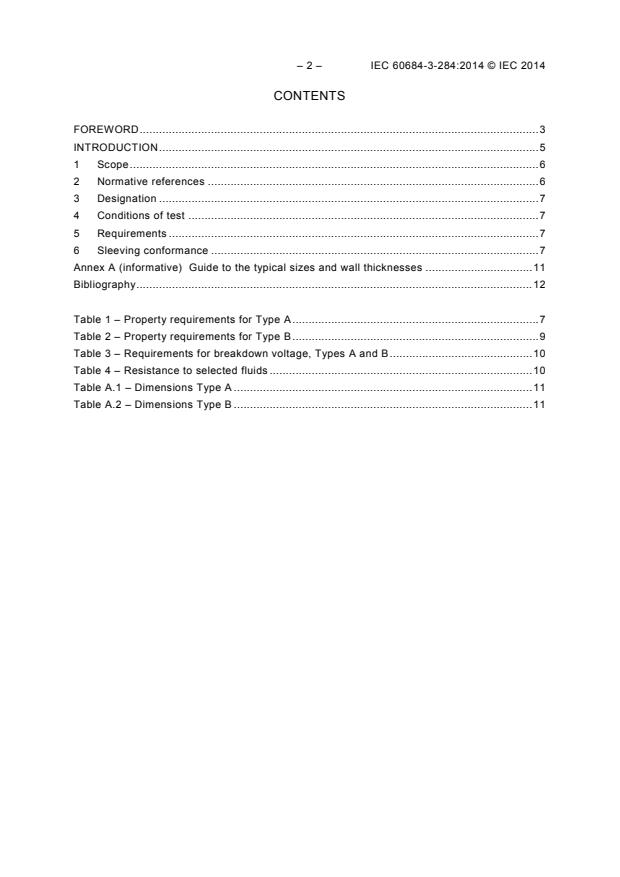

CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Designation . 7
4 Conditions of test . 7
5 Requirements . 7
6 Sleeving conformance . 7
Annex A (informative) Guide to the typical sizes and wall thicknesses . 11
Bibliography . 12

Table 1 – Property requirements for Type A . 7
Table 2 – Property requirements for Type B . 9
Table 3 – Requirements for breakdown voltage, Types A and B . 10
Table 4 – Resistance to selected fluids . 10
Table A.1 – Dimensions Type A . 11
Table A.2 – Dimensions Type B . 11

---------------------- Page: 4 ----------------------
IEC 60684-3-284:2014 © IEC 2014 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________

FLEXIBLE INSULATING SLEEVING –

Part 3: Specifications for individual types of sleeving –
Sheet 284: Heat-shrinkable sleevings, for oil barrier applications

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60684-3-284 has been prepared by IEC technical committee 15:
Solid electrical insulating materials.
This bilingual version (2015-10) corresponds to the English version, published in 2014-10.
The text of this standard is based on the following documents:
CDV Report on voting
15/693/CDV 15/726A/RVC

Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
The French version of this standard has not been voted upon.

---------------------- Page: 5 ----------------------
– 4 – IEC 60684-3-284:2014 © IEC 2014
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IEC 60684 series, published under the general title Flexible insulating
sleeving, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

---------------------- Page: 6 ----------------------
IEC 60684-3-284:2014 © IEC 2014 – 5 –
INTRODUCTION
This International Standard is one of a series which deals with flexible insulating sleeving for
electrical purposes.
The series consists of three parts:
Part 1: Definitions and general requirements (IEC 60684-1)
Part 2: Methods of test (IEC 60684-2)
Part 3: Specifications for individual types of sleeving (IEC 60684-3)
This standard gives one of the sheets comprising Part 3, as follows:
Sheet 284: Heat-shrinkable sleevings, for oil barrier applications.

---------------------- Page: 7 ----------------------
– 6 – IEC 60684-3-284:2014 © IEC 2014
FLEXIBLE INSULATING SLEEVING –

Part 3: Specifications for individual types of sleeving –
Sheet 284: Heat-shrinkable sleevings, for oil barrier applications



1 Scope
This part of IEC 60684 gives the requirements for heat-shrinkable sleevings for oil barrier,
medium voltage cable jointing and termination applications, with nominal shrink ratios of up to
3:1.
These sleevings have been found suitable for use up to temperatures of 80 °C.
Type A: polyolefin based.
Type B: fluoropolymer based, enhanced oil resistance.
These sleevings are normally supplied as translucent.
Since these types of sleevings cover a significantly large range of sizes and wall thicknesses,
Annex A, Tables A.1 and A.2, in this document, provide a guide to the range of sizes
available. The actual size will be agreed between the purchaser and supplier.
Materials which conform to this standard meet established levels of performance. However,
the selection of a material by a user for a specific application should be based on the actual
requirements necessary for adequate performance in that application and not based on this
standard alone.
This sleeving is designed to be used in MV cable accessories and as such, electrical
performance as defined as part of the assembly. Examples of this are described in HD 629
and IEC 60502 series.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60055-2, Paper-insulated metal-sheathed cables for rated voltages up to 18/30 kV (with
copper or aluminium conductors and excluding gas-pressure and oil-filled cables) – Part 2:
General and construction requirements
IEC 60296, Fluids for electrotechnical applications – Unused mineral insulating oils for
transformers and switchgear
IEC 60684-1:2003, Flexible insulating sleeving – Part 1: Definitions and general requirements
IEC 60684-2:2011, Flexible insulating sleeving – Part 2: Methods of test

---------------------- Page: 8 ----------------------
IEC 60684-3-284:2014 © IEC 2014 – 7 –
3 Designation
The sleeving shall be identified by the following designation:
Description IEC IEC part IEC sheet Type Size
publication number number (expanded and recovered
number internal diameter in mm)
↓ ↓ ↓ ↓ ↓ ↓
Sleeving IEC 60684 - 3 -284 -B - 51,0/19,0

NOTE This information is for package labelling only in accordance with IEC 60684-1.
4 Conditions of test
Unless otherwise specified, the sleeving shall be shrunk in a forced air circulation oven for
(10 ± 1) min at 175 °C ± 3 K for Type A, and at 200 °C ± 3 K for Type B, prior to testing.
5 Requirements
In addition to the general requirements given in IEC 60684-1, the sleeving shall comply with
the requirements of Tables 1, 2, 3, and 4 where applicable.
6 Sleeving conformance
Conformance to the requirements of this standard shall normally be based on the results from
a typical size.
Recovered ID 15 mm to 25 mm
Table 1 – Property requirements for Type A
Property IEC 60684-2: Units Max. or Requirements Remarks
2011 Clause or Min.
Subclause
Dimensions 3
To be agreed
Internal diameter 3.1.2
between
mm
purchaser and
Wall thickness 3.3.2 Min.
supplier
mm
Concentricity 3.3.3 Min.
50
%
expanded
85
recovered
Heat expanded sleeving
– 10
Longitudinal change 9 % Max. at 175 °C ± 5 K for
+ 5
(10 ± 1 ) min
Condition at –20 °C ± 3 K
For strips, the mandrel
shall be no more
than10 times the wall
Bending at low No cracking
14 – –
thickness. Full section
temperature shall be visible
sleeving is tested unfilled
and the mandrel shall be
no more than 10 times
the outer diameter.

---------------------- Page: 9 ----------------------
– 8 – IEC 60684-3-284:2014 © IEC 2014
Property IEC 60684-2: Units Max. or Requirements Remarks
2011 Clause or Min.
Subclause
Heat shock 6
MPa Min. 8
Tensile strength 19.1 and 19.2 Heat at 200 °C ± 5 K
% Min. 200
Elongation at break 19.1 and 19.2
The
Dimensional stability dimensions
16 – – See Clause 1, (Scope)
on storage shall remain as
agreed
Use a jaw separation of
100 mm/min. Below
Tensile strength 19.1 and 19.2 MPa Min. 10
6,5 mm diameter test as
Elongation at break 19.1 and 19.2 % Min. 250
sleeving, at 6,5 mm and
above test as dumb-bells.
Min. 50
Secant modulus at
19.5 MPa
2 % elongation
Max. 175
Breakdown voltage 21 kV Min. See Table 3
23
Volume Resistivity at
12
Ω.m Min. 10
room temperature
23.5.2
Resistance to Use the fluids and test
selected fluids temperatures specified in
Table 4.
36 MPa Min. 7
Tensile strength
Immersion time
19.1 and 19.2 % Min. 200
Elongation at break
24 ± 1 h
19.1 and 19.2 % Max. 10
Change in mass
Test after recovery period
of 1 h ±15 min.
Heat ageing 39
MPa Min. 10
Tensile strength 19.1 and 19.2
Heat at 150 °C ± 3 K.
% Min. 150
Elongation at break 19.1 and 19.2
Long term heat
50
The ageing temperature
ageing (3 000 h)
% Min. 125
shall be 135 °C ± 3 K.
19.2
Elongation at break

---------------------- Page: 10 ----------------------
IEC 60684-3-284:2014 © IEC 2014 – 9 –
Table 2 – Property requirements for Type B
Property IEC 60684-2: Units Max. or Requirements Remarks
2011 Clause or Min.
Subclause
Dimensions
To be agreed
Internal diameter 3
between
mm
purchaser and
Wall thickness 3.1.2 Min.
supplier.
mm
Concentricity 3.3.2 Min.
60
%
Expanded 3.3.3
85
Recovered
Heat expanded sleeving
– 10
Longitudinal change 9 % Max. at 200 °C ± 5 K for
+ 5
(10 ± 1) min
Test at –20 °C ± 3 K.
For strips, the mandrel
shall be no more than
Bending at low
No cracking
10 times the wall
14 – –
thickness. Full section
temperature shall be visible
sleeving is tested unfilled
and the mandrel shall be
no more than 10 times
the outer diameter.
Heat shock
No dripping,
Tensile strength 6  flowing or Heat at 275 °C ± 5 K.
cracking.
Elongation at Break
Dimensional
The
dimensions
stability 16  See Scope.
shall remain as
agreed.
on storage
Use a jaw separation of
100 mm/min. Below
Tensile strength 19.1 and 19.2 MPa Min. 24
6,5 mm diameter test as
Elongation at break 19.1 and 19.2 % Min. 200
sleeving, at 6,5 mm and
above test as dumb-bells.
Secant modulus at 2% 19.5 MPa Min. 170

elongation
Breakdown voltage 21 kV Min. See Table 3.
23
Volume Resistivity at
9
Ω m Min. 10
room temperature
23.5.2
Use the fluids and test
temperatures specified in
Resistance to
selected fluids Table 3.
36 MPa Min. 24
Tensile strength Immersion time
19.1 and 19.2 % Min. 200
Elongation at break (24 ± 1) h
19.1 and 19.2 % Max. 10
Change in mass Test after recovery period
of 1 h ±15 min.
Heat ageing 39
% Min. 100 Heat at 225 °C ± 5 K.
Elongation at break 19.1 and 19.2
Long term heat
50
The ageing temperature
ageing (3 000 h)
% Min. 100
shall be 150 °C ± 2 K.
19.2
Elongation at break

---------------------- Page: 11 ----------------------
– 10 – IEC 60684-3-284:2014 © IEC 2014
Table 3 – Requirements for breakdown voltage, Types A and B
a
Expanded wall thickness Electric strength
(mm) Min.
All dimensions Expanded ID Electric strength kV/mm
All sizes 12
a
Measure the expanded wall thickness and calculate the electric strength by dividing the breakdown voltage
by this value.

The breakdown voltage shall be determined by the method described in 21.4 of
IEC 60684-2:2011. The central value shall comply with the minimum value in the above
Table 3.
The sleeving shall be tested in the expanded condition.
The rate of application of the voltage shall be 500 V/s.
Care should be taken on selection of sizes based o
...
