IEC 60086-2-1:2026

Primary batteries - Part 2-1: Physical and electrical specifications of batteries with aqueous electrolyte

IEC 60086-2-1:2026 is applicable to primary batteries which are based on standardised electrochemical systems using aqueous electrolytes.
It specifies:
- the physical dimensions,
- the discharge test conditions and discharge performance requirements.
IEC 60086-2-1: 2026 cancels and replaces the fourteenth edition of IEC 60086 2 published in 2021. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous edition:
a) separation of lithium batteries into IEC 60086-2-2: Physical and electrical specifications;
b) in Clause 3, terms were reordered according to their functions: electrochemical systems, electrical characteristics and specifications;
c) TR03 and TR6 were added in Category 1, Round batteries;
d) load of digital audio test for LR03, TR03 and R03 was changed from 50 mA to 75 mA and MAD was modified;
e) personal grooming test of LR6 was added instead of high drain application test;
f) high drain application test was added for TR6;
g) radio /clock /remote control test was added for R6S;
h) CD, digital audio, wireless gaming and accessories test was removed for LR6, R6P and R6S;
i) 4,5 V of common designation was added for 3LR12, 3R12P and 3R12S;
j) Annex D for common designation of IEC 60086 2:2021 was moved to IEC 60086 1:2026, as Annex H;
k) Annex E for Compliance checklist of IEC 60086 2:2021 was removed and merged into Annex J of IEC 60086 1:2026.

Piles électriques - Partie 2-1: Spécifications physiques et électriques des piles à électrolyte aqueux

L'IEC 60086-2-1:2026 s’applique aux piles électriques qui sont basées sur des systèmes électrochimiques normalisés, utilisant des électrolytes aqueux.
Elle spécifie :
- les dimensions physiques;
- les conditions d’essai de décharge et les exigences relatives aux performances de décharge.
IEC 60086-2-1: 2026 annule et remplace la quatorzième édition de l’IEC 60086 2 parue en 2021. Cette édition constitue une révision technique.
Cette édition inclut les modifications techniques majeures suivantes par rapport à l’édition précédente:
a) séparation des piles au lithium dans l’IEC 60086-2-2: Spécifications physiques et électriques;
b) dans l’Article 3, les termes ont été réorganisés selon leurs fonctions: systèmes électrochimiques, caractéristiques électriques et spécifications;
c) ajout des désignations TR03 et TR6 dans la Catégorie 1, Piles rondes;
d) modification de 50 mA à 75 mA de la charge de l’essai audionumérique pour les désignations LR03, TR03 et R03, et modification de la MAD;
e) ajout de l’essai d’accessoires de toilette pour la désignation LR6, à la place de l’essai d’application à courant de décharge fort;
f) ajout de l’essai d’application à courant de décharge fort pour la désignation TR6;
g) ajout de l’essai radio/horloge/télécommande pour la désignation R6S;
h) suppression de l’essai CD, audionumérique, jeux sans fil et accessoires pour les désignations LR6, R6P et R6S;
i) ajout de la désignation commune de 4,5 V pour les désignations 3LR12, 3R12P et 3R12S;
j) déplacement dans l’IEC 60086 1:2026, en qualité d’Annexe H, de l’Annexe D de l’IEC 60086 2:2021 donnant les désignations communes;
k) suppression de l’Annexe E Liste de contrôle de conformité de l’IEC 60086 2:2021 et fusion avec l’Annexe J de l’IEC 60086 1:2026.

General Information

• Status: Published
• Publication Date: 01-Jun-2026
• ICS: 29.220.10 - Primary cells and batteries
• Technical Committee: TC 35 - Primary cells and batteries
• Drafting Committee: MT 14 - TC 35/MT 14
• Current Stage: PPUB - Publication issued
• Start Date: 02-Jun-2026
• Completion Date: 24-Apr-2026

Relations

• Replaces: IEC 60086-2:2021 - Primary batteries - Part 2: Physical and electrical specifications
• Effective Date: 05-Sep-2023

Overview

IEC 60086-2-1:2026 is an international standard developed by the International Electrotechnical Commission (IEC) focusing on primary batteries that utilize aqueous electrolytes. This first edition replaces the previous IEC 60086-2:2021, introducing several technical revisions. The standard precisely defines the physical dimensions, discharge test conditions, and discharge performance requirements for a wide range of standardized primary battery types.

This standard assists device designers, battery manufacturers, and users by providing consistent criteria for battery selection, ensuring global compatibility, interoperability, and performance reliability across multiple product applications.

Key Topics

• Battery Types and Electrochemical Systems: The standard applies exclusively to non-rechargeable primary batteries with aqueous electrolytes, covering common types such as round, button, and non-round batteries.
• Physical Dimensions: Comprehensive details on battery dimensions, contact requirements, and measurement symbols are included. This supports accurate form and fit assessments for device integration.
• Electrical Specifications: Key electrical properties such as nominal voltage, open-circuit voltage, end-point voltage, and minimum average duration (MAD) are characterized for each battery type.
• Discharge Test Conditions: The standard outlines performance requirements, application-specific loads, and testing methodologies simulating real-world usage, ensuring batteries meet minimum service-life expectations.
• Battery Categorization: Batteries are categorized by shape, size, and electrochemical system for streamlined reference and identification.
• Revision Highlights:
  • Separation of lithium battery specifications into IEC 60086-2-2.
  • Reorganization and clarification of key terminologies.
  • Addition and revision of tests for new and existing battery types.
  • Removal, modification, or consolidation of certain application tests and annexes for improved clarity.

Applications

Adherence to IEC 60086-2-1:2026 enables manufacturers and designers to ensure battery compatibility, performance, and safety in a diverse range of applications, including:

• Consumer Electronics: Radios, flashlights, toys, remote controls, and wireless accessories.
• Medical Devices: Hearing aids, implantable devices, and personal grooming electronics.
• Industrial and Professional Use: Emergency lighting, railway and road signaling, parking meters, and electric fencing equipment.
• Portable Devices: Digital cameras, MP3 players, calculators, and portable LED lighting.
• Each application area benefits from standardized battery dimensions and performance tests, facilitating global trade, simplifying product development, and reducing the risk of device-battery incompatibility.

Related Standards

Aligning with IEC 60086-2-1:2026 provides a foundation for compliance and product quality. For additional safety and specific chemistries, reference the following standards:

• IEC 60086-1:2026 - Primary batteries - Part 1: General; covers core requirements and definitions common to all primary batteries.
• IEC 60086-2-2 - Physical and electrical specifications for lithium batteries; for primary batteries with non-aqueous (lithium-based) electrolytes.
• IEC 60086-5 - Safety of primary batteries; details safety standards and compliance checks essential for all battery applications.
• ISO 1101 - Geometrical product specifications; referenced for accurate measurement and tolerancing of physical dimensions.

By applying IEC 60086-2-1:2026, organizations can ensure reliable, safe, and performance-driven primary batteries for devices utilizing aqueous electrolyte technologies, supporting both innovation and regulatory compliance worldwide.

Standards Content (Sample)

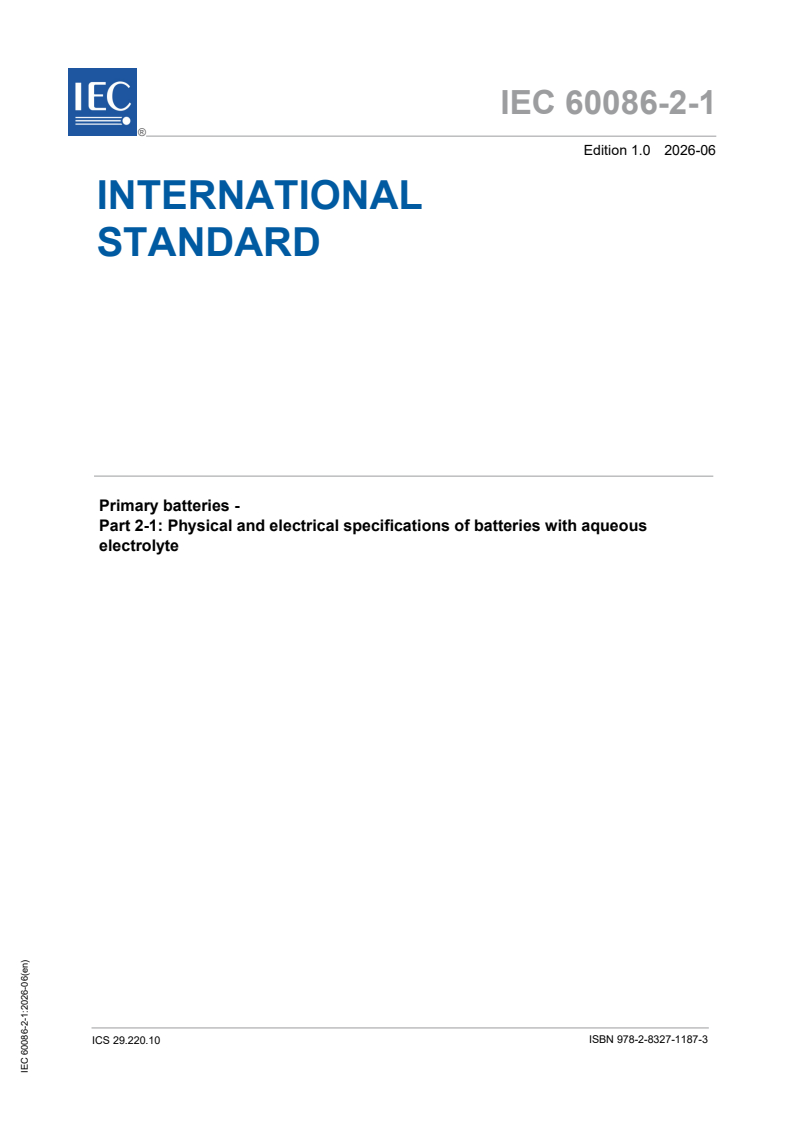

IEC 60086-2-1 ®
Edition 1.0 2026-06
INTERNATIONAL
STANDARD
Primary batteries -
Part 2-1: Physical and electrical specifications of batteries with aqueous
electrolyte
ICS 29.220.10 ISBN 978-2-8327-1187-3
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or
by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either
IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC copyright
or have an enquiry about obtaining additional rights to this publication, please contact the address below or your local
IEC member National Committee for further information.

IEC Secretariat Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Discover our powerful search engine and read freely all the
The advanced search enables to find IEC publications by a publications previews, graphical symbols and the glossary.
variety of criteria (reference number, text, technical With a subscription you will always have access to up to date
committee, …). It also gives information on projects, content tailored to your needs.
replaced and withdrawn publications.
Electropedia - www.electropedia.org
The world's leading online dictionary on electrotechnology,
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published containing more than 22 500 terminological entries in English
details all new publications released. Available online and and French, with equivalent terms in 25 additional languages.
once a month by email. Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer
Service Centre: [e-mail].

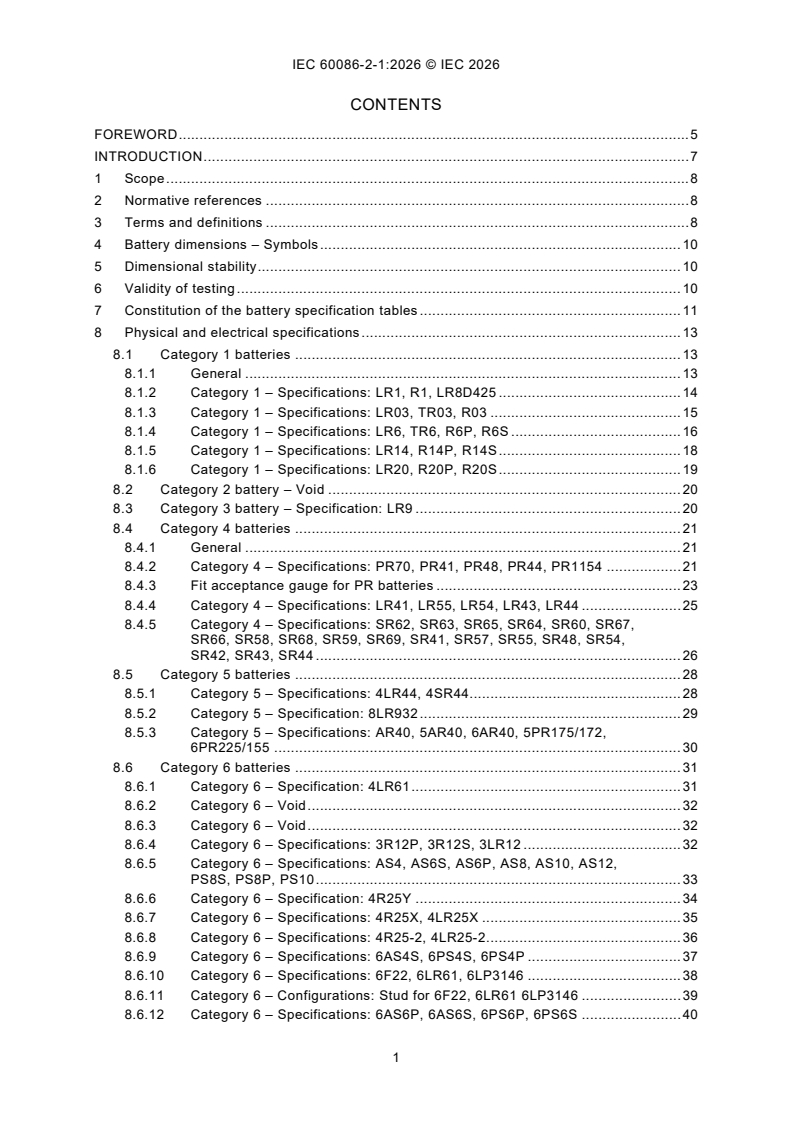

CONTENTS
FOREWORD . 5
INTRODUCTION . 7
1 Scope . 8
2 Normative references . 8
3 Terms and definitions . 8
4 Battery dimensions – Symbols . 10
5 Dimensional stability . 10
6 Validity of testing . 10
7 Constitution of the battery specification tables . 11
8 Physical and electrical specifications . 13
8.1 Category 1 batteries . 13
8.1.1 General . 13
8.1.2 Category 1 – Specifications: LR1, R1, LR8D425 . 14
8.1.3 Category 1 – Specifications: LR03, TR03, R03 . 15
8.1.4 Category 1 – Specifications: LR6, TR6, R6P, R6S . 16
8.1.5 Category 1 – Specifications: LR14, R14P, R14S . 18
8.1.6 Category 1 – Specifications: LR20, R20P, R20S . 19
8.2 Category 2 battery – Void . 20
8.3 Category 3 battery – Specification: LR9 . 20
8.4 Category 4 batteries . 21
8.4.1 General . 21
8.4.2 Category 4 – Specifications: PR70, PR41, PR48, PR44, PR1154 . 21
8.4.3 Fit acceptance gauge for PR batteries . 23
8.4.4 Category 4 – Specifications: LR41, LR55, LR54, LR43, LR44 . 25
8.4.5 Category 4 – Specifications: SR62, SR63, SR65, SR64, SR60, SR67,
SR66, SR58, SR68, SR59, SR69, SR41, SR57, SR55, SR48, SR54,
SR42, SR43, SR44 . 26
8.5 Category 5 batteries . 28
8.5.1 Category 5 – Specifications: 4LR44, 4SR44. 28
8.5.2 Category 5 – Specification: 8LR932 . 29
8.5.3 Category 5 – Specifications: AR40, 5AR40, 6AR40, 5PR175/172,
6PR225/155 . 30
8.6 Category 6 batteries . 31
8.6.1 Category 6 – Specification: 4LR61 . 31
8.6.2 Category 6 – Void . 32
8.6.3 Category 6 – Void . 32
8.6.4 Category 6 – Specifications: 3R12P, 3R12S, 3LR12 . 32
8.6.5 Category 6 – Specifications: AS4, AS6S, AS6P, AS8, AS10, AS12,
PS8S, PS8P, PS10 . 33
8.6.6 Category 6 – Specification: 4R25Y . 34
8.6.7 Category 6 – Specifications: 4R25X, 4LR25X . 35
8.6.8 Category 6 – Specifications: 4R25-2, 4LR25-2 . 36
8.6.9 Category 6 – Specifications: 6AS4S, 6PS4S, 6PS4P . 37
8.6.10 Category 6 – Specifications: 6F22, 6LR61, 6LP3146 . 38
8.6.11 Category 6 – Configurations: Stud for 6F22, 6LR61 6LP3146 . 39
8.6.12 Category 6 – Specifications: 6AS6P, 6AS6S, 6PS6P, 6PS6S . 40

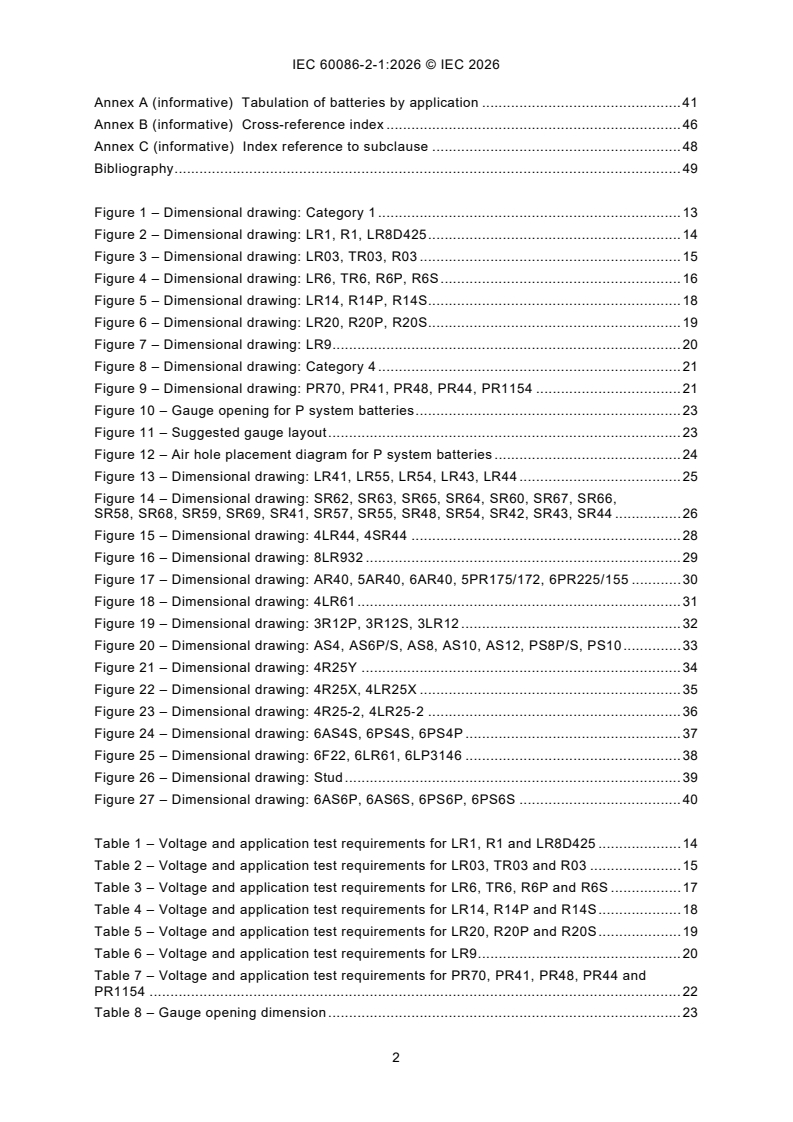

Annex A (informative) Tabulation of batteries by application . 41
Annex B (informative) Cross-reference index . 46
Annex C (informative) Index reference to subclause . 48
Bibliography . 49

Figure 1 – Dimensional drawing: Category 1 . 13
Figure 2 – Dimensional drawing: LR1, R1, LR8D425 . 14
Figure 3 – Dimensional drawing: LR03, TR03, R03 . 15
Figure 4 – Dimensional drawing: LR6, TR6, R6P, R6S . 16
Figure 5 – Dimensional drawing: LR14, R14P, R14S. 18
Figure 6 – Dimensional drawing: LR20, R20P, R20S. 19
Figure 7 – Dimensional drawing: LR9 . 20
Figure 8 – Dimensional drawing: Category 4 . 21
Figure 9 – Dimensional drawing: PR70, PR41, PR48, PR44, PR1154 . 21
Figure 10 – Gauge opening for P system batteries . 23
Figure 11 – Suggested gauge layout . 23
Figure 12 – Air hole placement diagram for P system batteries . 24
Figure 13 – Dimensional drawing: LR41, LR55, LR54, LR43, LR44 . 25
Figure 14 – Dimensional drawing: SR62, SR63, SR65, SR64, SR60, SR67, SR66,
SR58, SR68, SR59, SR69, SR41, SR57, SR55, SR48, SR54, SR42, SR43, SR44 . 26
Figure 15 – Dimensional drawing: 4LR44, 4SR44 . 28
Figure 16 – Dimensional drawing: 8LR932 . 29
Figure 17 – Dimensional drawing: AR40, 5AR40, 6AR40, 5PR175/172, 6PR225/155 . 30
Figure 18 – Dimensional drawing: 4LR61 . 31
Figure 19 – Dimensional drawing: 3R12P, 3R12S, 3LR12 . 32
Figure 20 – Dimensional drawing: AS4, AS6P/S, AS8, AS10, AS12, PS8P/S, PS10 . 33
Figure 21 – Dimensional drawing: 4R25Y . 34
Figure 22 – Dimensional drawing: 4R25X, 4LR25X . 35
Figure 23 – Dimensional drawing: 4R25-2, 4LR25‑2 . 36
Figure 24 – Dimensional drawing: 6AS4S, 6PS4S, 6PS4P . 37
Figure 25 – Dimensional drawing: 6F22, 6LR61, 6LP3146 . 38
Figure 26 – Dimensional drawing: Stud . 39
Figure 27 – Dimensional drawing: 6AS6P, 6AS6S, 6PS6P, 6PS6S . 40

Table 1 – Voltage and application test requirements for LR1, R1 and LR8D425 . 14
Table 2 – Voltage and application test requirements for LR03, TR03 and R03 . 15
Table 3 – Voltage and application test requirements for LR6, TR6, R6P and R6S . 17
Table 4 – Voltage and application test requirements for LR14, R14P and R14S . 18
Table 5 – Voltage and application test requirements for LR20, R20P and R20S . 19
Table 6 – Voltage and application test requirements for LR9 . 20
Table 7 – Voltage and application test requirements for PR70, PR41, PR48, PR44 and
PR1154 . 22
Table 8 – Gauge opening dimension . 23
Table 9 – Voltage and application test requirements for LR41, LR55, LR54, LR43 and
LR44 . 25
Table 10 – Voltage and application test requirements for SR62, SR63, SR65, SR64,
SR60, SR67, SR66, SR58, SR68, SR59, SR69, SR41, SR57, SR55, SR48, SR54,
SR42, SR43 and SR44 . 27
Table 11 – Voltage and application test requirements for 4LR44 and 4SR44 . 28
Table 12 – Voltage and application test requirements for 8LR932 . 29
Table 13 – Voltage and application test requirements for AR40, 5AR40, 6AR40,
5PR175/172 and 6PR225/155 . 30
Table 14 – Voltage and application test requirements for 4LR61 . 31
Table 15 – Voltage and application test requirements for 3R12P, 3R12S and 3LR12 . 32
Table 16 – Voltage and application test requirements for AS4, AS6P/S, AS8, AS10,
AS12, PS8P/S and PS10 . 33
Table 17 – Voltage and application test requirements for 4R25Y. 34
Table 18 – Voltage and application test requirements for 4R25X and 4LR25X . 35
Table 19 – Voltage and application test requirements for 4R25-2 and 4LR25‑2 . 36
Table 20 – Voltage and application test requirements for 6AS4S, 6PS4S and 6PS4P . 37
Table 21 – Voltage and application test requirements for 6F22, 6LR61 and 6LP3146. 38
Table 22 – Voltage and application test requirements for 6AS6P, 6AS6S, 6PS6P and
6PS6S . 40
Table A.1 – Automatic camera . 41
Table A.2 – Digital audio . 41
Table A.3 – Electric equipment . 41
Table A.4 – Electrical fence equipment, parking meters, light houses, beacons, railway
signalling and road signalling . 41
Table A.5 – Hearing aid . 42
Table A.6 – Hearing aid standard . 42
Table A.7 – High drain application . 42
Table A.8 – Implant high drain . 42
Table A.9 – Implant low drain . 42
Table A.10 – Implant low drain with wireless . 43
Table A.11 – Personal grooming . 43
Table A.12 – Portable lighting (LED) . 43
Table A.13 – Portable stereo . 43
Table A.14 – Radio . 44
Table A.15 – Radio / Clock . 44
Table A.16 – Radio/clock/remote control . 44
Table A.17 – Remote control. 44
Table A.18 – Road warning lamp . 44
Table A.19 – Smoke detector . 45
Table A.20 – Toy (motor) . 45
Table A.21 – Toy (non-motorized) . 45
Table A.22 – Wireless streaming. 45
Table B.1 – Category 1 batteries. 46
Table B.2 – Category 4 batteries. 47
Table B.3 – Category 5 batteries. 47
Table B.4 – Category 6 batteries. 47
Table C.1 – Index . 48

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
Primary batteries -
Part 2-1: Physical and electrical specifications
of batteries with aqueous electrolyte

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
IEC 60086-2-1 has been prepared by IEC technical committee 35: Primary cells and batteries.
It is an International Standard.
This first edition cancels and replaces the fourteenth edition of IEC 60086-2 published in 2021.
This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) the physical and electrical specifications of IEC 60086-2:2021 were divided into two new
standards based on their electrolyte types. IEC 60086-2-1 provides specifications for
standardized primary batteries containing aqueous electrolyte. IEC 60086-2-2 covers
specifications for standardized lithium-based primary batteries;
b) in Clause 3, terms were reordered according to their functions: basic terms, electrochemical
systems, electrical characteristics and specifications;
c) TR03 and TR6 were added in Category 1, Round batteries;
d) load of digital audio test for LR03, TR03 and R03 was changed from 50 mA to 75 mA and
MAD was modified;
e) personal grooming test of LR6 was added instead of high drain application test;
f) high drain application test was added for TR6;
g) radio /clock /remote control test was added for R6S;
h) CD, digital audio, wireless gaming and accessories test was removed for LR6, R6P and
R6S;
i) 4.5V of common designation was added for 3LR12, 3R12P and 3R12S;
j) Annex D for common designation of IEC 60086-2:2021 was moved to IEC 60086-1:2026,
as Annex H;
k) Annex E for Compliance checklist of IEC 60086-2:2021 was removed and merged into
Annex J of IEC 60086-1:2026.
The text of this International Standard is based on the following documents:
Draft Report on voting
35/1591/FDIS 35/1599/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
A list of all parts in the IEC 60086 series, under the general title Primary batteries, can be found
on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
– reconfirmed,
– withdrawn, or
– revised.
INTRODUCTION
The technical content of this part of IEC 60086 provides physical dimensions, discharge test
conditions and discharge performance requirements. IEC 60086-2-1 and IEC 60086-2-2
complement the general information and requirements of IEC 60086-1. Safety information of
IEC 60086-2-1 is available in IEC 60086-5.
This document was prepared to benefit primary battery users, device designers and battery
manufacturers by furnishing the specifics of form, fit and function for individual standardized
primary cells and batteries. Over the years, this part of IEC 60086 has been changed to improve
its contents and might again be revised in due course in the light of comments made by national
committees and experts on the basis of practical experience and changing technology.

1 Scope
This part of IEC 60086 is applicable to primary batteries which are based on standardised
electrochemical systems using aqueous electrolytes.
It specifies
– the physical dimensions,
– the discharge test conditions and discharge performance requirements.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60086-1:2026, Primary batteries - Part 1: General
ISO 1101, Geometrical product specifications (GPS) - Geometrical tolerancing - Tolerances of
form, orientation, location and run-out
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 60086-1:2026 and
the following apply.
ISO and IEC maintain terminology databases for use in standardization at the following
addresses:
– IEC Electropedia: available at https://www.electropedia.org/
– ISO Online browsing platform: available at https://www.iso.org/obp
3.1
primary cell
primary battery
cell or battery that is not designed to be electrically recharged
3.2
round cell
round battery
cell or battery with circular cross section
3.3
button cell
button battery
small round cell or battery where the overall height is less than the diameter, containing
aqueous electrolyte
3.4
coin cell
coin battery
lithium button cell
lithium button battery
small round cell or battery where the overall height is less than the diameter, containing non-
aqueous electrolyte
Note 1 to entry: The nominal voltage of lithium batteries is typically greater than 2 V.
Note 2 to entry: For the specifications, refer to IEC 60086-2-2.
3.5
nominal voltage
U
n
suitable approximate value of the voltage used to designate or identify a cell, a battery or an
electrochemical system
[SOURCE: IEC 60050-482:2004, 482-03-31, modified – addition of U ]
n
3.6
open-circuit voltage
OCV
voltage across the terminals of a cell or battery when it is off discharge
3.7
end-point voltage
EV
specified voltage of a battery at which the battery discharge is terminated
[SOURCE: IEC 60050-482:2004, 482-03-30]
3.8
minimum average duration
MAD
acceptable minimum average time on discharge, which is met by testing a sample of batteries
according to specified methods, to be deemed compliant
Note 1 to entry: The discharge test is carried out according to the specified methods or standards and designed to
show conformity with the standard applicable to the battery types.
3.9
application test
simulation of the actual use of a battery in a specific application
3.10
service output
service life, or capacity, or energy output of a battery under specified conditions of discharge
3.11
service output test
test designed to measure the service output of a battery
Note 1 to entry: A service output test may be prescribed, for example, when
a) an application test is too complex to replicate;
b) the duration of an application test would make it impractical for routine testing purposes.
3.12
terminal
conductive parts of a battery providing connection to an external circuit
[SOURCE: IEC 60050-482:2004, 482-02-22, modified – “conductive part of a device, electric
circuit or electric network, provided” replaced by to “conductive parts of a battery providing” and
“device, electric circuit or electric network to one or more external conductor” replaced by “an
external circuit”]
4 Battery dimensions – Symbols
The symbols used to denote the various dimensions are as follows:
maximum overall height of the battery;
h
h minimum distance between the flats of the positive and negative contacts;
h minimum projection of the flat positive contact;
h maximum recess of the negative flat contact surface;
h minimum projection of the flat negative contact;
d maximum and minimum diameters of the battery;
d minimum diameter of the flat positive contact;
d maximum diameter of the positive contact within the specified projection height;
d minimum diameter of the flat negative contact;
d maximum diameter of the negative contact within the specified projection height;
d minimum outer diameter of the negative flat contact surface;
d maximum inner diameter of the negative flat contact surface;
øP concentricity of the positive contact.
5 Dimensional stability
Refer to IEC 60086-1 for dimensional stability.
6 Validity of testing
Portable primary batteries shall be subjected to the tests, as required in the IEC 60086 series.
Testing remains valid until a design change or requirement revision has been made. Retesting
is required when:
a) a battery specification changes by more than 0,1 g or 20 % mass, whichever is greater, for
the cathode, anode or electrolyte;
b) a battery specification changes that would lead to a failure of any of the tests;
c) there is an addition of new tests or requirements; or
d) there is a requirement change that would lead to a failure on any of the tests.
7 Constitution of the battery specification tables
– Batteries are categorized into several groups according to their shapes.
– In each category, batteries having the same shape but belonging to a different
electrochemical system are grouped together and shown in succession.
– Batteries are always listed in ascending order of nominal voltage and, within each nominal
voltage, in ascending order of volume.
– One common shape drawing of these batteries which fall in the same group is exhibited.
– Designation, nominal voltage, dimensions, discharge conditions, minimum average duration
and application for these batteries which fall into the same group are summarized in one
table.
– When a drawing represents only one type of battery, the dimensions of the relevant battery
may be directly shown on the drawing.
– Batteries are categorized into the following groups:
• Category 1: Round batteries according to Figure 1
R1, R03, R6P, R6S, R14P, R14S, R20P, R20S
LR8D425, LR1, LR03, LR6, LR14, LR20
TR03, TR6
• Category 2: Round battery
Void
• Category 3: Round battery according to Figure 7
LR9
• Category 4: Round batteries according to Figure 8
PR70, PR41, PR48, PR44, PR1154
LR41, LR55, LR54, LR43, LR44
SR62, SR63, SR65, SR64, SR60, SR67, SR66, SR58, SR68, SR59, SR69, SR41,
SR57, SR55, SR48, SR54, SR42, SR43, SR44
• Category 5: Other round batteries – Miscellaneous
4LR44
4SR44
8LR932
AR40
5AR40
6AR40
5PR175/172
6PR 225/155
• Category 6: Non-round batteries – Miscellaneous
3R12P, 3R12S, 3LR12
4LR61
AS4, AS6P, AS6S, AS8, AS10, AS12, PS8S, PS8P, PS10
4R25X, 4LR25X
4R25Y
4R25-2, 4LR25-2
6F22, 6LR61, 6LP3146
6AS4S, 6PS4S, 6PS4P
6AS6P, 6AS6S, 6PS6P, 6PS6S
The specification drawings show the shape of the relevant batteries. Dimensions for each
battery are shown in Table 8 and in Figure 1 to Figure 27.
NOTE 1 See Annex A, Annex B and Annex C for ease of locating battery sizes.
NOTE 2 For lithium batteries, see IEC 60086-2-2: Physical and electrical specifications of lithium batteries.
8 Physical and electrical specifications
8.1 Category 1 batteries
8.1.1 General
For the definition of the dimensions, see Clause 4.
The cylindrical surface is insulated from the contacts.
Terminals: flat/cap and base.
For general information, see IEC 60086-1.
Figure 1a): negative contact surface might not be flat
over the whole area.
Figure 1b): negative contact surface shall be essentially
flat over the whole surface area.
For batteries complying with Figure 1a) and Figure 1b),
flat negative contact is not necessarily recessed.
When the flat negative contact surface forms the lower
part of the battery, dimensions “h ” and “h ” are both
1 2
measured from the surface and dimension “h ” is zero.
Dimensions “øP” to be measured in accordance with
ISO 1101.
The profile over the dotted lines is not specified.
1 Positive contact
2 Optional pip (dimension "h " for batteries having the
pip is 0,4 mm max.)
3 Negative contact area
a)
Recesses are permitted in the negative flat contact
surface defined by dimensions d and d for batteries
6 7
having the shape shown in Figure 1a), provided that
batteries placed end to end in series make electrical
contact with each other and that the contact separation
is an integral multiple of the contact separation for one
battery. The following conditions shall be satisfied:
d > d
6 3
d > d
2 7
h > h
3 4
b)
Figure 1 – Dimensional drawing: Category 1
8.1.2 Category 1 – Specifications: LR1, R1, LR8D425
Figure 2 shows the dimensional drawing and Table 1 shows the voltage and application test
requirements for LR1, R1 and LR8D425.
Dimensions in millimetres
Dimensions LR1 R1 LR8D425
h
max. 30,2 30,2 42,5
h
min. 29,1 29,1 41,5
h
min. 0,5 0,5 0,7
h
max. 0,2 0,2 0,1
max. 12,0 12,0 8,3
d
min. 10,9 10,9 7,7
d
max. 4,0 4,0 3,8
a
d
min. 5,0 5,0
2,3
øP max. 0,5 0,5 0,1
a
This battery does not fulfill the requirement d > d due

6 3
to constructional constraints.

Figure 2 – Dimensional drawing: LR1, R1, LR8D425
Table 1 – Voltage and application test requirements for LR1, R1 and LR8D425
Electrochemical system letter L No letter L
IEC designation LR1 R1 LR8D425
Common designation N N AAAA
U (V)
1,5 1,5 1,5
n
OCV max. (V) 1,68 1,73 1,68
Delayed discharge performance after 12 months (% of MAD) 90 80 90
EV
a
Applications Load Daily Period
MAD (initial)
(V)
Portable lighting 5,1 Ω 5 min 0,9 94 min 30 min 90 min
Laser pointer 75 Ω 1 h 1,1 No test No test 22 h
Service output
75 Ω 1 h 0,9 38 h 18 h 27 h
test
a
Standard conditions (see IEC 60086-1:2026, Table 3, Initial discharge test).

8.1.3 Category 1 – Specifications: LR03, TR03, R03
Figure 3 shows the dimensional drawing and Table 2 shows the voltage and application test
requirements for LR03, TR03 and R03.
Dimensions in millimetres
Dimensions LR03, TR03 R03
h 44,5
max. 44,5
h 43,5
min. 43,5
h 0,8
min. 0,8
h 0,5
max. 0,5
max. 10,5 10,5
d
min. 9,8 9,8
d 3,8
max. 3,8
d
4,3
min. 4,3
øP max. 0,25 0,4
Figure 3 – Dimensional drawing: LR03, TR03, R03
Table 2 – Voltage and application test requirements for LR03, TR03 and R03
Electrochemical system letter L T No letter
IEC designation LR03 TR03 R03
Common designation AAA AAA AAA
U (V) 1,5
1,5 1,5
n
OCV max. (V) 1,68 1,75 1,73
Delayed discharge performance after 12 months (% of MAD) 90 90 80
a
Applications Load Daily Period EV (V) MAD (Initial)
4 min on,
Portable
5,1 Ω 56 min off for 0,9 130 min 130 min 50 min
b
lighting
8 h per day
Toy 5,1 Ω 1 h 0,8 120 min 120 min 30 min
1 h on, 11 hr
b
75 mA 0,9 10 h 10 h 2 h
Digital audio
off for 24 h
15 s per min
Remote control 24 Ω 1,0 14,5 h 14,5 h 4 h
8 h per day
Radio 75 Ω 4 h 0,9 No test No test 20 h
a
Standard conditions (see IEC 60086-1:2026, Table 3, Initial discharge test).
b
Test conditions shall be kept identical for battery designations LR03, TR03, R03, and FR10G445 in
IEC 60086-2-2 (see also I.6.1 and Table I.2 of IEC 60086-1:2026).

8.1.4 Category 1 – Specifications: LR6, TR6, R6P, R6S
Figure 4 shows the dimensional drawing and Table 3 shows the voltage and application test
requirements for LR6, TR6, R6P and R6S.
Dimensions in millimetres
Dimensions LR6, TR6 R6P, R6S
h 50,5
max. 50,5
h 49,5
min. 49,5
h 1,0
min. 1,0
h 0,5
max. 0,5
max. 14,5 14,5
d
a
13,7
min. 13,7
d 5,5
max. 5,5
d
7,0
min. 7,0
øP max. 0,25 0,5
a
R6 types without a metal jacket may have a d value of
13,5.
Figure 4 – Dimensional drawing: LR6, TR6, R6P, R6S
Table 3 – Voltage and application test requirements for LR6, TR6, R6P and R6S
Electrochemical system letter L T No letter No letter
R6P R6S
IEC designation LR6 TR6
High power Standard
Common designation AA AA AA AA
U (V)
1,5 1,5 1,5 1,5
n
OCV max. (V) 1,68 1,75 1,73 1,73
Delayed discharge performance after 12 months (% of
90 90 80 80
MAD)
a
Applications Load Daily Period EV (V)
MAD (initial)
1 500 mW
High drain
b
1,05 No test 40 pulses No test No test

application
650 mW
Personal 2 min on, 58 min
750 mA 1,1 25 min 25 min No test No test
grooming off for 8 h per day
Portable 4 min on, 56 min
3,9 Ω 0,9 230 min 230 min 60 min No test
lighting (LED) off for 8 h per day
c
Motor/toy 3,9 Ω 1 h 0,8 5 h 5 h 65 min 45 min
Toy, non-
250 mA 1 h 0,9 5 h 5 h No test No test
motorized
Radio/clock 43 Ω 4 h 0,9 No test No test No test 22 h
Radio /clock
1 h on, 7 h off for
/remote
50 mA 1,0 30 h 30 h 10 h 7,0 h
24 h per day
c
control
a
Standard conditions (see IEC 60086-1:2026, Table 3, Initial discharge test).
b
Repeat 10 times per hour: 1 500 mW for 2 s, then 650 mW for 28 s, then 0 mW for 55 min.
c
Test conditions shall be kept identical for battery designations LR6, TR6, R6P, R6S, and FR14505 in
IEC 60086-2-2 (see also I.6.1 and Table I.2 in IEC 60086-1:2026).

8.1.5 Category 1 – Specifications: LR14, R14P, R14S
Figure 5 shows the dimensional drawing and Table 4 shows the voltage and application test
requirements for LR14, R14P and R14S.
Dimensions in millimetres
Dimensions LR14 R14P R14S
h
max. 50,0 50,0 50,0
h
min. 48,6 48,6 48,6
h
min. 1,5 1,5 1,5
h
max. 0,9 0,9 0,9
max. 26,2 26,2 26,2
d
min. 24,9 24,9 24,9
d
max. 7,5 7,5 7,5
d
min. 13,0 13,0 13,0
øP max. 1,0 1,0 1,0
Figure 5 – Dimensional drawing: LR14, R14P, R14S
Table 4 – Voltage and application test requirements for LR14, R14P and R14S
Electrochemical system letter L No letter No letter
R14P R14S
IEC designation LR14
High power Standard
Common designation C C C
U (V)
1,5 1,5 1,5
n
OCV max. (V) 1,68 1,73 1,73
Delayed discharge performance after 12 months (% of MAD) 90 80 80
EV
a
Applications Load Daily period
MAD (Initial)
(V)
b
3,9 Ω 1 h 0,8 14 h 4 h 1,5 h
Toy
4 min on, 11 min off
b
3,9 Ω 0,9 790 min 200 min 90 min
Portable lighting
for 8 h per day
Current
drain
Portable stereo 2 h 0,9 8 h No test No test
400 mA
a
Standard conditions (see IEC 60086-1:2026, Table 3, Initial discharge test).
b
Test conditions shall be kept identical for battery designations LR14, R14P, and R14S (see also I.6.1 and
Table I.2 in IEC 60086-1:2026).

8.1.6 Category 1 – Specifications: LR20, R20P, R20S
Figure 6 shows the dimensional drawing and Table 5 shows the voltage and application test
requirements for LR20, R20P and R20S.
Dimensions in millimetres
Dimensions LR20 R20P R20S
h
max. 61,5 61,5 61,5
h
min. 59,5 59,5 59,5
h
min. 1,5 1,5 1,5
h
max. 1,0 1,0 1,0
max. 34,2 34,2 34,2
d
min. 32,3 32,3 32,3
d
max. 9,5 9,5 9,5
d
min. 18,0 18,0 18,0
øP max. 1,0 1,0 1,0
Figure 6 – Dimensional drawing: LR20, R20P, R20S
Table 5 – Voltage and application test requirements for LR20, R20P and R20S
Electrochemical system letter L No letter No letter
R20P R20S
IEC designation LR20
High power Standard
Common designation D D D
U (V)
1,5 1,5 1,5
n
OCV max. (V) 1,68 1,73 1,73
Delayed discharge performance after 12 months (% of MAD) 90 80 80
a
Applications Load Daily period EV (V) (initial)
MAD
4 min on, 11 min off
b
2,2 Ω 0,9 750 min 220 min 85 min
Portable lighting
for 8 h per day
b
2,2 Ω 1 h 0,8 16 h 5,5 h 2 h
Toy
Radio 10 Ω 4 h 0,9 No test 33 h 18 h
Current
drain
Portable stereo 2 h 0,9 11 h No test No test
600 mA
a
Standard conditions (see IEC 60086-1:2026, Table 3, Initial discharge test).
b
Test conditions shall be kept identical for battery designations LR20, R20P, and R20S (see also
IEC 60086-1:2026, I.6.1 and IEC 60086-1:2026, Table I.2).

8.2 Category 2 battery – Void
8.3 Category 3 battery – Specification: LR9
Figure 7 shows the dimensional drawing and shows Table 6 shows the voltage and application
test requirements for LR9.
Dimensions in millimetres
Dimensions LR9
h
max. 6,2
h
min. 5,6
h
min. 2,0
h
min. 0,2
max. 16,0
d
min. 15,2
d
min. 10,0
d
max. 13,5
d
min. 10,0
d
max. 12,5
For the definition of the dimensions, see Clause 4.
The cylindrical surface is connected to the positive
terminal.
Terminals: flat/cap and case.
For general information, see IEC 60086-1.
No part of the battery shall project beyond the positive
contact area.
Marking: 4.1.6.2 of IEC 60086-1:2026 is applicable.
1 Optional pip
Figure 7 – Dimensional drawing: LR9
Table 6 – Voltage and application test requirements for LR9
Electrochemical system letter L
IEC designation LR9
Common designation -
U (V)
1,5
n
OCV max. (V) 1,68
Delayed discharge performance after 12 months (% of MAD) 90
a
Applications Load Daily period EV (V)
MAD (initial)
Service output test 0,39 kΩ 24 h 0,9 48 h
a
Standard conditions (See IEC 60086-1:2026, Table 3, Initial discharge test).

8.4 Category 4 batteries
8.4.1 General
For the definition of the dimensions, see Clause 4.
The cylindrical surface is connected to the positive
terminal. Positive contact should be made to the side of
the battery but may be made to the base.
Terminals: flat/cap and case.
The flat negative contact shall project.
Contact pressure resistance, see 4.1.3.2 of
IEC 60086‑1:2026 .
For general information see IEC 60086-1.
Any difference between the height of the battery and the
distance between the contacts shall not exceed 0,1 mm.

No part of the battery shall project beyond the positive
contact.
Marking: 4.1.6.2 of IEC 60086-1:2026 is applicable.

Figure 8 – Dimensional drawing: Ca
...

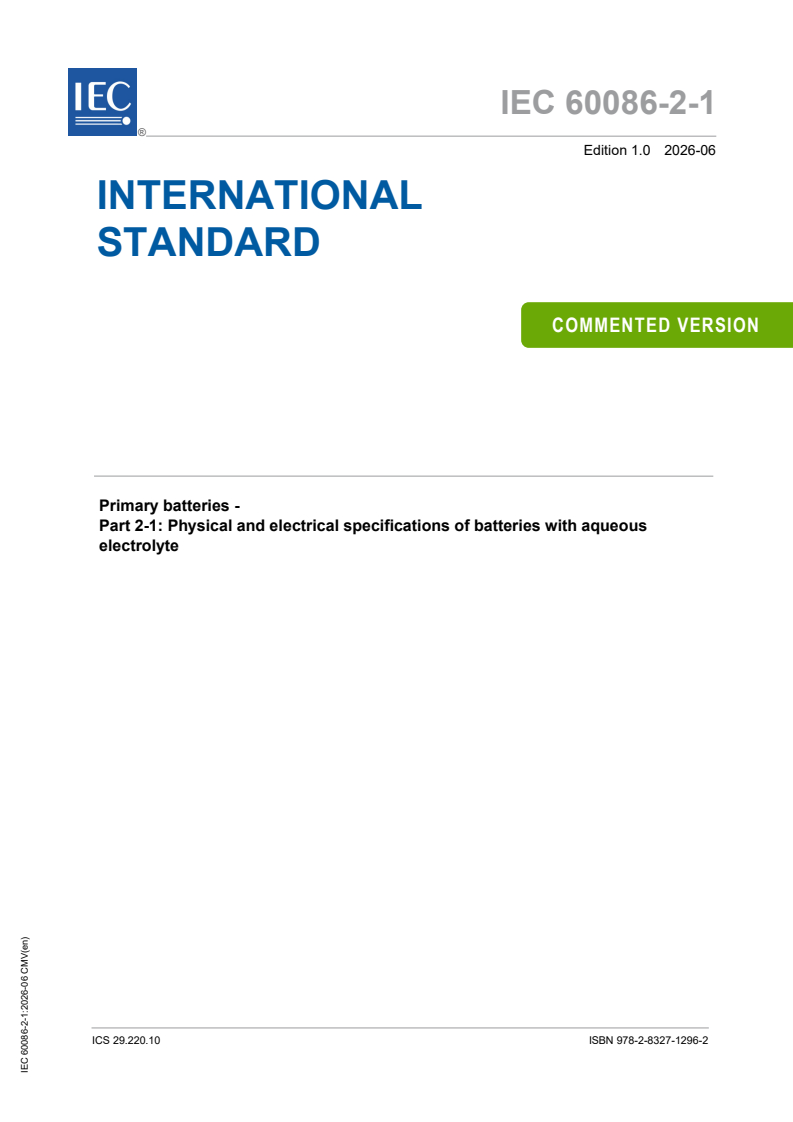

IEC 60086-2-1 ®
Edition 1.0 2026-06
INTERNATIONAL
STANDARD
COMMENTED VERSION
Primary batteries -
Part 2-1: Physical and electrical specifications of batteries with aqueous
electrolyte
ICS 29.220.10 ISBN 978-2-8327-1296-2
