Amendment 3 - Lamps for road vehicles - Dimensional, electrical and luminous requirements

Amendement 3 - Lampes pour véhicules routiers - Exigences dimensionnelles, électriques et lumineuses

General Information

Status
Published
Publication Date
28-Mar-2019
Current Stage
DELPUB - Deleted Publication
Completion Date
07-Apr-2021
Ref Project

Buy Standard

Standard
IEC 60809:2014/AMD3:2019 - Amendment 3 - Lamps for road vehicles - Dimensional, electrical and luminous requirements
English and French language
20 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

IEC 60809
Edition 3.0 2019-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
A MENDMENT 3
AM ENDEMENT 3
Lamps for road vehicles – Dimensional, electrical and luminous requirements
Lampes pour véhicules routiers – Exigences dimensionnelles, électriques et
Lumineuses
IEC 60809:2014-12/AMD3:2019-03(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2019 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org

The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,

variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English

committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.

and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary

details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and

once a month by email. French extracted from the Terms and Definitions clause of

IEC publications issued since 2002. Some entries have been

IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and

If you wish to give us your feedback on this publication or CISPR.
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - Electropedia - www.electropedia.org

webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au

La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en

en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans

comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire

projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary

Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais

Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et Définitions des

Disponible en ligne et une fois par mois par email. publications IEC parues depuis 2002. Plus certaines entrées

antérieures extraites des publications des CE 37, 77, 86 et
Service Clients - webstore.iec.ch/csc CISPR de l'IEC.
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
---------------------- Page: 2 ----------------------
IEC 60809
Edition 3.0 2019-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
A MENDMENT 3
AM ENDEMENT 3
Lamps for road vehicles – Dimensional, electrical and luminous requirements
Lampes pour véhicules routiers – Exigences dimensionnelles, électriques et
Lumineuses
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.140.20; 43.040.20 ISBN 978-2-8322-6656-4

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

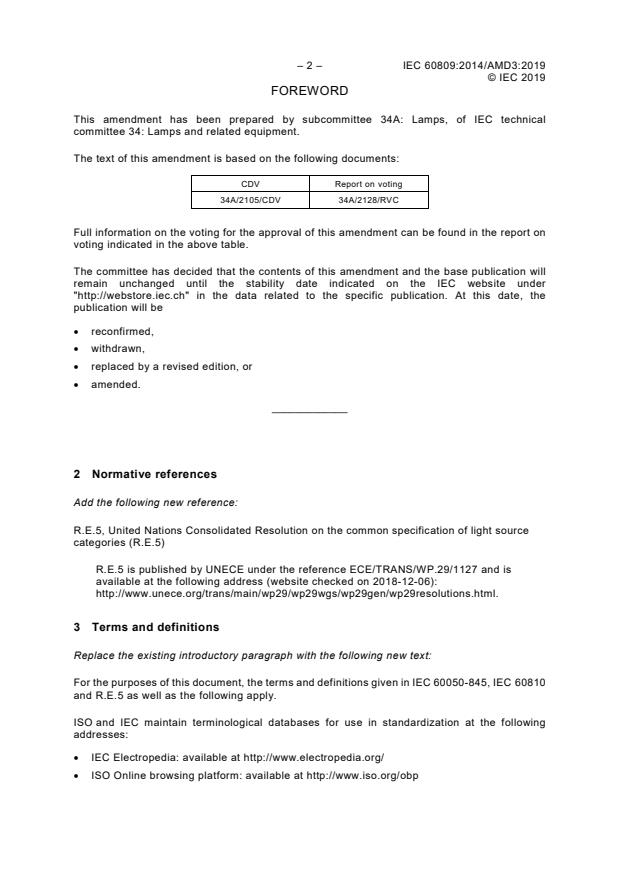

– 2 – IEC 60809:2014/AMD3:2019
© IEC 2019
FOREWORD
This amendment has been prepared by subcommittee 34A: Lamps, of IEC technical
committee 34: Lamps and related equipment.
The text of this amendment is based on the following documents:
CDV Report on voting
34A/2105/CDV 34A/2128/RVC

Full information on the voting for the approval of this amendment can be found in the report on

voting indicated in the above table.

The committee has decided that the contents of this amendment and the base publication will

remain unchanged until the stability date indicated on the IEC website under

"http://webstore.iec.ch" in the data related to the specific publication. At this date, the

publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
_____________
2 Normative references
Add the following new reference:

R.E.5, United Nations Consolidated Resolution on the common specification of light source

categories (R.E.5)
R.E.5 is published by UNECE under the reference ECE/TRANS/WP.29/1127 and is
available at the following address (website checked on 2018-12-06):
http://www.unece.org/trans/main/wp29/wp29wgs/wp29gen/wp29resolutions.html.
3 Terms and definitions
Replace the existing introductory paragraph with the following new text:

For the purposes of this document, the terms and definitions given in IEC 60050-845, IEC 60810

and R.E.5 as well as the following apply.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
---------------------- Page: 4 ----------------------
IEC 60809:2014/AMD3:2019 – 3 –
© IEC 2019
3.1
Replace the existing Note 1 to entry with the following new Note 1 to entry:

Note 1 to entry: Each specific designation, for example P21/5W, H4, D2R forms a category. Most of these

designations are taken from R.E.5.
4.2 Lamp marking
Replace the existing NOTE 2 with the following new NOTE 2:

NOTE 2 An example of such an inscription is the approval mark or the approval code conferred by an administrative

authority.
5.2 Lamp marking
Replace the existing NOTE 1 with the following new NOTE 1:

NOTE 1 An example of such an inscription is the approval mark or the approval code conferred by an administrative

authority.
6.2 Light source marking
Replace the existing NOTE with the following new NOTE:

NOTE An example of such an inscription is the approval mark or the approval code conferred by an administrative

authority.
6.5 Lamp dimensions

Replace the second paragraph, modified by Amendment 2, with the following new text:

The values of light centre lengths of Lx3A, Lx3B, Lx4A, Lx4B, Lx5A, Lx5B , L1A/6 and L1B/6

are measured as follows.
8.1 General

Replace the second paragraph starting with "In the case", including the two dashed list items,

with the following new text:

In the case where a reference is made from this standard to the lamp data sheet in R.E.5, the

lamp data sheet in R.E.5 is shown.
8.2 List of specific lamp types

Replace the existing table, modified by Amendment 2, with the following new table which makes

reference to sheets in R.E.5, and includes the addition of L1/6:
a b
Category Voltage Wattage Cap
IEC sheet no. Sheet no. in
R.E.5
V W
60809-IEC-2110- R2 R2 6 45/40 P45t
12 45/40 P45t
24 55/50 P45t
60809-IEC-2120- H4 H4 12 60/55 P43t-38
24 75/70 P43t-38
60809-IEC-2125- - H6 12 65/55 PZ43t
60809-IEC-2130- HS1 HS1 6 35/35 PX43t
12 35/35 PX43t
60809-IEC-2132- HS5 HS5 12 35/30 P23t
____________
The x represents R, Y and W.
---------------------- Page: 5 ----------------------
– 4 – IEC 60809:2014/AMD3:2019
© IEC 2019
a b
Category Voltage Wattage Cap
IEC sheet no. Sheet no. in
R.E.5
V W
60809-IEC-2135- - HB1 12 65/45 P29t
60809-IEC-2140- S1/S2 S1 6 25/25 BA20d
12 25/25 BA20d
60809-IEC-2150- S1/S2 S2 6 35/35 BA20d
12 35/35 BA20d
60809-IEC-2160- - S4 6 15/15 BAX15d
12 15/15 BAX15d
60809-IEC-2305- - H5 12 50 PY43d
60809-IEC-2310- H1 H1 6 55 P14.5s
12 55 P14.5s
24 70 P14.5s
60809-IEC-2315- H7 H7 12 55 PX26d
24 70 PX26d
60809-IEC-2320- - H2 6 55 X511
12 55 X511
24 70 X511
60809-IEC-2325- HB3 HB3 12 60 P20d
HB3A 12 60 P20d
60809-IEC-2330- H3 H3 6 55 PK22s
12 55 PK22s
24 70 PK22s
60809-IEC-2335- HB4 HB4 12 51 P22d
HB4A 12 51 P22d
60809-IEC-2340- HS2 HS2 6 15 PX13.5s
12 15 PX13.5s
60809-IEC-2350- - HS3 6 2,4 PX13.5s
60809-IEC-2360- S3 S3 6 15 P26s
12 15 P26s
60809-IEC-2365- H8 H8 12 35 PGJ19-1
60809-IEC-2370- H9 H9 12 65 PGJ19-5
60809-IEC-2375- H10 H10 12 42 PY20d
12 55 PGJ19-2
60809-IEC-2380- H11 H11
24 70 PGJ19-2
60809-IEC-2385- H12 H12 12 53 PZ20d
60809-IEC-2410- HIR1 HIR1 12 65 PX20d
60809-IEC-2420- HIR2 HIR2 12 55 PX22d
60809-IEC-3110- P21/5W P21/5W 6 21/5 BAY15d
12 21/5 BAY15d
24 21/5 BAY15d
60809-IEC-3120- P21/4W P21/4W 6 21/4 BAZ15d
12 21/4 BAZ15d
24 21/4 BAZ15d
60809-IEC-3130- W21/5W W21/5W 12 21/5 W3x16q
60809-IEC-3135- WR21/5W WR21/5W 12 21/5 WY3x16q
60809-IEC-3140- PR27/7W PR27/7W 12 27/7 W2.5x16q
60809-IEC-3141- PY27/7W PY27/7W 12 27/7 WX2.5x16q
60809-IEC-3310- P21W P21W 6 21 BA15s(BA15d)
12 21 BA15s(BA15d)
24 21 BA15s(BA15d)
60809-IEC-3311- PY21W PY21W 12 21 BAU15s
24 21 BAU15s
60809-IEC-3315- P27W P27W 12 27 W2.5x16d
---------------------- Page: 6 ----------------------
IEC 60809:2014/AMD3:2019 – 5 –
© IEC 2019
a b
Category Voltage Wattage Cap
IEC sheet no. Sheet no. in
R.E.5
V W
60809-IEC-3320- R5W R5W 6 5 BA15s(BA15d)
12 5 BA15s(BA15d)
24 5 BA15s(BA15d)
60809-IEC-3330- R10W R10W 6 10 BA15s(BA15d)
12 10 BA15s(BA15d)
24 10 BA15s(BA15d)
60809-IEC-3340- T4W T4W 6 4 BA9s
12 4 BA9s
24 4 BA9s
60809-IEC-3410- H6W H6W 12 6 BAX9s
60809-IEC-3420- H21W H21W 12 21 BAY9s
24 21 BAY9s
60809-IEC-3430 H27W H27W/1 12 27 PG13
H27W/2 12 27 PGJ13
60809-IEC-4110- C5W C5W 6 5 SV8.5
12 5 SV8.5
24 5 SV8.5
60809-IEC-4120- C21W C21W 12 21 SV8.5
60809-IEC-4305- W2.3W W2.3W 12 2,3 W2x4.6d
60809-IEC-4310 W3W W3W 6 3 W2.1x9.5d
12 3 W2.1x9.5d
24 3 W2.1x9.5d
60809-IEC-4320- W5W W5W 6 5 W2.1x9.5d
12 5 W2.1x9.5d
24 5 W2.1x9.5d
60809-IEC-4321- W5W WY5W 6 5 W2.1x9.5d
12 5 W2.1x9.5d
24 5 W2.1x9.5d
60809-IEC-4330- W21W W21W 12 21 W3x16d
60809-IEC-4335- WY21W WY21W 12 21 WX3x16d
60809-IEC-4340- W16W W16W 12 16 W2.1x9.5d
60809-IEC-5010- T1.4W T1.4W 12 1,4 P11.5d
60809-IEC-7110- DxS D1S 12 35 PK32d-2
D2S 12 35 P32d-2
D3S 12 35 PK32d-5
D4S 12 35 P32d-5
60809-IEC-7120- DxR D1R 12 35 PK32d-3
D2R 12 35 P32d-3
D3R 12 35 PK32d-6
D4R 12 35 P32d-6
60809-IEC-9310- - B1.13W 2,7 1,13 PX13.5s
60809-IEC-9610- - B0.6W 6 0,6 E10
60809-IEC-9620- - B2.4W 6 2,4 EP10/14x11
- H6W HY6W 12 6 BAZ9s
- H8 H8B 12 35 PGJY19-1
- H9 H9B 12 65 PGJY19-5
- H10W H10W/1 12 10 BAU9s
HY10W 12 10 BAUZ9s
- H11 H11B 12 55 PGJY19-2
24 70 PGJY19-2
- H13 H13 12 55/60 P26.4t
H13A 12 55/60 PJ26.4t
- H14 H14 12 55/60 P38t
---------------------- Page: 7 ----------------------
– 6 – IEC 60809:2014/AMD3:2019
© IEC 2019
a b
Category Voltage Wattage Cap
IEC sheet no. Sheet no. in
R.E.5
V W
- H15 H15 12 15/55 PGJ23t-1
24 20/60 PGJ23t-1
- H16 H16 12 19 PGJ19-3
H16B 12 19 PGJY19-3
- H17 H17 12 35 PU43t-4
- H18 H18 12 65 PY26d-1
- H19 H19 12 55 / 60 PU43t-3
- H20 H20 12 70 PY26d-6
- H21W HY21W 12 21 BAW9s
24 21 BAW9s
- HS5A HS5A 12 45/40 PX23t
- P13W P13W 12 13 PG18.5d-1
PW13W 12 13 WP3.3x14.5-7
- PC16W PC16W 12 16 PU20d-1
PCY16W 12 16 PU20d-2
PCR16W 12 16 PU20d-7
PW16W 12 16 WP3.3x14.5-8
PWR16W 12 16 WP3.3x14.5-9
PWY16W 12 16 WP3.3x14.5-10
- P19W P19W 12 19 PGU20-1
PY19W 12 19 PGU20-2
PR19W 12 19 PGU20-5
PS19W 12 19 PG20-1
PSY19W 12 19 PG20-2
PSR19W 12 19 PG20-5
PW19W 12 19 WP3.3x14.5-1
PWR19W 12 19 WP3.3x14.5-2
PWY19W 12 19 WP3.3x14.5-5
- PR21/5W PR21/5W 12 21/5 BAW15d
24 21/5 BAW15d
12 21 BAW15s
- PR21W PR21W
24 21 BAW15s
- PR21/4W PR21/4W 12 21/4 BAU15d
24 21/4 BAU15d
- PY21/5W PY21/5W 12 21/5 BA15d-3
(100°/130°).
- R37-P24W P24W 12 24 PGU20-3
PX24W 12 24 PGU20-7
PY24W 12 24 PGU20-4
PR24W 12 24 PGU20-6
PS24W 12 24 PG20-3
PSX24W 12 24 PG20-7
PSY24W 12 24 PG20-4
PSR24W 12 24 PG20-6
12 24 WP3.3x14.5-3
PW24W
PWR24W 12 24 WP3.3x14.5-4
PWY24W 12 24 WP3.3x14.5-6
- PSX26W PSX26W 12 26 PG18.5d-3
- P27/7W P27/7W 12 27/7 WU2.5x16
- R5W RR5W 6 5 BAW15s
12 5 BAW15s
24 5 BAW15s
- R10W RR10W 6 10 BAW15s
RR10W 12 10 BAW15s
RR10W 24 10 BAW15s
RY10W 6 10 BAU15s
RY10W 12 10 BAU15s
RY10W 24 10 BAU15s
---------------------- Page: 8 ----------------------
IEC 60809:2014/AMD3:2019 – 7 –
© IEC 2019
a b
Category Voltage Wattage Cap
IEC sheet no. Sheet no. in
R.E.5
V W
- W5W WR5W 6 5 W2.1x9.5d
12 5 W2.1x9.5d
24 5 W2.1x9.5d
- W10W W10W 6 10 W2.1x9.5d
W10W 12 10 W2.1x9.5d
WY10W 6 10 W2.1x9.5d
WY10W 12 10 W2.1x9.5d
- W15/5W W15/5W 12 15/5 WZ3x16q
- W16W WY16W 12 16 W2.1x9.5d
- WP21W WP21W 12 21 WY2.5x16d
WPY21W 12 21 WZ2.5x16d
- WT21W WT21W 12 21 WUX2.5x16d
24 21 WUX2.5x16d
WTY21W 12 21 WUY2.5x16d
24 21 WUY2.5x16d
- WT21/7W 12 21/7 WZX2.5x16q
WT21/7W
WTY21/7W 12 21/7 WZY2.5x16q
WTY21/7W 12 21/7 WZY2.5x16q
- WY2.3W WY2.3W 12 2,3 W2x4.6d
- D5S D5S 12 25 PK32d-7
- D6S D6S 12 25 P32d-1
- D8S D8S 12 25 PK32d-1
- D8R D8R 12 25 PK32d-8
- D9s D9s 12 27 / 35 PK32d-9
- H17 H17 12 35 PU43t-4
- PY21/5W PY21/5W 12 21/5 BA15d-3
(100°/130°).
- LR1 LR1 12 0,75/3,5 PGJ21t-1
- LW2 LW2 12 1/12 PGJY50
- LR3A / LR3B 12 3 PGJ18,5d-1
L3 LW3A / LW3B 12 4 PGJ18,5d-24
LY3A / LY3B 12 4 PGJ18,5d-15
- LR4 LR4A / LR4B 12 3 / 075 PGJ18,5t-5
- LR5A / LR5B 12 3 PGJ18,5d-10
LW5A /LW5B 12 6 PGJ18,5d-28
LY5A / LY5B 12 6 PGJ18,5d-19
- L1/6 L1A/6 / L1B/6 12 6 PGJ18,5d-29

If an R.E.5 sheet number is referenced in the second column, the IEC sheet number refers to a data sheet

withdrawn with Amendment 5 of Edition 2 of IEC 60809:1995 and is given for information only.

The number in this column indicates the sheet number in R.E.5.
Annex D
D.5 Dimensions to be measured
Replace the first paragraph with the following new text:
---------------------- Page: 9 ----------------------
– 8 – IEC 60809:2014/AMD3:2019
© IEC 2019

Table D.1 states the dimensions to be measured. Values and tolerances are given on the

relevant filament lamp data sheet R2 of R.E.5.
Annex E
E.5 Dimensions to be measured
Replace the first paragraph with the following new text:

Table E.1 states the dimensions to be measured. Values and tolerances are given on the

relevant filament lamp data sheets H4, H17, H19 or HS1 of R.E.5.
Table E.1

Replace, in table footnote "c", added by Amendment 1, "UN regulation 37" with "R.E.5".

Annex I
Table I.1

Replace the existing table, modified by Amendment 2, with the following new Table I.1 which

makes reference to data sheets in R.E.5:
---------------------- Page: 10 ----------------------
IEC 60809:2014/AMD3:2019 – 9 –
© IEC 2019
Table I.1 – Overview of lamp types and their applications
Automotive lamps for headlights and/or fog lamps
LED
Filament Discharge
light
lamps lamps
sources
Double filament Single filament
Data Data Data Data Data Data
Cars Motorcycles Cars Motorcycles
sheet sheet sheet sheet sheet sheet
and and and and
in in in in in in
trucks mopeds trucks mopeds
R.E.5 R.E.5 R.E.5 R.E.5 R.E.5 R.E.5
H4 H4 S2 S1/S2 H1 H1 HS2 HS2 D1S DxS L1A/6
H13 / HS1 HS1 H3 H3 D2S DxS L1B/6
H13
H13A HS5 HS5 H7 H7 D3S DxS
H8 /
H15 H15 H17 H8 D4S DxS
H17
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
