IEC 62613-2:2011

Plugs, socket-outlets and ship couplers for high-voltage shore connection systems (HVSC-SYSTEMS) - Part 2: Dimensional compatibility and interchangeability requirements for accessories to be used by various types of ships

IEC 62613-2:2011 applies to accessories with
- three phases (3 poles and Earth) with up to three pilot contacts,
- one single pole (Neutral), these accessories have rated currents not exceeding 500 A and rated operating voltages not exceeding 12 kV 50/60 Hz.
This publication is to be read in conjunction with IEC 62613-1:2011.

Prises de courant et connecteurs de navires pour les systèmes haute tension de raccordement des navires à quai - Partie 2: Règles dimensionnelles de compatibilité et d'interchangeabilité pour les appareils destinés à être utilisés par divers types de navires

La CEI 62613-2:2011 s'applique aux appareils
- triphasés (3 pôles + Terre) avec jusqu'à 3 contacts pilotes,
- unipolaires (Neutre), de courant nominal ne dépassant pas 500 A et de tension nominale d'emploi ne dépassant pas 12 kV 50/60 Hz.
Cette publication doit être lue conjointement avec la CEI 62613-1:2011.

General Information

• Status: Published
• Publication Date: 27-Nov-2011
• ICS: 29.120.30 - Plugs, socket-outlets, couplers
• Technical Committee: SC 23H - Plugs, Socket-outlets and Couplers for industrial and similar applications, and for Electric Vehicles
• Current Stage: DELPUB - Deleted Publication
• Completion Date: 04-Nov-2016

Relations

• Revised: IEC 62613-2:2016 - Plugs, socket-outlets and ship couplers for high-voltage shore connection systems (HVSC-systems) - Part 2: Dimensional compatibility and interchangeability requirements for accessories to be used by various types of ships
• Effective Date: 05-Sep-2023

Standards Content (Sample)

IEC 62613-2
®

Edition 1.0 2011-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE


Plugs, socket-outlets and ship couplers for high-voltage shore connection
systems (HVSC-SYSTEMS) –
Part 2: Dimensional compatibility and interchangeability requirements for
accessories to be used by various types of ships

Prises de courant et connecteurs de navires pour les systèmes haute tension de
raccordement des navires à quai –
Partie 2: Règles dimensionnelles de compatibilité et d’interchangeabilité pour
les appareils destinés à être utilisés par divers types de navires

IEC 62613-2:2011

---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2011 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or
IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.


Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: [e-mail]
Web: www.iec.ch

About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
 Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
 IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
 Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
 Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: [e-mail]
Tel.: [phone]
Fax: [phone]


A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
 Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
 Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
 Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
 Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: [e-mail]
Tél.: [phone]
Fax: [phone]

---------------------- Page: 2 ----------------------
IEC 62613-2
®

Edition 1.0 2011-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE


Plugs, socket-outlets and ship couplers for high-voltage shore connection
systems (HVSC-SYSTEMS) –
Part 2: Dimensional compatibility and interchangeability requirements for
accessories to be used by various types of ships

Prises de courant et connecteurs de navires pour les systèmes haute tension de
raccordement des navires à quai –
Partie 2: Règles dimensionnelles de compatibilité et d’interchangeabilité pour
les appareils destinés à être utilisés par divers types de navires

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX X
ICS 29.120.30 ISBN 978-2-88912-801-3

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale

---------------------- Page: 3 ----------------------

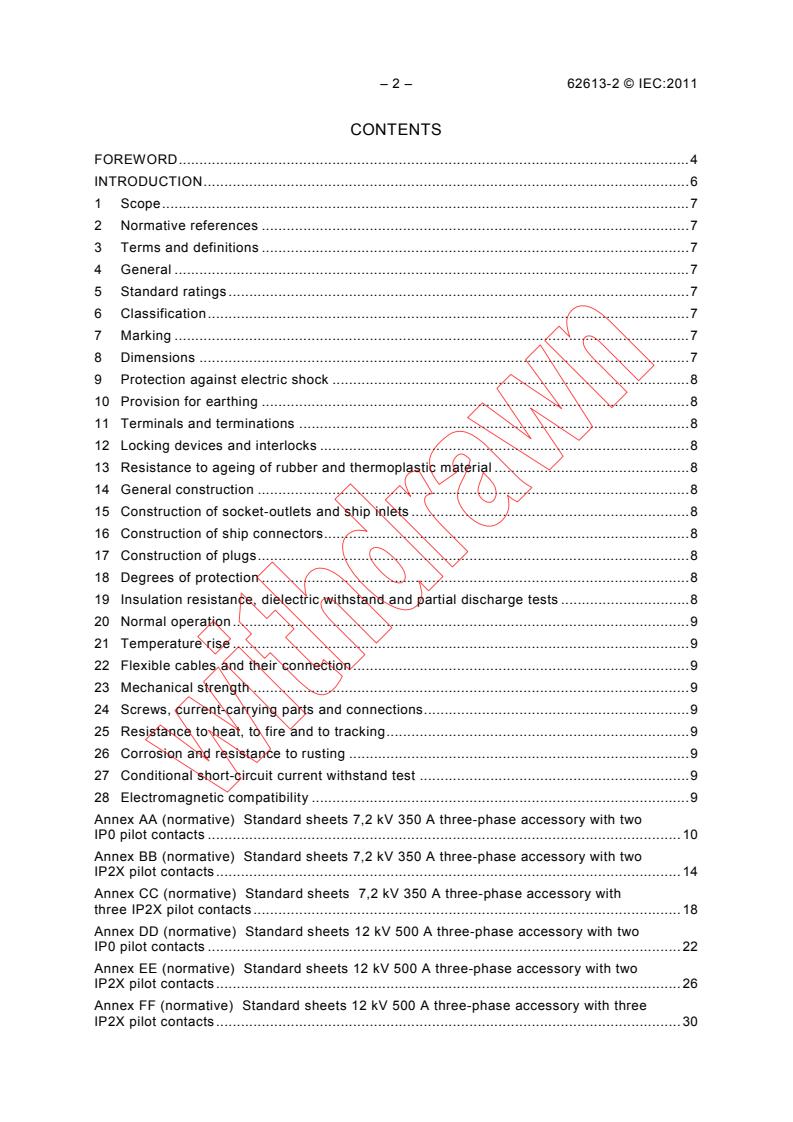

– 2 – 62613-2 © IEC:2011
CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 7
4 General . 7
5 Standard ratings . 7
6 Classification . 7
7 Marking . 7
8 Dimensions . 7
9 Protection against electric shock . 8
10 Provision for earthing . 8
11 Terminals and terminations . 8
12 Locking devices and interlocks . 8
13 Resistance to ageing of rubber and thermoplastic material . 8
14 General construction . 8
15 Construction of socket-outlets and ship inlets . 8
16 Construction of ship connectors . 8
17 Construction of plugs . 8
18 Degrees of protection . 8
19 Insulation resistance, dielectric withstand and partial discharge tests . 8
20 Normal operation . 9
21 Temperature rise . 9
22 Flexible cables and their connection . 9
23 Mechanical strength . 9
24 Screws, current-carrying parts and connections . 9
25 Resistance to heat, to fire and to tracking . 9
26 Corrosion and resistance to rusting . 9
27 Conditional short-circuit current withstand test . 9
28 Electromagnetic compatibility . 9
Annex AA (normative) Standard sheets 7,2 kV 350 A three-phase accessory with two
IP0 pilot contacts . 10
Annex BB (normative) Standard sheets 7,2 kV 350 A three-phase accessory with two
IP2X pilot contacts . 14
Annex CC (normative) Standard sheets 7,2 kV 350 A three-phase accessory with
three IP2X pilot contacts . 18
Annex DD (normative) Standard sheets 12 kV 500 A three-phase accessory with two
IP0 pilot contacts . 22
Annex EE (normative) Standard sheets 12 kV 500 A three-phase accessory with two
IP2X pilot contacts . 26
Annex FF (normative) Standard sheets 12 kV 500 A three-phase accessory with three
IP2X pilot contacts . 30

---------------------- Page: 4 ----------------------
62613-2 © IEC:2011 – 3 –
Annex GG (normative) Standard sheets 12 kV 500 A three-phase accessory with two
pilot contacts . 34
Annex HH (normative) Standard sheets 7,2 kV 250 A single-pole (neutral) accessory . 38

Table AA.1 . 10
Table AA.2 . 11
Table AA.3 . 12
Table AA.4 . 13
Table BB.1 . 14
Table BB.2 . 15
Table BB.3 . 16
Table BB.4 . 17
Table CC.1 . 18
Table CC.2 . 19
Table CC.3 . 20
Table CC.4 . 21
Table DD.1 . 22
Table DD.2 . 23
Table DD.3 . 24
Table DD.4 . 25
Table EE.1 . 26
Table EE.2 . 27
Table EE.3 . 28
Table EE.4 . 29
Table FF.1 . 30
Table FF.2 . 31
Table FF.3 . 32
Table GG.1 . 34
Table GG.2 . 35
Table GG.3 . 36
Table GG.4 . 37
Table HH.1 . 38
Table HH.2 . 39
Table HH.3 . 40
Table HH.4 . 41

---------------------- Page: 5 ----------------------
– 4 – 62613-2 © IEC:2011
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________

PLUGS, SOCKET-OUTLETS AND SHIP COUPLERS FOR HIGH-VOLTAGE
SHORE CONNECTION SYSTEMS (HVSC-SYSTEMS) –

Part 2: Dimensional compatibility and interchangeability requirements
for accessories to be used by various types of ships

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62613-2 has been prepared by subcommittee 23H: Industrial plugs
and socket-outlets, of IEC technical committee 23: Electrical accessories.
The text of this standard is based on the following documents:
FDIS Report on voting
23H/268/FDIS 23H/271/RVD

Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

---------------------- Page: 6 ----------------------
62613-2 © IEC:2011 – 5 –
The present Part 2 of IEC 62613 shall be read in conjunction with IEC 62613-1:—, hereafter
referred to as “Part 1”.
The clauses of these particular requirements supplement or modify the corresponding clauses
in Part 1. Where the text of subsequent parts indicates an "addition" to or a "replacement" of
the relevant requirement, test specification or explanation of Part 1, these changes are made
to the relevant text of Part 1, which then becomes part of the standard. Where no change is
necessary, the words "This clause of Part 1 is applicable" are used. New annexes are
numbered starting AA, BB, etc.
A list of all the parts in the IEC 62613 series, under the general title Plugs, socket-outlets and
ship couplers for high-voltage shore connection systems (HVSC-systems), can be found on
the IEC website.
In this standard, the following print types are used:
• requirements proper: in roman type;
• test specifications: in italic type;
• notes: in smaller roman type.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

---------------------- Page: 7 ----------------------
– 6 – 62613-2 © IEC:2011
INTRODUCTION
International Standard series IEC 62613 has been primarily written to address the needs in
terms of plugs, socket-outlets and ship couplers (ship connectors and ship inlets), herein
referred to as “accessories”, of IEC/PAS 60092-510. The purpose of IEC/PAS 60092-510 is to
define requirements that allow compliant ships to connect to compliant high-voltage shore
power supplies through standardized shore-to-ship connection accessories.
Ships that do not require connecting with standardized high-voltage shore power supplies as
above may use accessories that are not covered by the standard sheets of IEC 62613-2 but
they may find it impossible to connect to these shore supplies.
Other low voltage plugs, socket-outlets, ship connectors and ship inlets used for the
connection of certain ship types to low-voltage shore power supplies may be found in the
IEC 60309 series.
The IEC 62613 series is divided into several parts:
– Part 1: General requirements, comprising clauses of a general character;
– Part 2: Dimensional compatibility and interchangeability requirements for accessories to
be used by various types of ships.
These ships are described in IEC/PAS 60092-510.

---------------------- Page: 8 ----------------------
62613-2 © IEC:2011 – 7 –
PLUGS, SOCKET-OUTLETS AND SHIP COUPLERS FOR HIGH-VOLTAGE
SHORE CONNECTION SYSTEMS (HVSC-SYSTEMS) –

Part 2: Dimensional compatibility and interchangeability requirements
for accessories to be used by various types of ships



1 Scope
This clause of Part 1 is applicable.
2 Normative references
This clause of Part 1 is applicable.
3 Terms and definitions
This clause of Part 1 is applicable.
4 General
This clause of Part 1 is applicable.
5 Standard ratings
This clause of Part 1 is applicable.
6 Classification
This clause of Part 1 is applicable.
7 Marking
This clause of Part 1 is applicable.
8 Dimensions
8.1 Replacement:
Accessories shall comply with the appropriate standard sheets in the annexes.

---------------------- Page: 9 ----------------------
– 8 – 62613-2 © IEC:2011
8.2 This subclause of Part 1 is applicable.
8.3 This subclause of Part 1 is applicable.
8.4 This subclause of Part 1 is applicable.
9 Protection against electric shock
This clause of Part 1 is applicable.
10 Provision for Earthing
This clause of Part 1 is applicable.
11 Terminals and terminations
This clause of Part 1 is applicable.
12 Locking devices and interlocks
This clause of Part 1 is applicable.
13 Resistance to ageing of rubber and thermoplastic material
This clause of Part 1 is applicable.
14 General construction
This clause of Part 1 is applicable.
15 Construction of socket-outlets and ship inlets
This clause of Part 1 is applicable.
16 Construction of ship connectors
This clause of Part 1 is applicable.
17 Construction of plugs
This clause of Part 1 is applicable.
18 Degrees of protection
This clause of Part 1 is applicable.
19 Insulation resistance, dielectric withstand and partial discharge tests
This clause of Part 1 is applicable.

---------------------- Page: 10 ----------------------
62613-2 © IEC:2011 – 9 –
20 Normal operation
This clause of Part 1 is applicable.
21 Temperature rise
This clause of Part 1 is applicable.
22 Flexible cables and their connection
This clause of Part 1 is applicable.
23 Mechanical strength
This clause of Part 1 is applicable.
24 Screws, current-carrying parts and connections
This clause of Part 1 is applicable.
25 Resistance to heat, to fire and to tracking
This clause of Part 1 is applicable.
26 Corrosion and resistance to rusting
This clause of Part 1 is applicable.
27 Conditional short-circuit current withstand test
This clause of Part 1 is applicable.
28 Electromagnetic compatibility
This clause of Part 1 is applicable.

---------------------- Page: 11 ----------------------
– 10 – 62613-2 © IEC:2011
Annex AA
(normative)

Standard sheets
7,2 kV 350 A three-phase accessory with two IP0 pilot contacts
AA.1 Socket-outlet
Table AA.1
Symbol Description Dimension
mm
a Top insulator 17,0 ± 0,25
b Top phase 44,0 ± 0,25
c Top earth 32,0 ± 0,25
d Contact earth 37,6 ± 0,25
e Contact phase 50,1 ± 0,25
f Bottom pilot 76,0 ± 0,25
g Top pilot 48,0 ± 0,25
h Contact pilot 53,4 ± 0,25
i Bottom earth 64,0 ± 0,25
j Bottom insulator 66,0 ± 0,25
k Bottom phase 76,5 ± 0,25
l Pitch phases 48,0 ± 0,25
m Pitch pilots 44,2 ± 0,25
n Pitch earth 48,0 ± 0,25
o Insulator width 84,0 ± 0,10
p Socket + nose 111,6 ± 0,25
q Socket width 87,5 ± 0,25
r Tongue depth 69,0 ± 0,25
+0,10
s Earth diameter 12,0
  0
+0,10
t Pilot diameter 6,0
  0
+0,10
u Phase diameter 12,0
  0

---------------------- Page: 12 ----------------------
62613-2 © IEC:2011 – 11 –
AA.2 Plug top
Table AA.2
Symbol Description Dimension
mm
a Insulator depth 64,8 ± 0,25
b Contact phase 6,9 ± 0,25
c Contact earth 7,3 ± 0,25
d Contact pilot 9,0 ± 0,25
f Tongue depth 56,0 ± 0,25
g Insulator outer diameter 27,0 ± 0,25
h Insulator inner diameter 22,8 ± 0,25
  0
i Phase diameter 12,0
  -0,05
  0
j Pilot diameter 6,0
  -0,05
  0
k Earth diameter 12,0
  -0,05
l Pitch phases 48,3 ± 0,25
m Pitch pilots 66,6 ± 0,25
n Pitch earth 48,0 ± 0,25
o Insulator width 84,0 ± 0,10
p Plug + nose 108,9 ± 0,25
q Plug width 103,0 ± 0,25
r Width of rollers 168,0 ± 0,25
s Roller diameter 20,0 ± 0,10
t Roller height 90,0 ± 0,25

---------------------- Page: 13 ----------------------
– 12 – 62613-2 © IEC:2011
AA.3 Ship Connector top
Table AA.3
Symbol Description Dimension
mm
a Top insulator 17,0 ± 0,25
b Top phase 44,0 ± 0,25
c Top earth 32,0 ± 0,25
d Contact earth 37,6 ± 0,25
e Contact phase 50,1 ± 0,25
f Bottom pilot 76,0 ± 0,25
g Top pilot 48,0 ± 0,25
h Contact pilot 53,4 ± 0,25
i Bottom earth 64,0 ± 0,25
j Bottom insulator 66,0 ± 0,25
k Bottom phase 76,5 ± 0,25
l Pitch phases 48,0 ± 0,25
m Pitch pilots 44,2 ± 0,25
n Pitch earth 48,0 ± 0,25
o Insulator width 84,0 ± 0,10
p Connector + nose 111,6 ± 0,25
q Connector width 87,5 ± 0,25
r Tongue depth 69,0 ± 0,25
+0,10
s Earth diameter 12,0
  0
+0,10
t Pilot diameter 6,0
  0
+0,10
u Phase diameter 12,0
  0
v Nose diameter 14,0 ± 0,25

---------------------- Page: 14 ----------------------
62613-2 © IEC:2011 – 13 –
AA.4 Ship inlet
Table AA.4
Symbol Description Dimension
mm
a Insulator depth 64,8 ± 0,25
b Contact phase 6,9 ± 0,25
c Contact earth 7,3 ± 0,25
d Contact pilot 9,0 ± 0,25
f Tongue depth 56,0 ± 0,25
g Insulator outer diameter 27,0 ± 0,25
h Insulator inner diameter 22,8 ± 0,25
  0
i Phase diameter 12,0
  -0,05
  0
j Pilot diameter 6,0
  -0,05
  0
k Earth diameter 12,0
  -0,05
l Pitch phases 48,3 ± 0,25
m Pitch pilots 66,6 ± 0,25
n Pitch earth 48,0 ± 0,25
o Insulator width 84,0 ± 0,10
p Inlet + nose 108,9 ± 0,25
q Inlet width 103,0 ± 0,25
r Width of rollers 168,0 ± 0,25
s Roller diameter 20,0 ± 0,10
t Roller height 90,0 ± 0,25

---------------------- Page: 15 ----------------------
– 14 – 62613-2 © IEC:2011
Annex BB
(normative)

Standard sheets
7,2 kV 350 A three-phase accessory with two IP2X pilot contacts
BB.1 Socket-outlet
Table BB.1
Symbol Description Dimension
mm
a Top insulator 17,0 ± 0,25
b Top phase 44,0 ± 0,25
c Top earth 32,0 ± 0,25
d Contact earth 38,0 ± 0,25
e Contact phase 50,1 ± 0,25
f Bottom pilot 33,0 ± 0,25
g Top pilot 25,0 ± 0,25
h Contact pilot 27,2 ± 0,25
i Bottom earth 64,0 ± 0,25
j Bottom insulator 66,0 ± 0,25
k Bottom phase 76,5 ± 0,25
l Pitch phases 48,0 ± 0,25
m Pitch pilots 44,2 ± 0,25
n Pitch earth 48,0 ± 0,25
o Insulator width 84,0 ± 0,10
p Socket + nose 111,6 ± 0,25
q Socket width 87,5 ± 0,25
r Tongue depth 69,0 ± 0,25
+0,10
s Earth diameter 12,0
  0
+0,10
t Pilot diameter 3,0
  0
+0,10
u Phase diameter 12,0
  0

---------------------- Page: 16 ----------------------
62613-2 © IEC:2011 – 15 –
BB.2 Plug top
Table BB.2
Symbol Description Dimension
mm
a Insulator depth 64,8 ± 0,25
b Contact phase 6,9 ± 0,25
c Contact earth 7,3 ± 0,25
d Contact pilot 34,3 ± 0,25
f Tongue depth 56,0 ± 0,25
g Insulator outer dia. 27,0 ± 0,25
h Insulator inner dia. 22,8 ± 0,25
  0
