IEC 61000-6-3:2020
(Main)Electromagnetic compatibility (EMC) - Part 6-3: Generic standards - Emission standard for equipment in residential environments
Electromagnetic compatibility (EMC) - Part 6-3: Generic standards - Emission standard for equipment in residential environments
IEC 61000-6-3:2020 is a generic EMC emission standard applicable only if no relevant dedicated product or product family EMC emission standard has been published. This part of IEC 61000 for emission requirements applies to electrical and electronic equipment intended for use at residential (see 3.1.14) locations. This part of IEC 61000 also applies to electrical and electronic equipment intended for use at other locations that do not fall within the scope of IEC 61000-6-8 or IEC 61000-6-4. The intention is that all equipment used in the residential, commercial and light-industrial environments are covered by IEC 61000-6-3 or IEC 61000-6-8. If there is any doubt the requirements in IEC 61000-6-3 apply. The conducted and radiated emission requirements in the frequency range up to 400 GHz are considered essential and have been selected to provide an adequate level of protection of radio reception in the defined electromagnetic environment. Not all disturbance phenomena have been included for testing purposes but only those considered relevant for the equipment intended to operate within the locations included within this document. The emission requirements in this document are not intended to be applicable to the intentional transmissions and their harmonics from a radio transmitter as defined by the ITU. This third edition cancels and replaces the second edition published in 2006 and its Amendment 1:2010. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
a) alternative method for measuring conducted emissions on DC ports;
b) limits and requirements applicable only to equipment intended to be used in residential locations;
c) more stringent limits for DC power ports.
NOTE 1 Safety considerations are not covered by this document.
NOTE 2 In special cases, situations will arise where the levels specified in this document will not offer adequate protection; for example where a sensitive receiver is used in close proximity to an equipment. In these instances, special mitigation measures can be employed. NOTE 3 Disturbances generated in fault conditions of equipment are not covered by this document.
NOTE 4 As the requirements in this document are more stringent or equivalent to those requirements in IEC 61000-6-4 and IEC 61000-6-8, equipment fulfilling the requirements of this document comply with the requirements of IEC 61000-6-4 and IEC 61000-6-8.
Compatibilité électromagnétique (CEM) - Partie 6-3: Normes génériques - Norme sur l'émission relative aux appareils utilisés dans les environnements résidentiels
IEC 61000-6-3:2020 est une norme d’émissions CEM générique relative aux émissions eapplique uniquement si aucune norme CEM d’émission pertinente dédiée à un produit ou une famille de produits n’a été publiée. La présente partie de l'IEC 61000 concernant les exigences d'émissions s'applique aux appareils électriques et électroniques destinés à être utilisés dans des environnements résidentiels (voir 3.1.14). La présente partie de l'IEC 61000 s'applique également aux appareils électriques et électroniques destinés à être utilisés dans des environnements n’entrant pas dans le domaine d'application de l’IEC 61000-6-8 ou de l’IEC 61000-6-4. L'objectif est que tous les appareils utilisés dans les environnements résidentiels, commerciaux et de l'industrie légère soient couverts par l’IEC 61000-6-3 ou l’IEC 61000-6-8. Les exigences dans l’IEC 61000-6-3 s'appliquent en présence du moindre doute. Les exigences en matière d’émissions conduites et rayonnées dans la plage de fréquences jusqu'à 400 GHz sont considérées comme essentielles et ont été choisies de manière à assurer un niveau adéquat de protection de la réception radioélectrique dans l'environnement électromagnétique défini. Tous les phénomènes de perturbation n'ont pas été inclus pour les besoins de l'essai. Seuls l'ont été ceux considérés comme pertinents pour les appareils destinés à fonctionner dans l'environnement couvert par le présent document. Les exigences du présent document relatives à l’émission ne sont pas destinées à s'appliquer aux transmissions intentionnelles et à leurs harmoniques depuis un émetteur radio tel que défini par l'UIT. Cette troisième édition annule et remplace la deuxième édition parue en 2006 et l'Amendement 1:2010. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
a) méthode alternative de mesurage des émissions conduites sur les accès en courant continu;
b) limites et exigences applicables uniquement sur les matériels destinés à être utilisés dans des environnements résidentiels;
c) limites plus strictes en ce qui concerne les accès d'alimentation en courant continu.
NOTE 1 Le présent document ne traite pas des aspects liés à la sécurité.
NOTE 2 Dans certains cas particuliers, des situations sont susceptibles de se produire, pour lesquelles les niveaux spécifiés dans le présent document n’offrent pas le niveau de protection adéquat; par exemple lorsqu'un récepteur sensible est utilisé très proche d'un appareil. Dans de tels cas, des mesures particulières d'atténuation peuvent être employées.
NOTE 3 Les perturbations générées dans les conditions de défaut de l'appareil ne sont pas couvertes par le présent document.
NOTE 4 Les exigences du présent document étant plus sévères ou équivalentes à celles de l'IEC 61000-6-4 et de l’IEC 61000-6-8, les appareils qui satisfont aux exigences du présent document satisfont également à celles de l'IEC 61000-6-4 et de l’IEC 61000-6-8.
General Information
Standards Content (sample)

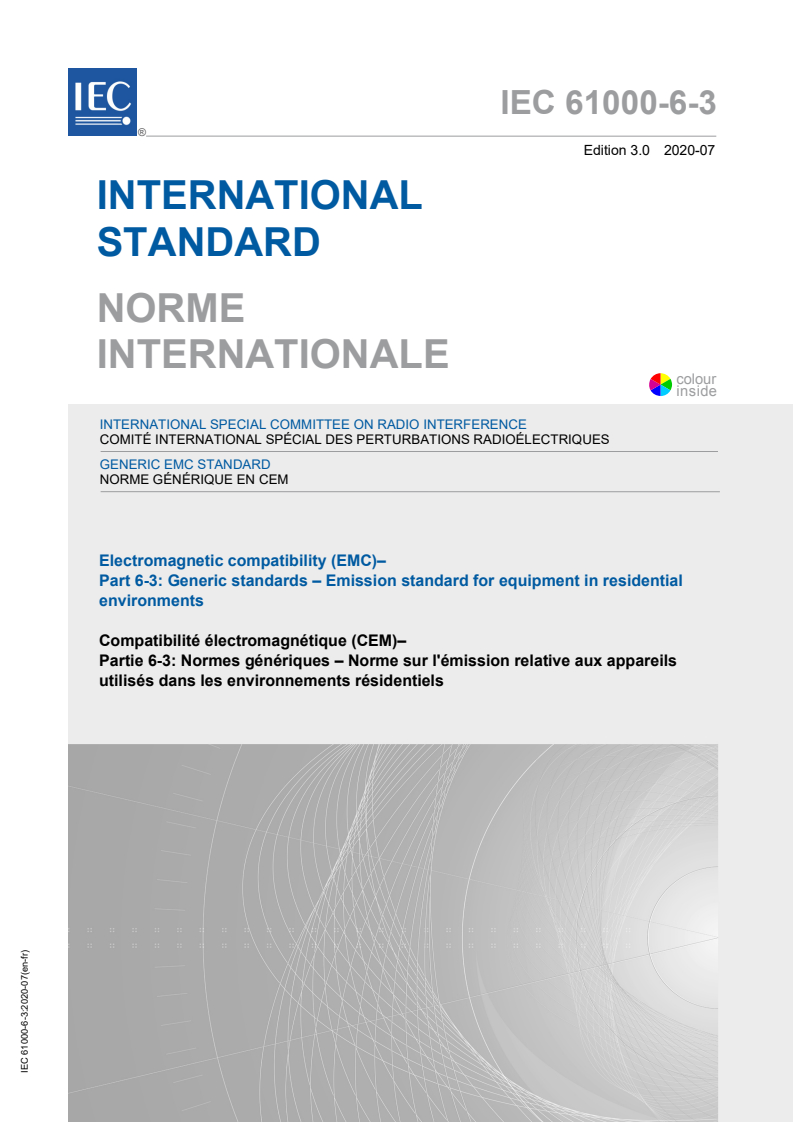

IEC 61000-6-3
Edition 3.0 2020-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
INTERNATIONAL SPECIAL COMMITTEE ON RADIO INTERFERENCE
COMITÉ INTERNATIONAL SPÉCIAL DES PERTURBATIONS RADIOÉLECTRIQUES
GENERIC EMC STANDARD
NORME GÉNÉRIQUE EN CEM
Electromagnetic compatibility (EMC)–
Part 6-3: Generic standards – Emission standard for equipment in residential
environments
Compatibilité électromagnétique (CEM)–
Partie 6-3: Normes génériques – Norme sur l'émission relative aux appareils
utilisés dans les environnements résidentiels
IEC 61000-6-3:2020-07(en-fr)
---------------------- Page: 1 ----------------------

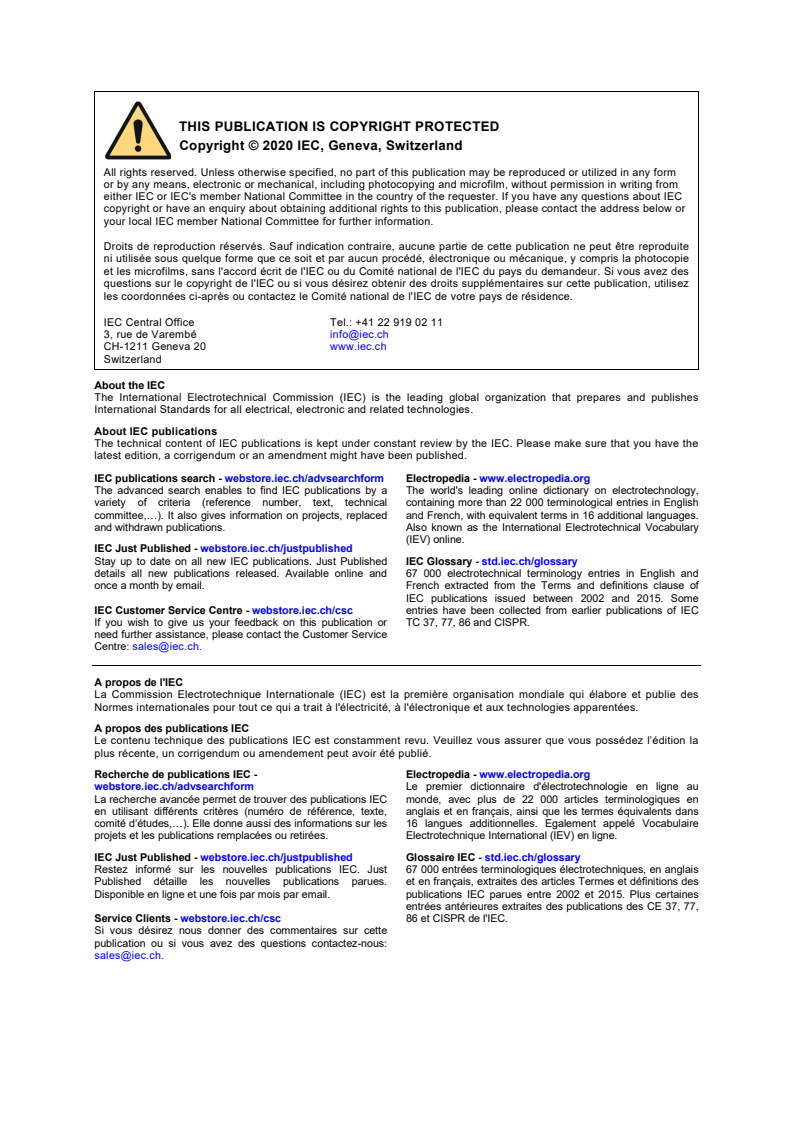

THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2020 IEC, Geneva, Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.
IEC Central Office Tel.: +41 22 919 02 113, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary
(IEV) online.IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and
once a month by email. French extracted from the Terms and definitions clause of
IEC publications issued between 2002 and 2015. SomeIEC Customer Service Centre - webstore.iec.ch/csc entries have been collected from earlier publications of IEC
If you wish to give us your feedback on this publication or TC 37, 77, 86 and CISPR.
need further assistance, please contact the Customer ServiceCentre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications IECLe contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.Recherche de publications IEC - Electropedia - www.electropedia.org
webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au
La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en
en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans
comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire
projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.
IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary
Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais
Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et définitions des
Disponible en ligne et une fois par mois par email. publications IEC parues entre 2002 et 2015. Plus certaines
entrées antérieures extraites des publications des CE 37, 77,Service Clients - webstore.iec.ch/csc 86 et CISPR de l'IEC.
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
---------------------- Page: 2 ----------------------

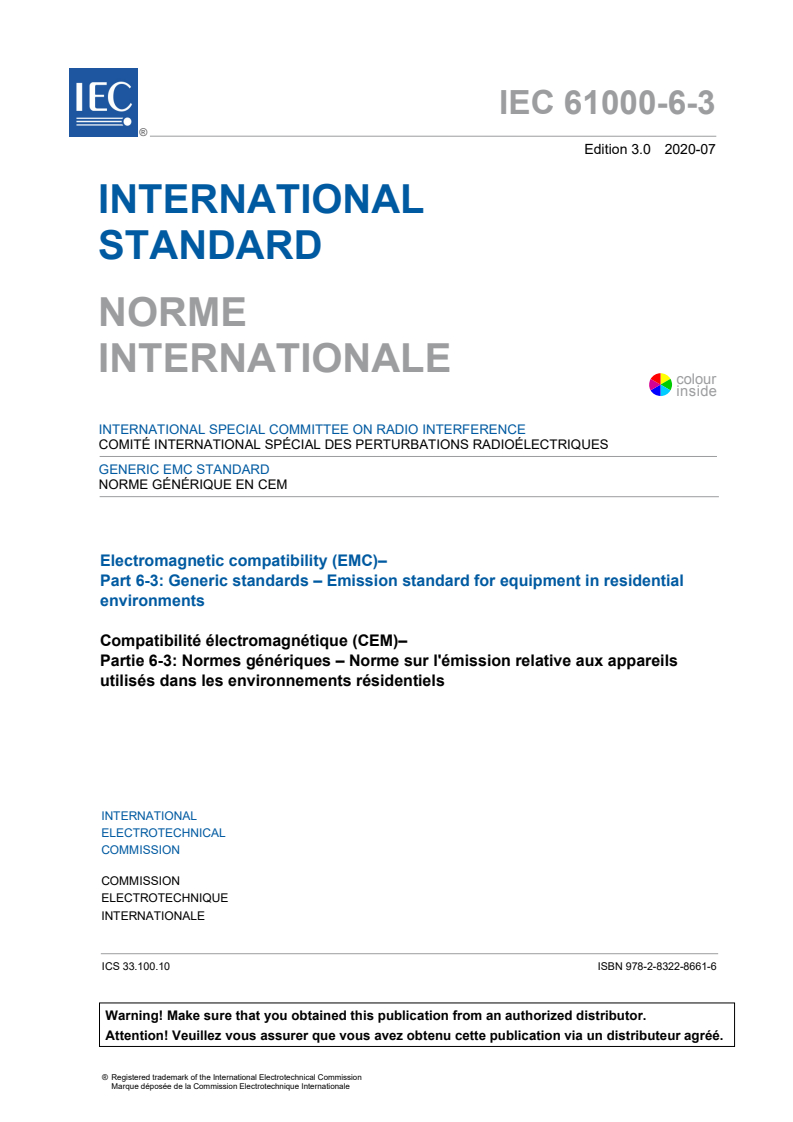

IEC 61000-6-3
Edition 3.0 2020-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
INTERNATIONAL SPECIAL COMMITTEE ON RADIO INTERFERENCE
COMITÉ INTERNATIONAL SPÉCIAL DES PERTURBATIONS RADIOÉLECTRIQUES
GENERIC EMC STANDARD
NORME GÉNÉRIQUE EN CEM
Electromagnetic compatibility (EMC)–
Part 6-3: Generic standards – Emission standard for equipment in residential
environments
Compatibilité électromagnétique (CEM)–
Partie 6-3: Normes génériques – Norme sur l'émission relative aux appareils
utilisés dans les environnements résidentiels
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.100.10 ISBN 978-2-8322-8661-6
Warning! Make sure that you obtained this publication from an authorized distributor.
Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.
® Registered trademark of the International Electrotechnical CommissionMarque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

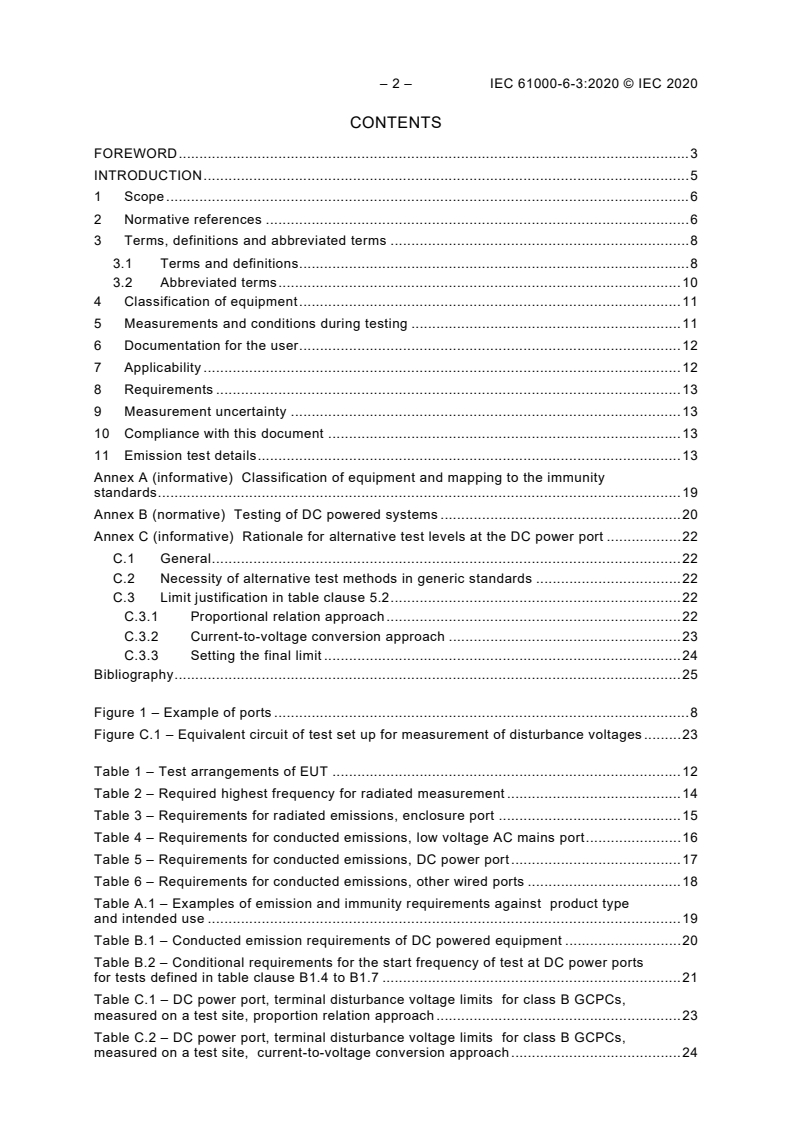

– 2 – IEC 61000-6-3:2020 © IEC 2020

CONTENTS
FOREWORD ........................................................................................................................... 3
INTRODUCTION ..................................................................................................................... 5
1 Scope .............................................................................................................................. 6
2 Normative references ...................................................................................................... 6
3 Terms, definitions and abbreviated terms ........................................................................ 8
3.1 Terms and definitions .............................................................................................. 8
3.2 Abbreviated terms ................................................................................................. 10
4 Classification of equipment ............................................................................................ 11
5 Measurements and conditions during testing ................................................................. 11
6 Documentation for the user ............................................................................................ 12
7 Applicability ................................................................................................................... 12
8 Requirements ................................................................................................................ 13
9 Measurement uncertainty .............................................................................................. 13
10 Compliance with this document ..................................................................................... 13
11 Emission test details ...................................................................................................... 13
Annex A (informative) Classification of equipment and mapping to the immunitystandards .............................................................................................................................. 19
Annex B (normative) Testing of DC powered systems .......................................................... 20
Annex C (informative) Rationale for alternative test levels at the DC power port .................. 22
C.1 General ................................................................................................................. 22
C.2 Necessity of alternative test methods in generic standards ................................... 22
C.3 Limit justification in table clause 5.2 ...................................................................... 22
C.3.1 Proportional relation approach ....................................................................... 22
C.3.2 Current-to-voltage conversion approach ........................................................ 23
C.3.3 Setting the final limit ...................................................................................... 24
Bibliography .......................................................................................................................... 25
Figure 1 – Example of ports .................................................................................................... 8
Figure C.1 – Equivalent circuit of test set up for measurement of disturbance voltages ......... 23
Table 1 – Test arrangements of EUT .................................................................................... 12
Table 2 – Required highest frequency for radiated measurement .......................................... 14
Table 3 – Requirements for radiated emissions, enclosure port ............................................ 15
Table 4 – Requirements for conducted emissions, low voltage AC mains port ....................... 16
Table 5 – Requirements for conducted emissions, DC power port ......................................... 17
Table 6 – Requirements for conducted emissions, other wired ports ..................................... 18
Table A.1 – Examples of emission and immunity requirements against product typeand intended use .................................................................................................................. 19
Table B.1 – Conducted emission requirements of DC powered equipment ............................ 20
Table B.2 – Conditional requirements for the start frequency of test at DC power ports
for tests defined in table clause B1.4 to B1.7 ........................................................................ 21
Table C.1 – DC power port, terminal disturbance voltage limits for class B GCPCs,
measured on a test site, proportion relation approach ........................................................... 23
Table C.2 – DC power port, terminal disturbance voltage limits for class B GCPCs,
measured on a test site, current-to-voltage conversion approach ......................................... 24
---------------------- Page: 4 ----------------------CISPR 61000-6-3:2020 © IEC 2020 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ELECTROMAGNETIC COMPATIBILITY (EMC) –
Part 6-3: Generic standards –
Emission standard for equipment in residential environments
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61000-6-3 has been prepared by CISPR subcommittee H: Limits for
the protection of radio services.This third edition cancels and replaces the second edition published in 2006 and its Amendment
1:2010. This edition constitutes a technical revision.This edition includes the following significant technical changes with respect to the previous
edition:a) alternative method for measuring conducted emissions on DC ports;
b) limits and requirements applicable only to equipment intended to be used in residential
locations;c) more stringent limits for DC power ports.
---------------------- Page: 5 ----------------------
– 4 – IEC 61000-6-3:2020 © IEC 2020
The text of this document is based on the following documents:
CDV Report on voting
CIS/H/400/CDV CIS/H/413/RVC
Full information on the voting for the approval of this document can be found in the report on
voting indicated in the above table.This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IEC 61000 series, published under the general title Electromagnetic
compatibility (EMC), can be found on the IEC website.The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this document using a colour printer.
---------------------- Page: 6 ----------------------CISPR 61000-6-3:2020 © IEC 2020 – 5 –
INTRODUCTION
IEC 61000 is published in separate parts according to the following structure:
Part 1: General
General considerations (introduction, fundamental principles)
Definitions, terminology
Part 2: Environment
Description of the environment
Classification of the environment
Compatibility levels
Part 3: Limits
Emission limits
Immunity limits (insofar as they do not fall under the responsibility of the product committees)
Part 4: Testing and measurement techniquesMeasurement techniques
Testing techniques
Part 5: Installation and mitigation guidelines
Installation guidelines
Mitigation methods and devices
Part 6: Generic standards
Part 9: Miscellaneous
Each part is further subdivided into several parts published either as International Standards or
technical reports/specifications, some of which have already been published as sections.
Others will be published with the part number followed by a dash and a second number
identifying the subdivision (example: IEC 61000-6-1).---------------------- Page: 7 ----------------------
– 6 – IEC 61000-6-3:2020 © IEC 2020
ELECTROMAGNETIC COMPATIBILITY (EMC) –
Part 6-3: Generic standards –
Emission standard for equipment in residential environments
1 Scope
This generic EMC emission standard is applicable only if no relevant dedicated product or
product family EMC emission standard has been published.This part of IEC 61000 for emission requirements applies to electrical and electronic equipment
intended for use at residential (see 3.1.14) locations. This part of IEC 61000 also applies to
electrical and electronic equipment intended for use at other locations that do not fall within the
scope of IEC 61000-6-8 or IEC 61000-6-4.The intention is that all equipment used in the residential, commercial and light-industrial
environments are covered by IEC 61000-6-3 or IEC 61000-6-8. If there is any doubt the
requirements in IEC 61000-6-3 apply.The conducted and radiated emission requirements in the frequency range up to 400 GHz are
considered essential and have been selected to provide an adequate level of protection of radio
reception in the defined electromagnetic environment. Not all disturbance phenomena have
been included for testing purposes but only those considered relevant for the equipment
intended to operate within the locations included within this document.The emission requirements in this document are not intended to be applicable to the intentional
transmissions and their harmonics from a radio transmitter as defined by the ITU.
NOTE 1 Safety considerations are not covered by this document.NOTE 2 In special cases, situations will arise where the levels specified in this document will not offer adequate
protection; for example where a sensitive receiver is used in close proximity to an equipment. In these instances,
special mitigation measures can be employed.NOTE 3 Disturbances generated in fault conditions of equipment are not covered by this document.
NOTE 4 As the requirements in this document are more stringent or equivalent to those requirements in IEC 61000-
6-4 and IEC 61000-6-8, equipment fulfilling the requirements of this document comply with the requirements of
IEC 61000-6-4 and IEC 61000-6-8.2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.IEC 61000-3-2:2018, Electromagnetic compatibility (EMC) – Part 3-2: Limits – Limits for
harmonic current emissions (equipment input current ≤ 16 A per phase)IEC 61000-3-3:2013, Electromagnetic compatibility (EMC) – Part 3-3: Limits – Limitation of
voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for
equipment with rated current ≤ 16 A per phase and not subject to conditional connection
IEC 61000-3-3:2013/AMD1:2017---------------------- Page: 8 ----------------------
CISPR 61000-6-3:2020 © IEC 2020 – 7 –
IEC 61000-3-11:2017, Electromagnetic compatibility (EMC) – Part 3-11: Limits – Limitation of
voltage changes, voltage fluctuations and flicker in public low-voltage supply systems –
Equipment with rated current ≤ 75 A and subject to conditional connectionIEC 61000-3-12:2011, Electromagnetic compatibility (EMC) – Part 3-12: Limits – Limits for
harmonic currents produced by equipment connected to public low-voltage systems with input
current > 16 A and ≤ 75 A per phaseIEC 61000-4-20:2010, Electromagnetic compatibility (EMC) – Part 4-20: Testing and
measurement techniques – Emission and immunity testing in transverse electromagnetic (TEM)
waveguideCISPR 14-1:2016, Electromagnetic compatibility – Requirements for household appliances,
electric tools and similar apparatus – Part 1: EmissionCISPR 16-1-1:2019, Specification for radio disturbance and immunity measuring apparatus and
methods – Part 1-1: Radio disturbance and immunity measuring apparatus – Measuring
apparatusCISPR 16-1-2:2014, Specification for radio disturbance and immunity measuring apparatus and
methods – Part 1-2: Radio disturbance and immunity measuring apparatus – Coupling devices
for conducted disturbance measurementsCISPR 16-1-2:2014/AMD1:2017
CISPR 16-1-4:2019, Specification for radio disturbance and immunity measuring apparatus and
methods – Part 1-4: Radio disturbance and immunity measuring apparatus – Antennas and test
sites for radiated disturbance measurementsCISPR 16-1-5:2014, Specification for radio disturbance and immunity measuring apparatus and
methods – Part 1-5: Radio disturbance and immunity measuring apparatus – Antennacalibration sites and reference test sites for 5 MHz to 18 GHz
CISPR 16-1-5:2014/AMD1:2016
CISPR 16-1-6:2014, Specification for radio disturbance and immunity measuring apparatus and
methods – Part 1-6: Radio disturbance and immunity measuring apparatus – EMC antenna
calibrationCISPR 16-1-6:2014/AMD1:2017
CISPR 16-2-1:2014, Specification for radio disturbance and immunity measuring apparatus and
methods – Part 2-1: Methods of measurement of disturbances and immunity – Conducted
disturbance measurementsCISPR 16-2-1:2014/AMD1:2017
CISPR 16-2-3:2016, Specification for radio disturbance and immunity measuring apparatus and
methods – Part 2-3: Methods of measurement of disturbances and immunity – Radiated
disturbance measurementsCISPR 16-4-2:2011, Specification for radio disturbance and immunity measuring apparatus and
methods – Part 4-2: Uncertainties, statistics and limit modelling – Measurement instrumentation
uncertaintyCISPR 16-4-2:2011/AMD1:2014
CISPR 16-4-2:2011/AMD2:2018
---------------------- Page: 9 ----------------------
– 8 – IEC 61000-6-3:2020 © IEC 2020
CISPR 32:2015, Electromagnetic compatibility of multimedia equipment – Emission
requirements
3 Terms, definitions and abbreviated terms
3.1 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1.1
port
physical interface of the specified equipment with the external electromagnetic environment
Note 1 to entry: See Figure 1.Note 2 to entry: Other wired port shown in Figure 1 is referenced in Table 6.
Figure 1 – Example of ports
3.1.2
enclosure port
physical boundary of the equipment which electromagnetic fields may radiate through or
impinge on3.1.3
wired network port
port for the connection of communication intended to interconnect widely dispersed systems by
direct connection to a single-user or multi-user networkNote 1 to entry: Examples of communication through the network include voice, data and signalling transfers.
Note 2 to entry: Examples of these networks include CATV, PSTN, ISDN, xDSL, LAN and similar.
---------------------- Page: 10 ----------------------CISPR 61000-6-3:2020 © IEC 2020 – 9 –
Note 3 to entry: These ports may support screened or unscreened cables and may also carry AC or DC power
where this is an integral part of the telecommunication specification.Note 4 to entry: A port generally intended for interconnection of components of a system under test (e.g. RS-232
(defined in ITU-T V.28), RS-485 (defined in ITU-T V.11), field buses in the scope of IEC 61158-1, IEEE Standard
1284 (parallel printer), Universal Serial Bus (USB), IEEE Standard 1394 (“Fire Wire”), etc.) and used in accordance
with its functional specifications (e.g. for the maximum length of cable connected to it), is not considered to be a
wired network port.Note 5 to entry: In previous editions of this document and many product standards, this port was defined as a
telecommunications or network port.3.1.4
power port
port for the connection of the equipment to its primary electrical power supply
3.1.5
public mains network
electricity lines to which all categories of consumers have access and which are operated by a
supply or distribution undertaking for the purpose of supplying electrical energy
3.1.6low voltage
voltage having a value below a conventionally adopted limit
Note 1 to entry: For the distribution of AC electric power, the upper limit is generally accepted to be 1 000 V. For
the distribution of DC electric power, the upper limit is generally accepted to be 1 500 V.
3.1.7DC distribution network
local supply network in the infrastructure of a site or building intended for use by one or more
different types of equipment and providing power independent of the public mains network
Note 1 to entry: Connection to a remote local battery is not regarded as a DC distribution network, if such a link
comprises only power supply for a single piece of equipment.3.1.8
low voltage AC mains port
port used to connect to the low voltage AC mains supply network to power the equipment
Note 1 to entry: Equipment with a DC power port is considered low voltage AC mains powered if it is powered from
an AC/DC power converter.Note 2 to entry: The low voltage AC mains supply could be public or non-public.
3.1.9
highest internal frequency
highest fundamental frequency generated or used within the EUT, or the highest frequency at
which it operates3.1.10
antenna port
port, other than a broadcast receiver tuner port (3.1.12), for connection of an antenna used for
intentional transmission and/or reception of radiated RF energy3.1.11
associated equipment
equipment needed to exercise and/or monitor the operation of the EUT
Note 1 to entry: The AE can be either local (within the measurement or test area) or remote.
---------------------- Page: 11 ----------------------– 10 – IEC 61000-6-3:2020 © IEC 2020
3.1.12
broadcast receiver tuner port
port intended for the reception of a modulated RF signal carrying terrestrial, satellite and/or
cable transmissions of audio and/or video broadcast and similar servicesNote 1 to entry: This port may be connected to an antenna, a cable distribution system, a VCR or similar device.
3.1.13DC power port
port used to connect to a low voltage DC power generating system, energy storage or DC
distribution network to power the equipmentNote 1 to entry: See Annex B.
3.1.14
residential location
area of land designated for domestic dwellings where the mains power within these locations is
directly connected to the low-voltage public mains networkNote 1 to entry: Examples of residential locations are: houses, apartments, farm buildings housing people.
Note 2 to entry: A dwelling can be a single building, separate building or a separate section of a larger building.
Note 3 to entry: Within these locations it is expected to operate a radio receiver within a distance of 10 m from the
equipment.Note 4 to entry: Domestic dwellings are places for one or more people to live.
3.1.15
small equipment
equipment, either positioned on a table top or standing on the floor which, including its cables
fits in a cylindrical test volume of 1,2 m in diameter and 1,5 m above the ground plane
Note 1 to entry: These dimensions are currently under discussion in CISPR.3.1.16
optical fibre port
port at which an optical fibre is connected to an equipment
3.2 Abbreviated terms
AE Associated Equipment
AAN Asymmetric Artificial Network
AC Alternating Current
V-AMN Artificial Mains V-Network
V-AN Artificial V-Network
CATV Cable TV network
CM Common Mode
DC Direct Curren
...
