– 1 –
SC CIS/H/Publication IEC 61000-6-3 Amend. 1 2010, Second edition/I-SH
ELECTROMAGNETIC COMPATIBILITY (EMC) –
Part 6-3: Generic standards –
Emission standard for residential, commercial
and light-industrial environments
INTERPRETATION SHEET

This interpretation sheet has been prepared by CISPR subcommittee H: Limits for the

protection of radio services, of IEC technical committee CISPR: International special

committee on radio interference.
The text of this interpretation sheet is based on the following documents:
FDIS Report on voting
CISPR/H/217/FDIS CISPR/H/222/RVD

Full information on the voting for the approval of this interpretation sheet can be found in the

report on voting indicated in the above table.
___________
Interpretation

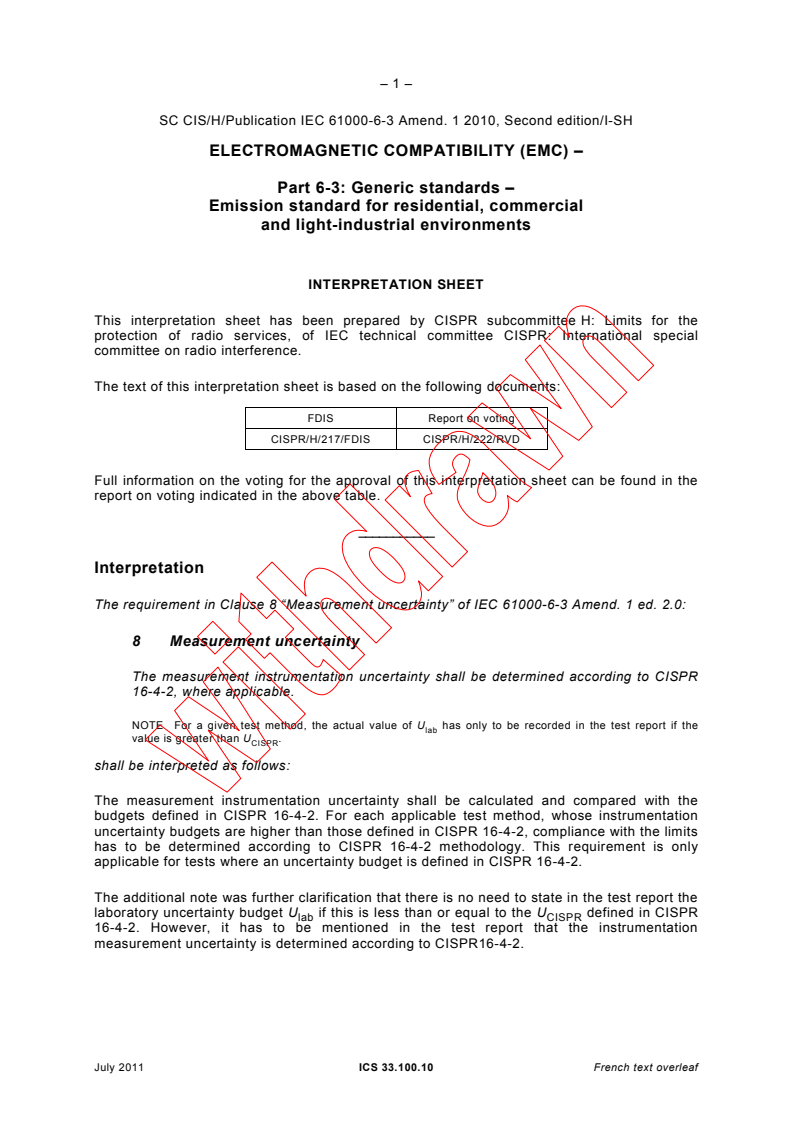

The requirement in Clause 8 “Measurement uncertainty” of IEC 61000-6-3 Amend. 1 ed. 2.0:

8 Measurement uncertainty

The measurement instrumentation uncertainty shall be determined according to CISPR

16-4-2, where applicable.

NOTE For a given test method, the actual value of U has only to be recorded in the test report if the

lab
value is greater than U .
CISPR
shall be interpreted as follows:

The measurement instrumentation uncertainty shall be calculated and compared with the

budgets defined in CISPR 16-4-2. For each applicable test method, whose instrumentation

uncertainty budgets are higher than those defined in CISPR 16-4-2, compliance with the limits

has to be determined according to CISPR 16-4-2 methodology. This requirement is only

applicable for tests where an uncertainty budget is defined in CISPR 16-4-2.

The additional note was further clarification that there is no need to state in the test report the

laboratory uncertainty budget U if this is less than or equal to the U defined in CISPR

lab CISPR

16-4-2. However, it has to be mentioned in the test report that the instrumentation

measurement uncertainty is determined according to CISPR16-4-2.
July 2011 ICS 33.100.10 French text overleaf
---------------------- Page: 4 ----------------------
� ������ �����������������������������
���������

���������������������������������������������������������������������������������� �����

����������������
����������������������������������������������������������������
����� �����������������
����������������� ����������������

������������������������������������������������������������������������������������������������

��������������������������������������

��������������������������������������������������������������������������������������������

������� ���������� ������ ���� �������������� ���������� ���������������� ��� ���� ����

��������������������������������������������������������������������������������������������

���������������������
�� �������������
�� �����������
�� ����������������������������������
�� ���������

�����������������������������������������������������������������������������������������

��������������
���������
Replace the title of Clause 3 by the following new title:
�� �������������������������������������
Replace the title of Clause 8 by the following new title:
�� ������������������������
Replace the title of Clause 9 by the following new title:

�� ��������������������������������������������������������������������������������

Add the following new Clauses 10 and 11:�
��� �������������������������������
��� ���������������������������
Replace the title of Table 1 by the following new title:
��������−���������������������������
Add the following new Tables:�
��������−�������−������������������������������
---------------------- Page: 5 ----------------------
61000-6-3 Amend. 1 Ó IEC:2010 – 3 –
Table 3 – Emission – DC power port
2 Normative references
Add the following new references to the existing list:
IEC 60050-161, International Electrotechnical Vocabulary (IEV) - Chapter 161:
Electromagnetic compatibility

IEC 61000-4-20:2010, Electromagnetic compatibility (EMC) – Part 4-20: Testing and

measurement techniques – Emission and immunity testing in transverse electromagnetic

(TEM) waveguide

CISPR 16-1-1:2010, Specification for radio disturbance and immunity measuring apparatus

and methods – Part 1-1: Radio disturbance and immunity measuring apparatus – Measuring

apparatus

CISPR 16-1-4:2007, Specification for radio disturbance and immunity measuring apparatus

and methods – Part 1-4: Radio disturbance and immunity measuring apparatus – Ancillary

equipment – Radiated disturbances
Amendment 1:2007
Replace the existing references by the following new references:

IEC 61000-3-2:2005 Electromagnetic compatibility (EMC) - Part 3-2: Limits - Limits for

harmonic current emissions (equipment input current £ 16 A per phase)
Amendment 1:2008
Amendment 2:2009

IEC 61000-3-3:2008, Electromagnetic compatibility (EMC) - Part 3-3: Limits - Limitation of

voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for

equipment with rated current £ 16 A per phase and not subject to conditional connection

IEC 61000-3-11:2000, Electromagnetic compatibility (EMC) – Part 3-11: Limits – Limitation

of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems –

Equipment with rated current £ 75 A and subject to conditional connection

IEC 61000-3-12:2004, Electromagnetic compatibility (EMC) – Part 3-12: Limits – Limits for

harmonic currents produced by equipment connected to public low-voltage systems with

input current > 16 A and £ 75 A per phase

CISPR 14-1:2005, Electromagnetic compatibility – Requirements for household appliances,

electric tools and similar apparatus – Part 1: Emission
Amendment 1:2008

CISPR 16-1-2:2003, Specification for radio disturbance and immunity measuring apparatus

and methods – Part 1-2: Radio disturbance and immunity measuring apparatus – Ancillary

equipment – Conducted disturbances
Amendment 1:2004
Amendment 2:2006

CISPR 16-2-1:2008, Specification for radio disturbance and immunity measuring apparatus

and methods – Part 2-1: Methods of measurement of disturbances and immunity –
Conducted disturbance measurements
---------------------- Page: 6 ----------------------
– 4 – 61000-6-3 Amend. 1 Ó IEC:2010

CISPR 16-2-3:2006, Specification for radio disturbance and immunity measuring apparatus

and methods – Part 2-3: Methods of measurement of disturbances and immunity – Radiated

disturbance measurements

CISPR 16-4-2:2003, Specification for radio disturbance and immunity measuring apparatus

and methods – Part 4-2: Uncertainties, statistics and limit modelling – Uncertainty in EMC

measurements

CISPR 22:2008, Information technology equipment – Radio disturbance characteristics –

Limits and methods of measurement
3 Terms and definitions
Replace the title, first paragraph and Note of this clause by the following:
3 Terms, definitions and abbreviations
3.1 Terms and definitions

For the purposes of this document, the terms and definitions given in IEC 60050-161, as

well as the following apply.

Renumber the existing definitions 3.1, 3.2, 3.3, 3.4, 3.5, 3.6, 3.7, 3.8 as 3.1.1, 3.1.2, 3.1.3,

3.1.4, 3.1.5, 3.1.6, 3.1.7, 3.1.8 respectively.
Figure 1 – Examples of port
Replace the existing figure and title by the following new figure and title:
Enclosure port
Telecommunications/ Low voltage a.c. mains port
network port
Apparatus
DC power port
IEC 2580/10
Figure 1 – Ports covered by Tables 1 to 4
Add, after definition 3.1.8, the following new definitions 3.1.9 and 3.1.10:
3.1.9
low voltage AC mains port

port used to connect to the low voltage AC mains supply network to power the equipment

NOTE Equipment with a DC power port is considered low voltage AC mains powered if it is powered from an

AC/DC power converter.
3.1.10
highest internal frequency

highest fundamental frequency generated or used within the EUT, or the highest frequency

at which it operates
---------------------- Page: 7 ----------------------
61000-6-3 Amend. 1 Ó IEC:2010 – 5 –
After definition 3.1.10, add the following new subclause:
3.2 Abbreviations
AC Alternating Current
DC Direct Current
EUT Equipment Under Test
FAR Fully Anechoic Room
ISN Impedance Stabilization Network
OATS Open Area Test Site
SAC Semi Anechoic Chamber
TEM Transverse Electromagnetic Mode
4 Conditions during testing
At the end of Clause 4 add the following paragraph:

Where applicable, additional information on EUT configuration can be found in the

CISPR 16-2 series and CISPR 22.
6 Applicability
Replace the second paragraph of this clause by the following new paragraph:

Measurements shall be applied to the relevant ports of the apparatus according to Tables 1

to 4. Measurements shall only be carried out where the relevant ports exist.
7 Emission requirements
Replace the first paragraph of this clause by the following new paragraph:

The emission requirements for apparatus covered by this standard are given on a port by

port basis. The requirements are stated in Tables 1 to 4.
Replace the fourth paragraph of this clause by the following new paragraph:

The description of the measurement, the measurement instrumentation, the measurement

methods and the measurement set-up to be used are given in the standards, which are

referred to in Tables 1 to 4.
8 Application of limits in tests for conformity of equipment in series
production

Replace the existing title and text of this clause by the following new title and text:

8 Measurement uncertainty

The measurement instrumentation uncertainty shall be determined according to CISPR 16-

4-2, where applicable.

NOTE For a given test method, the actual value of U has only to be recorded in the test report if the value is

lab
greater than U .
CISPR
---------------------- Page: 8 ----------------------
– 6 – 61000-6-3 Amend. 1 Ó IEC:2010
9 Measurement uncertainty

Replace the existing title and text of this clause by the following new title and text:

9 Application of limits in tests for conformity of equipment in series
production
9.1 Tests shall be made:

– either on a sample of equipment of the type using the statistical method of evaluation

set out in 9.2,
– or, for simplicity’s sake, on one equipment only.
9.2 Statistically assessed compliance with limits shall be made as follows.

This test shall be performed on a sample of not less than five and not more than 12 items of

the type. If, in exceptional circumstances, five items are not available, a sample of four or

three shall be used. Compliance is judged from the following relationship:
x+ kS £ L
where
x is the arithmetic mean of the measured value of n items in the sample
2 1
S = (x - x)²
n å i
n-1
i=1
x is the value of the individual item
L is the appropriate limit

k is the factor derived from tables of the non-central t-distribution which assures with 80 %

confidence that 80 % of the type is below the limit; the value of k depends on the

sample size n and is stated below.

The quantities x , x , S and L are expressed logarithmically: dB(mV), dB(mV/m) or dB(pW).

n n
n 3 4 5 6 7 8 9 10 11 12
k 2,04 1,69 1,52 1,42 1,35 1,30 1,27 1,24 1,21 1,20
Delete the existing Table 1, and add the following new Clause 10:
10 Compliance with this standard

Where this standard gives options for testing particular requirements with a choice of test

methods, compliance can be shown against any of the test methods, using the specified

limits with the restrictions provided in the relevant tables.

In any situation where it is necessary to retest the equipment the test method original

chosen should be used in order to ensure consistency of the results.

Equipment which fulfills the requirements across the frequency ranges specified in

Clause 11 Tables 1 to 4 in this standard is deemed to fulfill the requirements in the entire

frequency range from 9 kHz to 400 GHz.
---------------------- Page: 9 ----------------------
61000-6-3 Amend. 1 Ó IEC:2010 – 7 –

Measurements do not need to be performed at frequencies where no limits are specified.

---------------------- Page: 10 ----------------------
– 8 – 61000-6-3 Amend. 1 Ó IEC:2010
Add the following new Clause 11:
11 Emission test requirements
Table 1 – Emission – Enclosure port
Table
Port Frequency range Limits Basic standard Applicability note Remarks
clause
a, b and e

1.1 Enclosure 30 MHz to 230 MHz 30 dB(mV/m) quasi-peak at 10 m The measurement instrumentation shall See May be measured at 3 m

230 MHz to 1 000 MHz be as defined in 4 of CISPR 16-1-1. distance using the limits

37 dB(mV/m) quasi-peak at 10 m
Test facility: increased by 10 dB.
The measuring antennas shall be as
OATS or SAC
defined in 4.4 of CISPR 16-1-4. As stated in CISPR 16-2-3
the antenna height shall be
The measuring site shall be as
varied between 1 m to 4 m.
described in Clause 5 of CISPR 16-1-4.
Additional guidance on the
The measurement method shall be as
test method can be found in
specified in 7.2 of CISPR 16-2-3.
CISPR 16-2-3 clause 7.3
and clause 8.
a, b and e

1.2 Enclosure 30 MHz to 230 MHz 42 to 35 dB(mV/m) quasi-peak at 3 m The measurement instrumentation shall See May be measured at greater

be as defined in 4 of CISPR 16-1-1. distances with the limits
Only applicable to table
Test facility: Limit reducing linearly with the decreased by 20 dB/decade
The measuring antennas shall be as top equipment.
FAR logarithm of the frequency. (relative to distance).
defined in 4.4 of CISPR 16-1-4.
The limitations on EUT size in
230 MHz to 1 000 MHz 42 dB(mV/m) quasi-peak at 3 m
The measuring site shall be as
CISPR 16-1-4 apply.
described in Clause 5.8 of CISPR 16-1-
The measurement method shall be as
specified in 7.2.9.2 of CISPR 16-2-3.

1.3 Enclosure 30 MHz to 230 MHz 30 dB(mV/m) quasi-peak IEC 61000-4-20 Only applicable to battery

230 MHz to 1 000 MHz powered equipment not
37 dB(mV/m) quasi-peak
Test facility: intended to have external
The small-EUT correction factor given
TEM Waveguide cables attached.
in A.4.3 of IEC 61000-4-20 shall be
Restricted to equipment
used. The limit relates to the OATS
complying with the
measurement distance of 10m
definition 6.2 in
IEC 61000-4-20.
a, b and e
See
---------------------- Page: 11 ----------------------
61000-6-3 Amend. 1 Ó IEC:2010 – 9 –
Table
Port Frequency range Limits Basic standard Applicability note Remarks
clause
a, c, d and e

1.4 Enclosure 1 GHz to 3 GHz The measurement instrumentation shall See May be measured at greater

70 dB(mV/m) peak at 3 m

50 dB(mV/m) average at 3 m be as defined in 5 and 6 of CISPR 16- distances with the limits

Test facility: 1-1. decreased by 20 dB/decade
3 GHz to 6 GHz
74 dB(mV/m) peak at 3 m
OATS, SAC or (relative to distance).
The measuring antennas shall be as
54 dB(mV/m) average at 3 m
FAR
defined in 4.5 of CISPR 16-1-4. For SAC and OATS facilities
absorber may be required to
The measuring site shall be as
achieve free space conditions
described in Clause 8 of CISPR 16-1-4.
as defined in CISPR 16-1-4.
The measurement method shall be as
specified in 7.3 of CISPR 16-2-3.

For apparatus containing devices operating at frequencies less than 9 kHz measurements only need to be performed up to 230 MHz.

The apparatus is deemed to comply with the enclosure port requirement below 1 GHz if it meets the requirements defined in one or more of the table clauses 1.1, 1.2 or 1.3.

If the highest internal frequency of the EUT is less than 108 MHz, the measurement shall only be made up to 1 GHz.

If the highest internal frequency of the EUT is between 108 MHz and 500 MHz, the measurement shall only be made up to 2 GHz.

If the highest internal frequency of the EUT is between 500 MHz and 1 GHz, the measurement shall only be made up to 5 GHz.

If the highest internal frequency of the EUT is above 1 GHz, the measurement shall be made up to 6 GHz.

Where the highest internal frequency is not known, tests shall be performed up to 6 GHz.

The peak detector limits shall not be applied to disturbances produced by arcs or sparks that are high voltage breakdown events. Such disturbances arise when devices contain or control mechanical switches

that control current in inductors, or when devices contain or control subsystems that create static electricity (such as paper handling devices). The average limits apply to disturbances from arcs or sparks, and

both peak and average limits apply to other disturbances from such devices.
At transitional frequencies the lower limit applies.
---------------------- Page: 12 ----------------------
– 10 – 61000-6-3 Amend. 1 Ó IEC:2010
Table 2 – Emission – Low voltage AC mains port
Table
Port Frequency range Limits Basic standard Applicability note Remarks
clause
a and b

2.1 Low voltage AC mains 0 kHz to 2 kHz Limits are presented in the basic IEC 61000-3-2 See

standards. See basic standards IEC 61000-3-3
column. IEC 61000-3-11
IEC 61000-3-12

0,15 MHz to 0,5 MHz 66 dB(mV) to 56 dB(mV) quasi-peak The measurement instrumentation shall See

56 dB(mV) to 46 dB(mV) average be as defined in 4 and 6 of CISPR 16-
1-1.
Limits decrease linearly with the
The measuring networks shall be as
logarithm of the frequency
defined in 4 of CISPR 16-1-2.
0,5 MHz to 5 MHz 56 dB(mV) quasi-peak
The measurement set up and method
46 dB(mV) average
shall be as described in Clause 7 of
CISPR 16-2-1.
5 MHz to 30 MHz 60 dB(mV) quasi-peak
50 dB(mV) average
0,15 MHz to 30 MHz Discontinuous interference limits CISPR 14-1
defined in 4.2 of CISPR 14-1

Applicable to apparatus covered within the scope of IEC 61000-3-2, IEC 61000-3-3, IEC 61000-3-11 and IEC 61000-3-12.

Equipment which meets the requirements of IEC 61000-3-3, is excluded from IEC 61000-3-11.

At transitional frequencies the lower limit applies.
---------------------- Page: 13 ----------------------
61000-6-3 Amend. 1 Ó IEC:2010 – 11 –
Table 3 – Emission – DC power port
Table
Port Frequency range Limits Basic standard Applicability note Remarks
clause

3.1 DC power 0,15 MHz to 0,50 MHz The measurement Applicable only to ports intended

79 dB(mV) quasi-peak
66 dB(mV) average instrumentation shall be as for connection to
defined in 4 and 6 of CISPR
- a local DC power network, or
0,50 MHz to 30 MHz 73 dB(mV) quasi-peak
16-1-1.
60 dB(mV) average
- a local battery by a connecting
The measuring networks
cable exceeding a length of 30 m
shall be as defined in 4 of
CISPR 16-1-2.
See
The measurement set up and
method shall be as described
in Clause 7 of CISPR 16-2-1.
At transitional frequencies the lower limit applies.
---------------------- Page: 14 ----------------------
– 12 – 61000-6-3 Amend. 1 Ó IEC:2010
Table 4 – Emission – Telecommunications/network port
Table
Port Frequency range Limits Basic standard Applicability note Remarks
clause
a b
4.1 Telecommunications 0,15 MHz to 0,5 MHz CISPR 22 See and
84 dB(mV) to 74 dB(mV) quasi-peak
/network 74 dB(mV) to 64 dB(mV) average
40 dB(mA) to 30 dB(mA) quasi-peak
30 dB(mA) to 20 dB(mA) average
Limits decrease linearly with the
logarithm of the frequency
0,5 MHz to 30 MHz 74 dB(mV) quasi-peak
64 dB(mV) average
30 dB(mA) quasi-peak
20 dB(mA) average

The current and voltage disturbance limits are derived for use with an impedance stabilization network (ISN) which presents a common mode (asymmetric mode) impedance of 150 W to

the telecommunication port under test (conversion factor is 20 log 150 / l = 44 dB).

When performing measurement using an ISN, the EUT shall meet the voltage limits of this table. All elements within CISPR 22 shall be followed, including but not limited to selection of test method,

test configuration, cable characteristics.
---------------------- Page: 15 ----------------------
61000-6-3 Amend. 1 Ó IEC:2010 – 13 –
Bibliography
Delete the existing reference to IEC 60050-161:1990 from the list.
____________
---------------------- Page: 16 ----------------------
– 2 –
SC CIS/H/Publication IEC 61000-6-3 Amend. 1 2010, Deuxième édition/I-SH
COMPATIBILITE ÉLECTROMAGNÉTIQUE (CEM) –
Partie 6-3: Normes génériques –
Norme sur l'émission pour les environnements
résidentiels, commerciaux et de l'industrie légère
FEUILLE D'INTERPRÉTATION

Cette feuille d’interprétation a été établie par le sous-comité H du CISPR: Limites pour la

protection des services radioélectriques, du comité d'études CISPR de la CEI: Comité

international spécial des perturbations radioélectriques.
Le texte de cette feuille d’interprétation est issue des documents suivants:
FDIS Rapport de vote
CISPR/H/217/FDIS CISPR/H/222/RVD

Le rapport de vote indiqué dans le tableau ci-dessus donne toute information sur le vote ayant

abouti à l'approbation de cette feuille d’interprétation.
___________
Interprétation

Les exigences de l’Article 8 “Incertitude de mesure” de la CEI 61000-6-3 Amend. 1 ed. 2.0:

8 Incertitude de mesure

L'incertitude de mesure instrumentale sera déterminée selon la CISPR 16-4-2, lorsque

cela est applicable.

NOTE Pour une méthode d'essai donnée, la valeur actuelle de U doit seulement être enregistrée dans

lab
le rapport d’essai si la valeur est supérieure au U .
CISPR
doivent être interprétées comme suit:

L'incertitude de mesure instrumentale doit être calculée et comparée avec les budgets définis

dans la CISPR 16-4-2. Pour chaque méthode d’essai applicable, dont les budgets

d'incertitude instrumentale sont plus élevés que ceux définis dans la CISPR 16-4-2, la

conformité avec les limites doit être déterminée selon la méthodologie de la CISPR 16-4-2.

Cette exigence est seulement applicable pour des essais où un budget d'incertitude est défini

dans la CISPR 16-4-2.

La note additionnelle était de plus une clarification qu'il n'y a aucun besoin de reporter dans le

rapport d’essai le budget d’incertitude U du laboratoire s’il est inférieur ou égal au U

lab CISPR

défini dans la CISPR 16-4-2. Cependant, il doit être mentionné dans le rapport d’essai que

l'incertitude de mesure instrumentale est déterminée selon la CISPR 16-4-2.
_____________
Juillet 2011 ICS 33.100.10 Texte anglais au verso
---------------------- Page: 17 ----------------------
– 14 – 61000-6-3 Amend. 1 © CEI:2010
AVANT-PROPOS

Le présent amendement a été établi par le sous-comité H du CISPR: Limites pour la protection

des services radioélectriques.
Le texte de cet amendement est issu des documents suivants:
FDIS Rapport de vote
CISPR/H/206/FDIS CISPR/H/210/RVD

Le rapport de vote indiqué dans le tableau ci-dessus donne toute information sur le vote ayant

abouti à l'approbation de cet amendement.

Le comité a décidé que le contenu de cet amendement et de la publication de base ne sera

pas modifié avant la date de stabilité indiquée sur le site web de la CEI sous

"http://webstore.iec.ch" dans les données relatives à la publication recherchée. A cette date, la

publication sera
• reconduite,
• supprimée,
• remplacée par une édition révisée, ou
• amendée.

Le contenu de la feuille d’interprétation 1 de juillet 2012 a été pris en considération dans cet

exemplaire.
_____________
Sommaire
Remplacer le titre de l'Article 3 par le nouveau titre suivant:
3 Termes, définitions et abréviations
Remplacer le titre de l'Article 8 par le nouveau titre suivant:
8 Incertitude de mesure
Remplacer le titre de l'Article 9 par le nouveau titre suivant:
9 Incertitude de mesure
Ajouter les nouveaux Articles 10 et 11 suivants:
10 Conformité à la présente norme
11 Exigences d'essais en émission
Remplacer le titre du Tableau 1 par le nouveau titre suivant:
Tableau 1 – Emission – Accès par l’enveloppe
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
