IEC 60335-2-17:2002

Household and similar electrical appliances - Safety - Part 2-17: Particular requirements for blankets, pads and similar flexible heating appliances

Deals with the safety of electric blankets, pads and other flexible appliances for heating the bed or human body, for household and similar purposes, their rated voltage being not more than 250 V. This standard also deals with the control units supplied with the appliance.

Appareils électrodomestiques et analogues - Sécurité - Partie 2-17: Règles particulières pour les couvertures, coussins et appareils chauffants souples analogues

Traite de la sécurité des couvertures, coussins et autres appareils électriques souples, destinés à chauffer un lit ou le corps humain, pour usages domestiques et analogues et dont la tension assignée n'est pas supérieure à 250 V. Cette norme s'applique également aux unités de commande fournies avec l'appareil.

General Information

• Status: Published
• Publication Date: 13-Oct-2009
• ICS: 13.120 - Domestic safety
• ICS: 97.040.50 - Small kitchen appliances
• Technical Committee: TC 61 - Safety of household and similar electrical appliances
• Drafting Committee: MT 15 - TC 61/MT 15
• Current Stage: DELPUB - Deleted Publication
• Completion Date: 26-Mar-2012

Relations

• Amended By: IEC 60335-2-17:2002/AMD2:2008 - Amendment 2 - Household and similar electrical appliances - Safety - Part 2-17: Particular requirements for blankets, pads and similar flexible heating appliances
• Effective Date: 05-Sep-2023
• Amended By: IEC 60335-2-17:2002/AMD1:2006 - Amendment 1 - Household and similar electrical appliances - Safety - Part 2-17: Particular requirements for blankets, pads and similar flexible heating appliances
• Effective Date: 05-Sep-2023
• Revised: IEC 60335-2-17:2012 - Household and similar electrical appliances - Safety - Part 2-17: Particular requirements for blankets, pads, clothing and similar flexible heating appliances
• Effective Date: 05-Sep-2023
• Revises: IEC 60335-2-17:1998 - Safety of household and similar electrical appliances - Part 2-17: Particular requirements for blankets, pads and similar flexible heating appliances
• Effective Date: 05-Sep-2023

Standards Content (Sample)

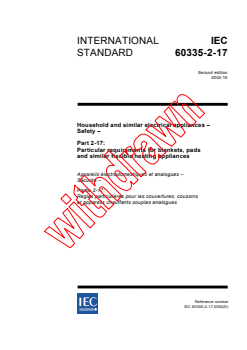

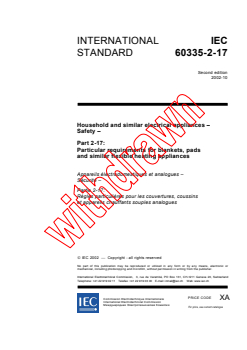

INTERNATIONAL IEC
STANDARD
60335-2-17
Second edition
2002-10
Household and similar electrical appliances –
Safety –
Part 2-17:
Particular requirements for blankets, pads
and similar flexible heating appliances
Appareils électrodomestiques et analogues –
Sécurité –
Partie 2-17:
Règles particulières pour les couvertures, coussins
et appareils chauffants souples analogues
Reference number

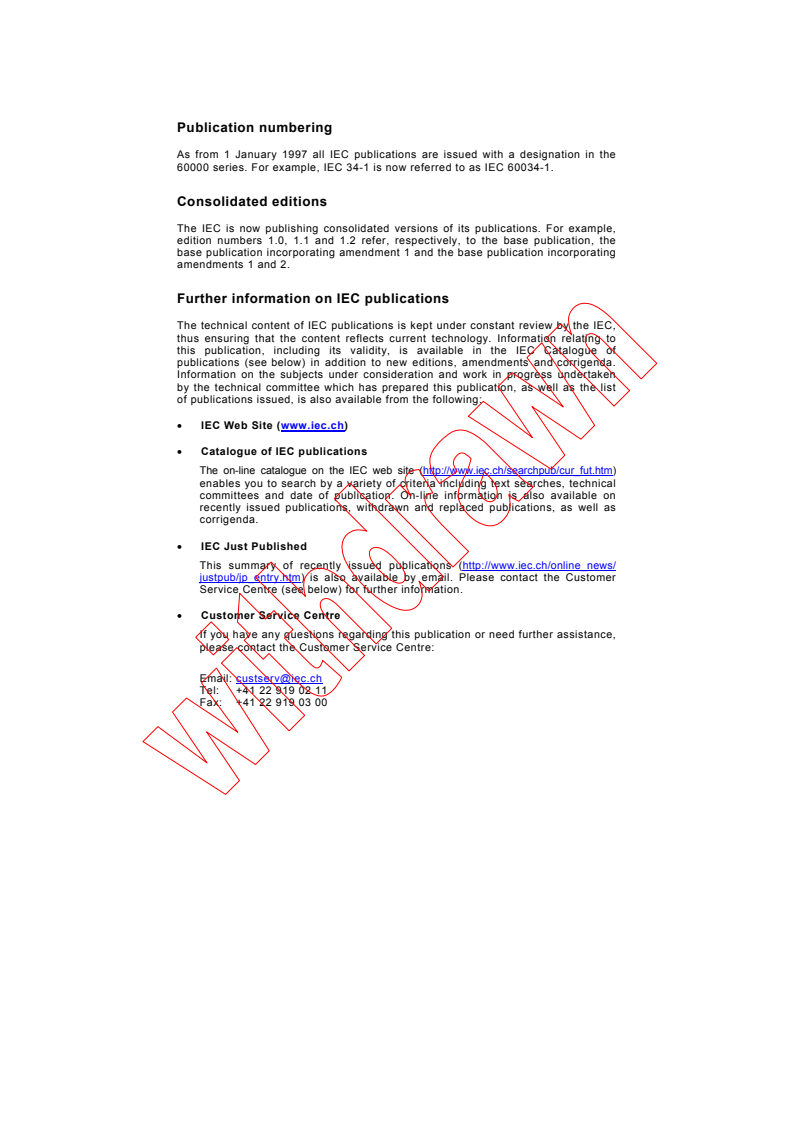

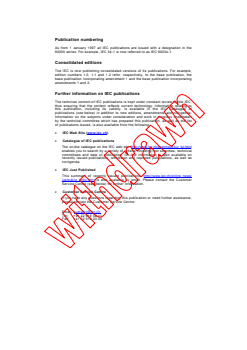

Publication numbering
As from 1 January 1997 all IEC publications are issued with a designation in the
60000 series. For example, IEC 34-1 is now referred to as IEC 60034-1.
Consolidated editions
The IEC is now publishing consolidated versions of its publications. For example,
edition numbers 1.0, 1.1 and 1.2 refer, respectively, to the base publication, the
base publication incorporating amendment 1 and the base publication incorporating
amendments 1 and 2.
Further information on IEC publications
The technical content of IEC publications is kept under constant review by the IEC,
thus ensuring that the content reflects current technology. Information relating to
this publication, including its validity, is available in the IEC Catalogue of
publications (see below) in addition to new editions, amendments and corrigenda.
Information on the subjects under consideration and work in progress undertaken
by the technical committee which has prepared this publication, as well as the list
of publications issued, is also available from the following:
• IEC Web Site (www.iec.ch)
• Catalogue of IEC publications
The on-line catalogue on the IEC web site (http://www.iec.ch/searchpub/cur_fut.htm)
enables you to search by a variety of criteria including text searches, technical
committees and date of publication. On-line information is also available on
recently issued publications, withdrawn and replaced publications, as well as
corrigenda.
• IEC Just Published
This summary of recently issued publications (http://www.iec.ch/online_news/
justpub/jp_entry.htm) is also available by email. Please contact the Customer
Service Centre (see below) for further information.
• Customer Service Centre
If you have any questions regarding this publication or need further assistance,
please contact the Customer Service Centre:
Email: [e-mail]
Tel: [phone]
Fax: [phone]
INTERNATIONAL IEC
STANDARD
60335-2-17
Second edition
2002-10
Household and similar electrical appliances –
Safety –
Part 2-17:
Particular requirements for blankets, pads
and similar flexible heating appliances
Appareils électrodomestiques et analogues –
Sécurité –
Partie 2-17:
Règles particulières pour les couvertures, coussins
et appareils chauffants souples analogues
 IEC 2002  Copyright - all rights reserved
No part of this publication may be reproduced or utilized in any form or by any means, electronic or
mechanical, including photocopying and microfilm, without permission in writing from the publisher.
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: [phone] Telefax: [phone] E-mail: [e-mail]  Web: www.iec.ch
PRICE CODE
Commission Electrotechnique Internationale
XA
International Electrotechnical Commission
Международная Электротехническая Комиссия
For price, see current catalogue

– 2 – 60335-2-17  IEC:2002(E)

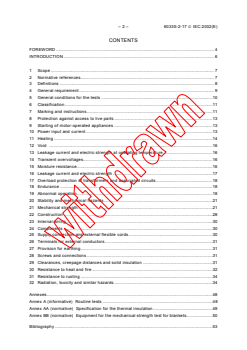

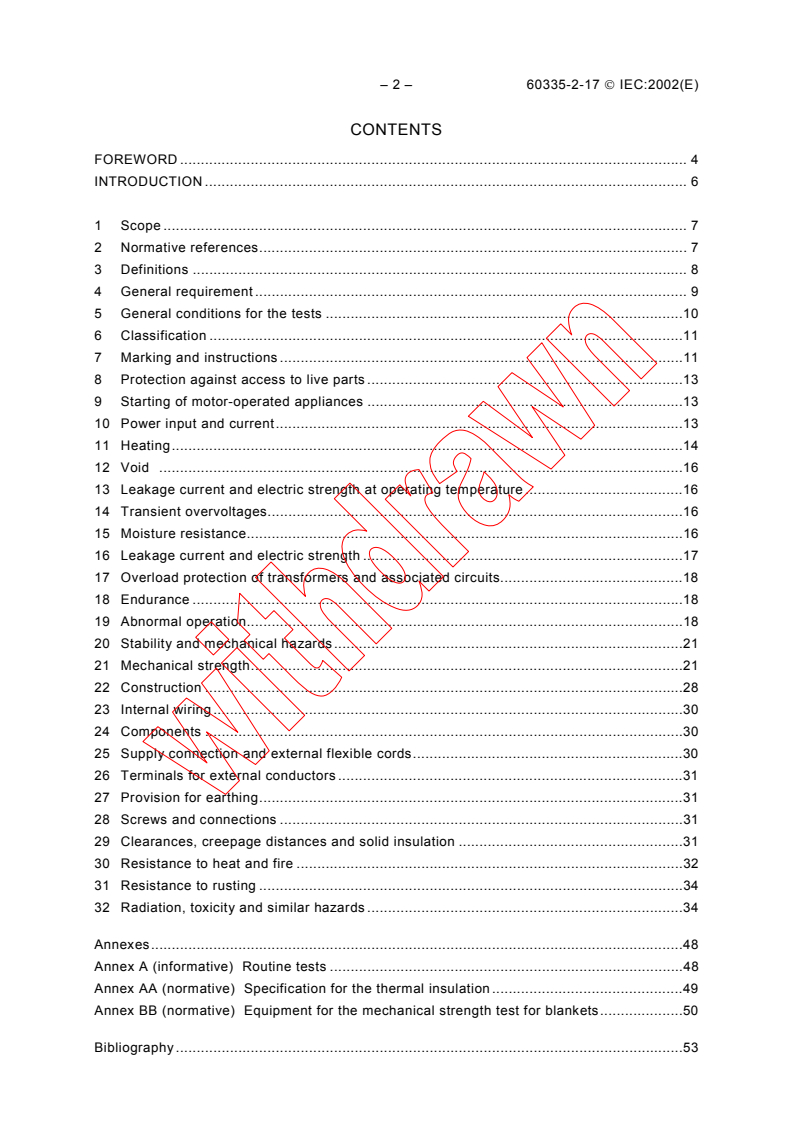

CONTENTS
FOREWORD . 4
INTRODUCTION .6
1 Scope . 7
2 Normative references. 7
3 Definitions . 8
4 General requirement . 9
5 General conditions for the tests .10
6 Classification .11
7 Marking and instructions .11
8 Protection against access to live parts .13
9 Starting of motor-operated appliances .13
10 Power input and current.13
11 Heating.14
12 Void .16
13 Leakage current and electric strength at operating temperature .16
14 Transient overvoltages.16
15 Moisture resistance.16
16 Leakage current and electric strength .17
17 Overload protection of transformers and associated circuits.18
18 Endurance .18
19 Abnormal operation.18
20 Stability and mechanical hazards.21
21 Mechanical strength.21
22 Construction .28
23 Internal wiring.30
24 Components .30
25 Supply connection and external flexible cords.30
26 Terminals for external conductors .31
27 Provision for earthing.31
28 Screws and connections .31
29 Clearances, creepage distances and solid insulation .31
30 Resistance to heat and fire .32
31 Resistance to rusting .34
32 Radiation, toxicity and similar hazards .34
Annexes.48
Annex A (informative) Routine tests .48
Annex AA (normative) Specification for the thermal insulation.49
Annex BB (normative) Equipment for the mechanical strength test for blankets.50
Bibliography.53

60335-2-17  IEC:2002(E) – 3 –
Figure 101 – Symbol for "Do not use folded or rucked".35
Figure 102 – Symbol for "Do not insert pins" .35
Figure 103 – Grid for heatstroke test.36
Figure 104 – Arrangement for measuring leakage current and electric strength of the
flexible part .37
Figure 105 – Arrangement for the three-thickness fold test.38
Figure 106 – Different positions of the thermal insulation on flexible parts incorporating
thermostats .39
Figure 107 – Examples of folds and the position of the thermal insulation on pads.40
Figure 108 – Tumbling barrel for testing the mechanical strength of pads .41
Figure 109 – Impact apparatus for testing enclosures of moisture-proof appliances .42
Figure 110 – Shape of the sample for the tear resistance test .43
Figure 111 – Equipment for flexing heating elements and internal wiring.44
Figure 112 – Arrangement for the rigidity test of ruck-resistant blankets.45
Figure 113 – Equipment for the spark ignition test.46
Figure 113a – Details of the mask .47
Figure BB.1 – Equipment for the mechanical strength test of blankets.51
Figure BB.2 – Detail of the drum and cylinders.52
Figure BB.3 – Detail of the clamping bar .52
Table 101 – Maximum temperatures.15
Table 102 – Maximum temperature rises.15
Table A.101 – Test voltages.48

– 4 – 60335-2-17  IEC:2002(E)
INTERNATIONAL ELECTROTECHNICAL COMMISSION
___________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-17: Particular requirements for blankets, pads
and similar flexible heating appliances
FOREWORD
1) The IEC (International Electrotechnical Commission) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of the IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, the IEC publishes International Standards. Their preparation is
entrusted to technical committees; any IEC National Committee interested in the subject dealt with may
participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. The IEC collaborates closely with the International
Organization for Standardization (ISO) in accordance with conditions determined by agreement between the
two organizations.
2) The formal decisions or agreements of the IEC on technical matters express, as nearly as possible, an
international consensus of opinion on the relevant subjects since each technical committee has representation
from all interested National Committees.
3) The documents produced have the form of recommendations for international use and are published in the form
of standards, technical specifications, technical reports or guides and they are accepted by the National
Committees in that sense.
4) In order to promote international unification, IEC National Committees undertake to apply IEC International
Standards transparently to the maximum extent possible in their national and regional standards. Any
divergence between the IEC Standard and the corresponding national or regional standard shall be clearly
indicated in the latter.
5) The IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with one of its standards.
6) Attention is drawn to the possibility that some of the elements of this International Standard may be the subject
of patent rights. The IEC shall not be held responsible for identifying any or all such patent rights.
This part of International Standard IEC 60335 has been prepared by IEC technical committee
61: Safety of household and similar electrical appliances.
This second edition cancels and replaces the first edition published in 1998. It constitutes a
technical revision.
The text of this part of IEC 60335 is based on the following documents:
FDIS Report on voting
61/2168/FDIS 61/2249/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This part 2 is to be used in conjunction with the latest edition of IEC 60335-1 and its
amendments. It was established on the basis of the fourth edition (2001) of that standard.
NOTE 1 When “Part 1” is mentioned in this standard, it refers to IEC 60335-1.
This part 2 supplements or modifies the corresponding clauses in IEC 60335-1, so as to
convert that publication into the IEC standard: Safety requirements for electric blankets, pads
and similar flexible heating appliances.
NOTE 2 Annex AA contains provisions from ISO 2439.

60335-2-17  IEC:2002(E) – 5 –
When a particular subclause of Part 1 is not mentioned in this part 2, that subclause applies
as far as is reasonable. When this standard states "addition", "modification", or "replacement",
the relevant text in Part 1 is to be adapted accordingly.
NOTE 3 The following numbering system is used:
– subclauses, tables and figures that are numbered starting from 101 are additional to thos
...

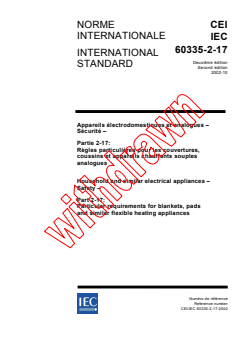

NORME CEI
INTERNATIONALE
IEC
60335-2-17
INTERNATIONAL
Deuxième édition
STANDARD
Second edition
2002-10
Appareils électrodomestiques et analogues –
Sécurité –
Partie 2-17:
Règles particulières pour les couvertures,
coussins et appareils chauffants souples
analogues
Household and similar electrical appliances –
Safety –
Part 2-17:
Particular requirements for blankets, pads
and similar flexible heating appliances
Numéro de référence
Reference number
CEI/IEC 60335-2-17:2002
Numérotation des publications Publication numbering
Depuis le 1er janvier 1997, les publications de la CEI As from 1 January 1997 all IEC publications are
sont numérotées à partir de 60000. Ainsi, la CEI 34-1 issued with a designation in the 60000 series. For
devient la CEI 60034-1. example, IEC 34-1 is now referred to as IEC 60034-1.
Editions consolidées Consolidated editions
Les versions consolidées de certaines publications de la The IEC is now publishing consolidated versions of its
CEI incorporant les amendements sont disponibles. Par publications. For example, edition numbers 1.0, 1.1
exemple, les numéros d’édition 1.0, 1.1 et 1.2 indiquent and 1.2 refer, respectively, to the base publication,
respectivement la publication de base, la publication de the base publication incorporating amendment 1 and
base incorporant l’amendement 1, et la publication de the base publication incorporating amendments 1
base incorporant les amendements 1 et 2. and 2.
Informations supplémentaires Further information on IEC publications
sur les publications de la CEI
Le contenu technique des publications de la CEI est The technical content of IEC publications is kept
constamment revu par la CEI afin qu'il reflète l'état under constant review by the IEC, thus ensuring that
actuel de la technique. Des renseignements relatifs à the content reflects current technology. Information
cette publication, y compris sa validité, sont dispo- relating to this publication, including its validity, is
nibles dans le Catalogue des publications de la CEI available in the IEC Catalogue of publications
(voir ci-dessous) en plus des nouvelles éditions, (see below) in addition to new editions, amendments
amendements et corrigenda. Des informations sur les and corrigenda. Information on the subjects under
sujets à l’étude et l’avancement des travaux entrepris consideration and work in progress undertaken by the
par le comité d’études qui a élaboré cette publication, technical committee which has prepared this
ainsi que la liste des publications parues, sont publication, as well as the list of publications issued,
également disponibles par l’intermédiaire de: is also available from the following:
• Site web de la CEI (www.iec.ch) • IEC Web Site (www.iec.ch)
• Catalogue des publications de la CEI • Catalogue of IEC publications
Le catalogue en ligne sur le site web de la CEI The on-line catalogue on the IEC web site
(www.iec.ch/searchpub) vous permet de faire des (www.iec.ch/searchpub) enables you to search by a
recherches en utilisant de nombreux critères, variety of criteria including text searches,
comprenant des recherches textuelles, par comité technical committees and date of publication. On-
d’études ou date de publication. Des informations en line information is also available on recently
ligne sont également disponibles sur les nouvelles issued publications, withdrawn and replaced
publications, les publications remplacées ou retirées, publications, as well as corrigenda.
ainsi que sur les corrigenda.
• IEC Just Published • IEC Just Published
Ce résumé des dernières publications parues This summary of recently issued publications
(www.iec.ch/online_news/justpub) est aussi dispo- (www.iec.ch/online_news/justpub) is also available
nible par courrier électronique. Veuillez prendre by email. Please contact the Customer Service
contact avec le Service client (voir ci-dessous) Centre (see below) for further information.
pour plus d’informations.
• Service clients • Customer Service Centre
Si vous avez des questions au sujet de cette If you have any questions regarding this
publication ou avez besoin de renseignements publication or need further assistance, please
supplémentaires, prenez contact avec le Service contact the Customer Service Centre:
clients:
Email: [e-mail] Email: [e-mail]
Tél: [phone] Tel: [phone]
Fax: [phone] Fax: [phone]
.
NORME CEI
INTERNATIONALE
IEC
60335-2-17
INTERNATIONAL
Deuxième édition
STANDARD
Second edition
2002-10
Appareils électrodomestiques et analogues –
Sécurité –
Partie 2-17:
Règles particulières pour les couvertures,
coussins et appareils chauffants souples
analogues
Household and similar electrical appliances –
Safety –
Part 2-17:
Particular requirements for blankets, pads
and similar flexible heating appliances

 IEC 2002 Droits de reproduction réservés  Copyright - all rights reserved
Aucune partie de cette publication ne peut être reproduite ni No part of this publication may be reproduced or utilized in any
utilisée sous quelque forme que ce soit et par aucun procédé, form or by any means, electronic or mechanical, including
électronique ou mécanique, y compris la photocopie et les photocopying and microfilm, without permission in writing from
microfilms, sans l'accord écrit de l'éditeur. the publisher.
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: [phone] Telefax: [phone] E-mail: [e-mail] Web: www.iec.ch
CODE PRIX
XA
PRICE CODE
Commission Electrotechnique Internationale
International Electrotechnical Commission
МеждународнаяЭлектротехническаяКомиссия
Pour prix, voir catalogue en vigueur
For price, see current catalogue

– 2 – 60335-2-17  CEI:2005
SOMMAIRE
AVANT-PROPOS.6
INTRODUCTION.10
1 Domaine d'application .12
2 Références normatives.12
3 Définitions .14
4 Exigences générales .16
5 Conditions générales d'essais .18
6 Classification.20
7 Marquage et instructions .20
8 Protection contre l'accès aux parties actives .24
9 Démarrage des appareils à moteur.24
10 Puissance et courant .26
11 Echauffements .26
12 Vacant.30
13 Courant de fuite et rigidité diélectrique à la température de régime .30
14 Surtensions transitoires.32
15 Résistance à l'humidité.32
16 Courant de fuite et rigidité diélectrique .34
17 Protection contre la surcharge des transformateurs et des circuits associés.34
18 Endurance.34
19 Fonctionnement anormal .36
20 Stabilité et dangers mécaniques .42
21 Résistance mécanique .42
22 Construction .56
23 Conducteurs internes .60
24 Composants .60
25 Raccordement au réseau et câbles souples extérieurs .62
26 Bornes pour conducteurs externes .64
27 Dispositions en vue de la mise à la terre .64
28 Vis et connexions .64
29 Lignes de fuite, distances dans l'air et distances à travers l'isolation .64
30 Résistance à la chaleur et au feu.64
31 Protection contre la rouille.68
32 Rayonnement, toxicité et dangers analogues.68

Annexes .96
Annexe A (informative) Essais de série.96
Annexe AA (normative) Spécification pour l'isolant thermique .98
Annexe BB (normative) Appareillage pour l'essai de résistance mécanique des
couvertures.100

Bibliographie.106

60335-2-17  IEC:2005 – 3 –
CONTENTS
FOREWORD.7
INTRODUCTION.11
1 Scope.13
2 Normative references .13
3 Definitions .15
4 General requirement.17
5 General conditions for the tests .19
6 Classification.21
7 Marking and instructions.21
8 Protection against access to live parts.25
9 Starting of motor-operated appliances .25
10 Power input and current .27
11 Heating .27
12 Void.31
13 Leakage current and electric strength at operating temperature.31
14 Transient overvoltages .33
15 Moisture resistance .33
16 Leakage current and electric strength.35
17 Overload protection of transformers and associated circuits .35
18 Endurance.35
19 Abnormal operation .37
20 Stability and mechanical hazards .43
21 Mechanical strength .43
22 Construction .57
23 Internal wiring.61
24 Components .61
25 Supply connection and external flexible cords .63
26 Terminals for external conductors.65
27 Provision for earthing .65
28 Screws and connections .
...

IEC 60335-2-17
Edition 2.1 2006-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Safety –
Part 2-17: Particular requirements for blankets, pads and similar flexible heating
appliances
Appareils électrodomestiques et analogues – Sécurité –
Partie 2-17: Règles particulières pour les couvertures, coussins et appareils
chauffants souples analogues
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or
IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: [e-mail]
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: [e-mail]
Tel.: [phone]
Fax: [phone]
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
ƒ Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
ƒ Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
ƒ Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
ƒ Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: [e-mail]
Tél.: [phone]
Fax: [phone]
IEC 60335-2-17
Edition 2.1 2006-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Safety –
Part 2-17: Particular requirements for blankets, pads and similar flexible heating
appliances
Appareils électrodomestiques et analogues – Sécurité –
Partie 2-17: Règles particulières pour les couvertures, coussins et appareils
chauffants souples analogues
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CQ
CODE PRIX
ICS 13.120; 97.040.50 ISBN 2-8318-8535-3

– 2 – 60335-2-17  CEI:2002+A1:2006
SOMMAIRE
AVANT-PROPOS.6
INTRODUCTION.10
1 Domaine d'application .12
2 Références normatives.12
3 Définitions .14
4 Exigences générales .18
5 Conditions générales d'essais .18
6 Classification.20
7 Marquage et instructions .20
8 Protection contre l'accès aux parties actives .26
9 Démarrage des appareils à moteur.26
10 Puissance et courant .26
11 Echauffements .26
12 Vacant.32
13 Courant de fuite et rigidité diélectrique à la température de régime .32
14 Surtensions transitoires.32
15 Résistance à l'humidité.32
16 Courant de fuite et rigidité diélectrique .36
17 Protection contre la surcharge des transformateurs et des circuits associés.36
18 Endurance.38
19 Fonctionnement anormal .38
20 Stabilité et dangers mécaniques .44
21 Résistance mécanique .46
22 Construction .60
23 Conducteurs internes .64
24 Composants .64
25 Raccordement au réseau et câbles souples extérieurs .66
26 Bornes pour conducteurs externes .68
27 Dispositions en vue de la mise à la terre .68
28 Vis et connexions .68
29 Lignes de fuite, distances dans l'air et distances à travers l'isolation .68
30 Résistance à la chaleur et au feu.70
31 Protection contre la rouille.74
32 Rayonnement, toxicité et dangers analogues.74

Annexes .100
Annexe A (informative) Essais de série.100
Annexe AA (normative) Spécification pour l'isolant thermique .102
Annexe BB (normative) Appareillage pour l'essai de résistance mécanique des
couvertures.104

Bibliographie.110

60335-2-17  IEC:2002+A1:2006 – 3 –
CONTENTS
FOREWORD.7
INTRODUCTION.11
1 Scope.13
2 Normative references .13
3 Definitions .15
4 General requirement.19
5 General conditions for the tests .19
6 Classification.21
7 Marking and instructions.21
8 Protection against access to live parts.27
9 Starting of motor-operated appliances .27
10 Power input and current .27
11 Heating .27
12 Void.33
13 Leakage current and electric strength at operating temperature.33
14 Transient overvoltages .33
15 Moisture resistance .33
16 Leakage current and electric strength.37
17 Overload protection of transformers and associated circuits .37
18 Endurance.39
19 Abnormal operation .39
20 Stability and mechanical hazards .45
21 Mechanical strength .47
22 Construction .61
23 Internal wiring.65
24 Components .65
25 Supply connection and external flexible cords .67
26 Terminals for external conductors.69
27 Provision for earthing .69
28 Screws and connections .69
29 Clearances, creepage distances and solid insulation .69
30 Resistance to heat and fire.71
31 Resistance to rusting.75
32 Radiation, toxicity and si
...

IEC 60335-2-17 ®
Edition 2.2 2009-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Safety –
Part 2-17: Particular requirements for blankets, pads, clothing and similar
flexible heating appliances
Appareils électrodomestiques et analogues – Sécurité –
Partie 2-17: Règles particulières pour les couvertures, coussins, vêtements et
appareils chauffants souples analogues

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or
IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: [e-mail]
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: [e-mail]
Tel.: [phone]
Fax: [phone]
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
ƒ Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
ƒ Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
ƒ Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
ƒ Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: [e-mail]
Tél.: [phone]
Fax: [phone]
IEC 60335-2-17 ®
Edition 2.2 2009-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Safety –
Part 2-17: Particular requirements for blankets, pads, clothing and similar
flexible heating appliances
Appareils électrodomestiques et analogues – Sécurité –
Partie 2-17: Règles particulières pour les couvertures, coussins, vêtements et
appareils chauffants souples analogues
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CR
CODE PRIX
ICS 13.120, 97.040.50 ISBN 978-2-88910-142-9
– 2 – 60335-2-17 © IEC:2002:+A1:2006
+A2:2008
CONTENTS
FOREWORD.4
INTRODUCTION.6
1 Scope.7
2 Normative references .8
3 Definitions .8
4 General requirement.10
5 General conditions for the tests .10
6 Classification.11
7 Marking and instructions.12
8 Protection against access to live parts.14
9 Starting of motor-operated appliances .14
10 Power input and current .14
11 Heating .15
12 Void.17
13 Leakage current and electric strength at operating temperature.17
14 Transient overvoltages .18
15 Moisture resistance .18
16 Leakage current and electric strength.19
17 Overload protection of transformers and associated circuits .20
18 Endurance.20
19 Abnormal operation .20
20 Stability and mechanical hazards .24
21 Mechanical strength .24
22 Construction .30
23 Internal wiring.33
24 Components .33
25 Supply connection and external flexible cords .33
26 Terminals for external conductors.34
27 Provision for earthing .34
28 Screws and connections .34
29 Clearances, creepage distances and solid insulation .35
30 Resistance to heat and fire.35
31 Resistance to rusting.37
32 Radiation, toxicity and similar hazards.37

Annexes .50
Annex A (informative) Routine tests .50
Annex AA (normative) Specification for the thermal insulation.51
Annex BB (normative) Equipment for the mechanical strength test for blankets .52
Annex CC (normative) Clothing.55

60335-2-17 © IEC:2002+A1:2006 – 3 –
+A2:2008
Bibliography.58

Figure 101 – Symbol for "Do not use folded or rucked" .38
Figure 102 – Symbol for "Do not insert pins".38
Figure 103 – Void .38
Figure 104 – Arrangement for measuring leakage current and electric strength
of the flexible part .39
Figure 105 – Arrangement for the three-thickness fold test .40
Figure 106 – Examples showing the position of the thermal insulation
on ruck-resistant blankets and mattresses .41
Figure 107 – Examples of folds and the position of the thermal insulation on pads .42
Figure 108 – Tumbling barrel for testing the mechanical strength of pads .43
Figure 109 – Impact apparatus for testing enclosures of moisture-proof appliances .44
Figure 110 – Shape of the sample for the tear resistance test.45
Figure 111 – Equipment for flexing heating elements and internal wiring .46
Figure 112 – Arrangement for the rigidity test of ruck-resistant blankets .47
Figure 113 – Equipment for the spark ignition test .48
Figure 113a – Details of the mask.49
Figure BB.1 – Equipment for the mechanical strength test of blankets .53
Figure BB.2 – Detail of the drum and cylinders .54
Figure BB.3 – Detail of the clamping bar.54

Table 101 – Maximum temperatures .16
Table 102 – Maximum temperature rises.16
Table A.101 – Test voltages .50

– 4 – 60335-2-17 © IEC:2002:+A1:2006
+A2:2008
INTERNATIONAL ELECTROTECHNICAL COMMISSION
___________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES – SAFETY –

Part 2-17: Particular requirements for blankets, pads,
clothing and similar flexible heating appliances

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters
...
